SB–56

SEAT BELT  –  REAR SEAT OUTER BELT ASSEMBLY

SB

REMOVAL

HINT:
The procedure described below is for the RH side. Use the
same procedure for both the RH and LH sides, unless
otherwise specified.

1.

REMOVE CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

REMOVE REAR SEATBACK BOARD CARPET
ASSEMBLY
(a) for RH Side:

(1) Remove the rear seatback board carpet

assembly (See page

SE-43

).

(b) for LH Side:

(1) Remove the rear seatback board carpet

assembly (See page

SE-29

).

3.

REMOVE REAR SEATBACK ASSEMBLY
(a) for RH Side:

(1) Remove the rear seatback assembly (See

page

SE-43

).

(b) for LH Side:

(1) Remove the rear seatback assembly (See

page

SE-29

).

4.

REMOVE REAR FLOOR BOARD (See page

IR-13

)

5.

REMOVE REAR FLOOR MAT SUPPORT PLATE (See
page

IR-14

)

6.

REMOVE LUGGAGE HOLD BELT STRIKER
ASSEMBLY (See page

IR-14

)

7.

REMOVE REAR FLOOR MAT ASSEMBLY (See page

IR-15

)

8.

REMOVE FRONT DOOR SCUFF PLATE (See page

IR-

15

)

9.

REMOVE ACCESS DOOR SCUFF PLATE (See page

IR-15

)

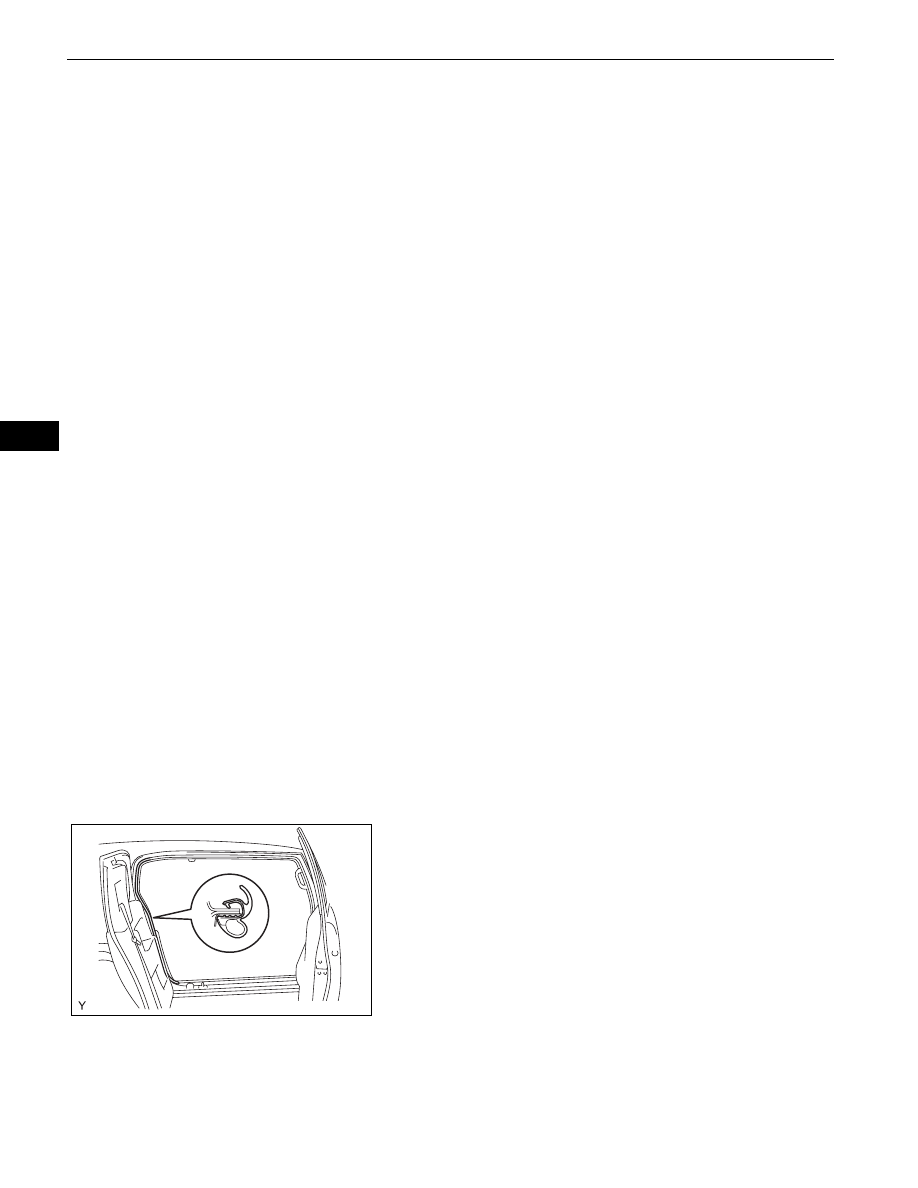

10. REMOVE FRONT DOOR OPENING TRIM

WEATHERSTRIP
(a) Remove the front door opening trim weatherstrip to

the extent that the deck trim side panel and the roof
side inner garnish can be removed.

11. REMOVE DECK SIDE GARNISH (w/ Woofer) (See

page

IR-18

)

12. REMOVE SPEAKER MOUNTING COVER (w/ Woofer)

(See page

AV-90

)

13. REMOVE AMPLIFIER BOX SPEAKER ASSEMBLY (w/

Woofer) (See page

AV-90

)

B138384

SEAT BELT  –  REAR SEAT OUTER BELT ASSEMBLY

SB–57

SB

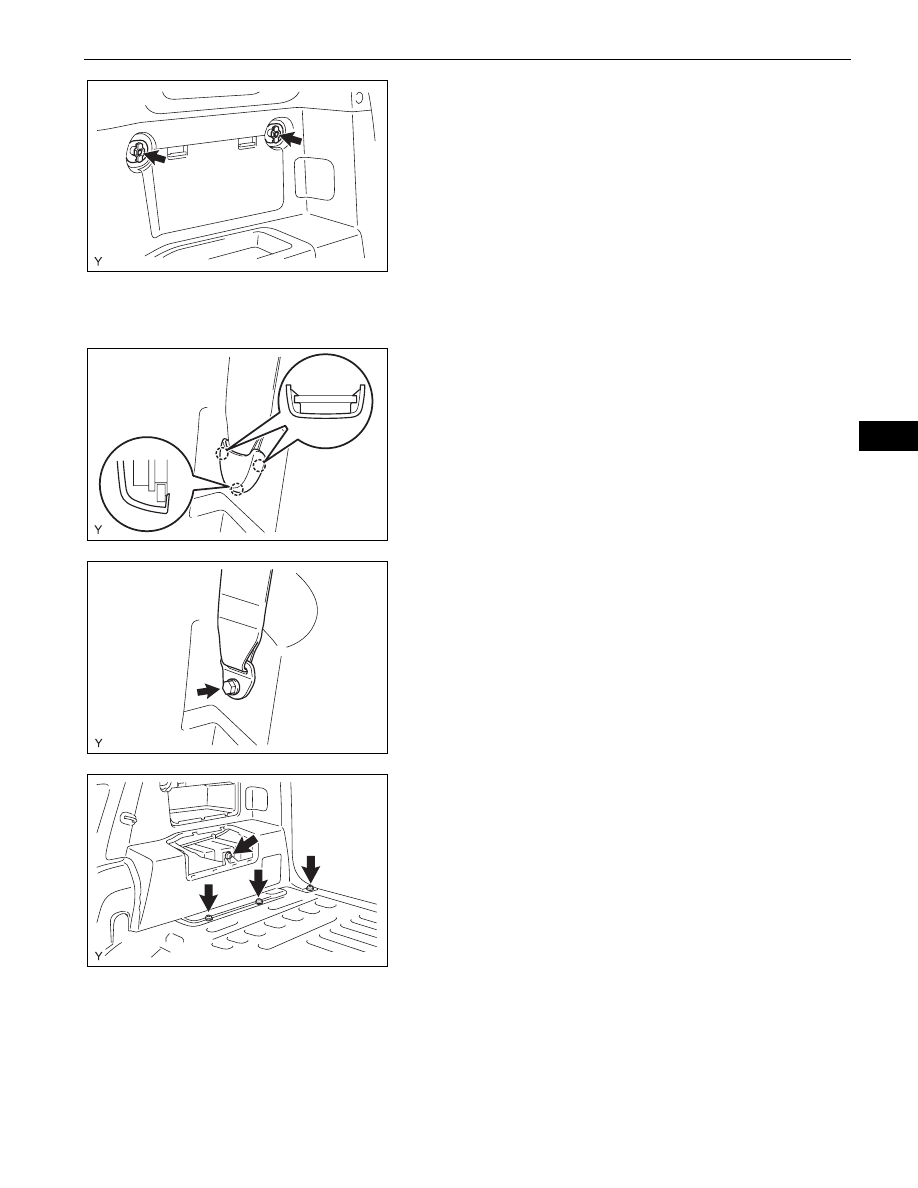

14. REMOVE PACKAGE HOLDER NET HOOK (w/o

Woofer)
HINT:
Use the same procedure for both sides.
(a) Remove the screw and the package holder net

hook.

15. REMOVE QUARTER TRIM POCKET TRAY (w/o

Woofer) (See page

IR-19

)

16. REMOVE SIDE TRIM COVER (w/o Woofer) (See page

IR-19

)

17. REMOVE QUARTER TRIM POCKET (w/o Woofer)

(See page

IR-19

)

18. REMOVE LAP BELT OUTER ANCHOR COVER

(a) Disengage the 3 claws and remove the lap belt

outer anchor cover.

19. REMOVE REAR DECK TRIM COVER (w/ Power

Outlet Socket) (See page

IR-20

)

20. REMOVE DECK TRIM SIDE PANEL ASSEMBLY

(a) Remove the bolt and the anchor plate.

(b) for RH Side:

(1) Remove the 4 screws.

B138474

B138385

B130615

B130616

SB–58

SEAT BELT  –  REAR SEAT OUTER BELT ASSEMBLY

SB

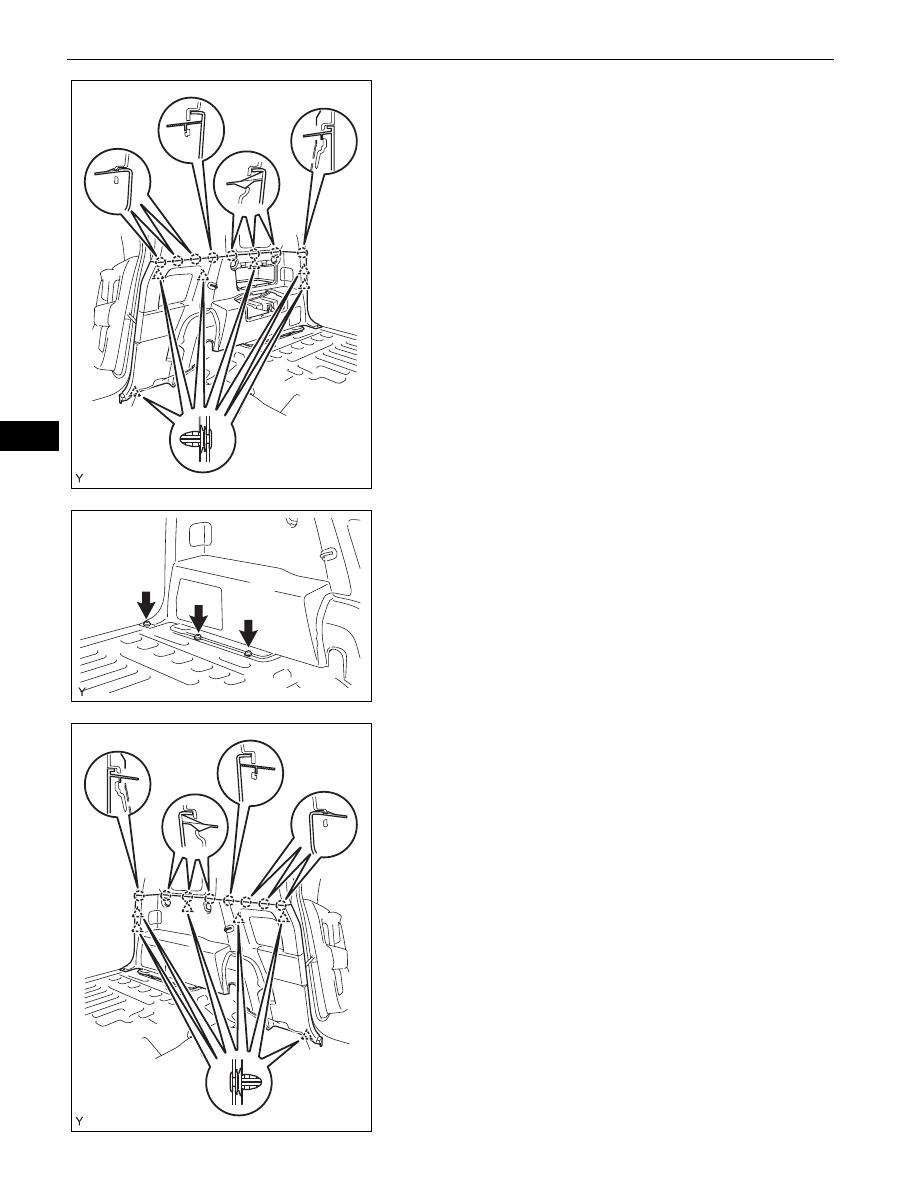

(2) Disengage the 6 clips and the 8 claws and

remove the deck trim side panel.

(c) for LH Side:

(1) Remove the 3 screws.

(2) Disengage the 6 clips and the 8 claws and

remove the deck trim side panel.

21. REMOVE ROOF SIDE INNER GARNISH (See page

IR-

22

)

B130617

B130618

B130619

SEAT BELT  –  REAR SEAT OUTER BELT ASSEMBLY

SB–59

SB

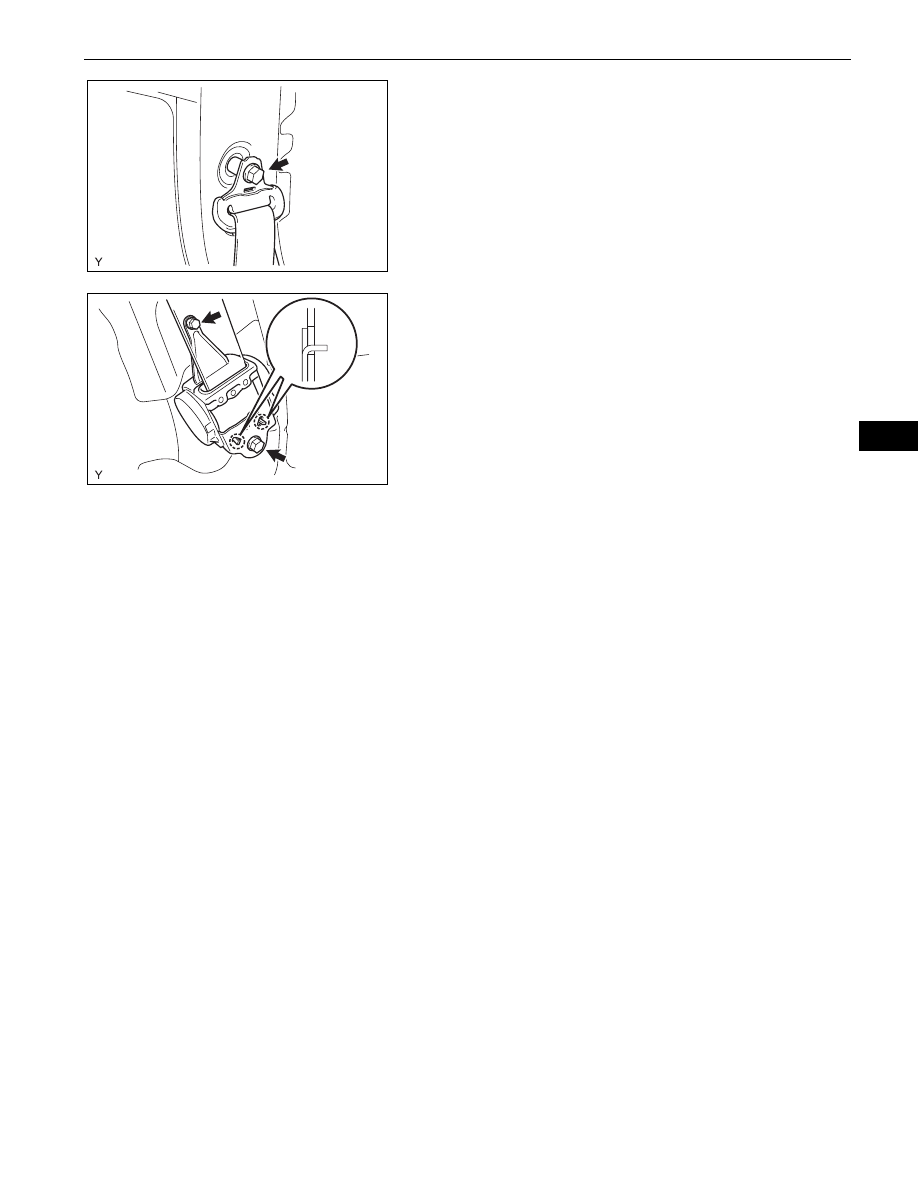

22. REMOVE REAR SEAT OUTER BELT ASSEMBLY

(a) Remove the bolt and the through anchor.

(b) Remove the 2 bolts, 2 hooks and the retractor.

B130781

B130780
