SB–48

SEAT BELT  –  FRONT SEAT OUTER BELT ASSEMBLY

SB

(h) Dispose of the front seat outer belt (with the seat

belt pretensioner).
CAUTION:
•

Do not touch the front seat outer belt for at
least 30 minutes after the seat belt
pretensioner has been activated. It is very
hot.

•

Use gloves and safety glasses when handling
a front seat outer belt with a pretensioner that
has been activated.

•

Always wash your hands with water after
completing the operation.

•

Do not apply water to a front seat outer belt
that has an activated pretensioner.

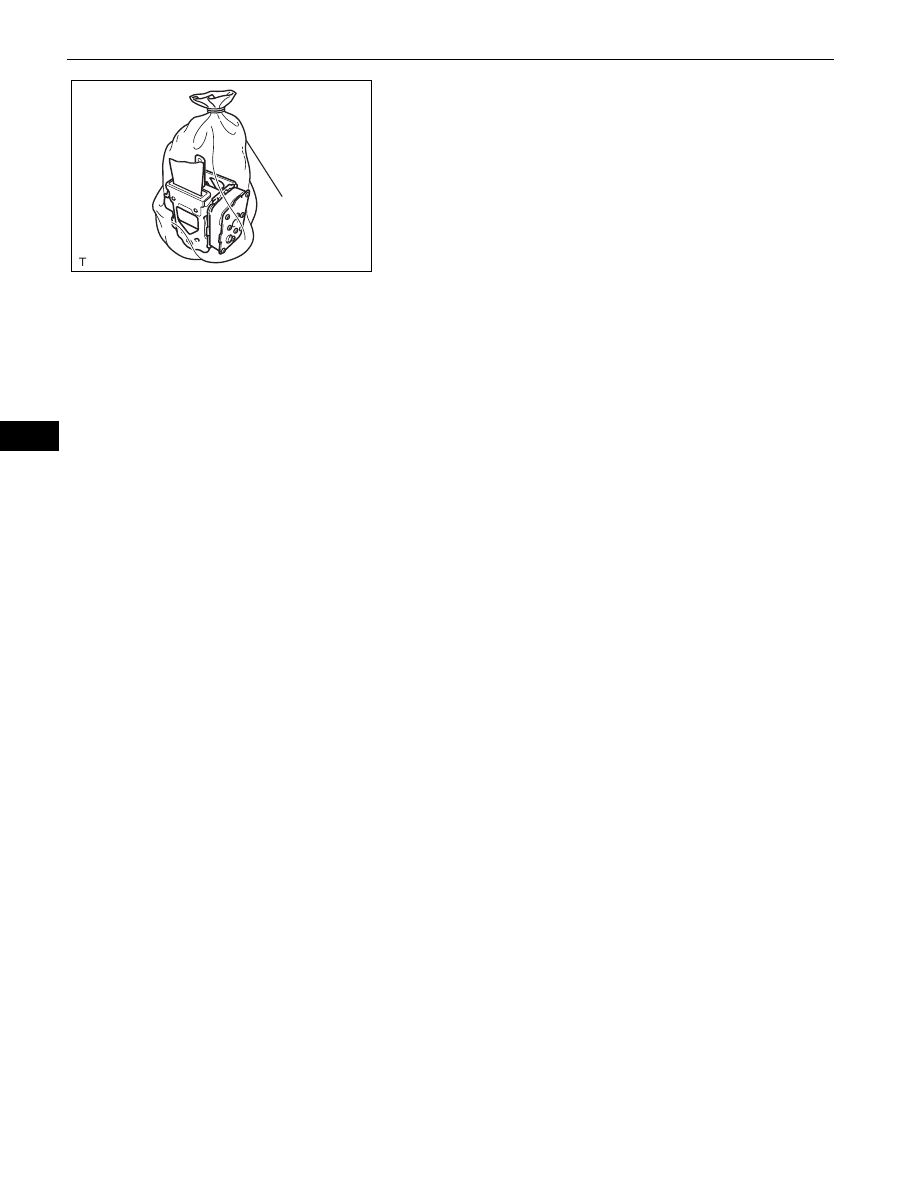

(1) Place the front seat outer belt in a plastic bag,

tie the end tightly and dispose of it in the same
way as other general parts.

Plastic Bag

B114475E01

SEAT BELT  –  REAR SEAT INNER BELT ASSEMBLY

SB–49

SB

RESTRAINTS

SEAT BELT

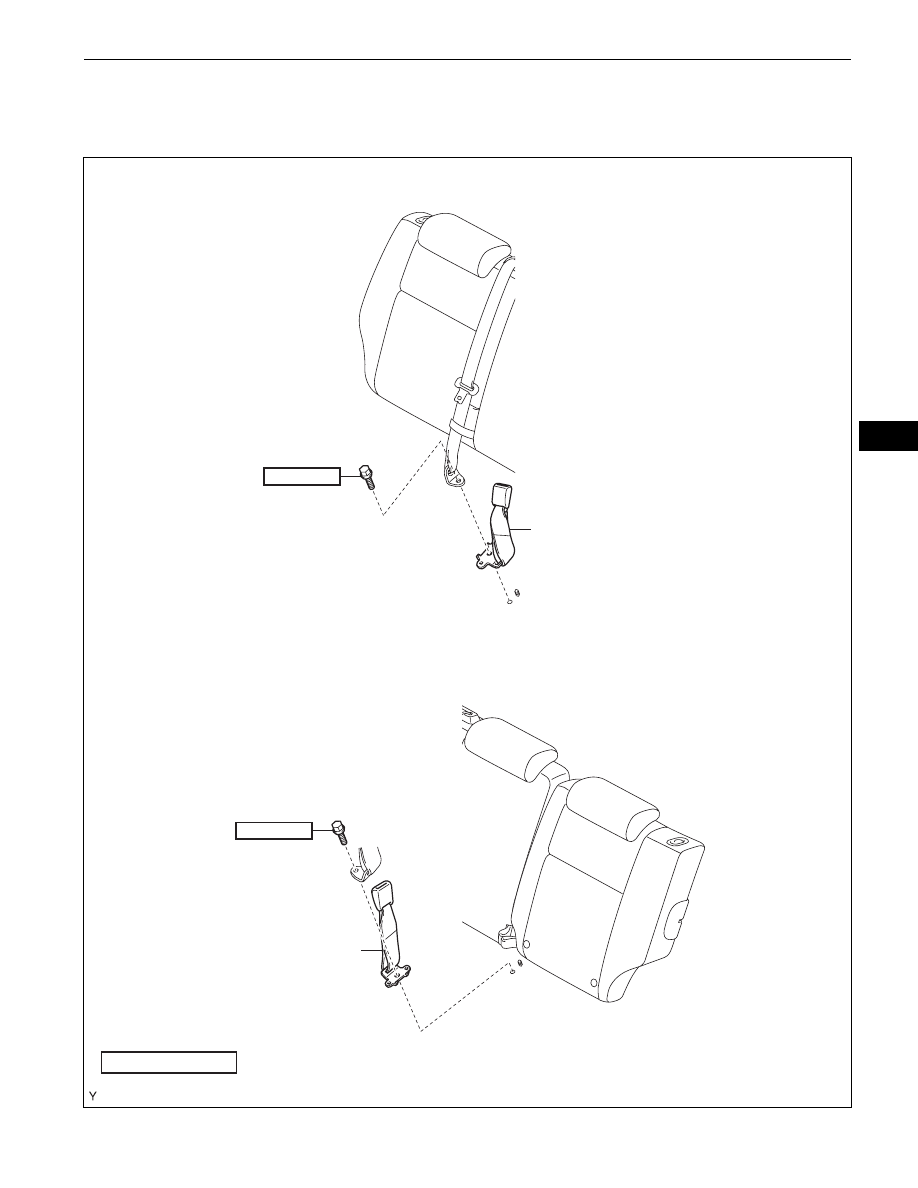

REAR SEAT INNER BELT ASSEMBLY

COMPONENTS

REAR SEAT INNER
BELT ASSEMBLY

N*m (kgf*cm, ft*lbf)  : Specified torque

42 (430, 31)

REAR SEAT INNER
BELT ASSEMBLY

42 (430, 31)

for RH Side:

for LH Side:

B135172E01

SB–50

SEAT BELT  –  REAR SEAT INNER BELT ASSEMBLY

SB

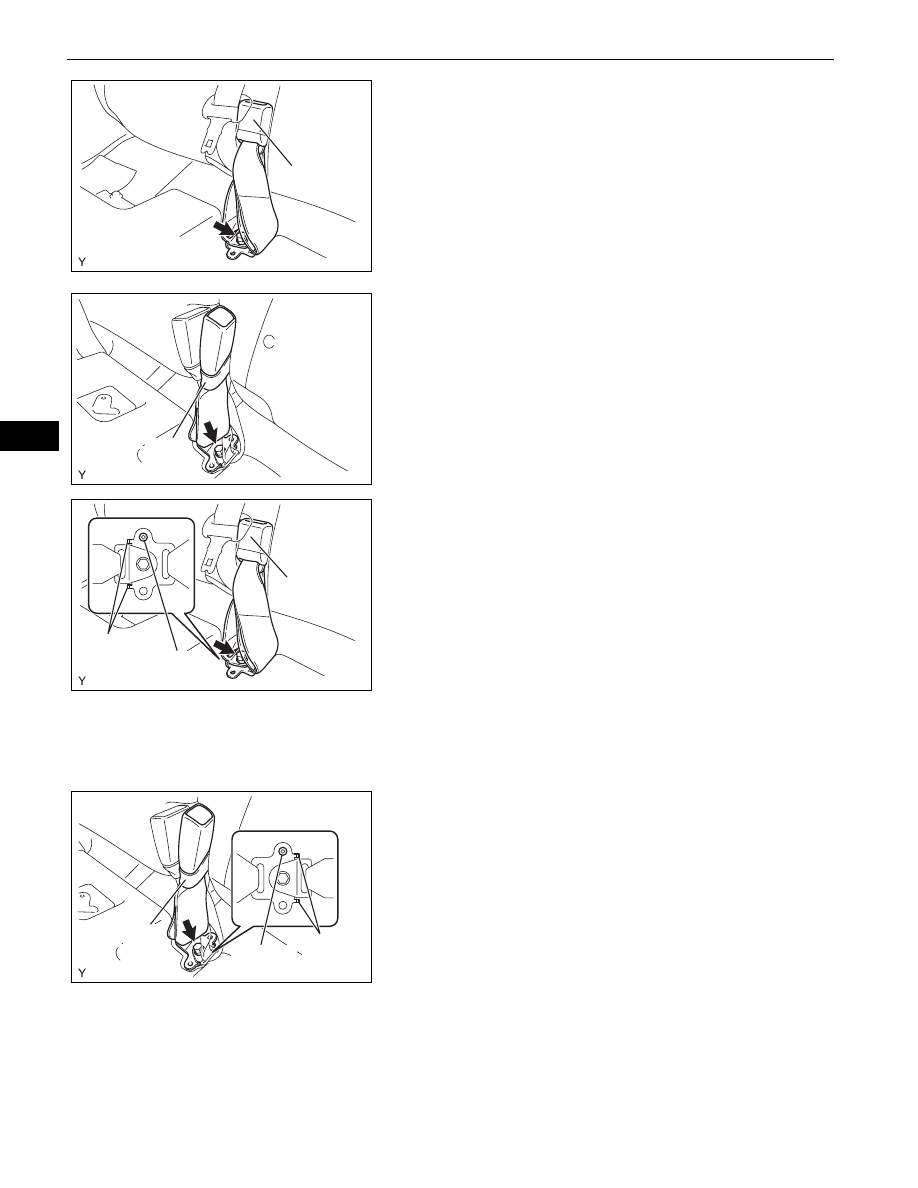

REMOVAL

1.

REMOVE REAR SEAT INNER BELT ASSEMBLY
(a) for RH Side:

(1) Pull up the rear seat cushion.
(2) Remove the buckle from the rear seatback

pocket.

(3) Remove the bolt, the anchor plate of the rear

center seat outer belt and the rear seat inner
belt.

(b) for LH Side:

(1) Pull up the rear seat cushion.
(2) Remove the buckle from the rear seatback

band.

(3) Remove the bolt, the anchor plate of the rear

center seat inner belt and the rear seat inner
belt.

INSTALLATION

1.

INSTALL REAR SEAT INNER BELT ASSEMBLY
(a) for RH Side:

(1) Align the jam hole in the anchor plate of the

rear seat inner belt with the stud bolt of the
body and provisionally install the anchor plate.

(2) Install the anchor plate of the rear center seat

inner belt with the bolt.
Torque: 42 N*m (430 kgf*cm, 31 ft.*lbf)
NOTICE:
Do not place the anchor plate over the
convex areas of the rear seat inner belt.

(3) Install the buckle into the rear seatback pocket.
(4) Install the rear seat cushion.

(b) for LH Side:

(1) Align the jam hole in the anchor plate of the

rear seat inner belt with the stud bolt of the
body and provisionally install the anchor plate.

(2) Install the anchor plate of the rear center seat

inner belt with the bolt.
Torque: 42 N*m (430 kgf*cm, 31 ft.*lbf)
NOTICE:
Do not place the anchor plate over the
convex areas of the rear seat inner belt.

(3) Install the buckle into the rear seatback band.
(4) Install the rear seat cushion.

Pocket

B135167E01

Band

B135173E01

Convex

Jam Hole

Pocket

B135168E01

Convex

Jam Hole

Band

B135174E01

SEAT BELT  –  REAR SEAT OUTER BELT ASSEMBLY

SB–51

SB

RESTRAINTS

SEAT BELT

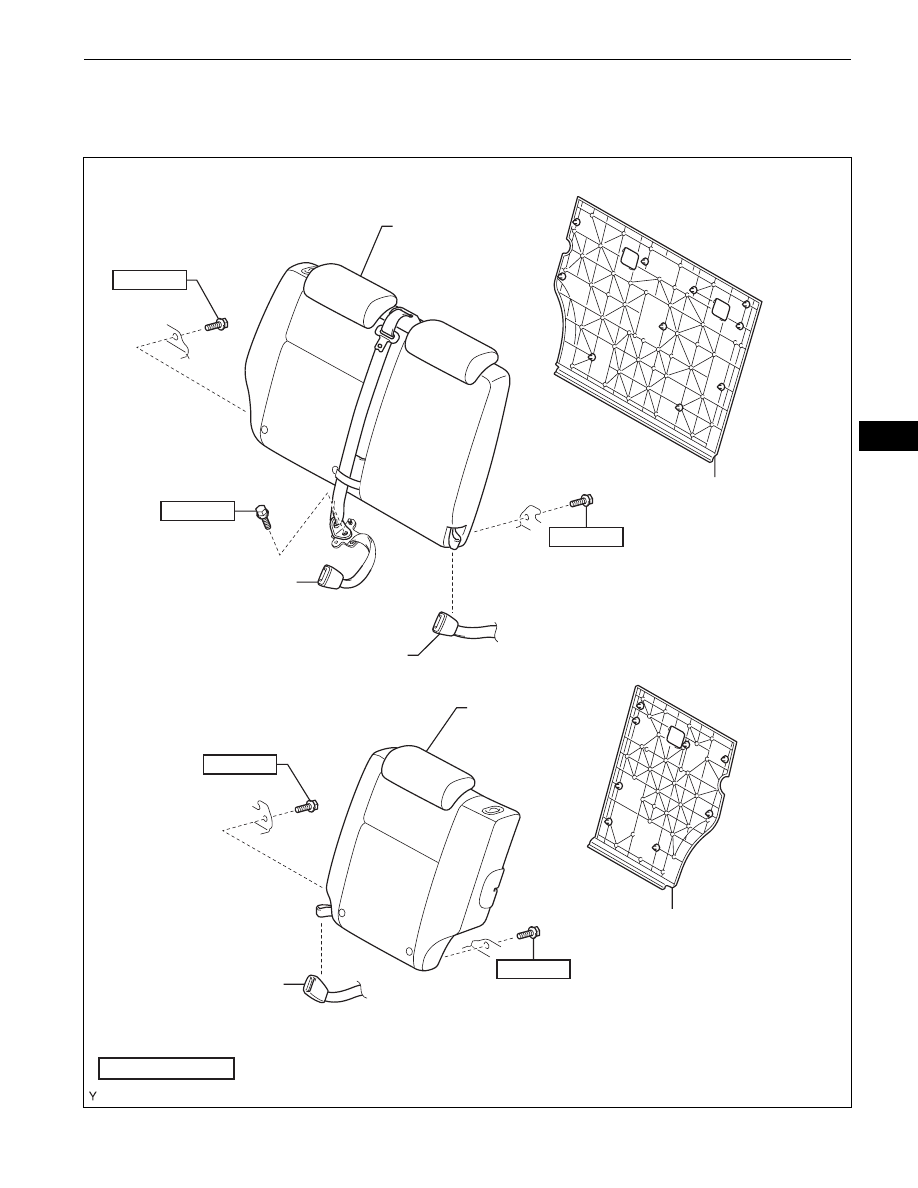

REAR SEAT OUTER BELT ASSEMBLY

COMPONENTS

for RH Side:

for LH Side:

37 (375, 27)

N*m (kgf*cm, ft*lbf)  : Specified torque

37 (375, 27)

37 (375, 27)

42 (430, 31)

37 (375, 27)

REAR SEAT INNER
BELT ASSEMBLY RH

REAR CENTER SEAT
INNER BELT ASSEMBLY

REAR SEAT INNER
BELT ASSEMBLY LH

REAR SEATBACK
ASSEMBLY

REAR SEATBACK BOARD
CARPET ASSEMBLY

REAR SEATBACK
ASSEMBLY

REAR SEATBACK BOARD
CARPET ASSEMBLY

B130654E02
