Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 444





SB–40

SEAT BELT  –  FRONT SEAT OUTER BELT ASSEMBLY

SB

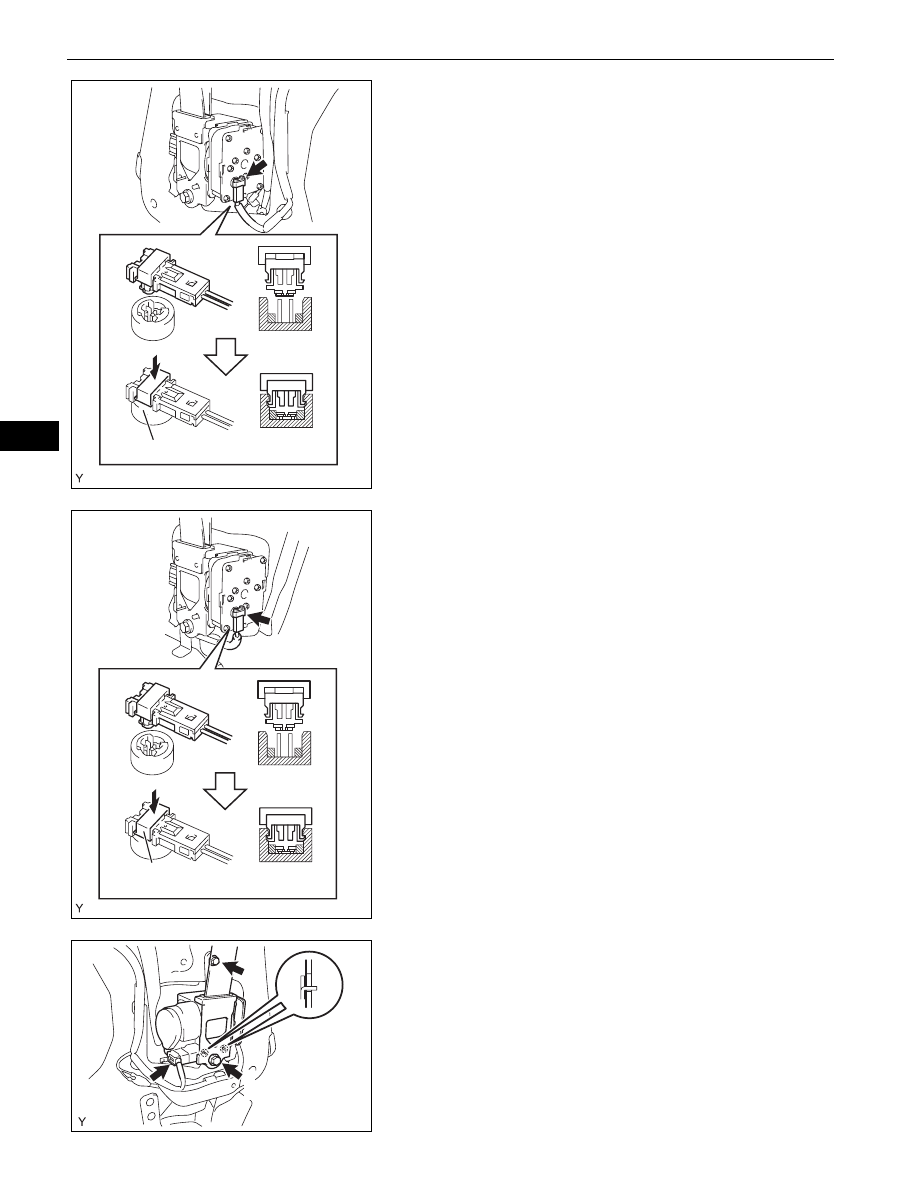

(3) Connect the pretensioner connector.
(4) Lock the locking button of the pretensioner

connector.
NOTICE:
Securely lock the locking button.

(c) for LH Side:

(1) Connect the pretensioner connector.
(2) Lock the locking button of the pretensioner

connector.
NOTICE:
Securely the locking button.

(3) Hook the lower stay of the retractor onto the 2

body hooks and provisionally install the
retractor with the 2 bolts.

(4) Tighten bolt A and then bolt B.

Torque: 8.5 N*m (85 kgf*cm, 75 in.*lbf)  for

bolt A
42 N*m (430 kgf*cm, 31 ft.*lbf)  for
bolt B

(5) Connect the tension reducer connector.

Locking Button

B135090E01

Locking Button

B135094E01

A

B

B135092E01

SEAT BELT  –  FRONT SEAT OUTER BELT ASSEMBLY

SB–41

SB

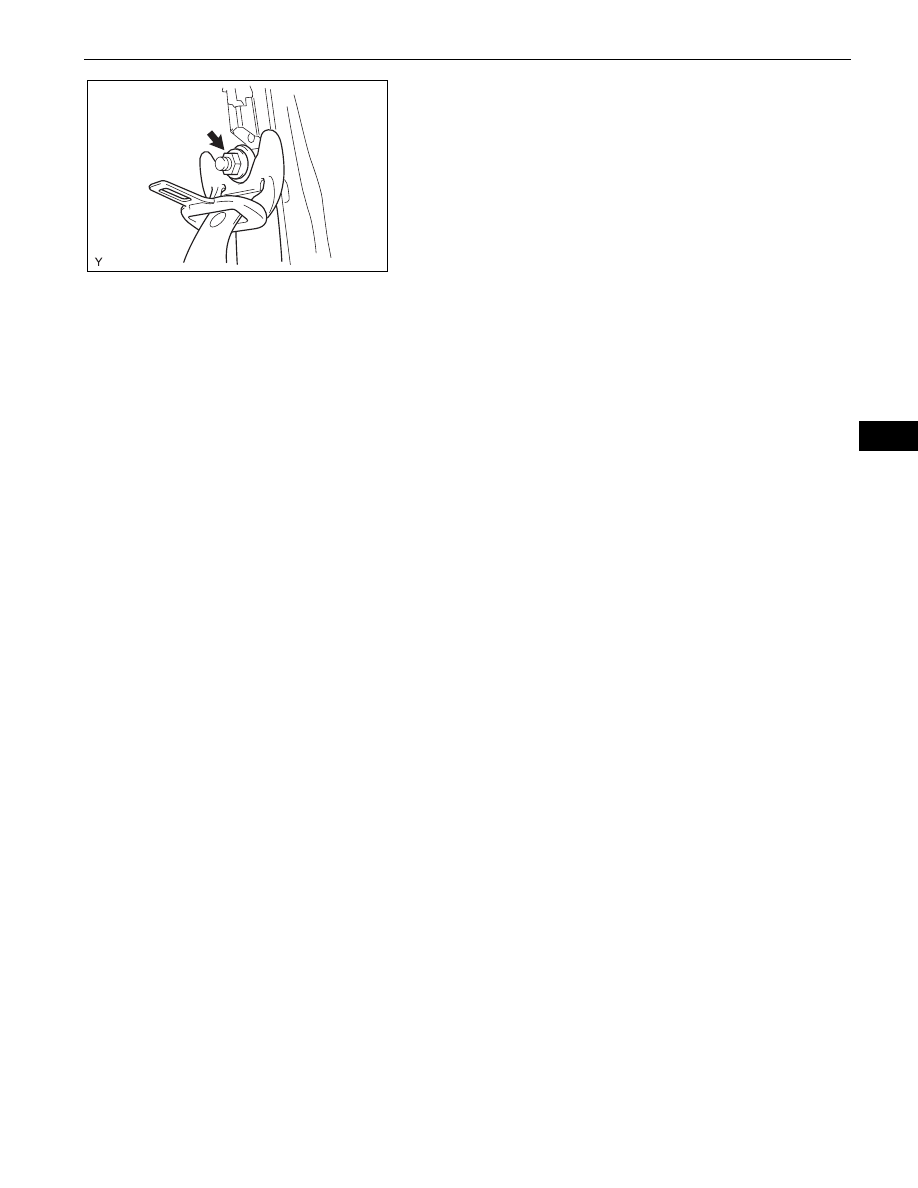

(d) Install the through anchor with the bolt.

Torque: 42 N*m (430 kgf*cm, 31 ft.*lbf)

(e) Make sure that the shoulder anchor rotates

smoothly.

(f)

Check that the ELR locks.
NOTICE:
Perform the check with the front seat outer belt
installed.
(1) With the belt installed, check that the belt locks

when it is pulled out quickly.
If the operation is not as specified, replace the
front seat outer belt.

3.

INSTALL CENTER PILLAR UPPER GARNISH (See
page

ED-40

)

4.

INSTALL ACCESS DOOR TRIM BOARD SUB-
ASSEMBLY (See page

ED-41

)

5.

INSTALL CUP HOLDER (See page

ED-41

)

6.

INSTALL ACCESS DOOR INSIDE HANDLE SUB-
ASSEMBLY (See page

ED-41

)

7.

INSTALL LAP BELT OUTER ANCHOR COVER (See
page

ED-42

)

8.

INSTALL ACCESS PANEL REAR WEATHERSTRIP
(See page

ED-42

)

9.

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

10. INSPECT SRS WARNING LIGHT

(See page

RS-29

)

B135087

SB–42

SEAT BELT  –  FRONT SEAT OUTER BELT ASSEMBLY

SB

DISPOSAL

CAUTION:

Never dispose of a front seat outer belt that has an
inactivated pretensioner.

The seat belt pretensioner produces a loud, exploding
sound when it activates. Perform the operation where
it will not be a nuisance to persons nearby.

Stand at least 10 m (33 ft) away when activating a front
seat outer belt (with the seat belt pretensioner).

Use gloves and safety glasses when handling a front
seat outer belt with an activated pretensioner.

Always wash your hands with water after completing
an activation.

Do not apply water to a front seat outer belt that has
an activated pretensioner.

Always use the specified SST (SRS airbag deployment
tool) when activating the seat belt  pretensioner.

Perform the operation in a place away from electrical
interference.

HINT:
The procedure described below is for the RH side. Use the
same procedure for both the RH and LH sides, unless
otherwise specified.

1.

DISPOSE OF FRONT SEAT OUTER BELT ASSEMBLY
(When Installed in Vehicle)
HINT:
Prepare a battery as the power source to activate the
seat belt pretensioner.

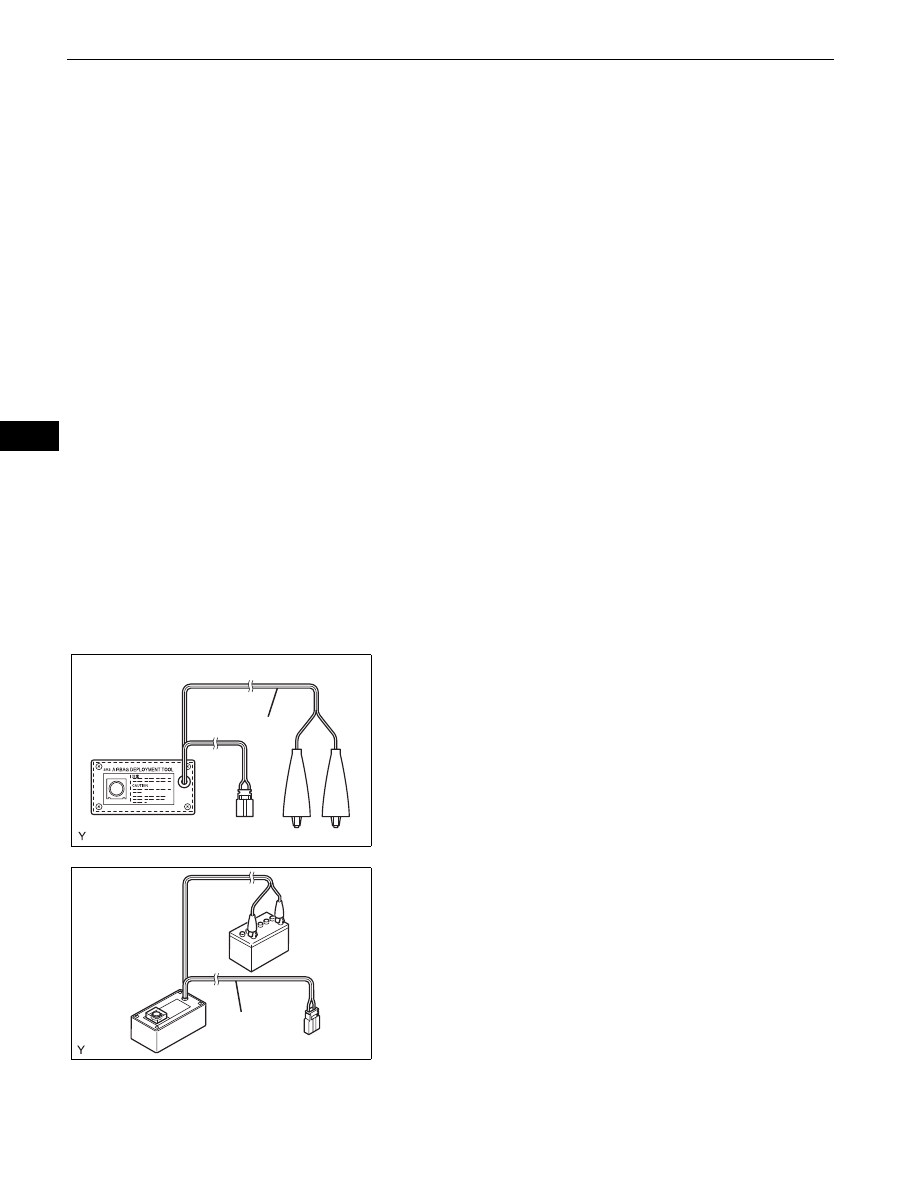

(a) Check whether SST is functioning.

SST

09082-00700

CAUTION:
Always use the specified SST when activating
the seat belt pretensioner.

(1) Connect the SST red clip to the positive battery

terminal and the black clip to the negative
battery terminal.
HINT:
Do not connect the yellow connector. The
yellow connector is for connections to the seat
belt pretensioner.

SST

B104819E01

Battery

SST

B104820E01

SEAT BELT  –  FRONT SEAT OUTER BELT ASSEMBLY

SB–43

SB

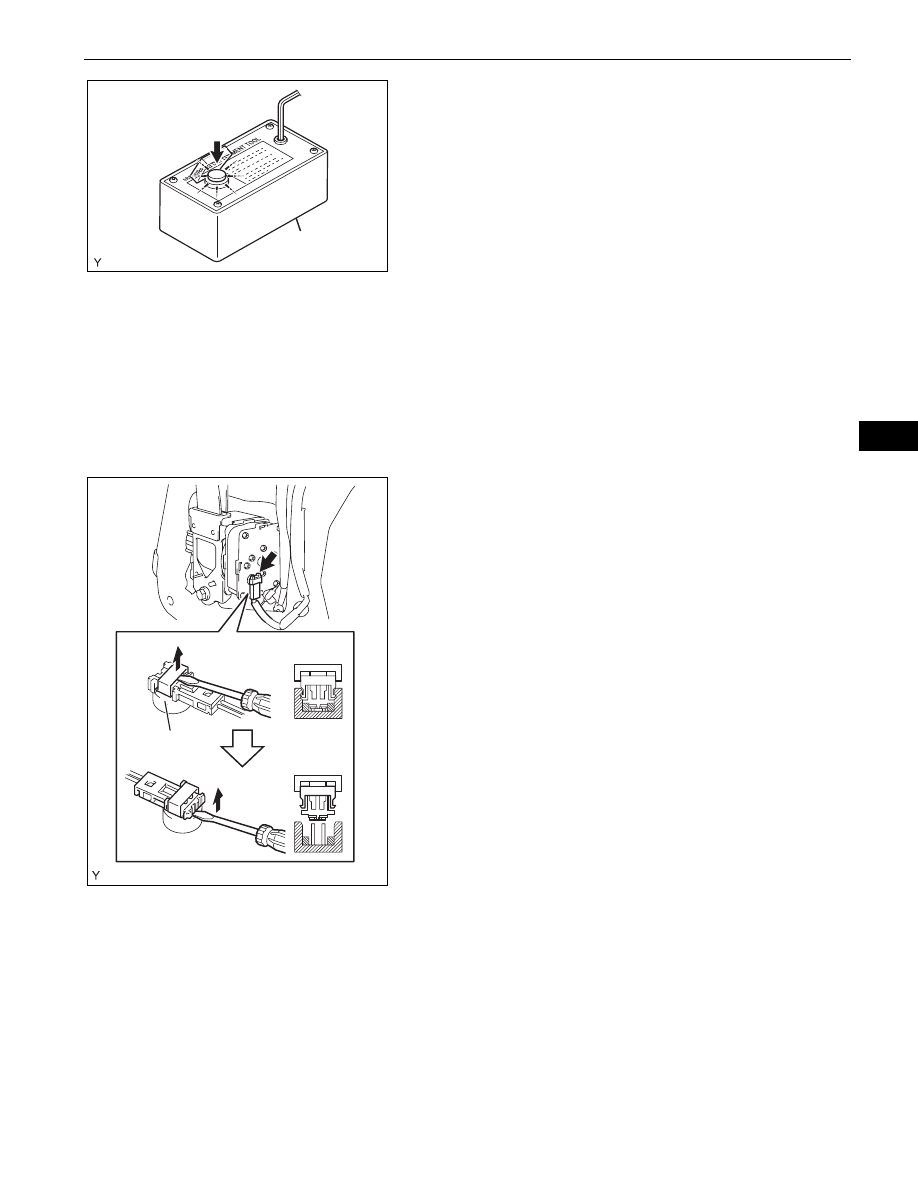

(2) Press the SST activation switch and check that

the LED of the SST activation switch
illuminates.
CAUTION:
If the LED illuminates when the activation
switch is not being pressed, SST may be
malfunctioning. Do not use SST.

(b) Disconnect the SST from the battery.
(c) Disconnect the pretensioner connector.

(1) Disconnect the cable from the negative battery

terminal.

(2) Remove the access panel rear weatherstrip

(See page

ED-29

).

(3) Remove the lap belt outer anchor cover (See

page

ED-29

).

(4) Remove the access door inside handle sub-

assembly (See page

ED-29

).

(5) Remove the cup holder (See page

ED-29

).

(6) Remove the access door trim board sub-

assembly (See page

ED-30

).

(7) Disconnect the pretensioner connector.

1. Using a screwdriver, release the locking

button.

2. Using a screwdriver, disconnect the

pretensioner connector.

SST

B104821E01

Locking Button

B135089E01
