SEAT BELT  –  FRONT SEAT OUTER BELT ASSEMBLY

SB

REMOVAL

CAUTION:
Some of these service operations affect the SRS airbag
system. Read the precautionary notices concerning the
SRS airbag system before servicing (See page

RS-1

).

HINT:
The procedure described below is for the RH side. Use the
same procedure for both the RH and LH sides, unless
otherwise specified.

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL
CAUTION:
Wait for at least 90 seconds after disconnecting the
cable to prevent the airbag from working.

2.

REMOVE ACCESS PANEL REAR WEATHERSTRIP
(See page

ED-29

)

3.

REMOVE LAP BELT OUTER ANCHOR COVER (See
page

ED-29

)

4.

REMOVE ACCESS DOOR INSIDE HANDLE SUB-
ASSEMBLY (See page

ED-29

)

5.

REMOVE CUP HOLDER (See page

ED-29

)

6.

REMOVE ACCESS DOOR TRIM BOARD SUB-
ASSEMBLY (See page

ED-30

)

7.

REMOVE CENTER PILLAR UPPER GARNISH (See
page

ED-30

)

8.

REMOVE FRONT SEAT OUTER BELT ASSEMBLY

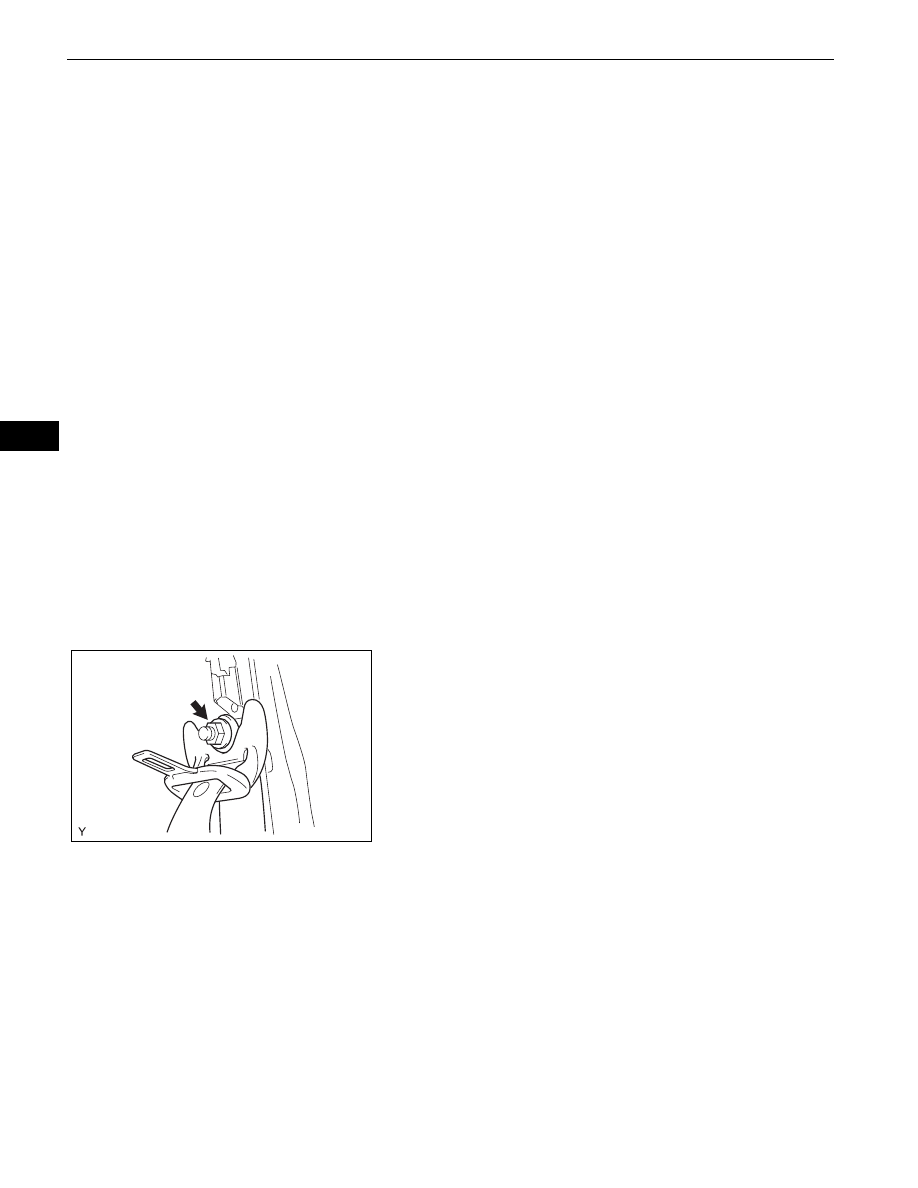

(a) Remove the nut and the through anchor.

B135087

SEAT BELT  –  FRONT SEAT OUTER BELT ASSEMBLY

SB–37

SB

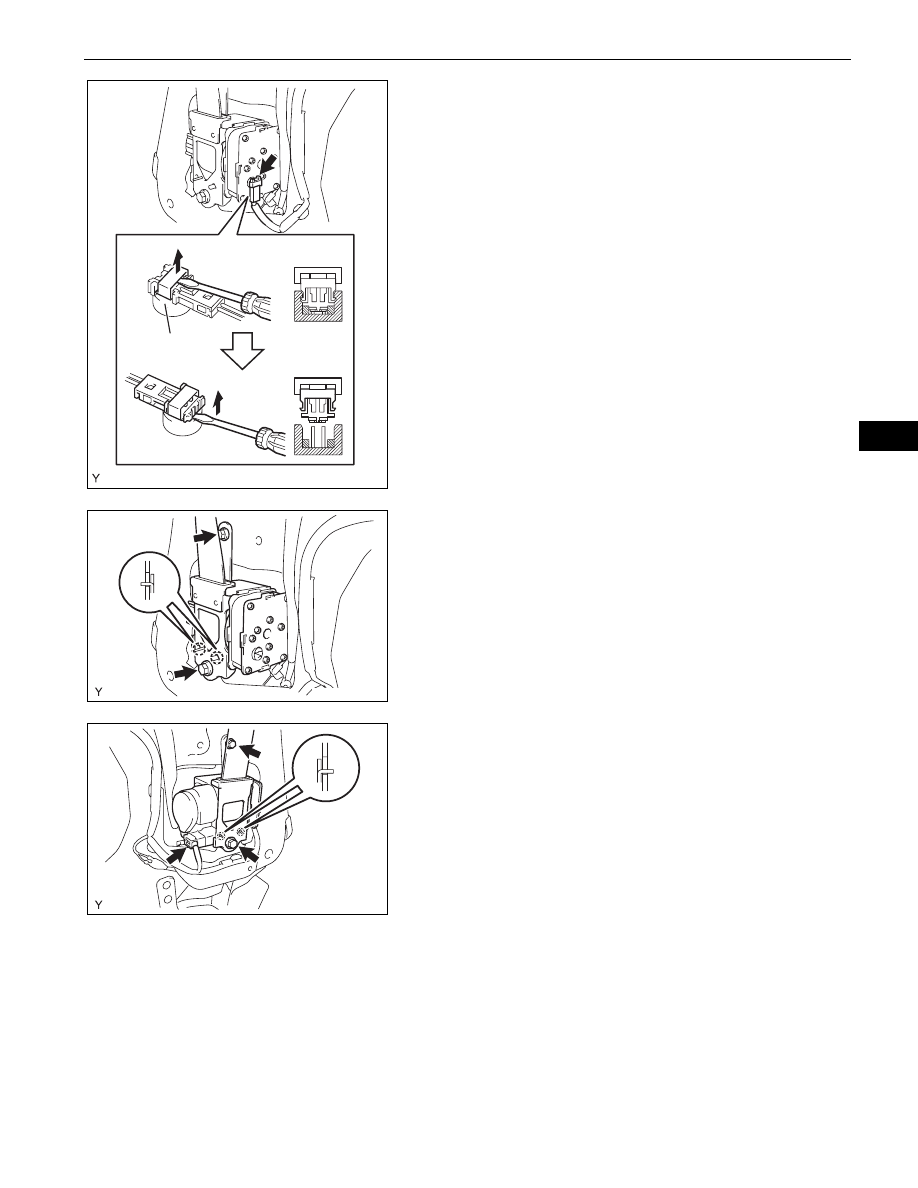

(b) for RH Side:

(1) Using a screwdriver, release the locking button

of the pretensioner connector.

(2) Using a screwdriver, disconnect the

pretensioner connector.

(3) Remove the 2 bolts, the 2 hooks and the

retractor.

(c) for LH Side:

(1) Disconnect the tension reducer connector.
(2) Remove the 2 bolts, the 2 hooks and the

retractor.

Locking Button

B135089E01

B135088

B135092

SB–38

SEAT BELT  –  FRONT SEAT OUTER BELT ASSEMBLY

SB

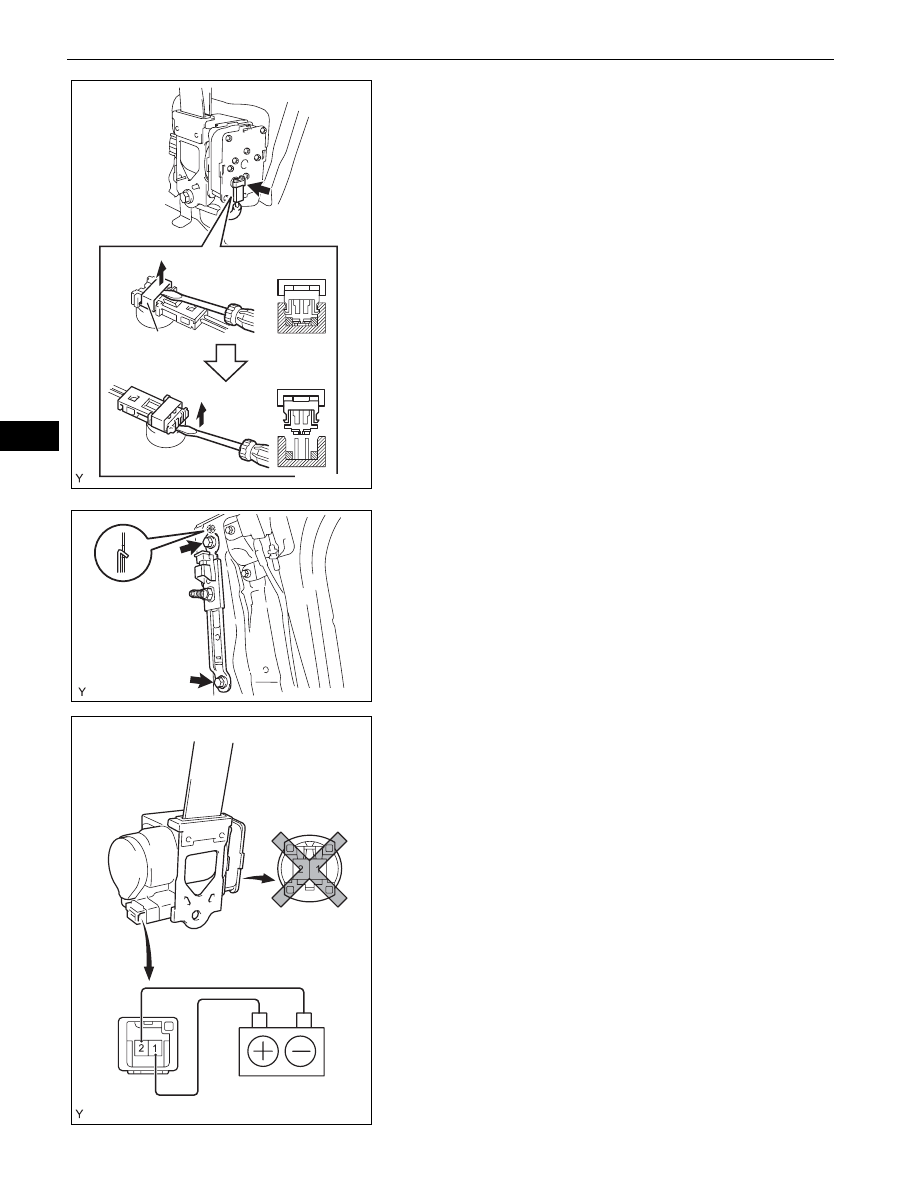

(3) Using a screwdriver, release the locking button

of the pretensioner connector.

(4) Using a screwdriver, disconnect the

pretensioner connector.

9.

REMOVE FRONT SHOULDER BELT ANCHOR
ADJUSTER ASSEMBLY
(a) Remove the 2 bolts, the hook and the shoulder belt

anchor adjuster.

INSPECTION

1.

INSPECT FRONT SEAT OUTER BELT ASSEMBLY
(for Driver Side)
(a) Check the operation.

NOTICE:
Do not apply battery voltage to the pretensioner
connector.
(1) Connect the positive battery lead to terminal 1

of the tension reducer connector and the
negative battery lead to terminal 2.

(2) Check that an operating sound is heard when

the magnetized solenoid attracts the plunger.

(3) Pull out the seat belt and allow it to retract.

Listen to the operating sound.

(4) Pull out the seat belt again, disconnect the

negative battery lead and allow the seat belt to
retract. Listen to the operating sound again and
check that the operating sound volume has
increased.
If the result is not as specified, replace the front
seat outer belt.

Locking Button

B135093E01

B135095

Battery

B135158E01

SEAT BELT  –  FRONT SEAT OUTER BELT ASSEMBLY

SB–39

SB

INSTALLATION

CAUTION:
Some of these service operations affect the SRS airbag
system. Read the precautionary notices concerning the
SRS airbag system before servicing (See page

RS-1

).

HINT:
The procedure described below is for the RH side. Use the
same procedure for both the RH and LH sides, unless
otherwise specified.

1.

INSTALL FRONT SHOULDER BELT ANCHOR
ADJUSTER ASSEMBLY

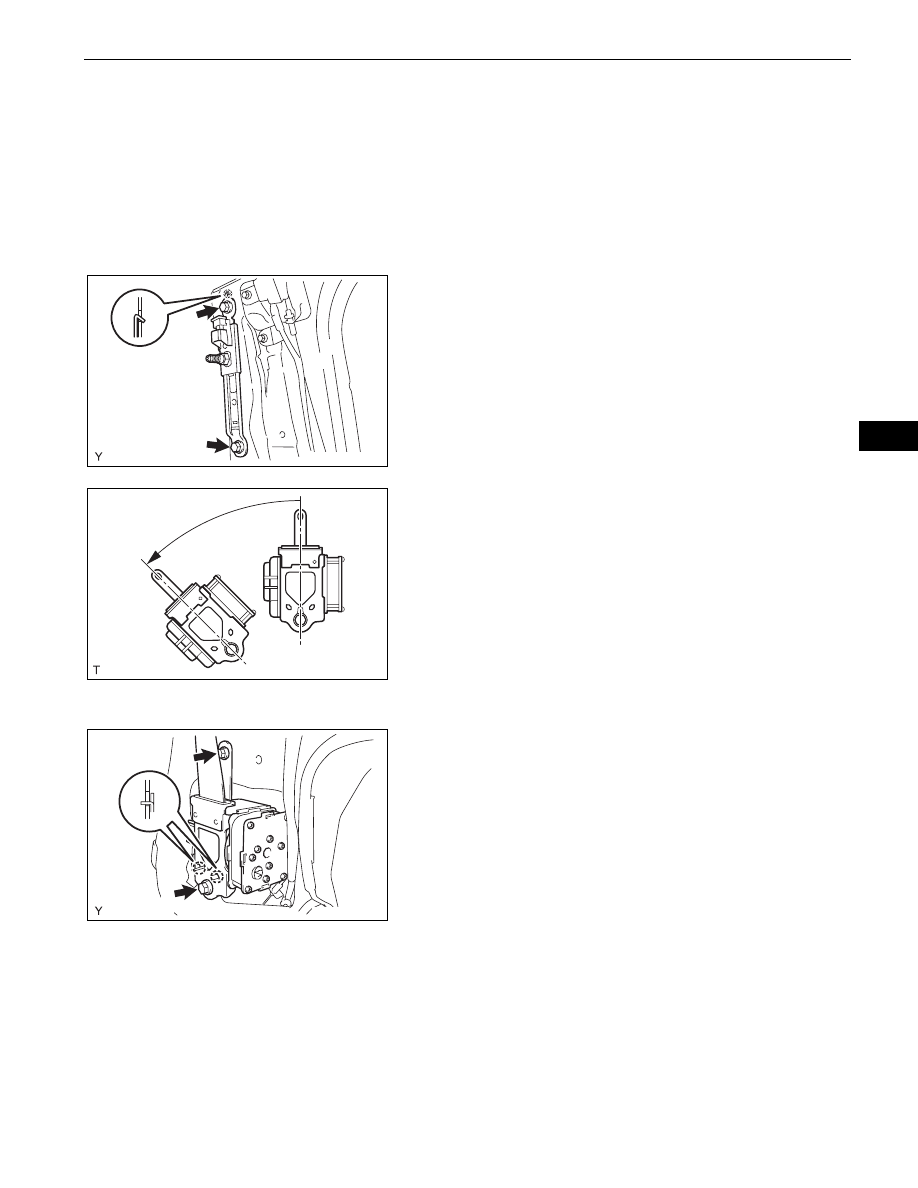

(a) Insert the hook into the body hole and provisionally

install the shoulder belt anchor adjuster with the 2
bolts.

(b) Tighten the upper bolt and then the lower bolt.

Torque: 42 N*m (430 kgf*cm, 31 ft.*lbf)

2.

INSTALL FRONT SEAT OUTER BELT ASSEMBLY
(a) Check the angle of inclination required to lock the

retractor.
(1) Gently incline the retractor from its initial

position. Check that the belt does not lock
when the retractor is inclined 15

° or less in any

direction. Also, check that the belt locks when
the inclination of the retractor is 45

° or more.

NOTICE:
Do not disassemble the retractor.
If the operation is not as specified, replace the
front seat outer belt.

(b) for RH Side:

(1) Hook the lower stay of the retractor onto the 2

body hooks and provisionally install the
retractor with the 2 bolts.

(2) Tighten bolt A and then bolt B.

Torque: 8.5 N*m (85 kgf*cm, 75 in.*lbf)  for

bolt A
42 N*m (430 kgf*cm, 31 ft.*lbf)  for
bolt B

B135095

Unlock

Lock

45°

B114426E01

A

B

B135088E01
