SEAT BELT  –  SEAT BELT WARNING SYSTEM

SB–31

SB

OK

(a) Measure the voltage.

Standard voltage

NG

OK

5

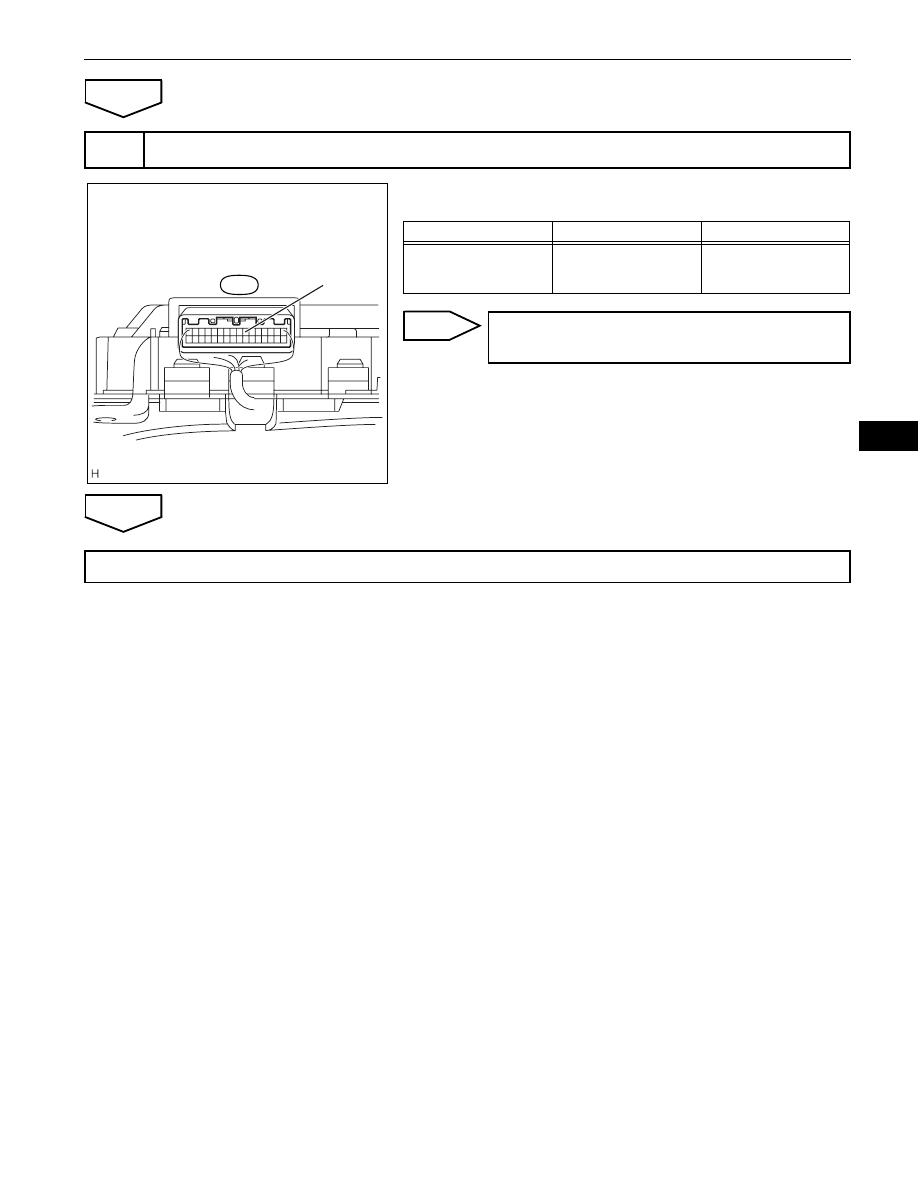

INSPECT COMBINATION METER ASSEMBLY

Wire Harness Side:

Combination Meter Assembly Connector

E13

WRNP

B137707E01

Tester Connection

Condition

Specified Condition

E13-7 (WRNP) - Body

ground

Ignition switch ON

Front passenger seat

occupied

Alternating between 11

to 14 V and below 3 V

REPLACE COMBINATION METER
ASSEMBLY

REPLACE INTEGRATION CONTROL AND PANEL ASSEMBLY

SEAT BELT  –  FRONT SEAT INNER BELT ASSEMBLY

SB–29

SB

RESTRAINTS

SEAT BELT

FRONT SEAT INNER BELT ASSEMBLY

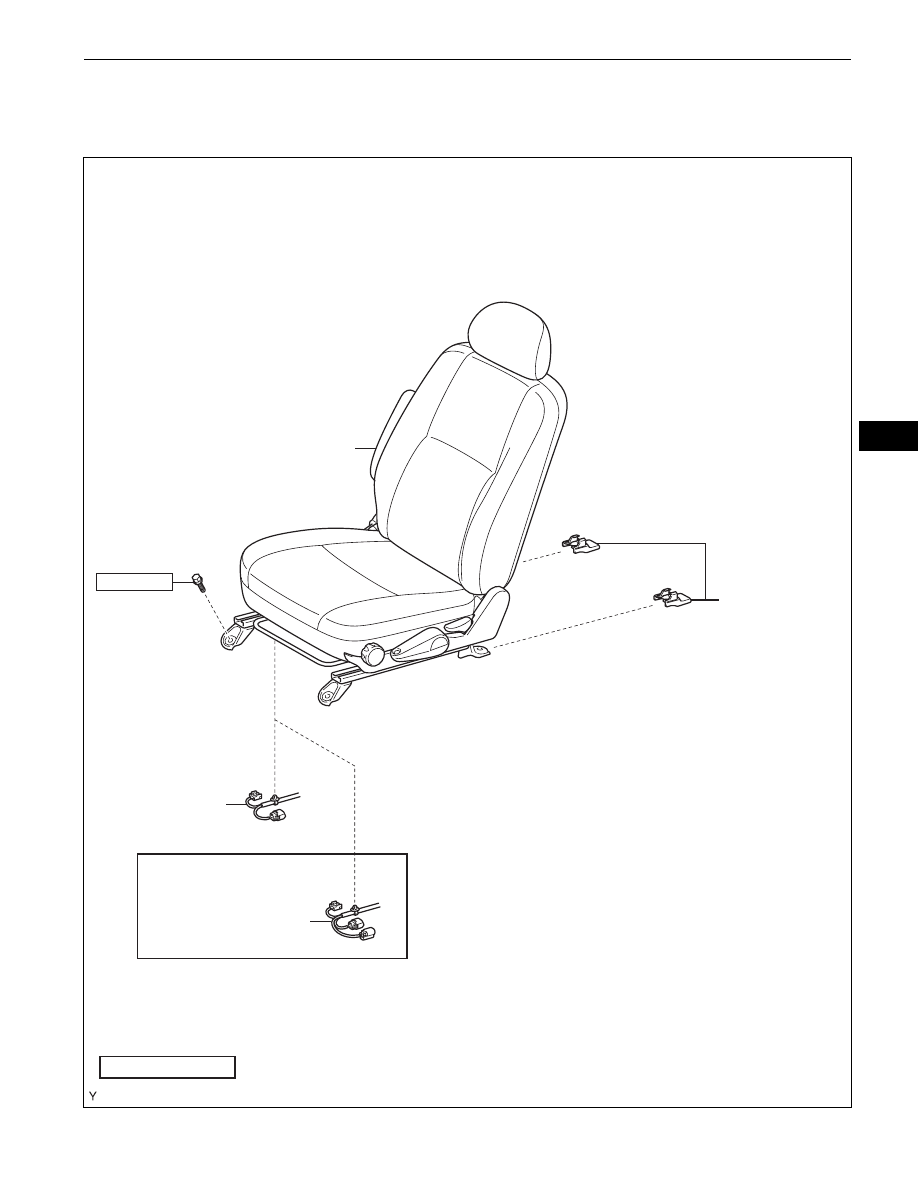

COMPONENTS

FRONT SEAT ASSEMBLY

FRONT SEAT
TRACK COVER

FLOOR WIRE

w/ Front Seat Side Airbag:

x4

FLOOR WIRE

N*m (kgf*cm, ft*lbf)  : Specified torque

37 (375, 27)

B130663E01

SB–30

SEAT BELT  –  FRONT SEAT INNER BELT ASSEMBLY

SB

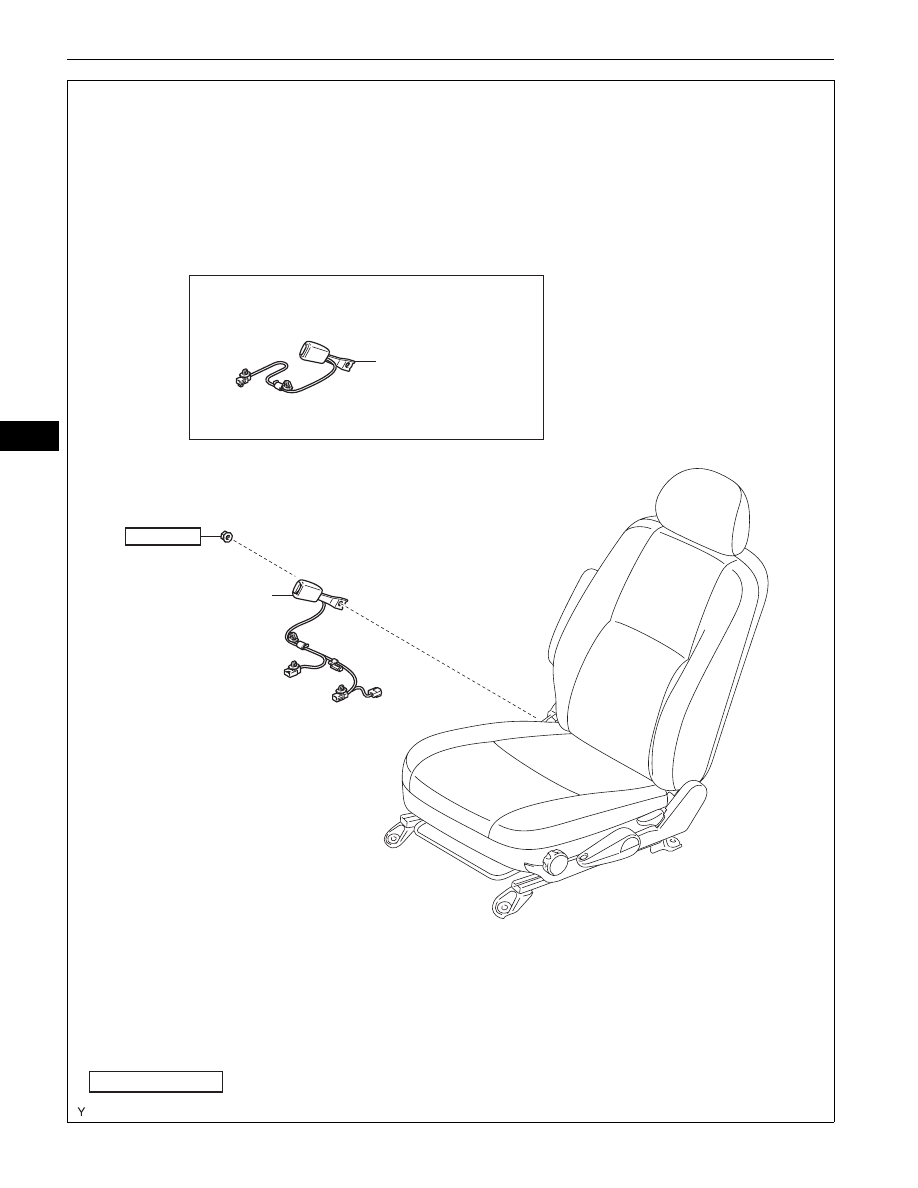

FRONT SEAT INNER
BELT ASSEMBLY

N*m (kgf*cm, ft*lbf)  : Specified torque

42 (430, 31)

FRONT SEAT INNER
BELT ASSEMBLY

for Front Passenger Side:

B135156E01

SEAT BELT  –  FRONT SEAT INNER BELT ASSEMBLY

SB–31

SB

REMOVAL

CAUTION:
Some of these service operations affect the SRS airbag
system. Read the precautionary notices concerning the
SRS airbag system before servicing (w/ Front Seat Side
Airbag) (See page

RS-1

).

HINT:
The procedure described below is for the driver side. Use the
same procedure for both the driver and front passenger
sides, unless otherwise specified.

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL
CAUTION:
Wait for at least 90 seconds after disconnecting the
cable to prevent the airbag from working (w/ Front
Seat Side Airbag).

2.

REMOVE FRONT SEAT TRACK COVER (See page

SE-5

)

3.

REMOVE FRONT SEAT ASSEMBLY (See page

SE-6

)

4.

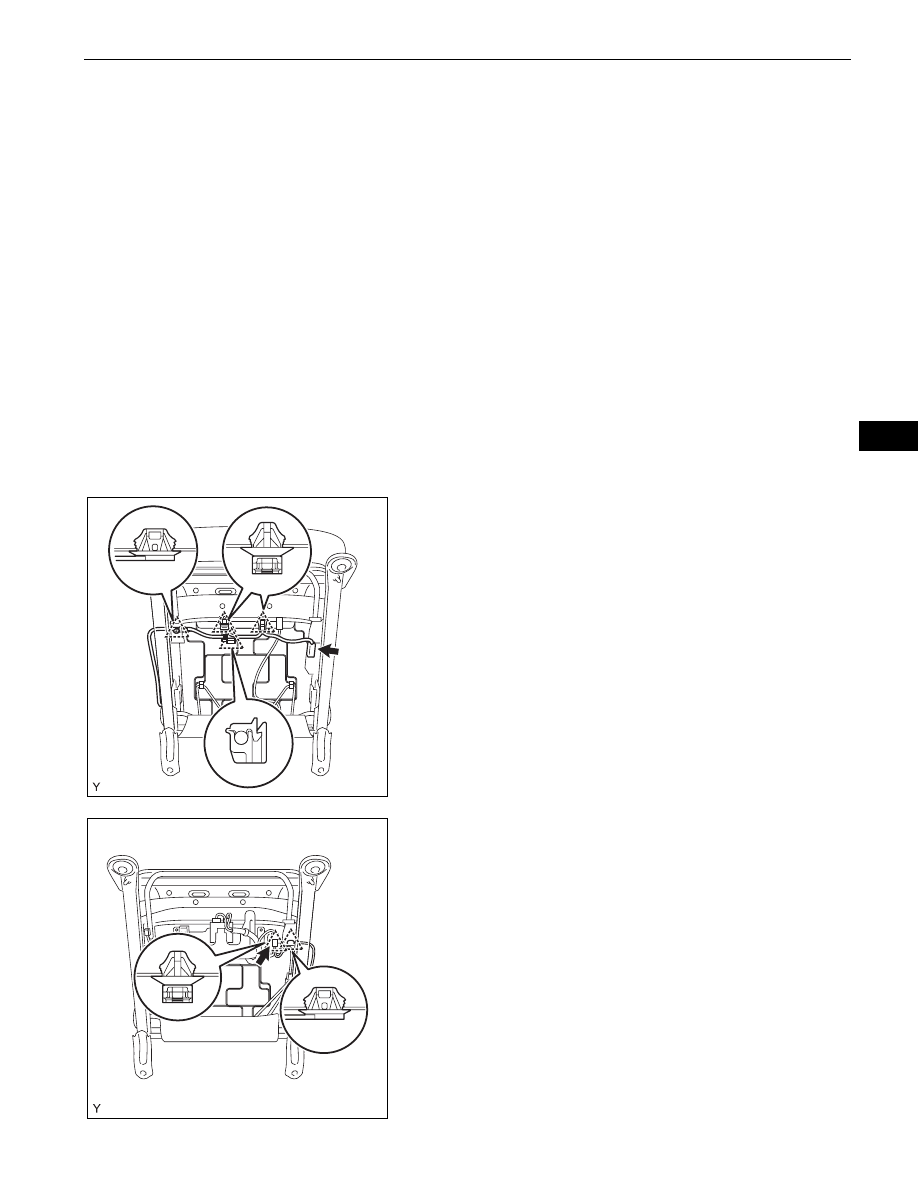

REMOVE FRONT SEAT INNER BELT ASSEMBLY
(a) for Driver Side:

(1) Disconnect the seat position sensor connector.
(2) Using a clip remover, remove the 2 connectors

and the clamp.

(3) Remove the clamp.

(b) for Front Passenger Side:

(1) Disconnect the buckle switch connector.
(2) Using a clip remover, remove the connector

and the clamp.

B130776

B130779
