LIGHTING – TURN SIGNAL FLASHER ASSEMBLY
LI–123
LI
TURN SIGNAL FLASHER
ASSEMBLY
ON-VEHICLE INSPECTION
1.
INSPECT TURN SIGNAL FLASHER CIRCUIT
(a) Check the power source circuit and ground circuit.
(1) Disconnect the turn signal flasher connector.
(2) Measure the voltage and check the results in
accordance with the value(s) in the table below.
Standard Voltage
If the result is not as specified, there may be a
malfunction on the wire harness side.
(3) Measure the resistance and check the result in
accordance with the value(s) in the table below.
Standard Resistance
If the result is not as specified, there may be a
malfunction on the wire harness side.
(b) Check the output operation signal.
(1) Reconnect the turn signal flasher connector.
(2) Measure the voltage and check the results in
accordance with the value(s) in the table below.
Standard Voltage

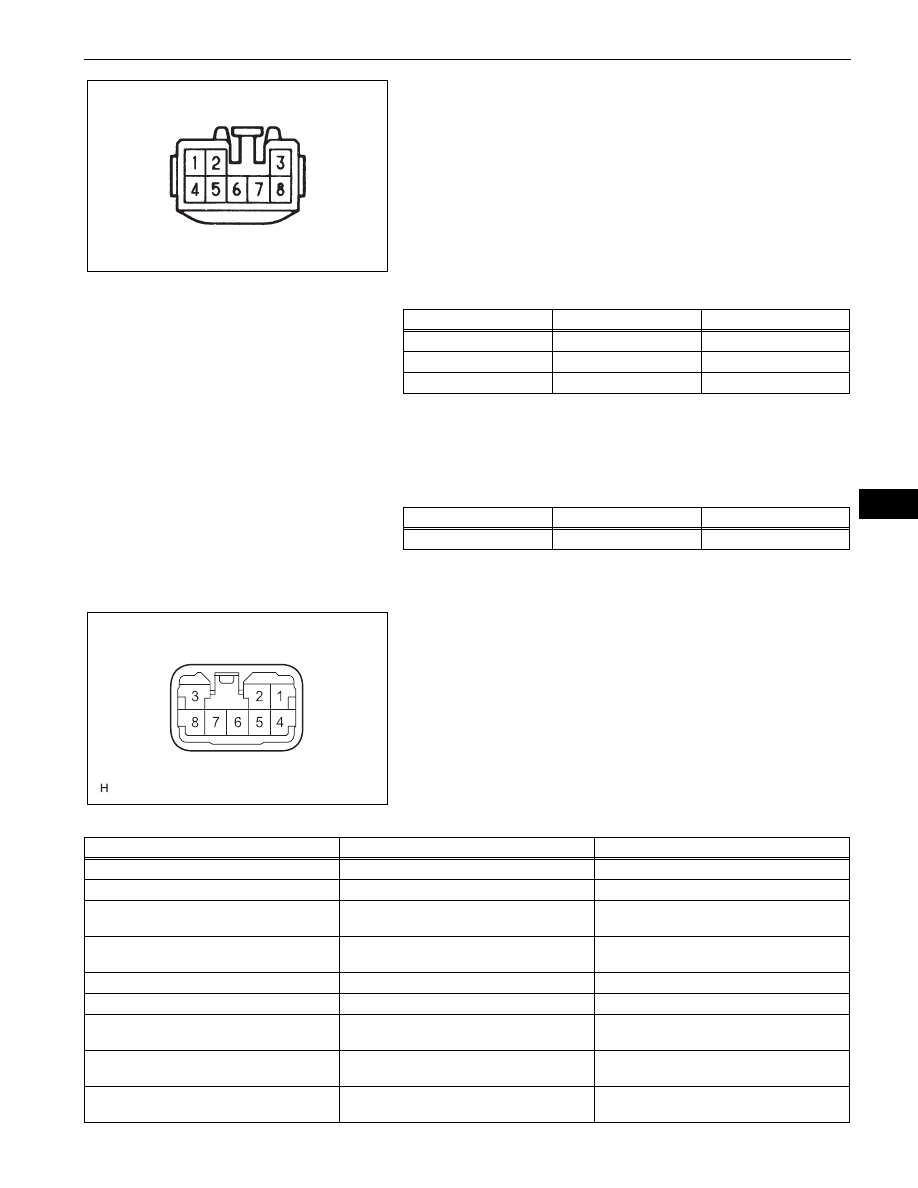

Connector Front Side:
E068703E05
Tester Connection
Condition
Specified Condition
1 - Body ground
Ignition switch off
0 V
1 - Body ground
Ignition switch ON
11 to 14 V
4 - Body ground
Always
11 to 14 V
Tester Connection
Condition
Specified Condition
7 - Body ground
Always
Below 1
Ω
Connector Back Side:
E101506E01
Tester Connection
Condition
Specified Condition
2 - Body ground
Hazard warning switch OFF
Below 1 V
2 - Body ground
Hazard warning switch ON
11 to 14 V (60 to 120 times per minute)
2 - Body ground
Ignition switch ON and turn signal switch
(right turn) OFF
Below 1 V
2 - Body ground
Ignition switch ON and turn signal switch
(right turn) ON
11 to 14 V (60 to 120 times per minute)
3 - Body ground
Hazard warning switch OFF
Below 1 V
3 - Body ground
Hazard warning switch ON
11 to 14 V (60 to 120 times per minute)
3 - Body ground
Ignition switch ON and turn signal switch
(left turn) OFF
Below 1 V
3 - Body ground
Ignition switch ON and turn signal switch
(left turn) ON
11 to 14 V (60 to 120 times per minute)
5 - Body ground
Ignition switch ON and turn signal switch
(left turn) OFF
11 to 14 V
