Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 309

LIGHTING  –  TAILLIGHT RELAY

LI–127

LI

BODY ELECTRICAL

LIGHTING

TAILLIGHT RELAY

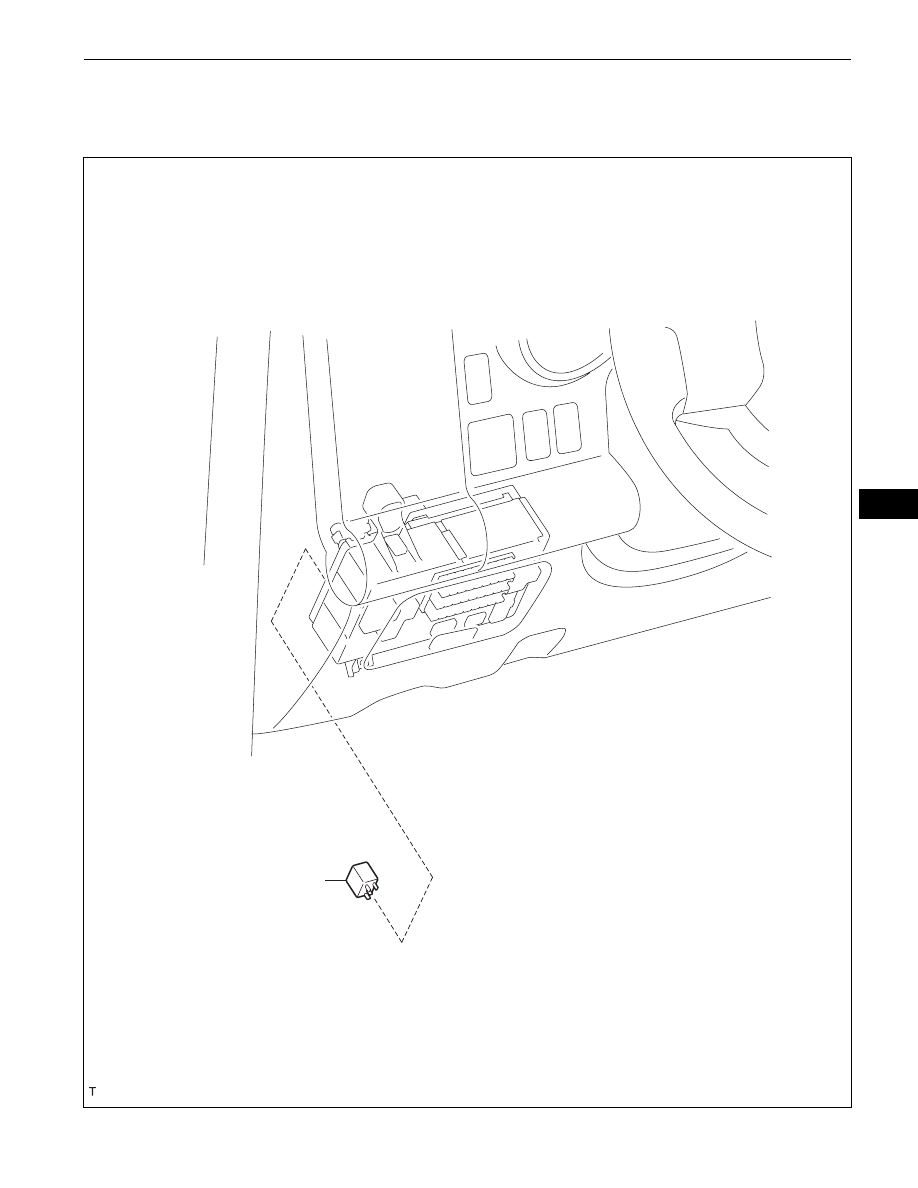

COMPONENTS

TAILLIGHT RELAY

E127246E01

LI–128

LIGHTING  –  TAILLIGHT RELAY

LI

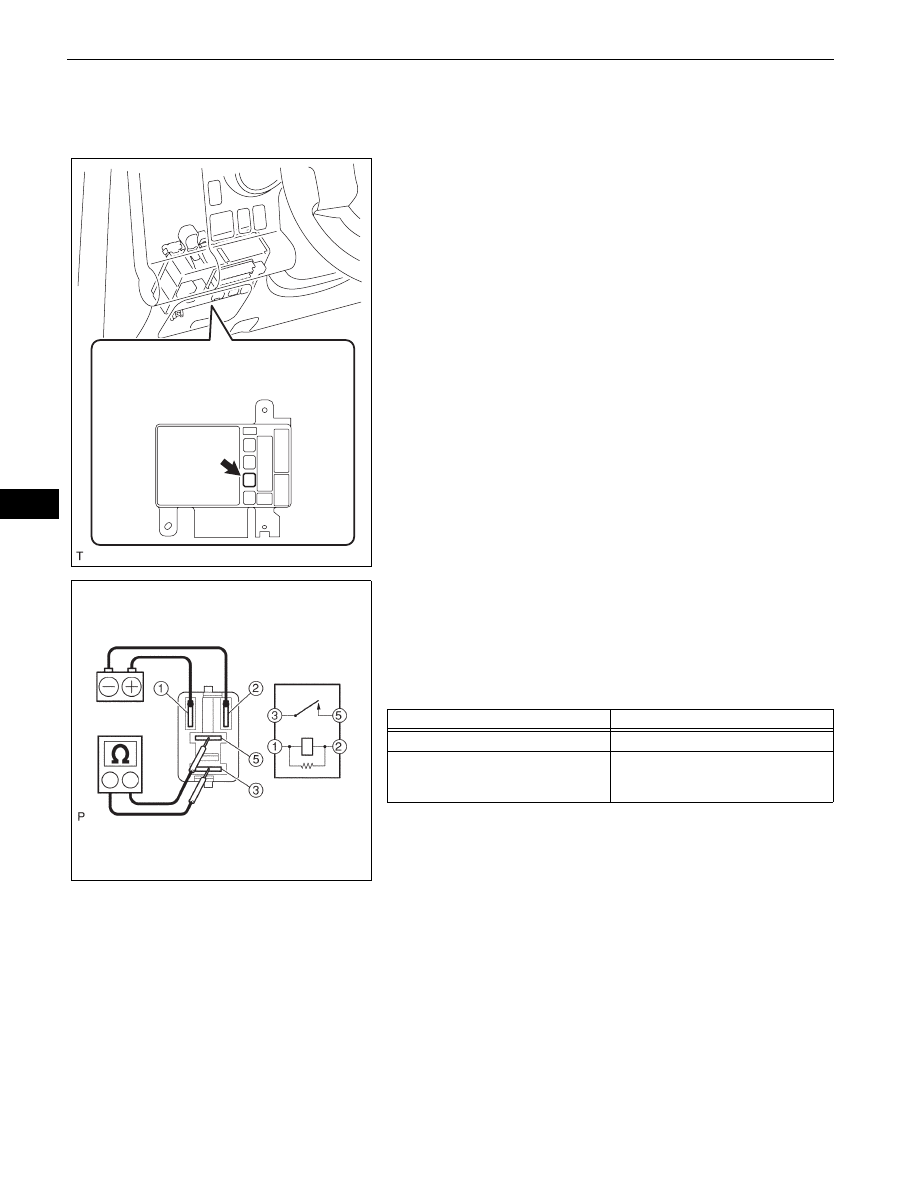

REMOVAL

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

REMOVE TAILLIGHT RELAY
(a) Remove the taillight relay from the main body ECU.

INSPECTION

1.

INSPECT TAILLIGHT RELAY
(a) Check the resistance.

(1) Using an ohmmeter, measure the resistance

between the terminals.
Standard Resistance

If result is not as specified, replace the taillight
relay.

Main Body ECU
(Back Side)

E127245E01

Battery

Ohmmeter

E109078E01

Tester Connection

Specified Condition

3 - 5

10 k

Ω or higher

3 - 5

Below 1

Ω

(Battery voltage applied to terminals

1 and 2)

LIGHTING  –  TAILLIGHT RELAY

LI–129

LI

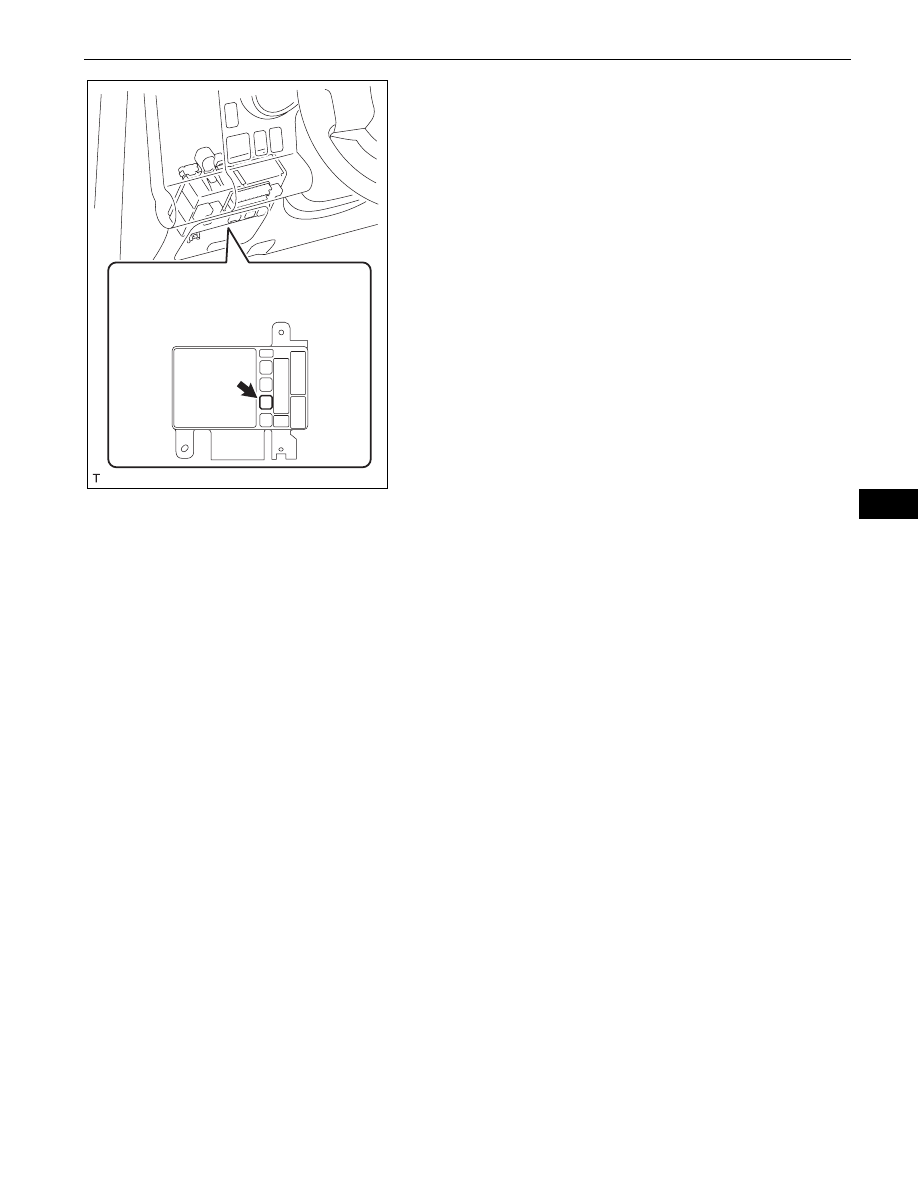

INSTALLATION

1.

INSTALL TAILLIGHT RELAY
(a) Install the taillight relay onto the main body ECU.

2.

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

Main Body ECU
(Back Side)

E127245E01

1GR-FE LUBRICATION  –  LUBRICATION SYSTEM

LU–1

LU

ENGINE

1GR-FE LUBRICATION

LUBRICATION SYSTEM

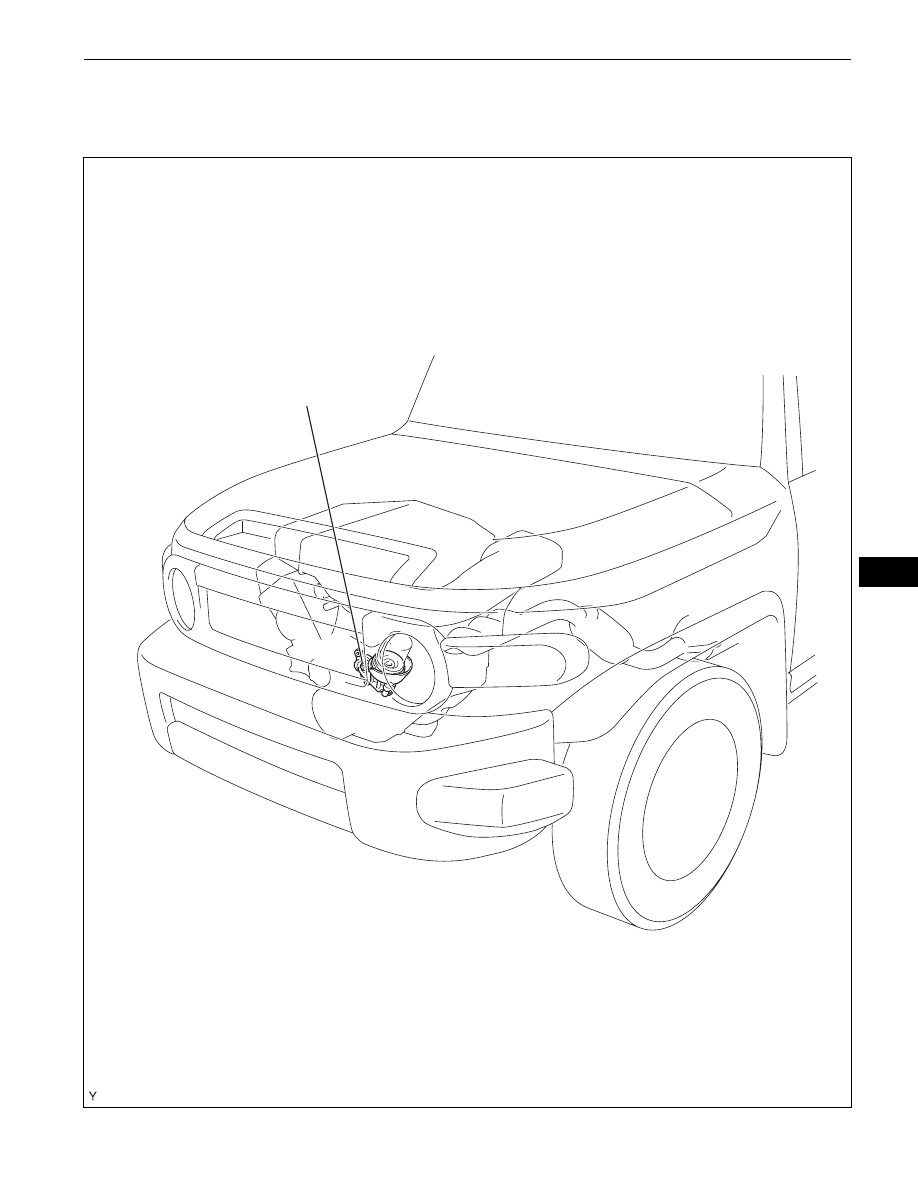

PARTS LOCATION

OIL PRESSURE SWITCH

A126472E01
