LI–120

LIGHTING  –  REAR DOOR COURTESY SWITCH (for Lower Side)

LI

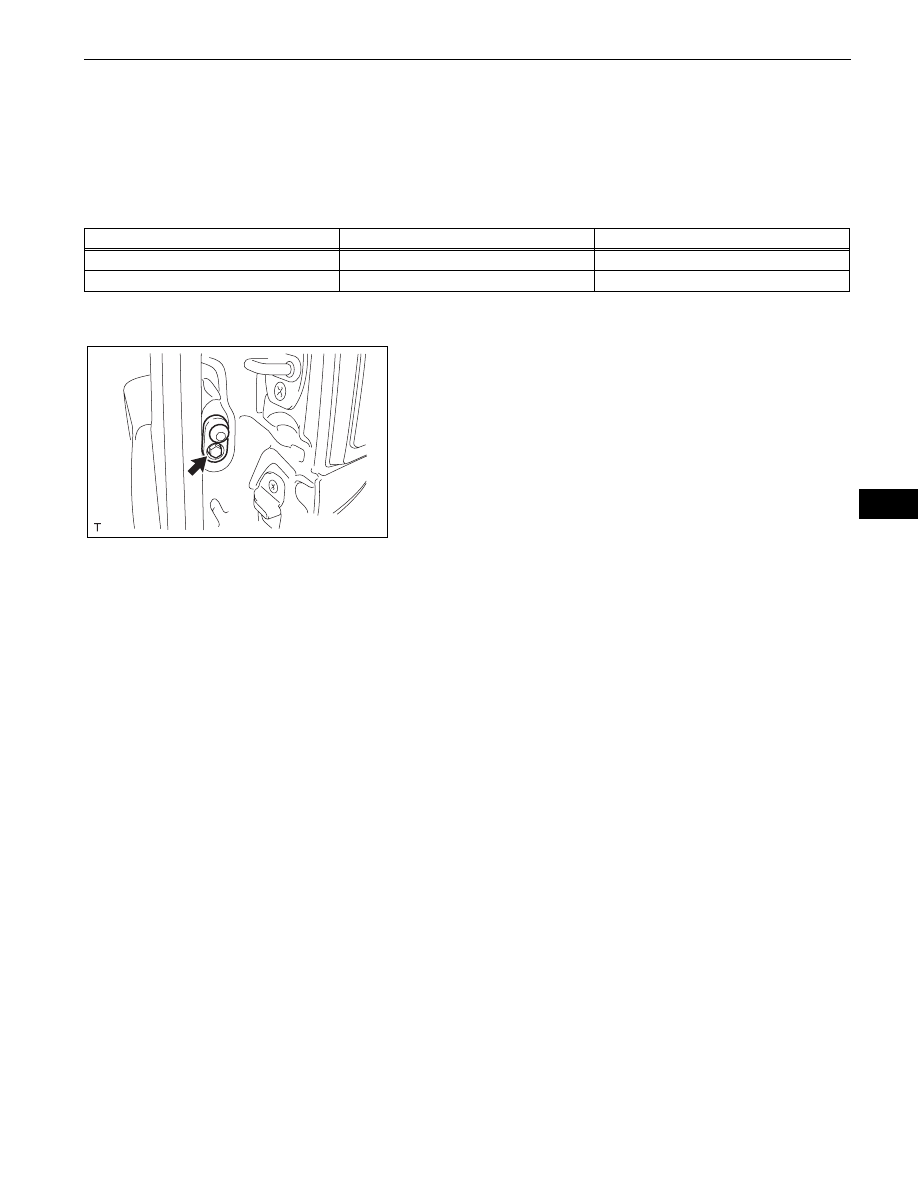

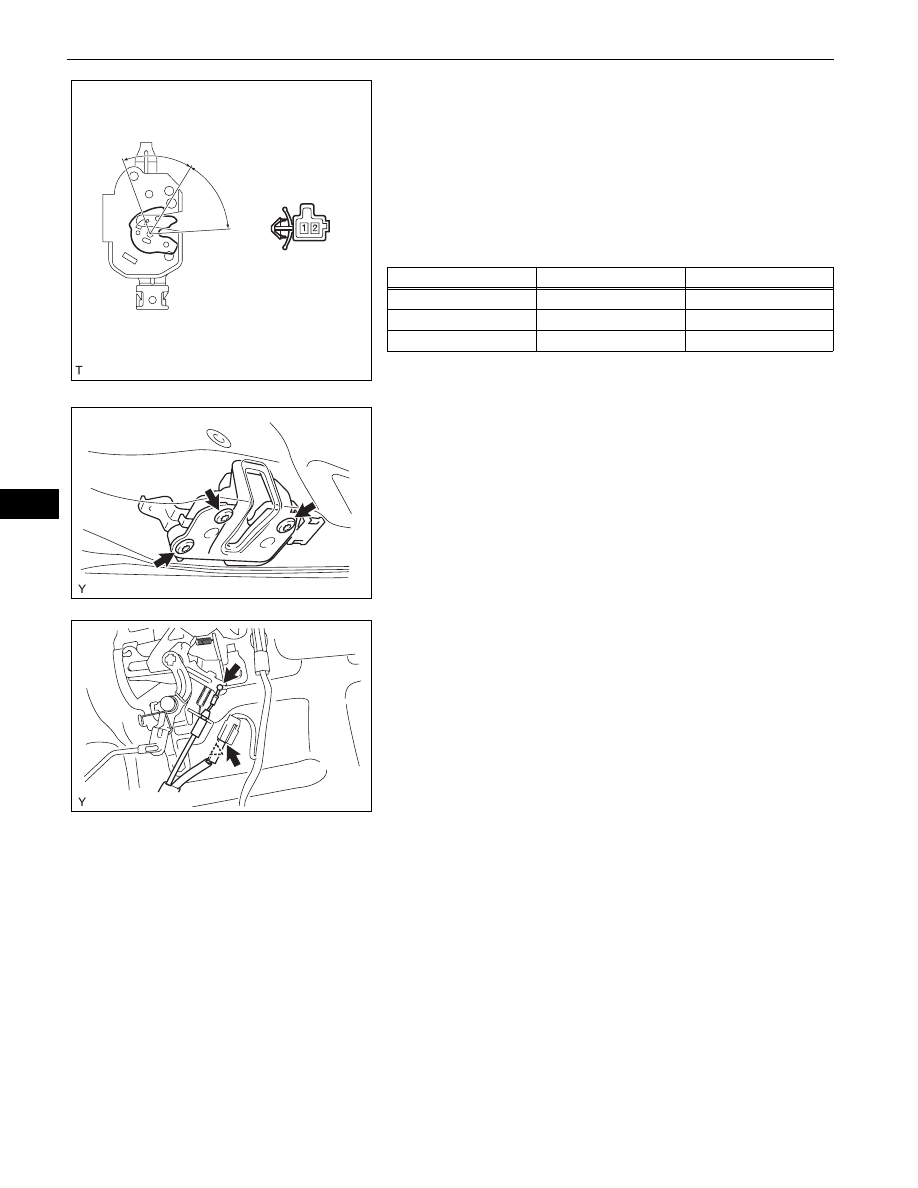

INSPECTION

1.

INSPECT ACCESS PANEL LOWER LOCK
ASSEMBLY
(a) Check the resistance of the rear door courtesy

switch.
(1) Using an ohmmeter, measure the resistance

between the terminals when the latch is
operated with a screwdriver.
Standard Resistance

If the result is not as specified, replace the
access panel lower lock.

INSTALLATION

1.

INSTALL ACCESS PANEL LOWER LOCK ASSEMBLY
(a) Install the access panel lower lock onto the rear

door.
Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

(b) Connect the connector, connector clamp and

access panel lock control cable.

2.

INSTALL REAR DOOR TRIM BOARD SUB-
ASSEMBLY (See page

ED-41

)

3.

INSTALL NO. 1 CUP HOLDER (See page

ED-41

)

4.

INSTALL REAR DOOR INSIDE HANDLE SUB-
ASSEMBLY (See page

ED-41

)

5.

INSTALL LAP BELT OUTER ANCHOR COVER (See
page

ED-42

)

6.

INSTALL ACCESS PANEL REAR WEATHERSTRIP
(See page

ED-42

)

7.

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

Open

Half Latch

Full
Latch

E127241E01

 Tester Connection

Condition

Specified Condition

1 - 2

Open

Below 1

Ω

1 - 2

Half Latch

Below 1

Ω

1 - 2

Full Latch

10 k

Ω or higher

B135562

B135561

LIGHTING  –  BACK DOOR COURTESY SWITCH

LI–121

LI

BODY ELECTRICAL

LIGHTING

BACK DOOR COURTESY SWITCH

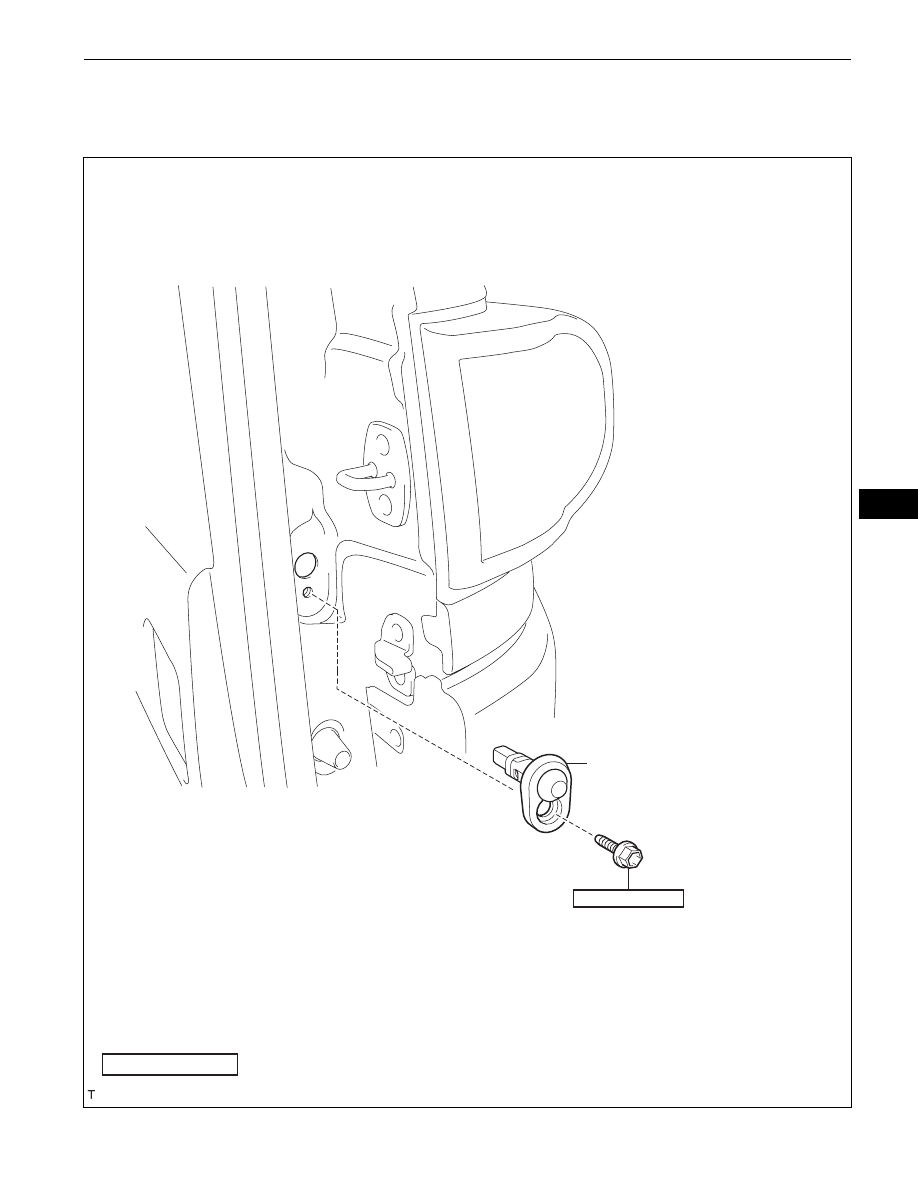

COMPONENTS

BACK DOOR COURTESY
SWITCH

N*m (kgf*cm, ft*lbf)  : Specified torque

7.0 (71, 62 in.*lbf)

E127225E01

LI–122

LIGHTING  –  BACK DOOR COURTESY SWITCH

LI

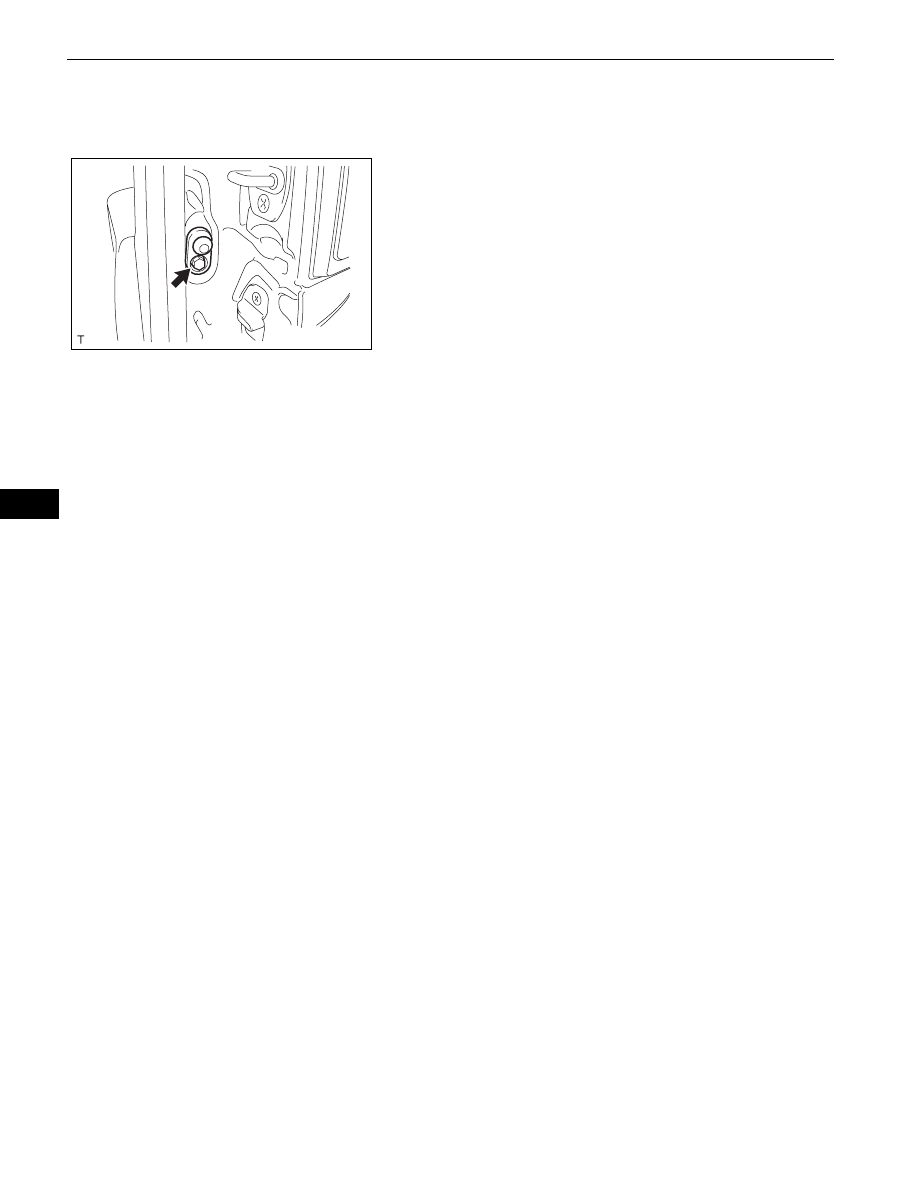

REMOVAL

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

REMOVE BACK DOOR COURTESY SWITCH
(a) Remove the bolt and back door courtesy switch.
(b) Disconnect the connector.

E127224

LIGHTING  –  BACK DOOR COURTESY SWITCH

LI–123

LI

INSPECTION

1.

INSPECT BACK DOOR COURTESY SWITCH
(a) Check the resistance.

(1) Using an ohmmeter, measure the resistance

and check the results in accordance with the
value(s) in the table below.

Standard Resistance

If the result is not as specified, replace the back
door courtesy switch.

INSTALLATION

1.

INSTALL BACK DOOR COURTESY SWITCH
(a) Connect the connector.
(b) Install the back door courtesy switch with the bolt.

Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

2.

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

Tester Connection

Condition

Specified Condition

1 - Switch body

ON (Shaft not pressed)

Below 1

Ω

1 - Switch body

OFF (Shaft not pressed)

10 k

Ω or higher

E127224
