Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 306

LI–116

LIGHTING  –  REAR DOOR COURTESY SWITCH (for Upper Side)

LI

REMOVAL

HINT:
•

Use the same procedure for both the RH and LH sides.

•

The procedure described below is for the LH side.

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

REMOVE ACCESS PANEL REAR WEATHERSTRIP
(See page

ED-29

)

3.

REMOVE LAP BELT OUTER ANCHOR COVER (See
page

ED-29

)

4.

REMOVE REAR DOOR INSIDE HANDLE SUB-
ASSEMBLY (See page

ED-29

)

5.

REMOVE NO. 1 CUP HOLDER (See page

ED-29

)

6.

REMOVE REAR DOOR TRIM BOARD SUB-
ASSEMBLY (See page

ED-30

)

7.

REMOVE CENTER PILLAR UPPER GARNISH (See
page

ED-30

)

8.

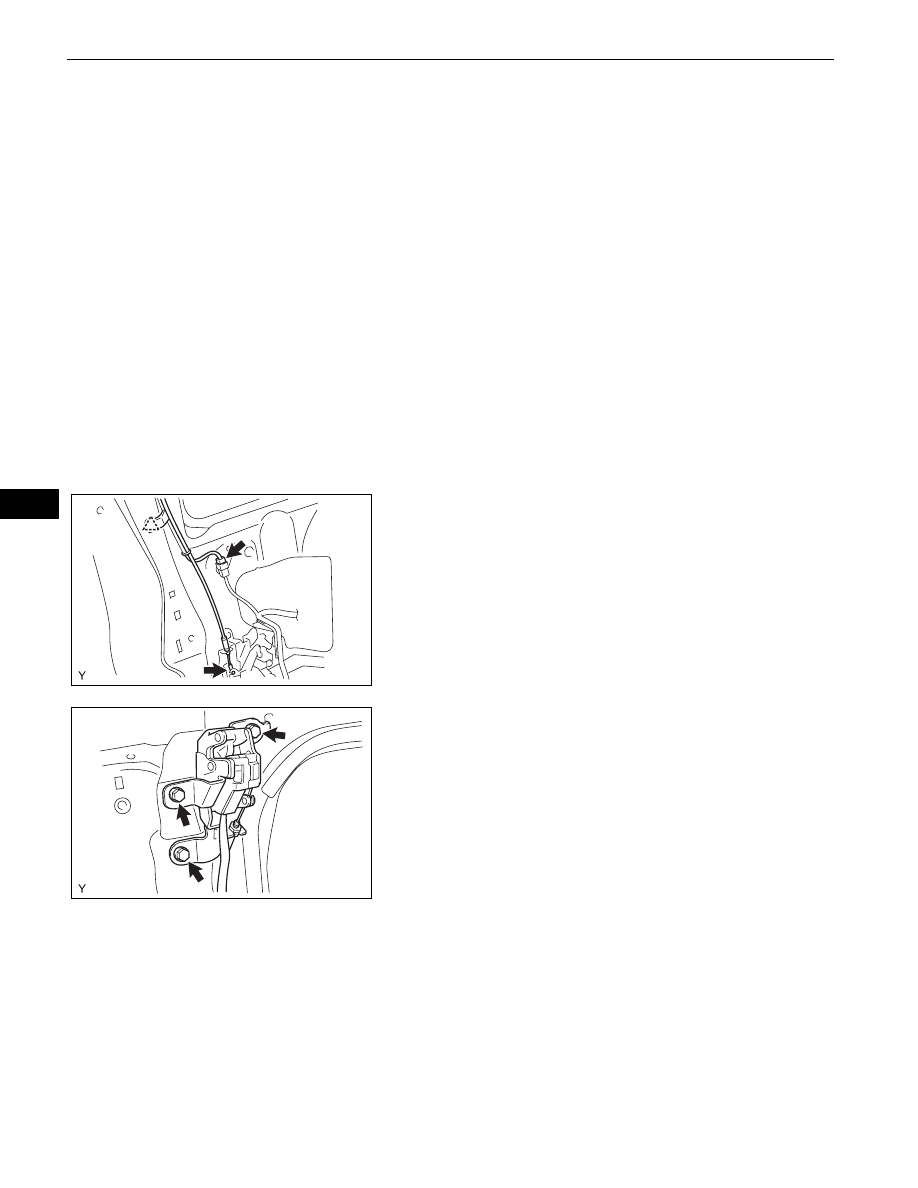

REMOVE ACCESS PANEL UPPER LOCK ASSEMBLY
(a) Disconnect the connector, harness clamp and the

access panel lock control cable.

(b) Remove the 3 bolts, then remove the access panel

upper lock.

B135531

B135532

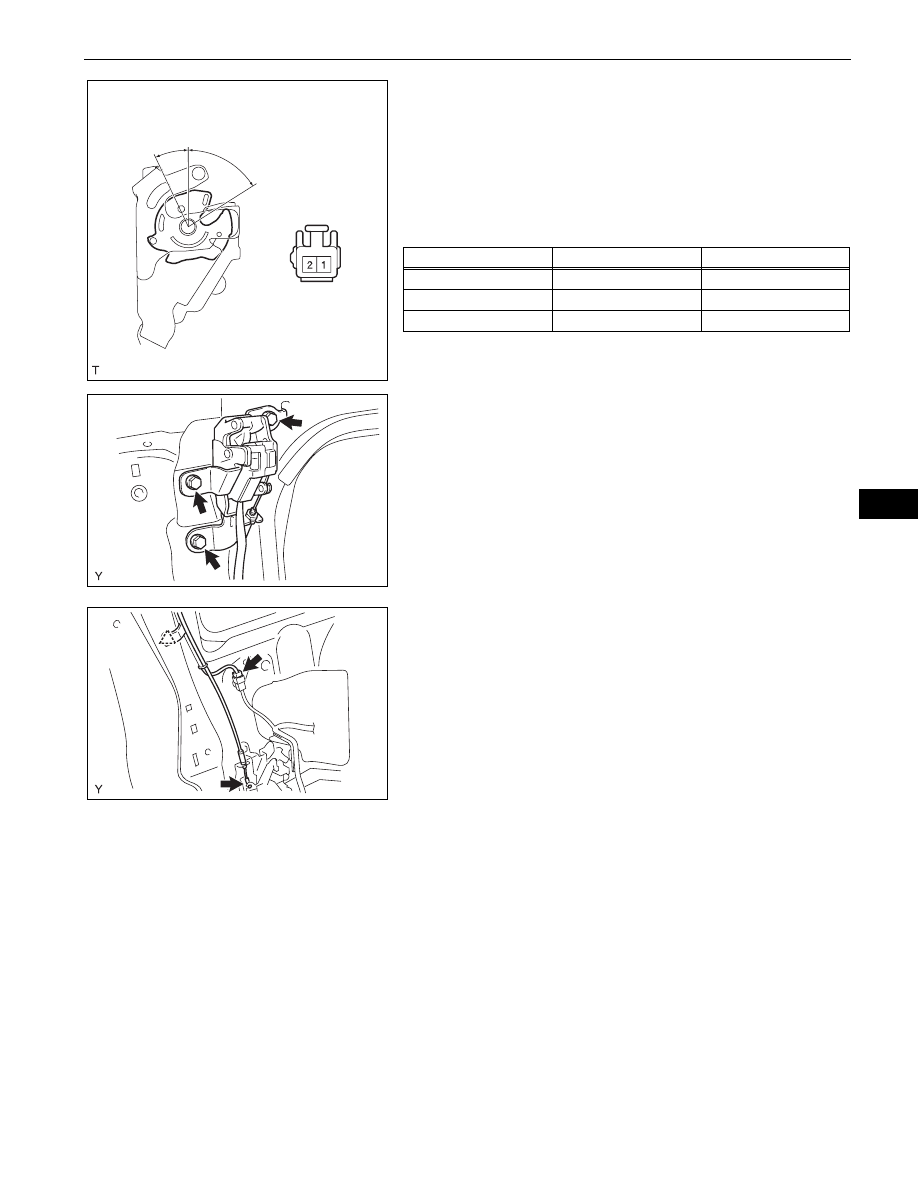

LIGHTING  –  REAR DOOR COURTESY SWITCH (for Upper Side)

LI–117

LI

INSPECTION

1.

INSPECT ACCESS PANEL UPPER LOCK ASSEMBLY
(a) Check the resistance of the rear door courtesy

switch.
(1) Using an ohmmeter, measure the resistance

between the terminals when the latch is
operated with a screwdriver.
Standard Resistance

If the result is not as specified, replace the
access panel upper lock.

INSTALLATION

1.

INSTALL ACCESS PANEL UPPER LOCK ASSEMBLY
(a) Install the access panel upper lock with the 3 bolts.

Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

(b) Connect the connector, harness clamp and access

panel lock control cable.

2.

INSTALL CENTER PILLAR UPPER GARNISH (See
page

ED-40

)

3.

INSTALL REAR DOOR TRIM BOARD SUB-
ASSEMBLY (See page

ED-41

)

4.

INSTALL NO. 1 CUP HOLDER (See page

ED-41

)

5.

INSTALL REAR DOOR INSIDE HANDLE SUB-
ASSEMBLY (See page

ED-41

)

6.

INSTALL LAP BELT OUTER ANCHOR COVER (See
page

ED-42

)

7.

INSTALL ACCESS PANEL REAR WEATHERSTRIP
(See page

ED-42

)

8.

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

Open

Full Latch

Half Latch

E127240E01

Tester Connection

Condition

Specified Condition

1 - 2

Open

Below 1

Ω

1 - 2

Half Latch

Below 1

Ω

1 - 2

Full Latch

10 k

Ω or higher

B135532

B135531

LI–118

LIGHTING  –  REAR DOOR COURTESY SWITCH (for Lower Side)

LI

BODY ELECTRICAL

LIGHTING

REAR DOOR COURTESY SWITCH (for Lower Side)

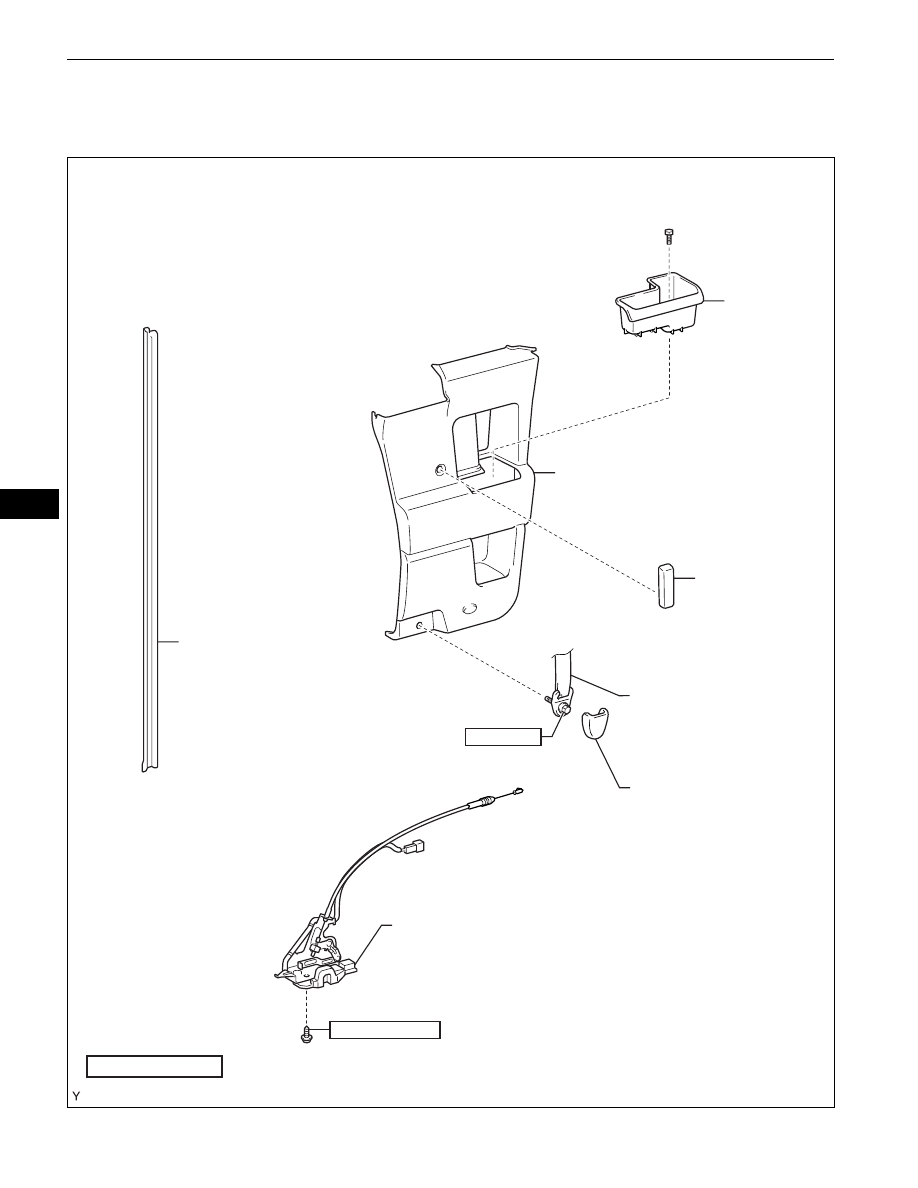

COMPONENTS

ACCESS PANEL LOWER
LOCK ASSEMBLY (REAR
DOOR COURTESY SWITCH)

ACCESS PANEL REAR
WEATHERSTRIP

LAP BELT OUTER
ANCHOR COVER

NO. 1 CUP
HOLDER

REAR DOOR TRIM
BOARD SUB-ASSEMBLY

N*m (kgf*cm, ft*lbf)  : Specified torque

42 (428, 31)

5.0 (51, 44 in.*lbf)

FRONT SEAT OUTER
BELT ASSEMBLY

x3

REAR DOOR
INSIDE HANDLE
SUB-ASSEMBLY

E127243E01

LIGHTING  –  REAR DOOR COURTESY SWITCH (for Lower Side)

LI–119

LI

REMOVAL

HINT:
•

Use the same procedure for both the RH and LH sides.

•

The procedure described below is for the RH side.

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

REMOVE ACCESS PANEL REAR WEATHERSTRIP
(See page

ED-29

)

3.

REMOVE LAP BELT OUTER ANCHOR COVER (See
page

ED-29

)

4.

REMOVE REAR DOOR INSIDE HANDLE SUB-
ASSEMBLY (See page

ED-29

)

5.

REMOVE NO. 1 CUP HOLDER (See page

ED-29

)

6.

REMOVE REAR DOOR TRIM BOARD SUB-
ASSEMBLY (See page

ED-30

)

7.

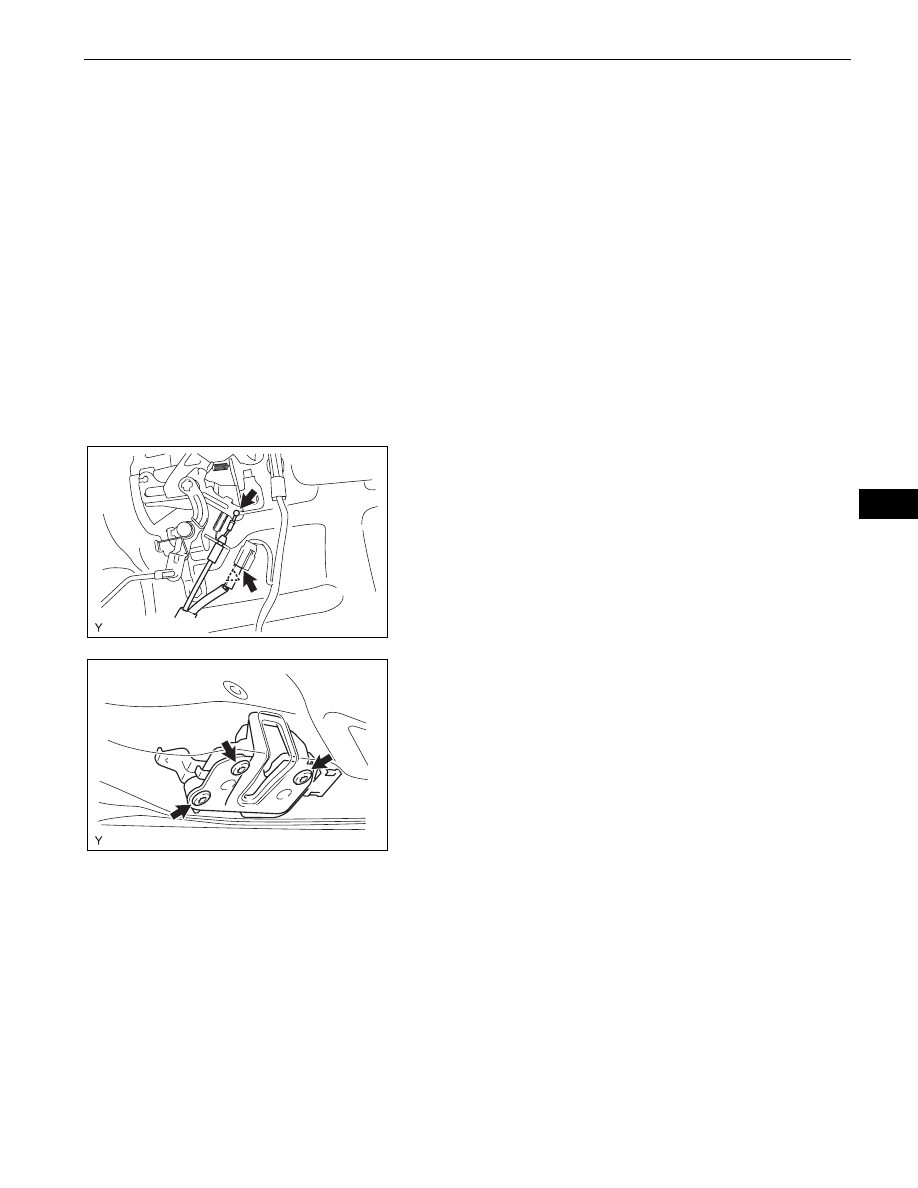

REMOVE ACCESS PANEL LOWER LOCK
ASSEMBLY
(a) Disconnect the connector, connector clamp and

access panel lock control cable.

(b) Using "Torx" socket wrench T30, remove the 3

screws.

(c) Remove the access panel lower lock by sliding it

upward.

B135561

B135562
