(b) for Rear Side:

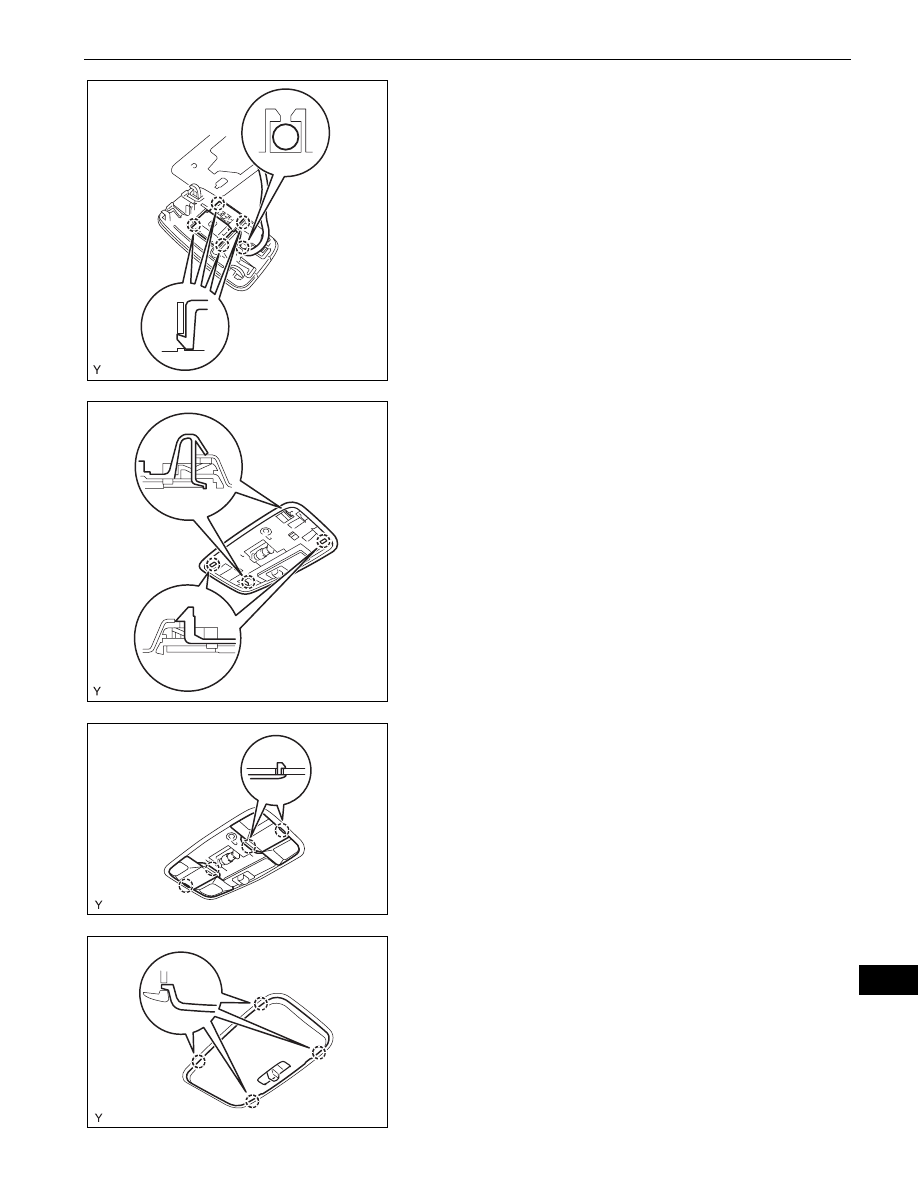

(1) Engage the 4 claws and install the room light

switch base.

(2) Insert the wire harness into the claw of the

room light.

(c) Engage the 4 claws and install the room light.

(d) Engage the 4 claws and install the 2 covers.

(e) Engage the 4 claws and install the room light lens.

6.

INSTALL INNER REAR VIEW MIRROR ASSEMBLY
(See page

MI-6

)

7.

INSTALL INNER REAR VIEW MIRROR STAY HOLDER
COVER (See page

MI-6

)

B138415

B138416

B138417

B138418

IR–36

INTERIOR  –  ROOF HEADLINING

IR

8.

INSTALL VISOR HOLDER
HINT:
Use the same procedure for both sides.

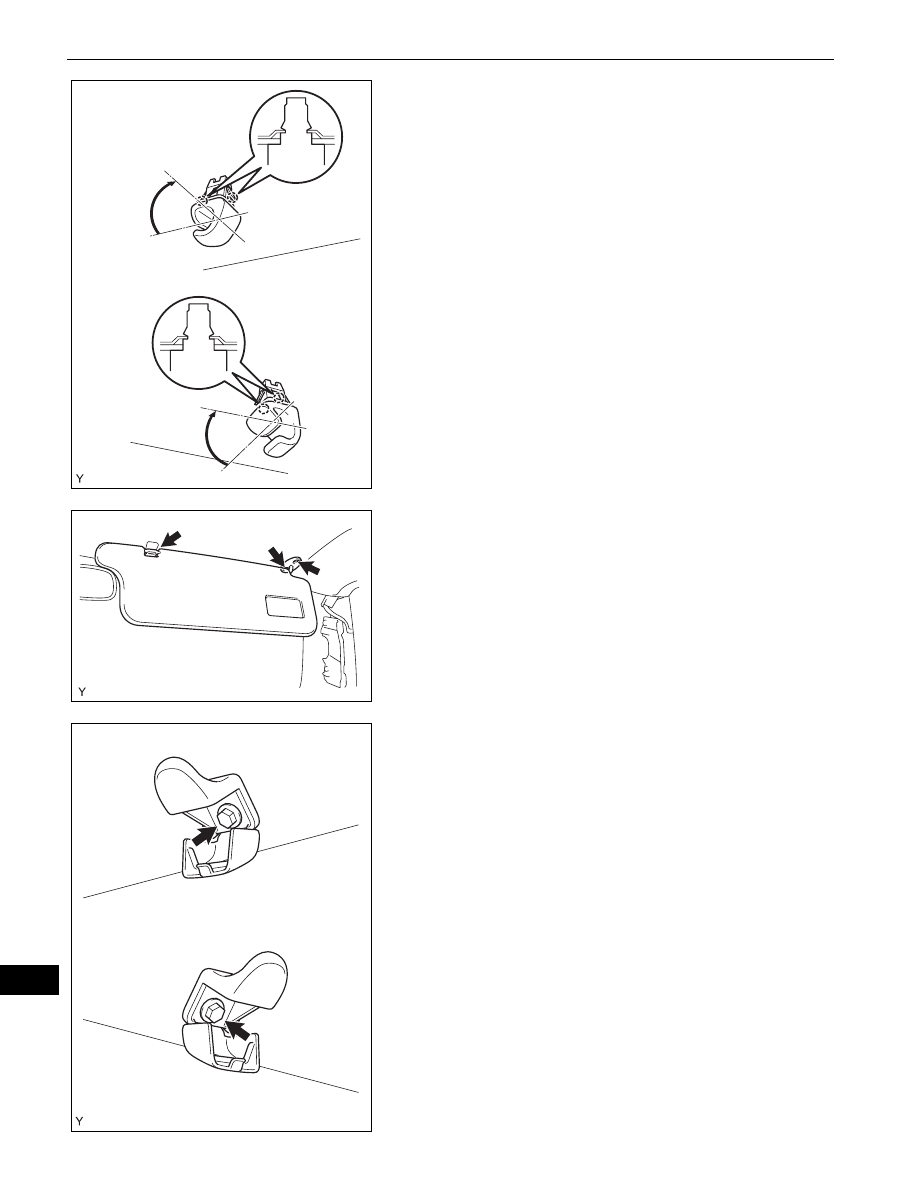

(a) Engage the 2 claws by turning the visor holder

clockwise between 60 to 120

° and install the visor

holder.

9.

INSTALL VISOR ASSEMBLY RH
(a) Install the visor with the 2 screws.
(b) Install the visor support shaft into the visor holder.

10. INSTALL VISOR ASSEMBLY LH

HINT:
Use the same procedure as for the RH side.

11. INSTALL COAT HOOK

HINT:
Use the same procedure for both sides.
(a) Install the coat hook with the bolt.

for RH Side:

for LH Side:

60 to 120°

60 to 120°

B130631E01

B130629

for RH Side:

for LH Side:

B130628E01

INTERIOR  –  ROOF HEADLINING

IR–37

IR

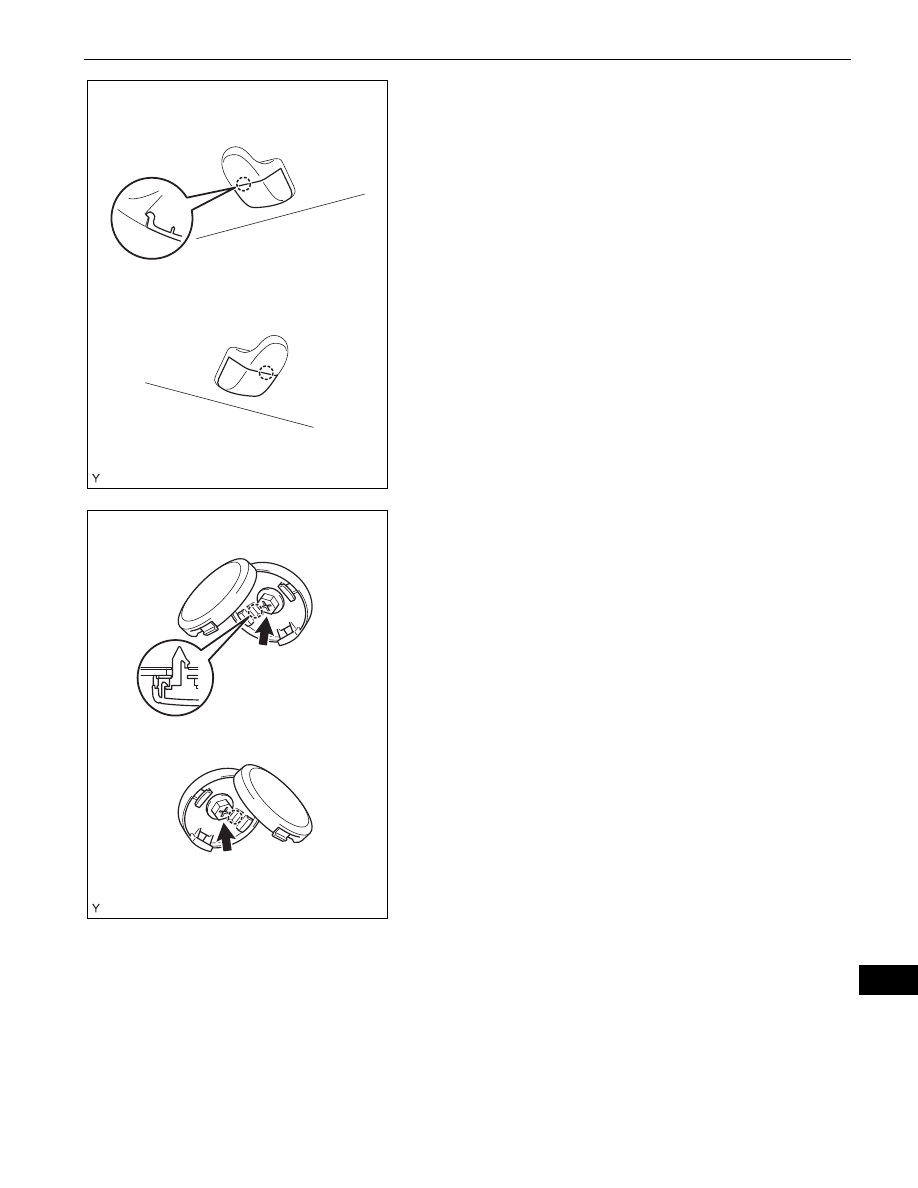

(b) Engage the claw and close the cover.

12. INSTALL ROOF HEADLINING HOLE PLUG

HINT:
Use the same procedure for both sides.

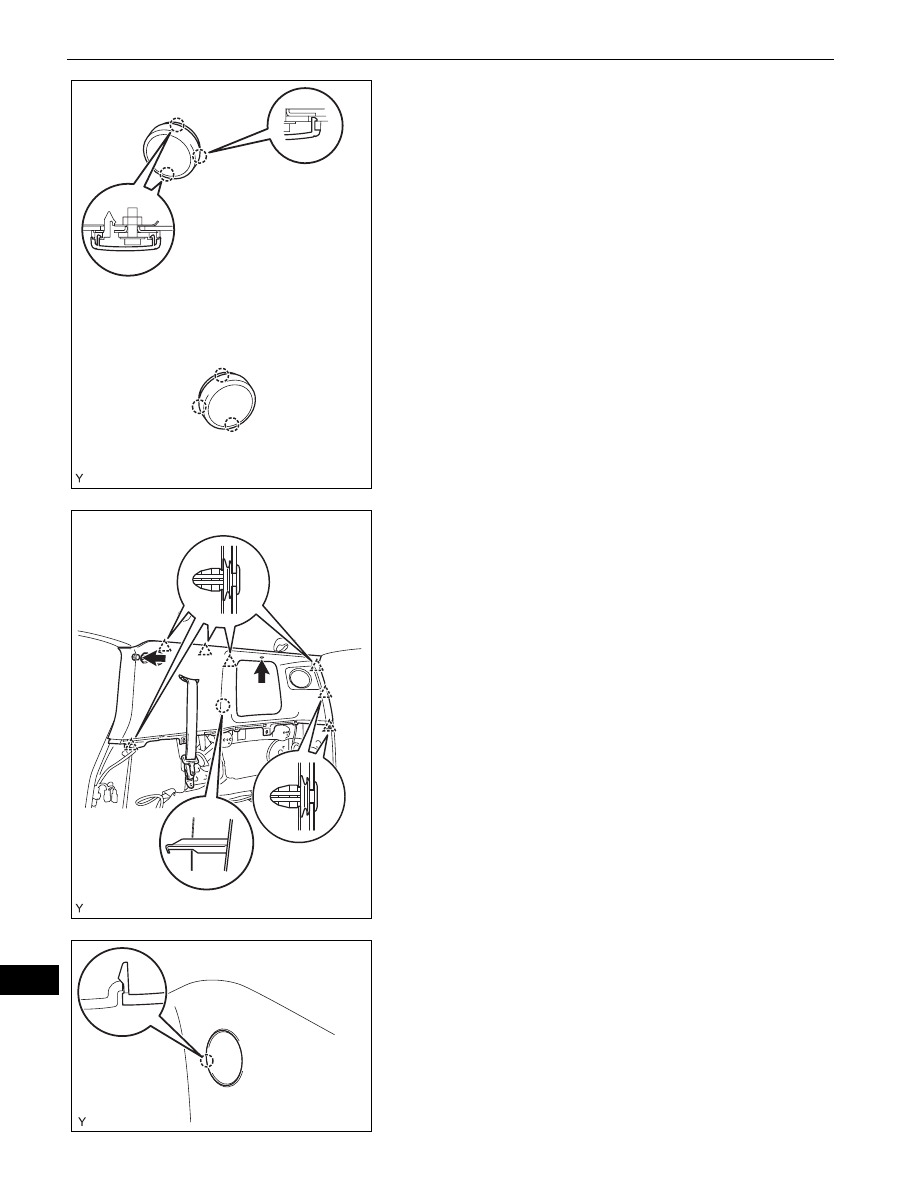

(a) Engage the claw and install the roof headlining hole

plug.

(b) Tighten the bolt.

for RH Side:

for LH Side:

B130627E01

for RH Side:

for LH Side:

B130625E01

IR–38

INTERIOR  –  ROOF HEADLINING

IR

(c) Engage the 3 claws and close the cover.

13. INSTALL ROOF SIDE INNER GARNISH RH

(a) Pass the rear seat outer belt through the slit in the

roof side inner garnish.

(b) Engage the 7 clips and the claw and install the roof

side inner garnish.

(c) Tighten the bolt.
(d) Install the clip.

(e) Engage the claw and close the cover.

14. INSTALL ROOF SIDE INNER GARNISH LH

HINT:
Use the same procedure as for the RH side.

for RH Side:

for LH Side:
