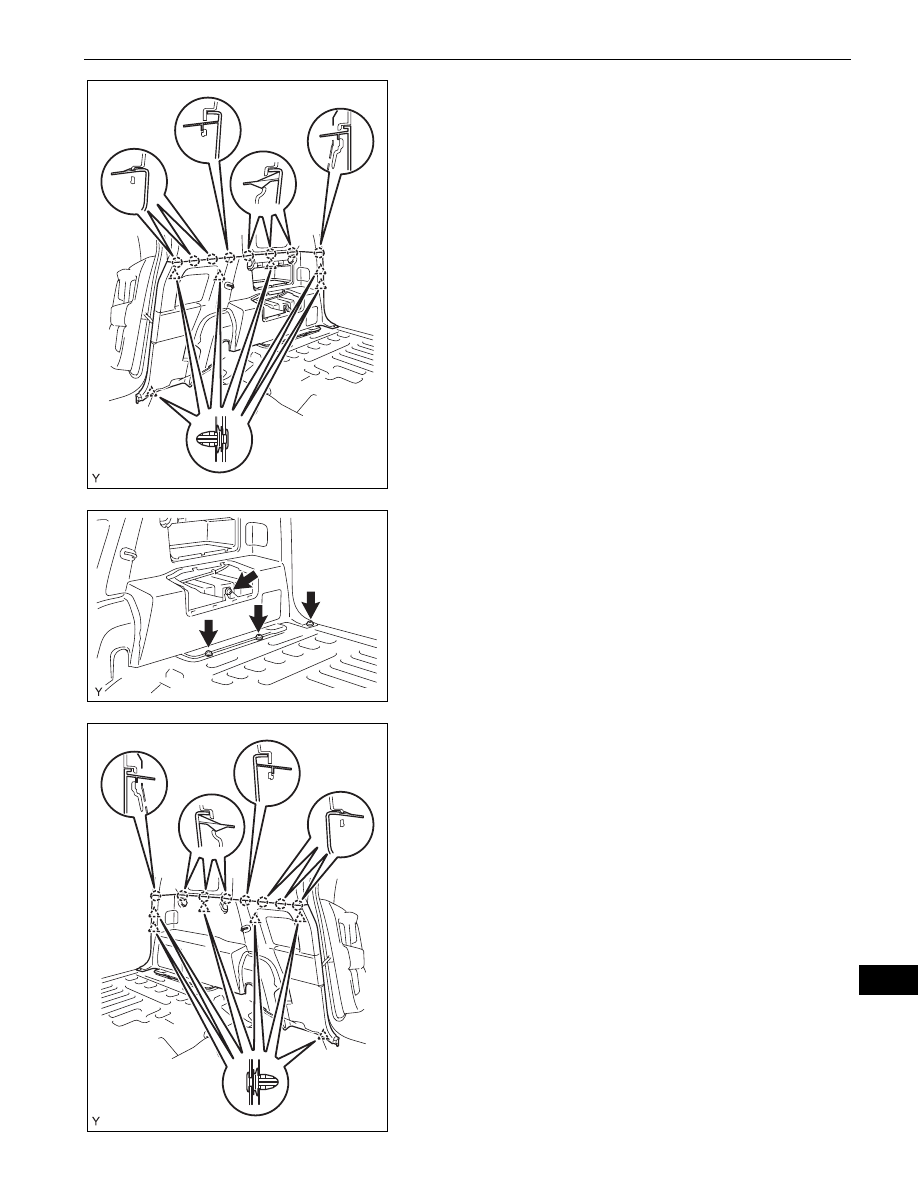

15. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH

(a) Engage the 6 clips and the 8 claws and install the

deck trim side panel.

(b) Tighten the 4 screws.

16. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH

(a) Engage the 6 clips and the 8 claws and install the

deck trim side panel.

B130617

B130616

B130619

IR–40

INTERIOR  –  ROOF HEADLINING

IR

(b) Tighten the 3 screws.

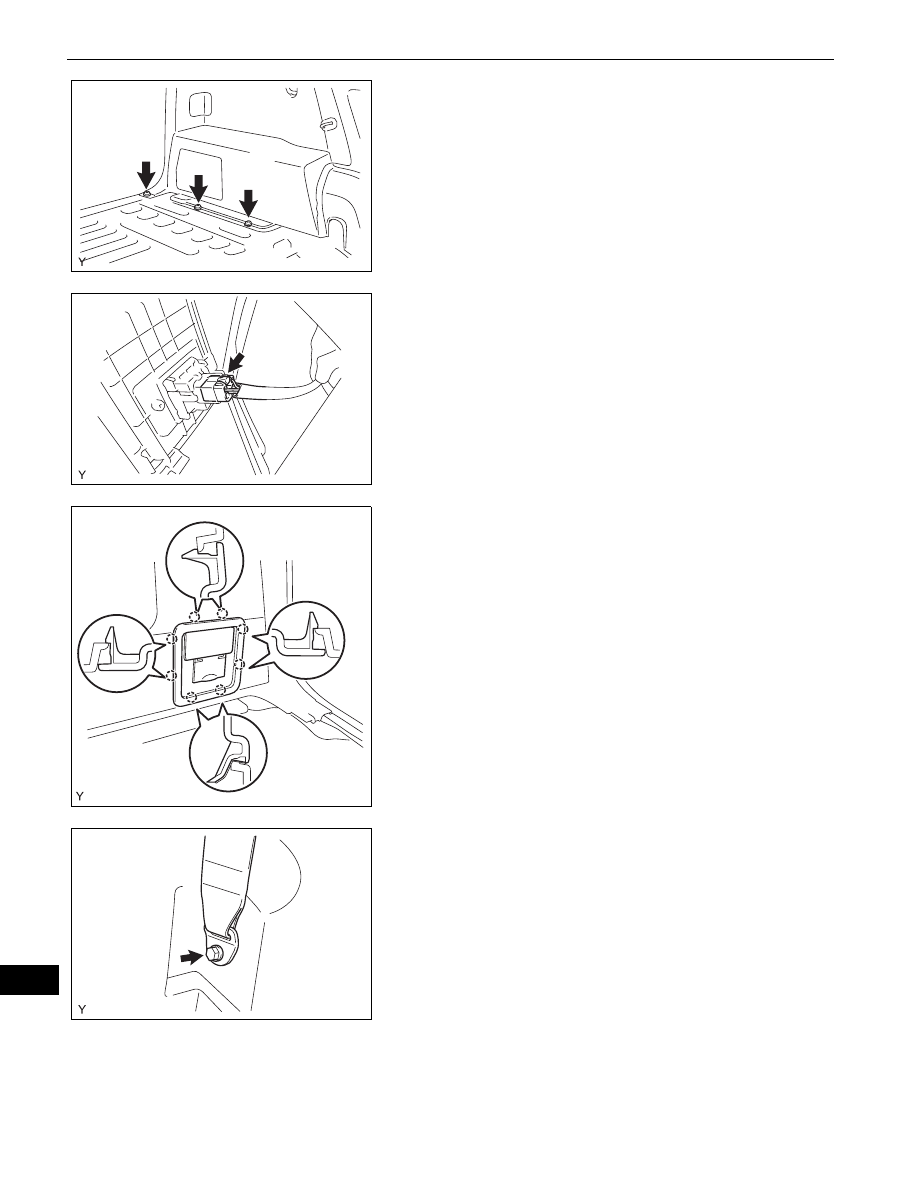

17. INSTALL REAR DECK TRIM COVER (w/ Power Outlet

Socket)
(a) Connect the power outlet connector.

(b) Engage the 8 claws and install the rear deck trim

cover.

18. INSTALL REAR SEAT OUTER BELT ASSEMBLY RH

(a) Install the anchor plate with the bolt.

Torque: 42 N*m (430 kgf*cm, 31 ft.*lbf)

(b) Make sure that the anchor plate rotates smoothly.

19. INSTALL REAR SEAT OUTER BELT ASSEMBLY LH

HINT:
Use the same procedure as for the RH side.

B130618

B138600

B135130

B130615

INTERIOR  –  ROOF HEADLINING

IR–41

IR

20. INSTALL LAP BELT OUTER ANCHOR COVER

HINT:
Use the same procedure for both sides.
(a) Engage the 3 claws and install the lap belt outer

anchor cover.

21. INSTALL AMPLIFIER BOX SPEAKER ASSEMBLY (w/

Woofer) (See page

AV-90

)

22. INSTALL SPEAKER MOUNTING COVER (w/ Woofer)

(See page

AV-91

)

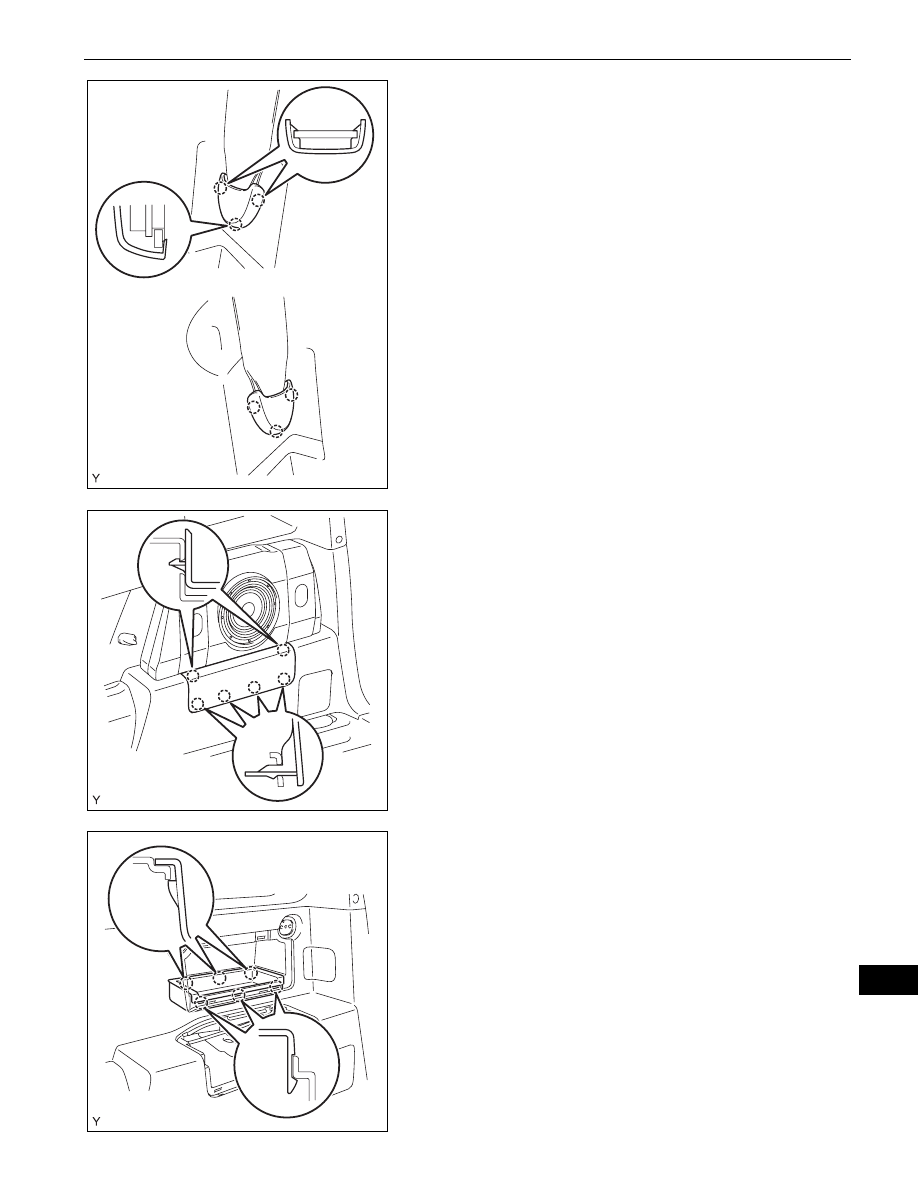

23. INSTALL DECK SIDE GARNISH (w/ Woofer)

(a) Engage the 6 claws and install the deck side

garnish.

24. INSTALL QUARTER TRIM POCKET (w/o Woofer)

(a) Engage the 6 claws and install the quarter trim

pocket.

for RH Side:

for LH Side:

B130614E01

B134992

B130613

IR–42

INTERIOR  –  ROOF HEADLINING

IR

25. INSTALL SIDE TRIM COVER (w/o Woofer)

(a) Engage the 8 claws and install the side trim cover.

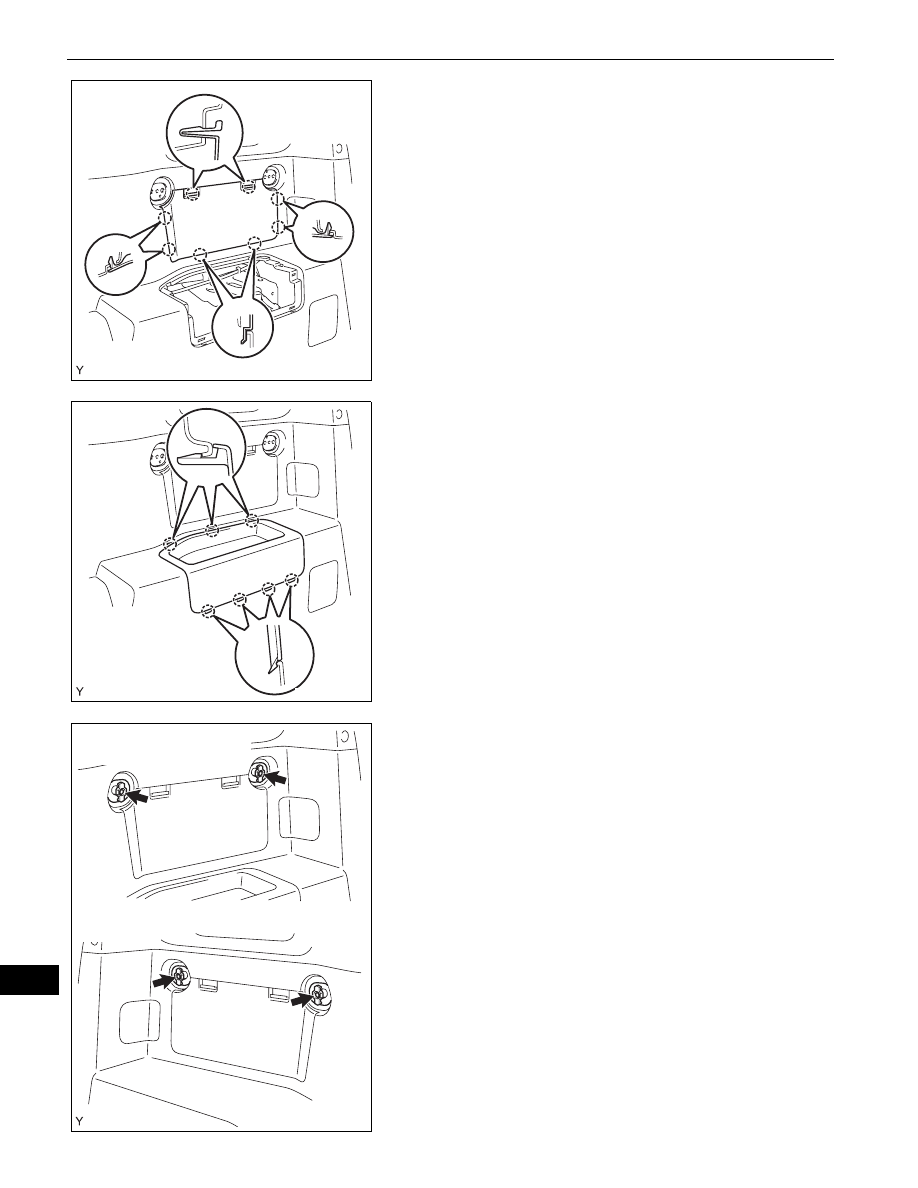

26. INSTALL QUARTER TRIM POCKET TRAY (w/o

Woofer)
(a) Engage the 7 claws and install the quarter trim

pocket tray.

27. INSTALL PACKAGE HOLDER NET HOOK

HINT:
Use the same procedure to install all the package holder
net hooks.
(a) Install the package holder net hook with the screw.

B130612

B130611

for RH Side (w/o Woofer):

for LH Side:

B130610E01
