INTERIOR  –  ROOF HEADLINING

IR–31

IR

REASSEMBLY

1.

INSTALL ROOF WIRE
(a) Apply new double-sided tape to the roof headlining

along the markings of the roof headlining.

NOTICE:
•

Apply the tape securely in place.

•

Do not touch the adhesive surface when
applying the tape to prevent adhesion failure.

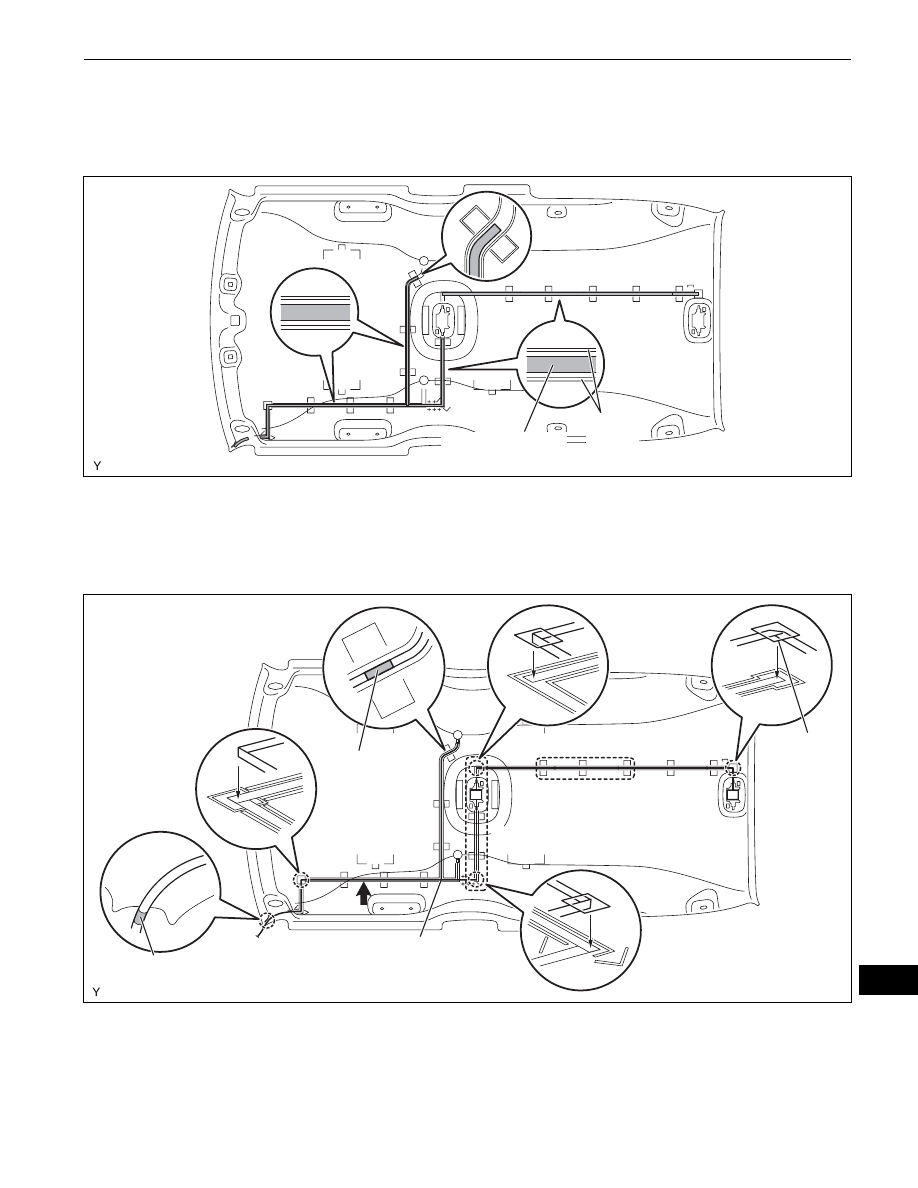

(b) Install the roof wire as shown in the illustration.

NOTICE:
•

Do not twist the flat wire harness when
installing it.

•

Securely fix the wire harness by pressing it.

Double-sided Tape

Marking

B130653E01

Fixed Tape

A

A

B

Marking Tape

Marking Tape

B130652E01

IR–32

INTERIOR  –  ROOF HEADLINING

IR

•

Securely fix the wire harness to secure gap
between the wire harness and the roof panel
in part A.

•

Securely fix the wire harness to avoid
looseness in the wire harness between
portion B and the marking tape.

2.

INSTALL ROOF SILENCER PAD

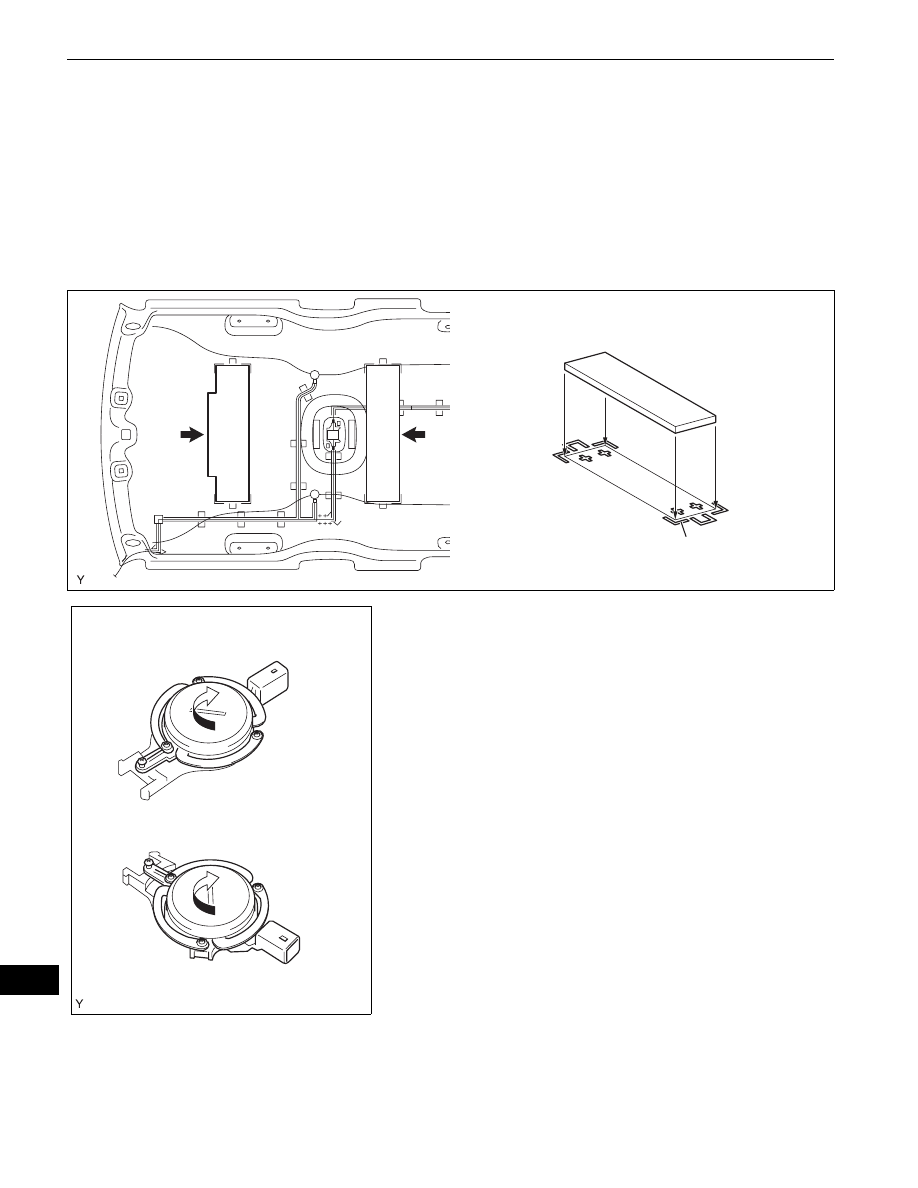

(a) Align 2 new roof silencer pads with the markings of

the roof headlining and install them onto the roof
headlining.

3.

INSTALL ROOF SPEAKER ASSEMBLY
HINT:
Use the same procedure for both sides.
(a) Install the roof speaker by turning it in the direction

of the arrow shown in the illustration.

Marking

B130650E01

for LH Side:

for RH Side:

B138635E01

INTERIOR  –  ROOF HEADLINING

IR–33

IR

(b) Tighten the screw.
(c) Connect the speaker connector.

INSTALLATION

1.

INSTALL ROOF HEADLINING

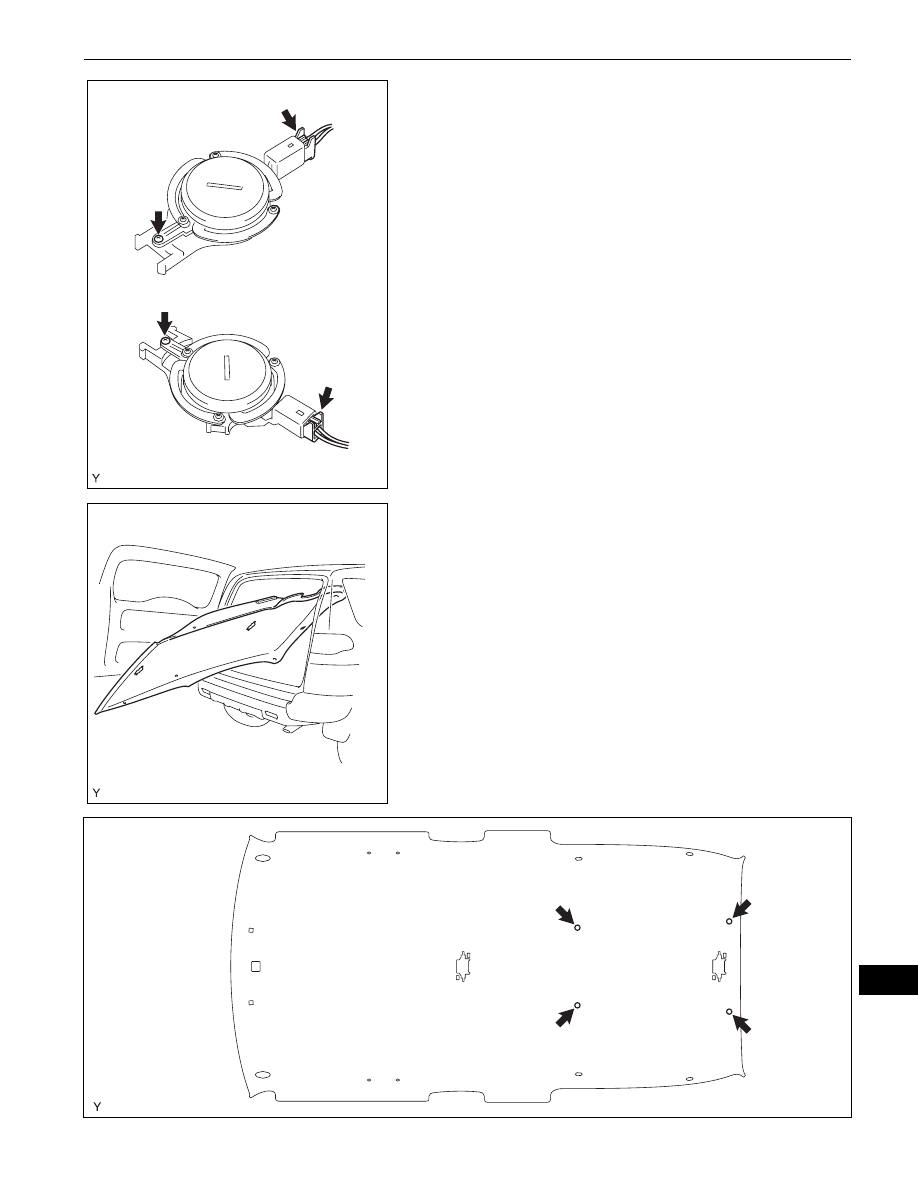

(a) Pull the roof headlining back into the vehicle through

the back door.

(b) Install the 4 clips.

for LH Side:

for RH Side:

B135049E01

B130646

B130645

IR–34

INTERIOR  –  ROOF HEADLINING

IR

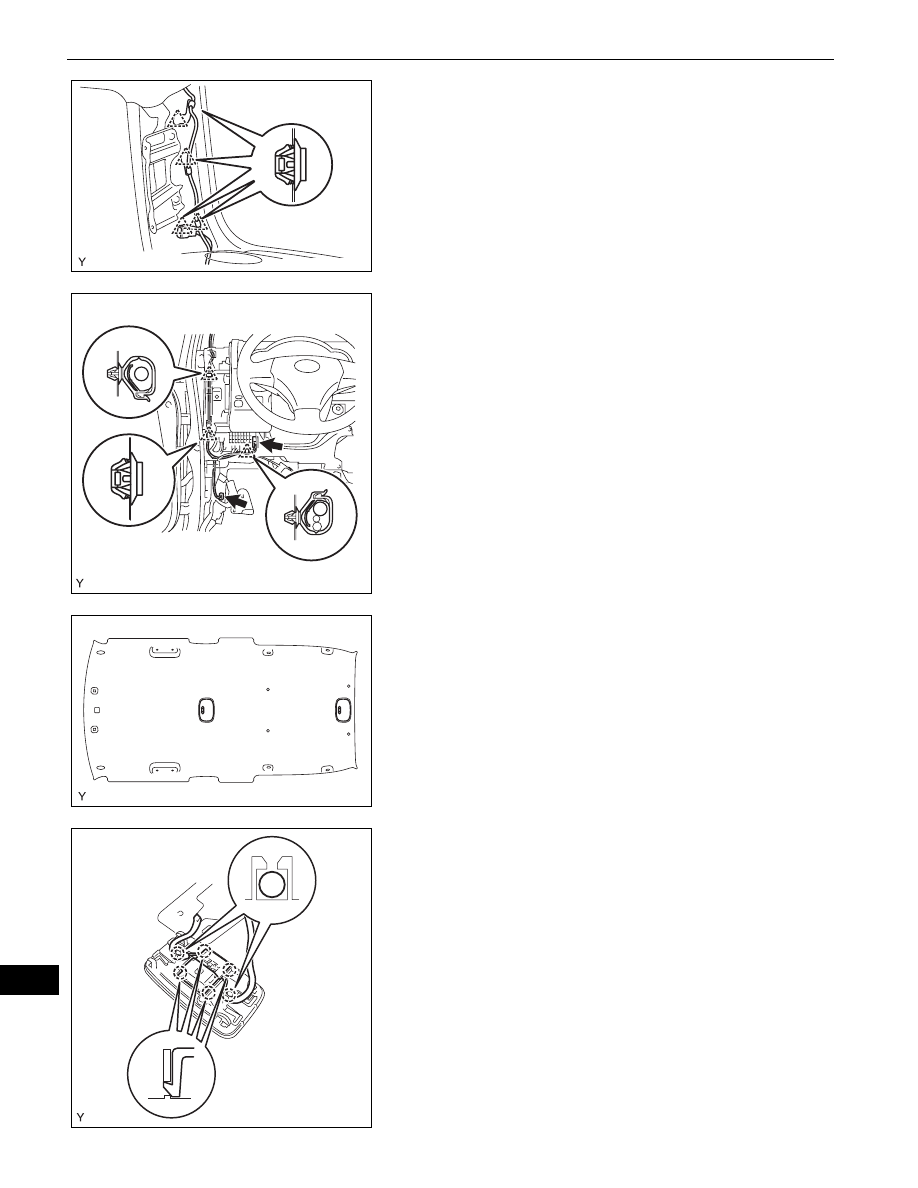

(c) Install the 3 clamps and the connector.

(d) Install the clamp.
(e) Connect the 2 connectors.
(f)

Insert the wire harness into the 2 clamps.

2.

INSTALL INSTRUMENT PANEL FINISH LOWER
PANEL SUB-ASSEMBLY (See page

IP-29

)

3.

INSTALL HOOD LOCK CONTROL LEVER SUB-
ASSEMBLY (See page

IP-30

)

4.

INSTALL INSTRUMENT PANEL REGISTER
ASSEMBLY (See page

IP-30

)

5.

INSTALL ROOM LIGHT ASSEMBLY
HINT:
The procedure described below is for the front side. Use
the same procedure for both the front and rear sides,
unless otherwise specified.

(a) for Front Side:

(1) Engage the 4 claws and install the room light

switch base.

(2) Insert the 2 wire harnesses into the 2 claws of

the room light.

B130644

B130643

B138411

B138414
