INTERIOR  –  ROOF HEADLINING

IR–23

IR

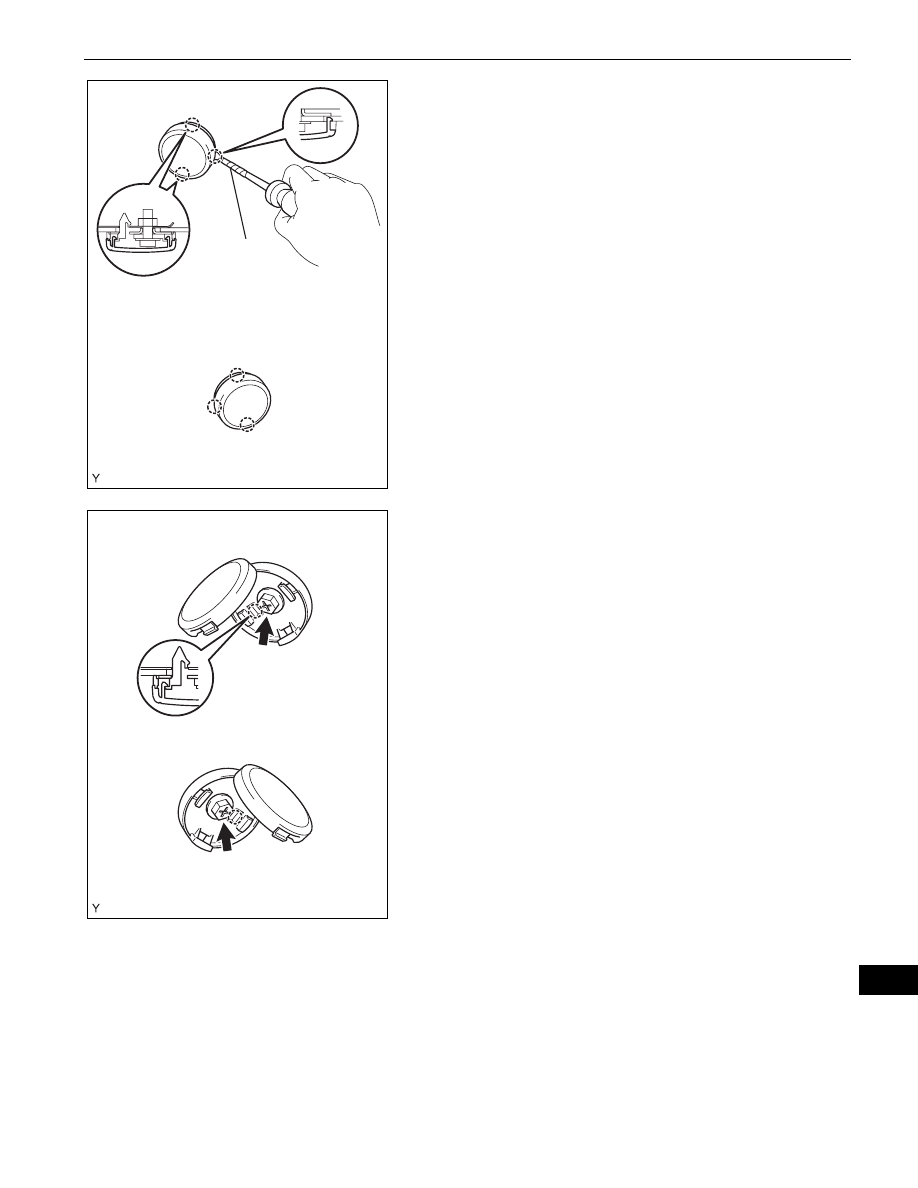

43. REMOVE ROOF HEADLINING HOLE PLUG

HINT:
Use the same procedure for both sides.
(a) Using a screwdriver with its tip wrapped in

protective tape, disengage the 3 claws and open the
cover.

(b) Remove the bolt.
(c) Disengage the claw and remove the roof headlining

hole plug.

for RH Side:

for LH Side:

Protective Tape

B130623E01

for RH Side:

for LH Side:

B130625E01

IR–24

INTERIOR  –  ROOF HEADLINING

IR

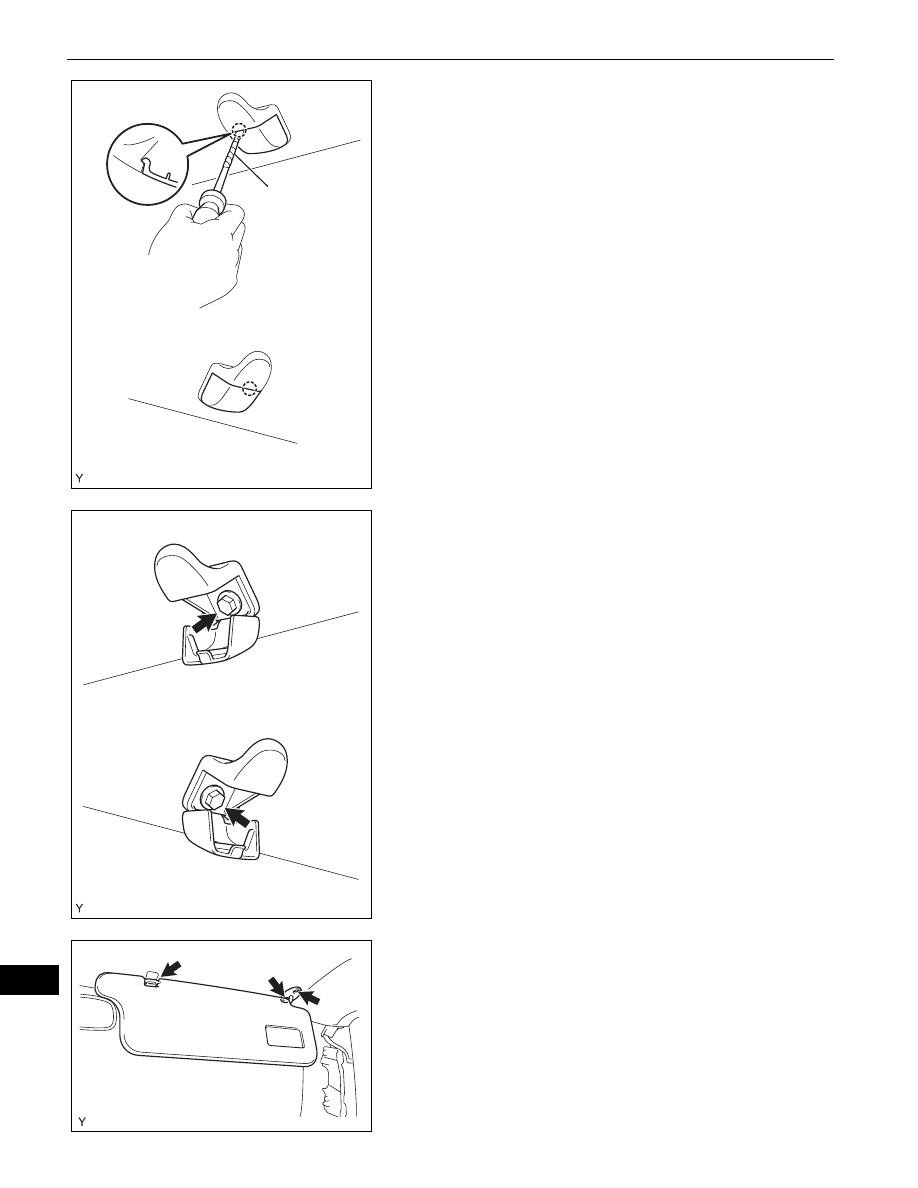

44. REMOVE COAT HOOK

HINT:
Use the same procedure for both sides.
(a) Using a screwdriver with its tip wrapped in

protective tape, disengage the claw and open the
cover.

(b) Remove the bolt and the coat hook.

45. REMOVE VISOR ASSEMBLY RH

(a) Remove the visor support shaft from the visor

holder.

(b) Remove the 2 screws and the visor.

46. REMOVE VISOR ASSEMBLY LH

HINT:
Use the same procedure as for the RH side.

for RH Side:

for LH Side:

Protective Tape

B130626E01

for RH Side:

for LH Side:

B130628E01

B130629

INTERIOR  –  ROOF HEADLINING

IR–25

IR

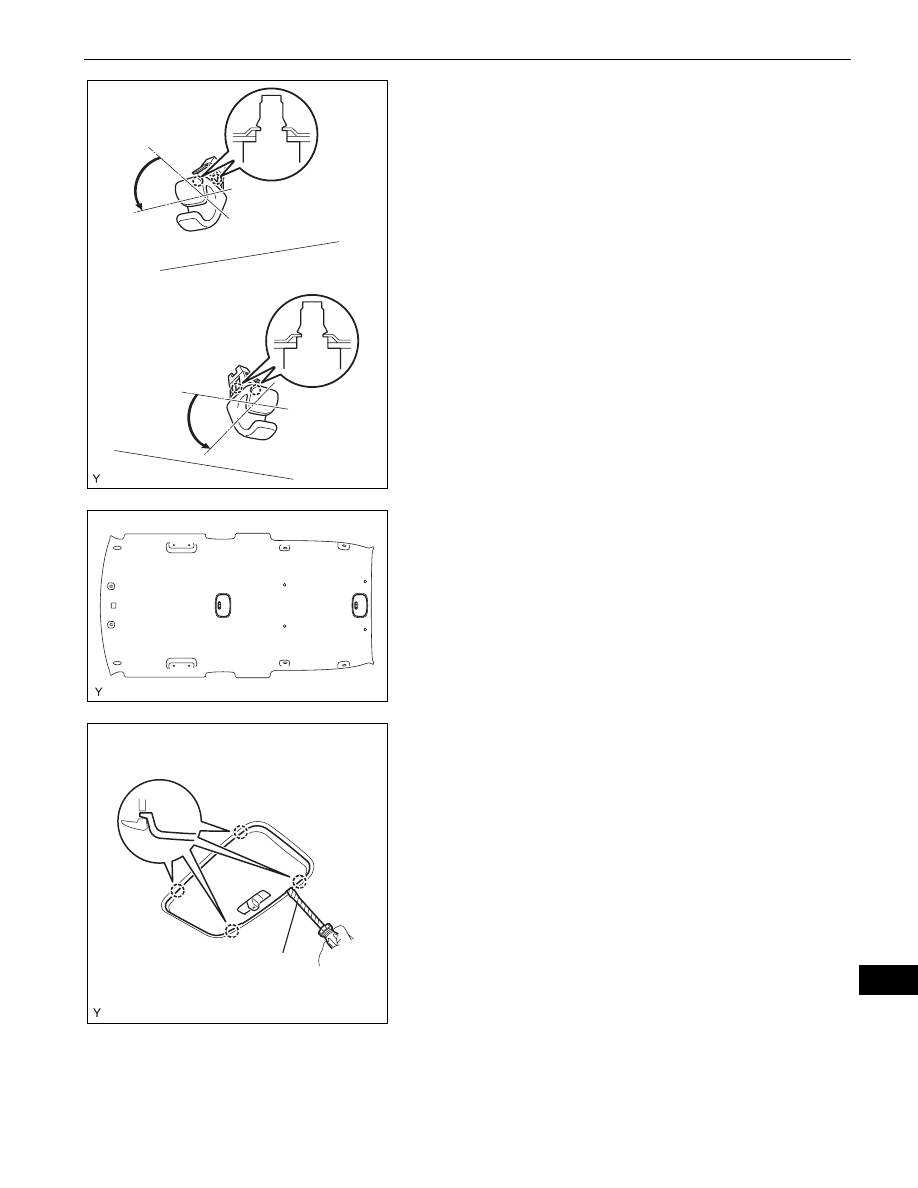

47. REMOVE VISOR HOLDER

HINT:
Use the same procedure for both sides.
(a) Disengage the 2 claws by turning the visor

counterclockwise between 60 to 120

° and remove

the visor holder.
HINT:
The claw may be damaged during removal.
However, it is reusable because this does not effect
its function.

48. REMOVE INNER REAR VIEW MIRROR STAY

HOLDER COVER (See page

MI-6

)

49. REMOVE INNER REAR VIEW MIRROR ASSEMBLY

(See page

MI-6

)

50. REMOVE ROOM LIGHT ASSEMBLY

HINT:
The procedure described below is for the front side. Use
the same procedure for both the front and rear sides,
unless otherwise specified.

(a) Using a screwdriver with its tip wrapped in

protective tape, disengage the 4 claws and remove
the room light lens.

for RH Side:

for LH Side:

60 to 120°

60 to 120°

B130630E01

B138411

Protective Tape

B138408E01

IR–26

INTERIOR  –  ROOF HEADLINING

IR

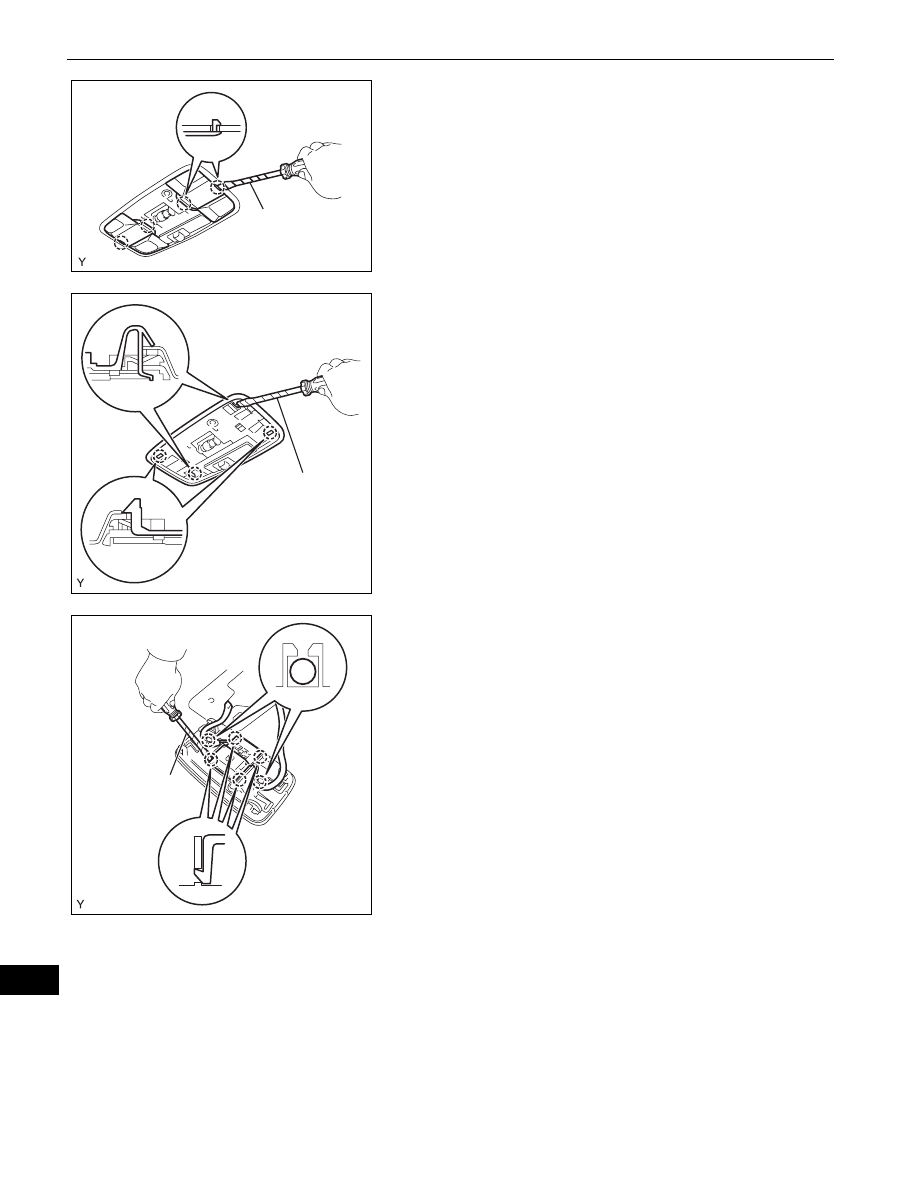

(b) Using a screwdriver with its tip wrapped in

protective tape, disengage the 2 claws and remove
the cover.
HINT:
Use the same procedure as for the opposite side.

(c) Using a screwdriver with its tip wrapped in

protective tape, disengage the 4 claws and remove
the room light.

(d) for Front Side:

(1) Remove the 2 wire harnesses from the 2 claws

of the room light.

(2) Using a screwdriver with its tip wrapped in

protective tape, disengage the 4 claws and
remove the room light switch base.

Protective Tape

B138409E01

Protective Tape

B138410E01

Protective Tape

B138413E01
