32. REMOVE QUARTER TRIM POCKET TRAY (w/o

Woofer)

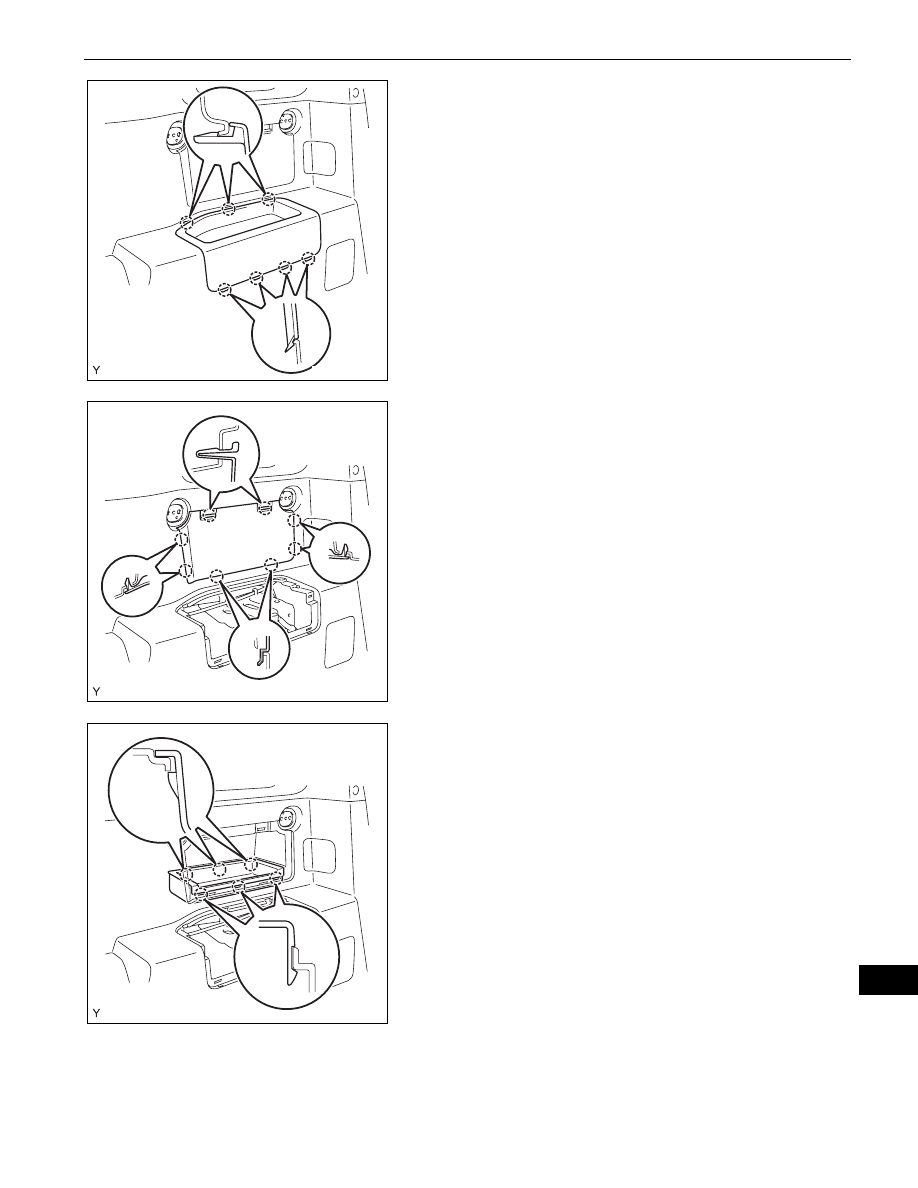

(a) Disengage the 7 claws and remove the quarter trim

pocket tray.

33. REMOVE SIDE TRIM COVER (w/o Woofer)

(a) Disengage the 8 claws and remove the side trim

cover.

34. REMOVE QUARTER TRIM POCKET (w/o Woofer)

(a) Disengage the 6 claws and remove the quarter trim

pocket.

B130611

B130612

B130613

IR–20

INTERIOR  –  ROOF HEADLINING

IR

35. REMOVE LAP BELT OUTER ANCHOR COVER

HINT:
Use the same procedure for both sides.

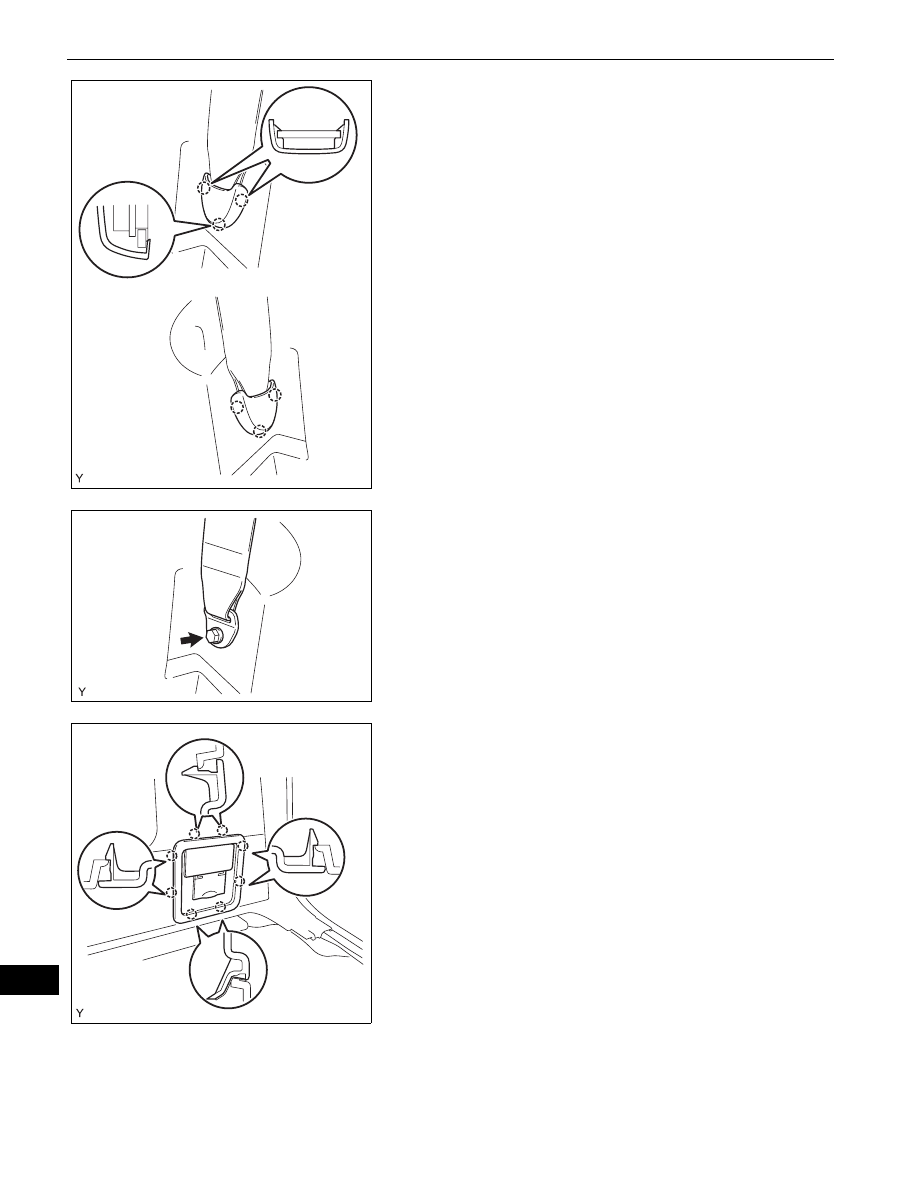

(a) Disengage the 3 claws and remove the lap belt

outer anchor cover.

36. REMOVE REAR SEAT OUTER BELT ASSEMBLY RH

(a) Remove the bolt and the anchor plate.

37. REMOVE REAR SEAT OUTER BELT ASSEMBLY LH

HINT:
Use the same procedure as for the RH side.

38. REMOVE REAR DECK TRIM COVER (w/ Power

Outlet Socket)
(a) Disengage the 8 claws and remove the rear deck

trim cover.

for RH Side:

for LH Side:

B130614E01

B130615

B135130

INTERIOR  –  ROOF HEADLINING

IR–21

IR

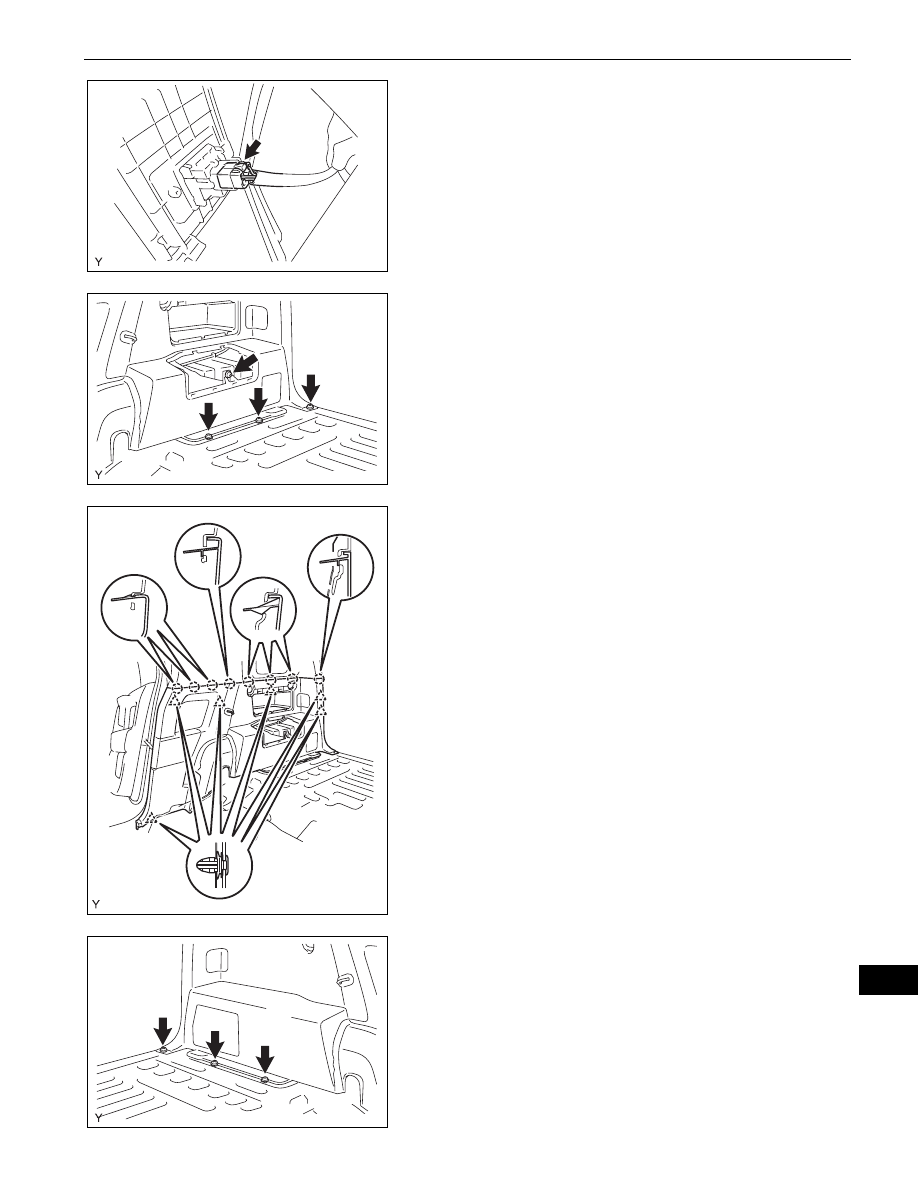

(b) Disconnect the power outlet connector.

39. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

(a) Remove the 4 screws.

(b) Disengage the 6 clips and the 8 claws and remove

the deck trim side panel.

40. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

(a) Remove the 3 screws.

B138600

B130616

B130617

B130618

IR–22

INTERIOR  –  ROOF HEADLINING

IR

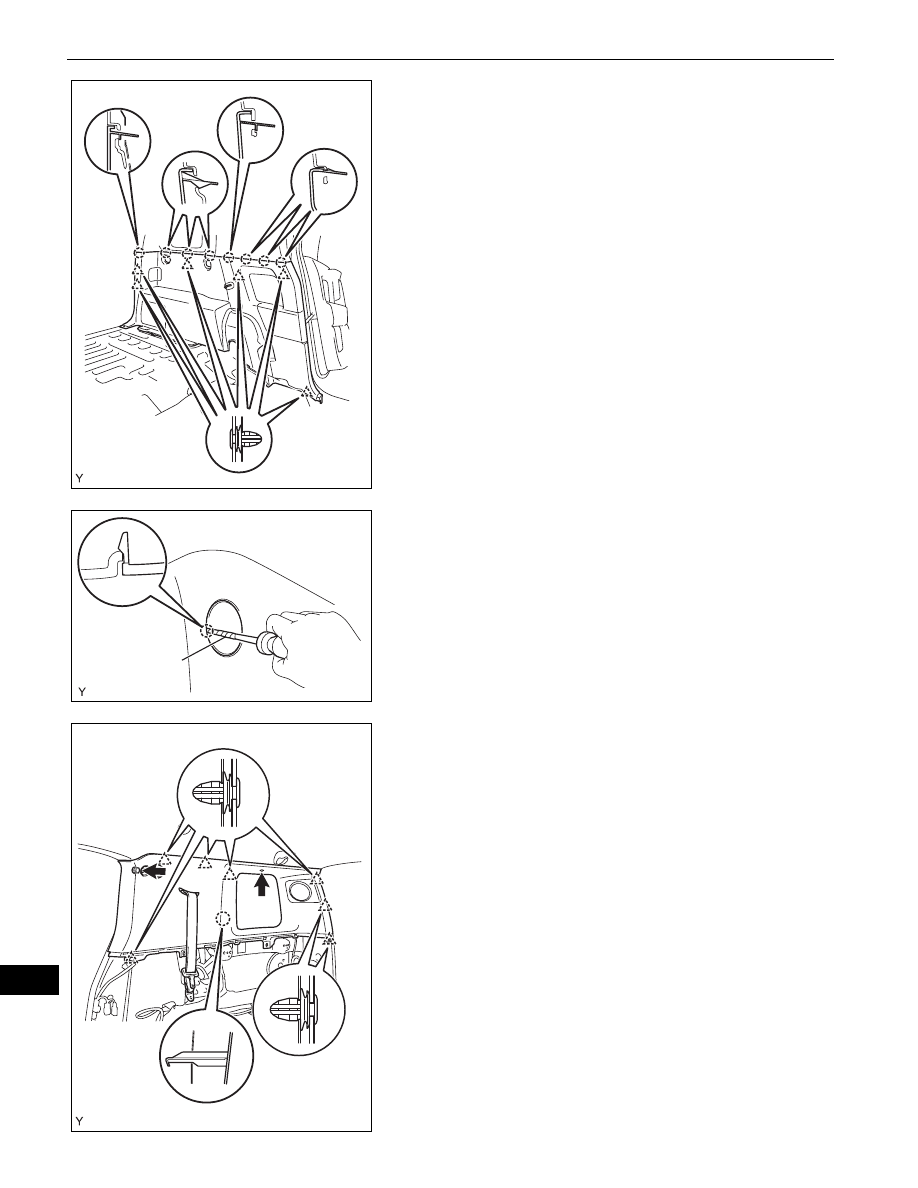

(b) Disengage the 6 clips and the 8 claws and remove

the deck trim side panel.

41. REMOVE ROOF SIDE INNER GARNISH RH

(a) Using a screwdriver with its tip wrapped in

protective tape, disengage the claw and open the
cover.

(b) Remove the bolt and the clip.
(c) Disengage the 7 clips and the claw and remove the

roof side inner garnish.

(d) Pass the rear seat outer belt through the slit in the

roof side inner garnish.

42. REMOVE ROOF SIDE INNER GARNISH LH

HINT:
Use the same procedure as for the RH side.

B130619
