Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 253

INTERIOR  –  ROOF HEADLINING

IR–15

IR

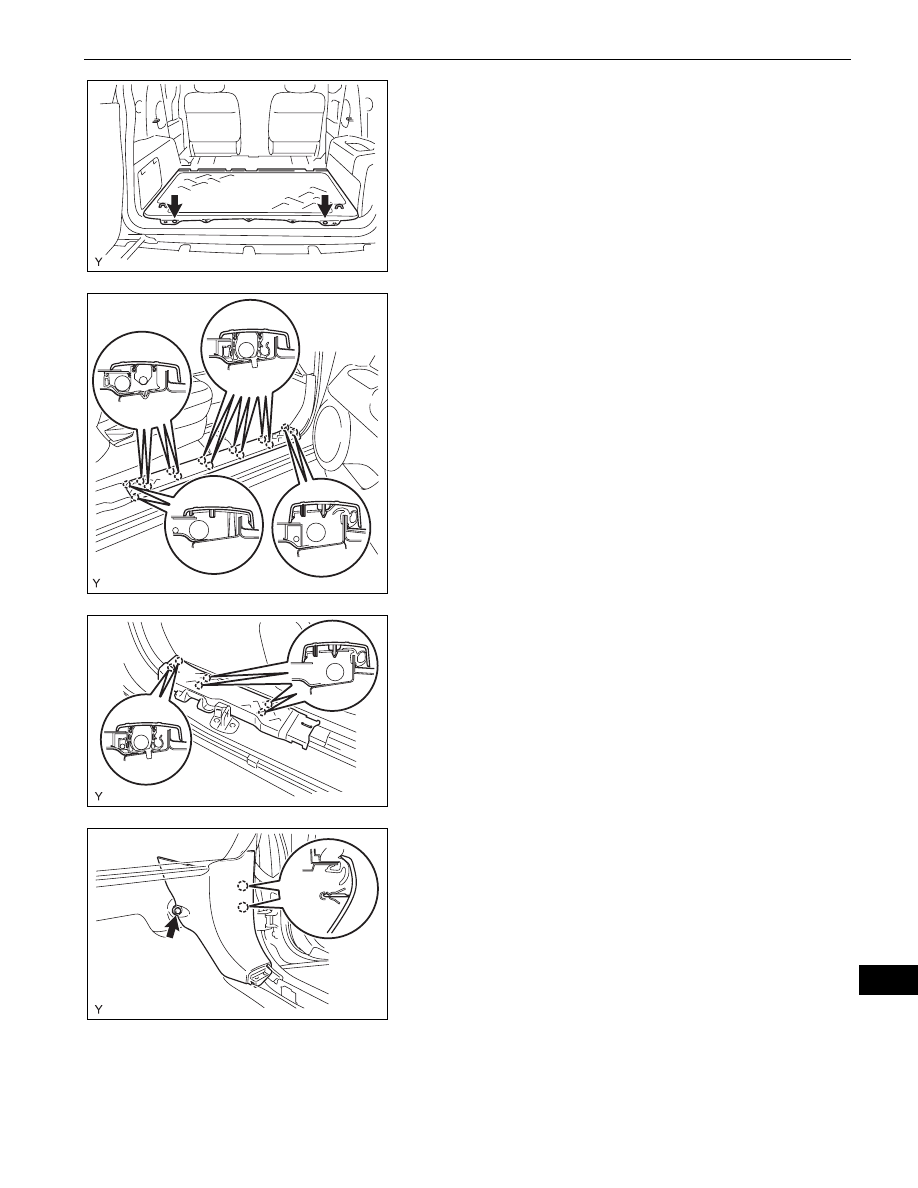

9.

REMOVE REAR FLOOR MAT ASSEMBLY
(a) Using a clip remover, remove the 2 clips and the

rear floor mat.

10. REMOVE FRONT DOOR SCUFF PLATE RH

(a) Disengage the 14 claws and remove the front door

scuff plate.

11. REMOVE FRONT DOOR SCUFF PLATE LH

HINT:
Use the same procedure as for the RH side.

12. REMOVE ACCESS DOOR SCUFF PLATE RH

(a) Disengage the 6 claws and remove the access door

scuff plate.

13. REMOVE ACCESS DOOR SCUFF PLATE LH

HINT:
Use the same procedure as for the RH side.

14. REMOVE FRONT FLOOR FOOTREST (See page

IR-2

)

15. REMOVE FOOTREST CLIP (See page

IR-2

)

16. REMOVE COWL SIDE TRIM BOARD RH

(a) Remove the clip.
(b) Disengage the 2 claws and remove the cowl side

trim board.

17. REMOVE COWL SIDE TRIM BOARD LH

HINT:
Use the same procedure as for the RH side.

B130594

B130597

B130598

B130599

IR–16

INTERIOR  –  ROOF HEADLINING

IR

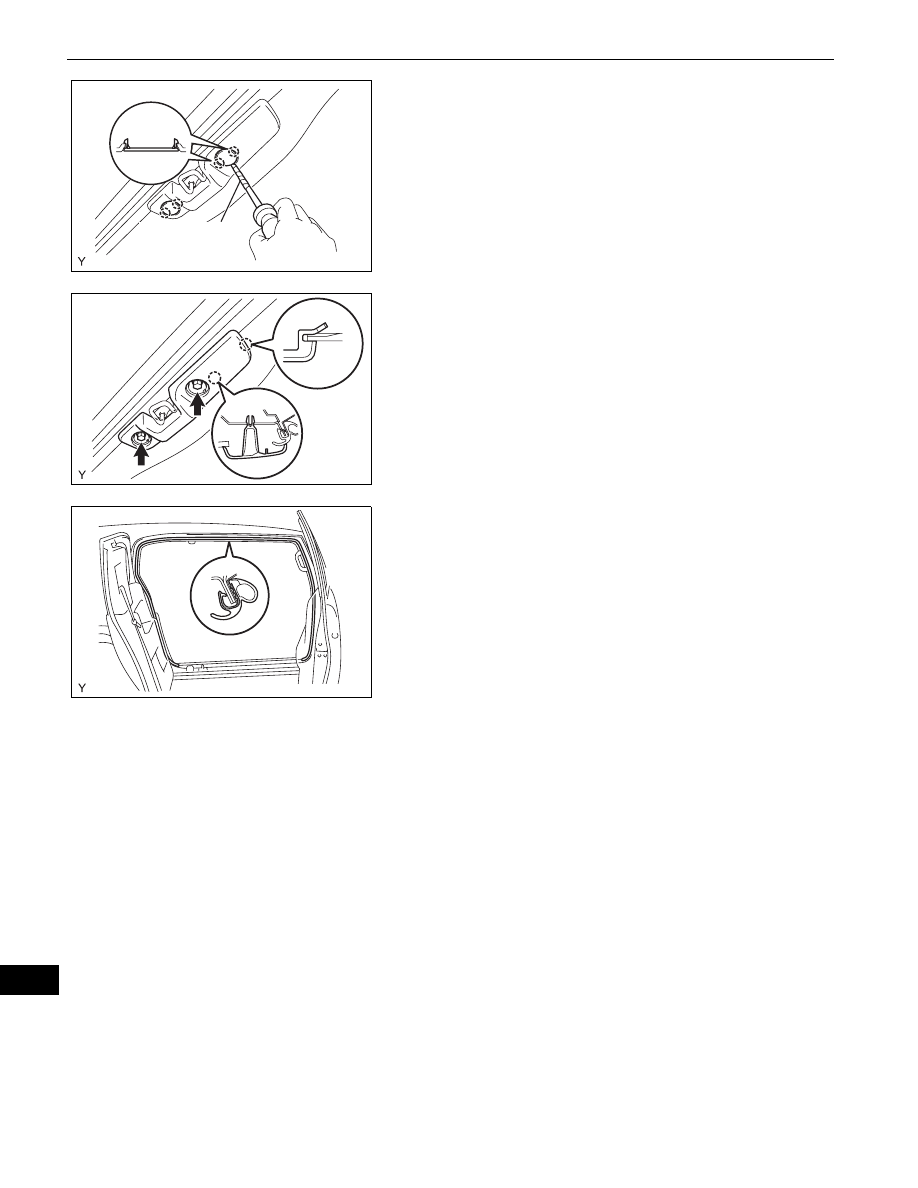

18. REMOVE ROOF SIDE INNER GARNISH COVER RH

HINT:
Use the same procedure for both sides.
(a) Using a screwdriver with its tip wrapped in

protective tape, disengage the 2 claws and remove
the roof side inner garnish cover.

19. REMOVE ROOF SIDE INNER GARNISH COVER LH

HINT:
Use the same procedure as for the RH side.

20. REMOVE ROOF SIDE RAIL GARNISH RH

(a) Remove the 2 bolts.
(b) Disengage the 2 claws and remove the roof side rail

garnish.

21. REMOVE ROOF SIDE RAIL GARNISH LH

HINT:
Use the same procedure as for the RH side.

22. REMOVE FRONT DOOR OPENING TRIM

WEATHERSTRIP RH
(a) Remove the front door opening trim weatherstrip.

23. REMOVE FRONT DOOR OPENING TRIM

WEATHERSTRIP LH
HINT:
Use the same procedure as for the RH side.

Protective Tape

B130600E01

B130602

B130603

INTERIOR  –  ROOF HEADLINING

IR–17

IR

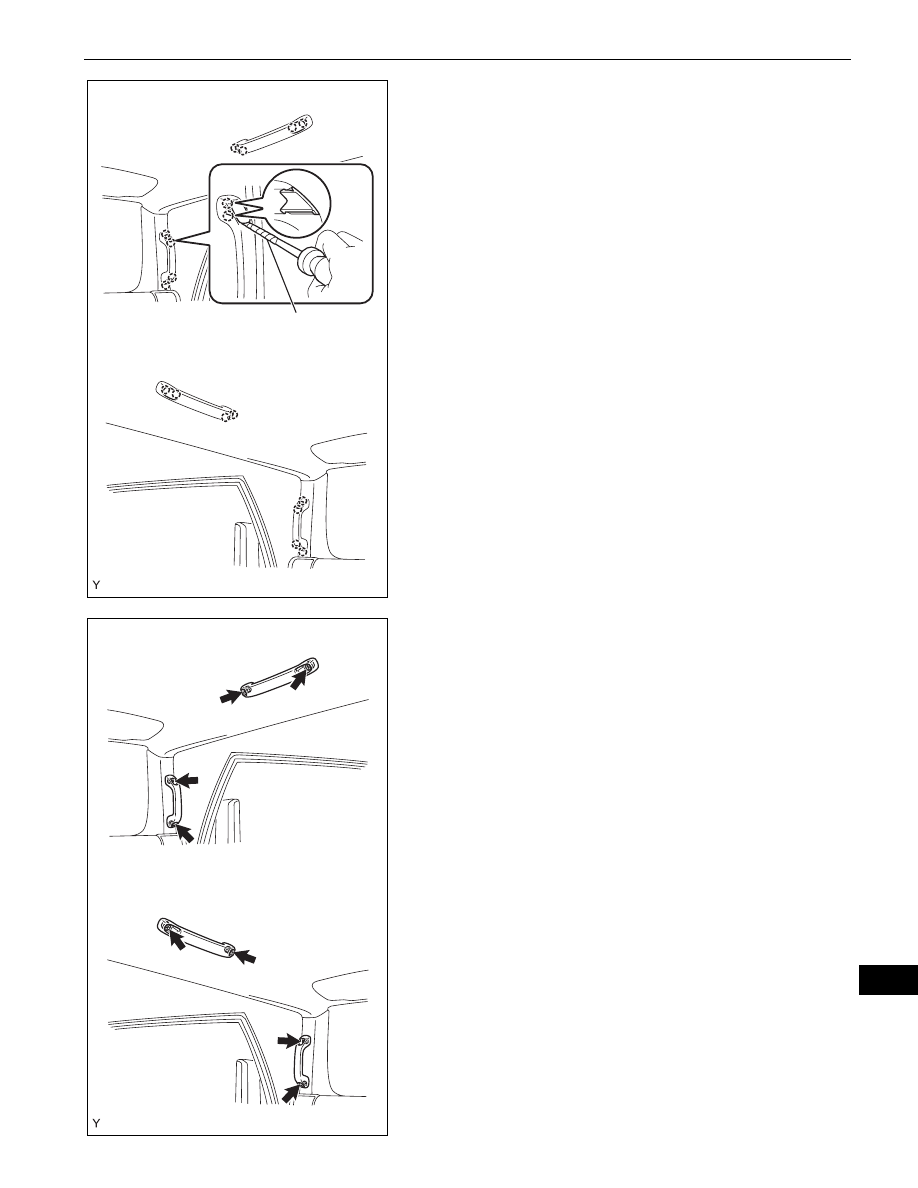

24. REMOVE ASSIST GRIP PLUG

HINT:
Use the same procedure to remove all the assist grip
plugs.
(a) Using a screwdriver with its tip wrapped in

protective tape, disengage the 2 claws and remove
the assist grip plug.

25. REMOVE ASSIST GRIP ASSEMBLY

HINT:
Use the same procedure to remove all the assist grips.
(a) Remove the 2 screws and the assist grip.

for LH Side:

for RH Side:

Protective Tape

B134994E01

for LH Side:

for RH Side:

B134995E01

IR–18

INTERIOR  –  ROOF HEADLINING

IR

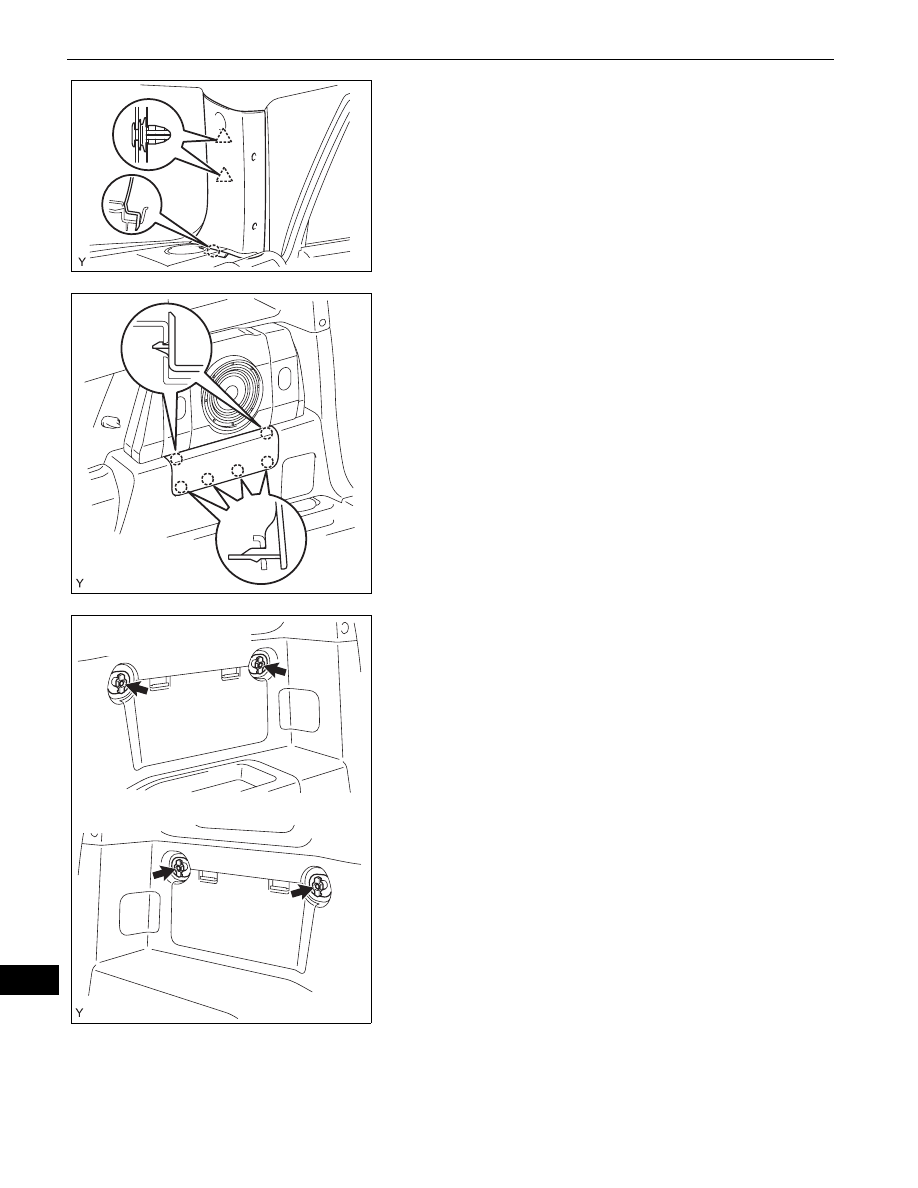

26. REMOVE FRONT PILLAR GARNISH RH

(a) Disengage the 2 clips and the claw and remove the

front pillar garnish.

27. REMOVE FRONT PILLAR GARNISH LH

HINT:
Use the same procedure as for the RH side.

28. REMOVE DECK SIDE GARNISH (w/ Woofer)

(a) Disengage the 6 claws and remove the rear deck

side garnish.

29. REMOVE SPEAKER MOUNTING COVER (w/ Woofer)

(See page

AV-90

)

30. REMOVE AMPLIFIER BOX SPEAKER ASSEMBLY (w/

Woofer) (See page

AV-90

)

31. REMOVE PACKAGE HOLDER NET HOOK

HINT:
Use the same procedure to remove all the package
holder net hooks.
(a) Remove the screw and the package holder net

hook.

B130608

B134992

for RH Side (w/o Woofer):

for LH Side:

B130610E01
