INTERIOR  –  ROOF HEADLINING

IR–27

IR

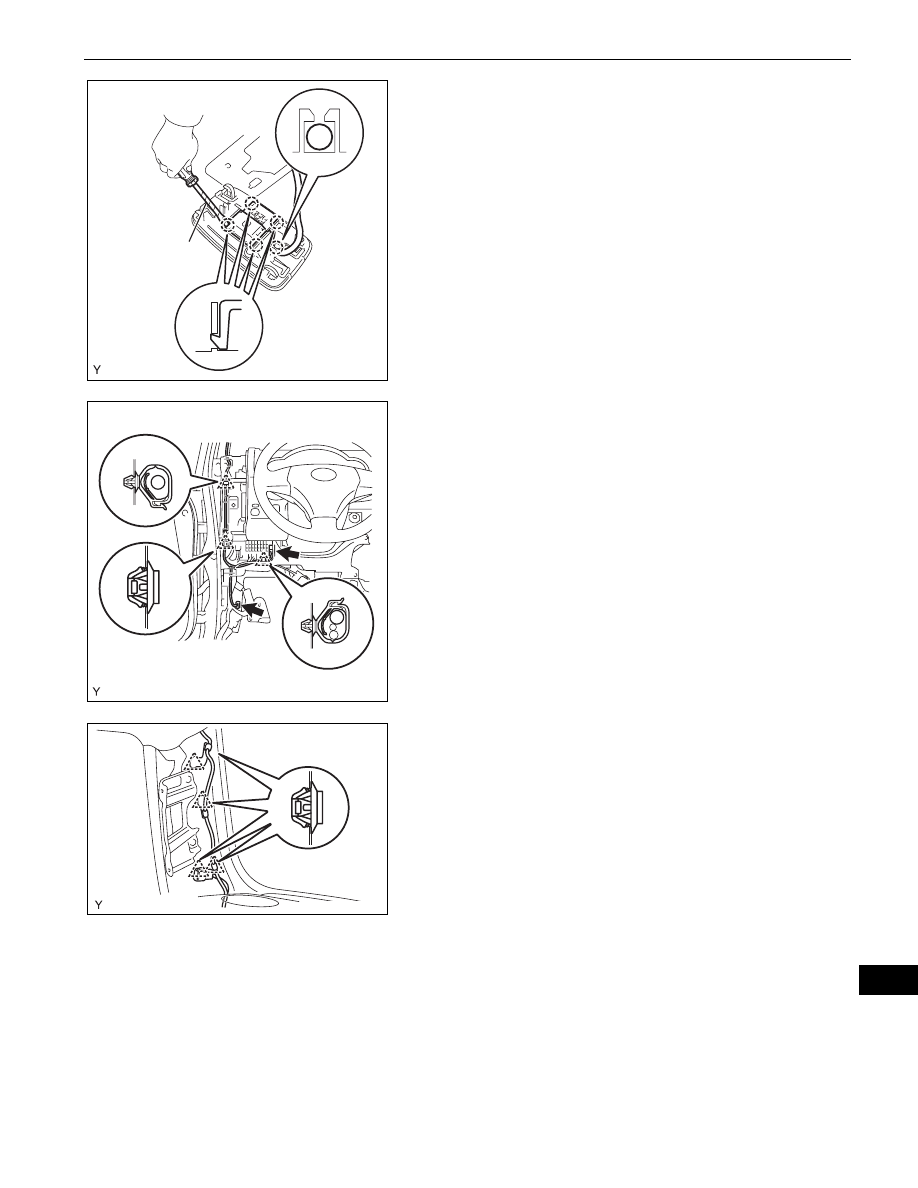

(e) for Rear Side:

(1) Remove the wire harness from the claw of the

room light.

(2) Using a screwdriver with its tip wrapped in

protective tape, disengage the 4 claws and
remove the room light switch base.

51. REMOVE INSTRUMENT PANEL REGISTER

ASSEMBLY (See page

IP-13

)

52. REMOVE HOOD LOCK CONTROL LEVER SUB-

ASSEMBLY (See page

IP-13

)

53. REMOVE INSTRUMENT PANEL FINISH LOWER

PANEL SUB-ASSEMBLY (See page

IP-14

)

54. REMOVE ROOF HEADLINING

(a) Remove the wire harness from the 2 clamps.
(b) Disconnect the 2 connectors.
(c) Using a clip remover, remove the clamp.

(d) Using a clip remover, remove the 3 clamps and the

connector.

Protective Tape

B138412E01

B130643

B130644

IR–28

INTERIOR  –  ROOF HEADLINING

IR

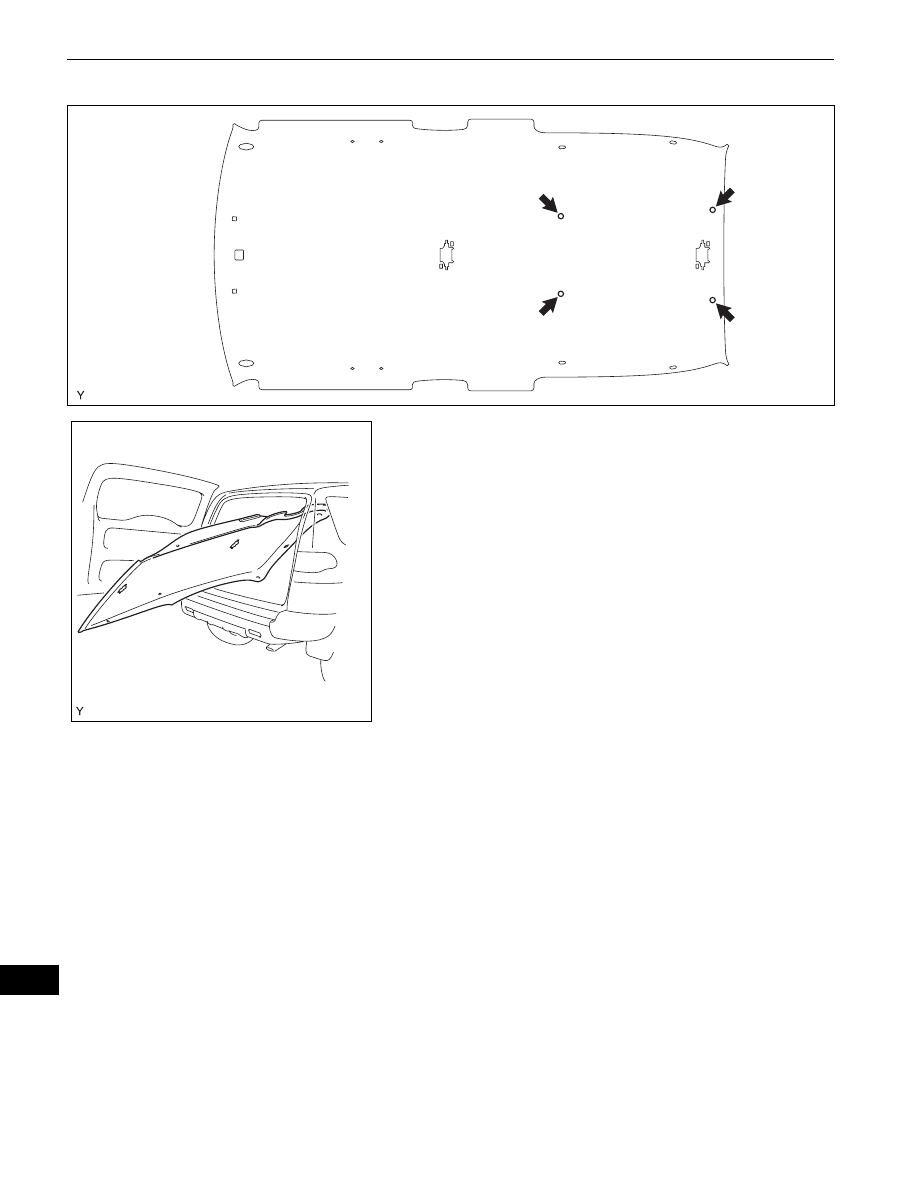

(e) Using a clip remover, remove the 4 clips.

(f)

Remove the roof headlining from the back door.

B130645

B130646

INTERIOR  –  ROOF HEADLINING

IR–29

IR

DISASSEMBLY

1.

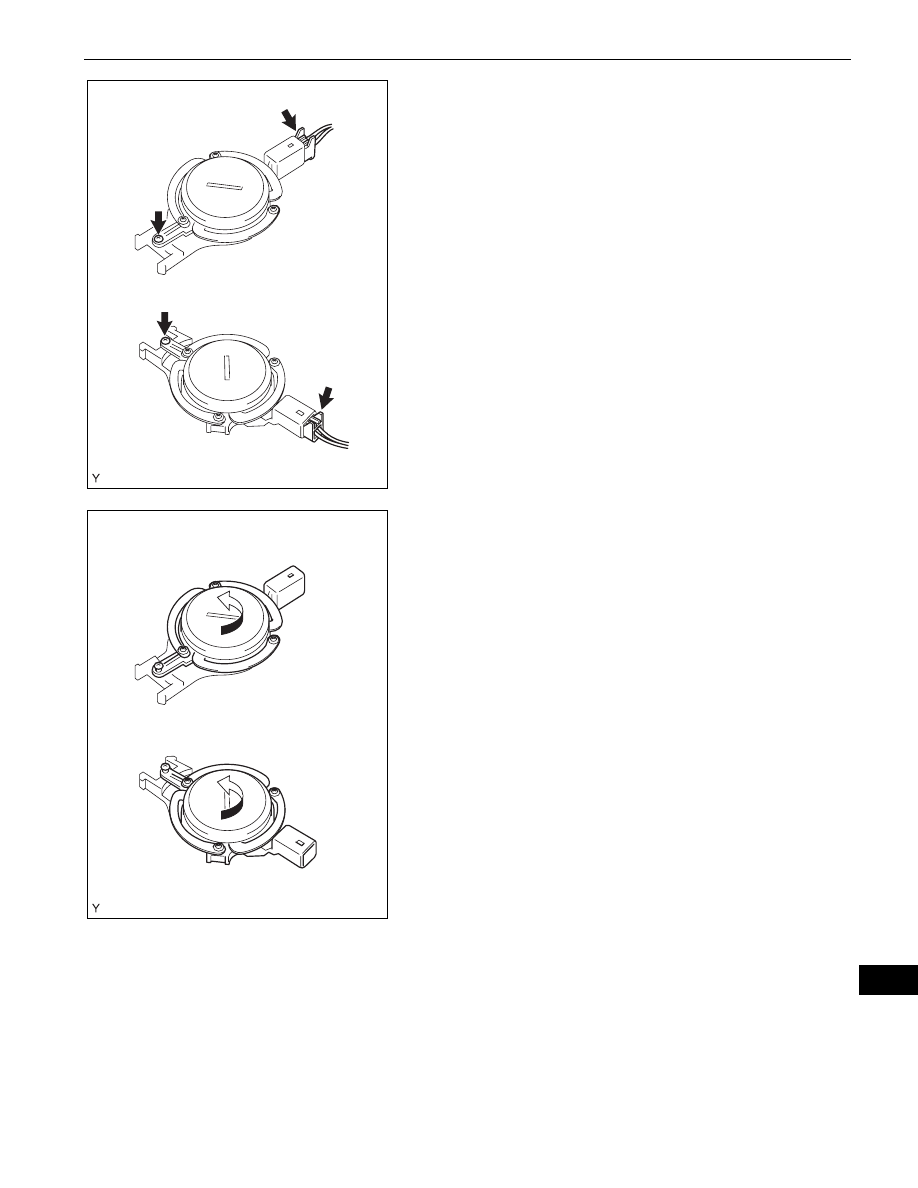

REMOVE ROOF SPEAKER ASSEMBLY
HINT:
Use the same procedure for both sides.
(a) Disconnect the speaker connector.
(b) Loosen the screw.

(c) Remove the roof speaker by turning it in the

direction of the arrow shown in the illustration.

for LH Side:

for RH Side:

B135049E01

for RH Side:

for LH Side:

B138632E01

IR–30

INTERIOR  –  ROOF HEADLINING

IR

2.

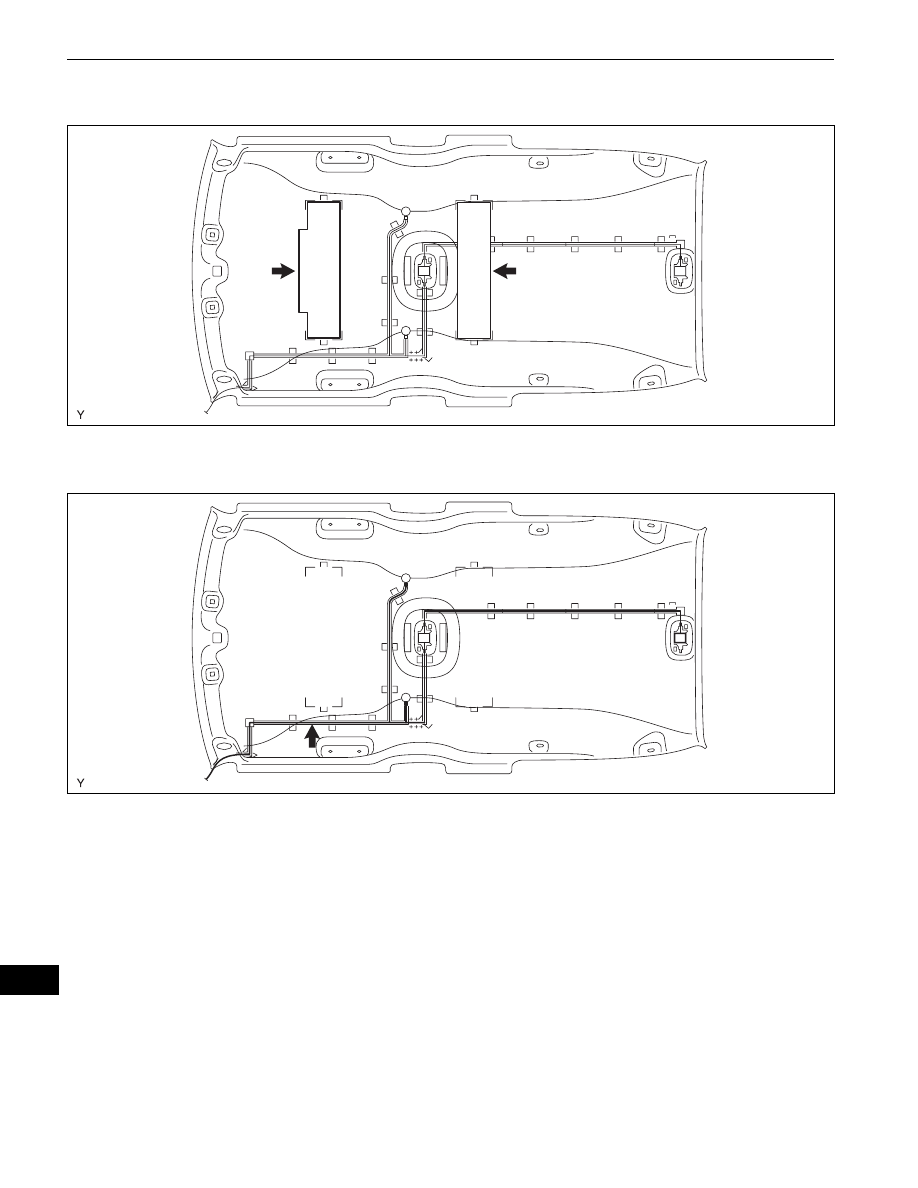

REMOVE ROOF SILENCER PAD
(a) Remove the 2 roof silencer pads.

3.

REMOVE ROOF WIRE
(a) Remove the roof wire.

B130649

B130651
