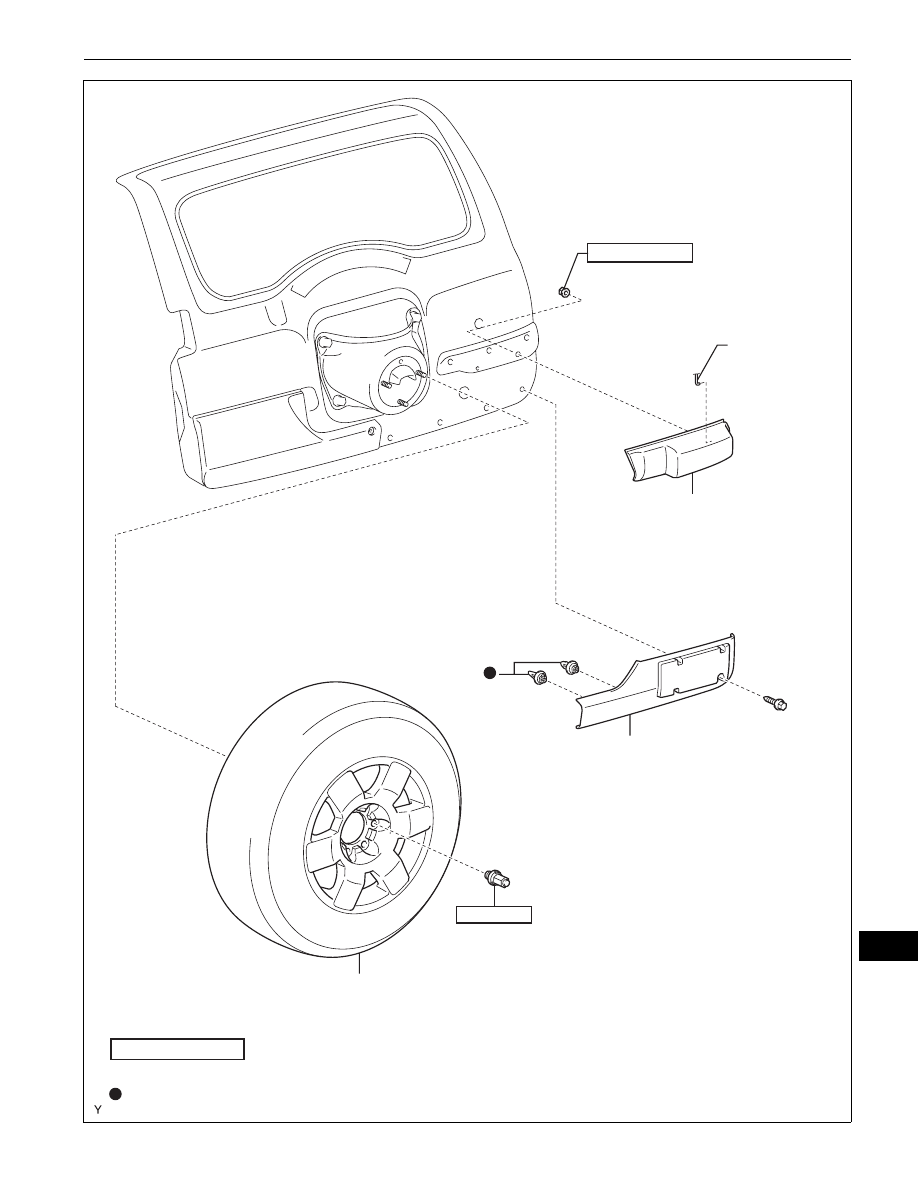

EXTERIOR  –  BACK DOOR OUTSIDE GARNISH

ET–89

ET

BACK DOOR OUTSIDE
GARNISH SUB-ASSEMBLY

BACK DOOR OUTSIDE
MOULDING

SPARE TIRE

BACK DOOR
LOCK ROD

Non-reusable part

N*m (kgf*cm, ft*lbf)  : Specified torque

x2

6.0 (60, 53 in.*lbf)

x3

x2

x2

88 (897, 65)

B135107E01

ET–90

EXTERIOR  –  BACK DOOR OUTSIDE GARNISH

ET

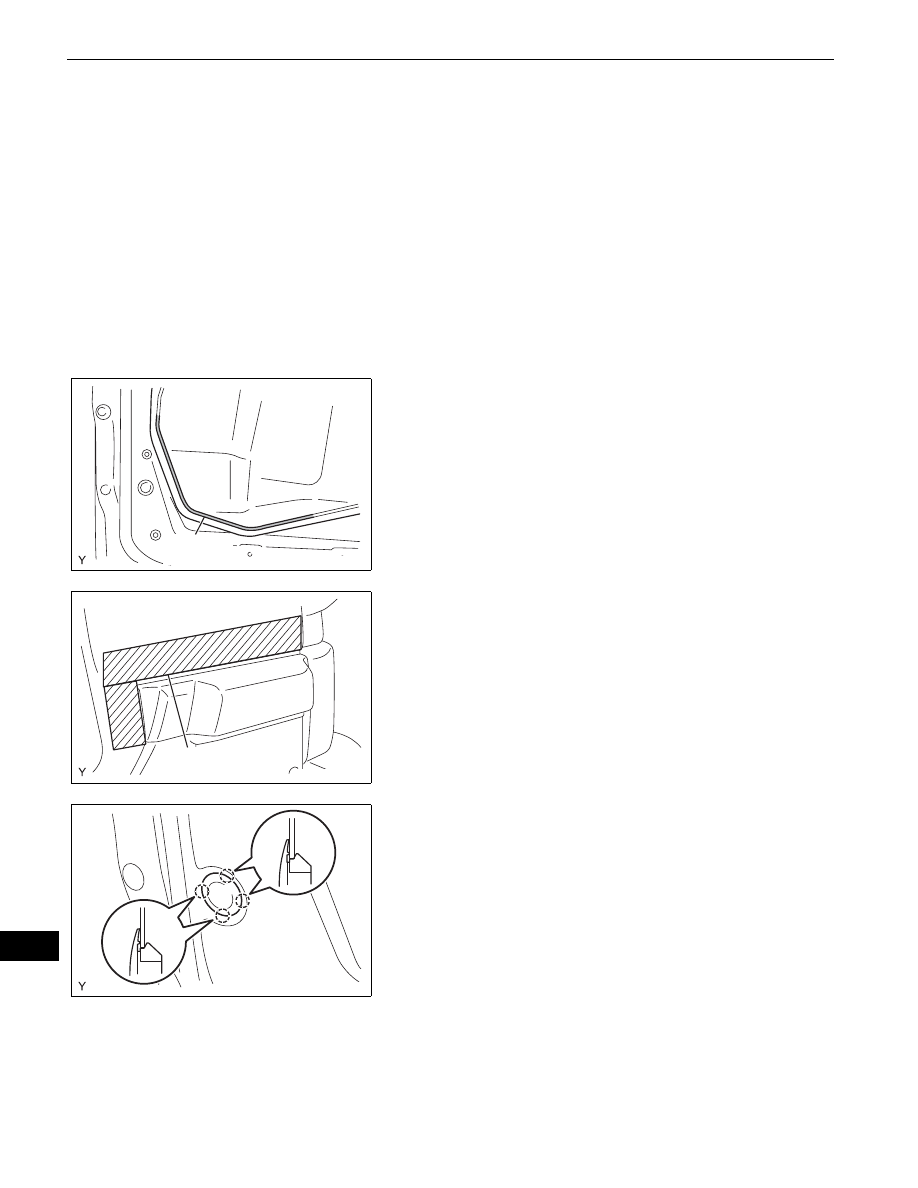

REMOVAL

1.

REMOVE CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

REMOVE SPARE TIRE

3.

REMOVE BACK DOOR OUTSIDE MOULDING (See
page

ET-71

)

4.

REMOVE BACK DOOR TRIM COVER RH (See page

ED-48

)

5.

REMOVE BACK DOOR TRIM COVER LH (See page

ED-48

)

6.

REMOVE BACK DOOR TRIM BOARD (See page

ED-

49

)

7.

REMOVE BACK DOOR SERVICE HOLE COVER
(a) Remove the back door service hole cover to the

extent that the back door outside garnish can be
removed.

8.

REMOVE BACK DOOR OUTSIDE GARNISH SUB-
ASSEMBLY
(a) Apply protective tape to the back door panel in the

area around the back door outside garnish.

(b) Using a clip remover, disengage the 4 claws and

remove the plug hole.

Butyl Tape

B135108E01

Protective Tape

B135112E01

B135109

EXTERIOR  –  BACK DOOR OUTSIDE GARNISH

ET–91

ET

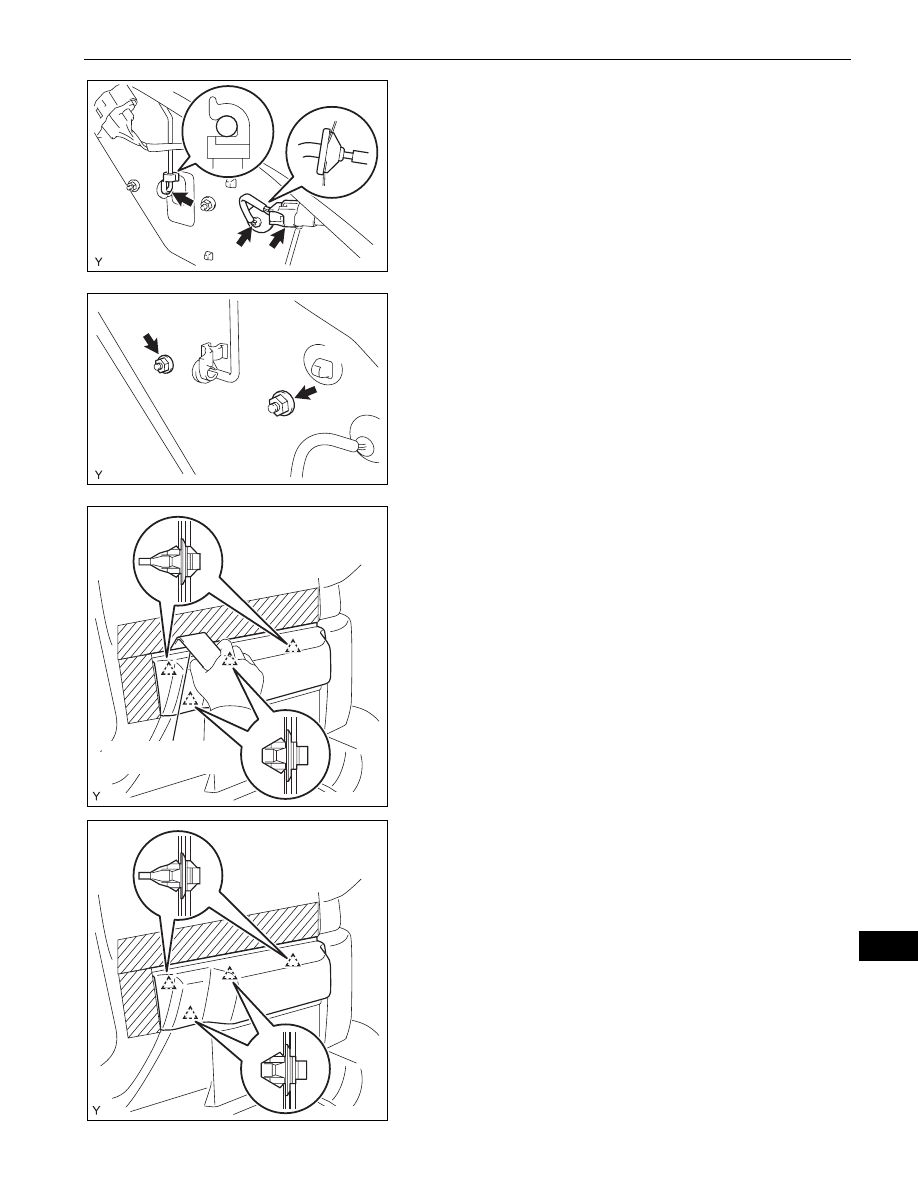

(c) Disconnect the license light connector.
(d) Disconnect the back door lock rod.

(e) Remove the 2 nuts.

(f)

Using a moulding remover, disengage the 4 clips
and remove the back door outside garnish.

INSTALLATION

1.

INSTALL BACK DOOR OUTSIDE GARNISH SUB-
ASSEMBLY
(a) Engage the 4 clips and install the back door outside

garnish.

B135110

B135111

Moulding Remover

B135113E01

B135114

ET–92

EXTERIOR  –  BACK DOOR OUTSIDE GARNISH

ET

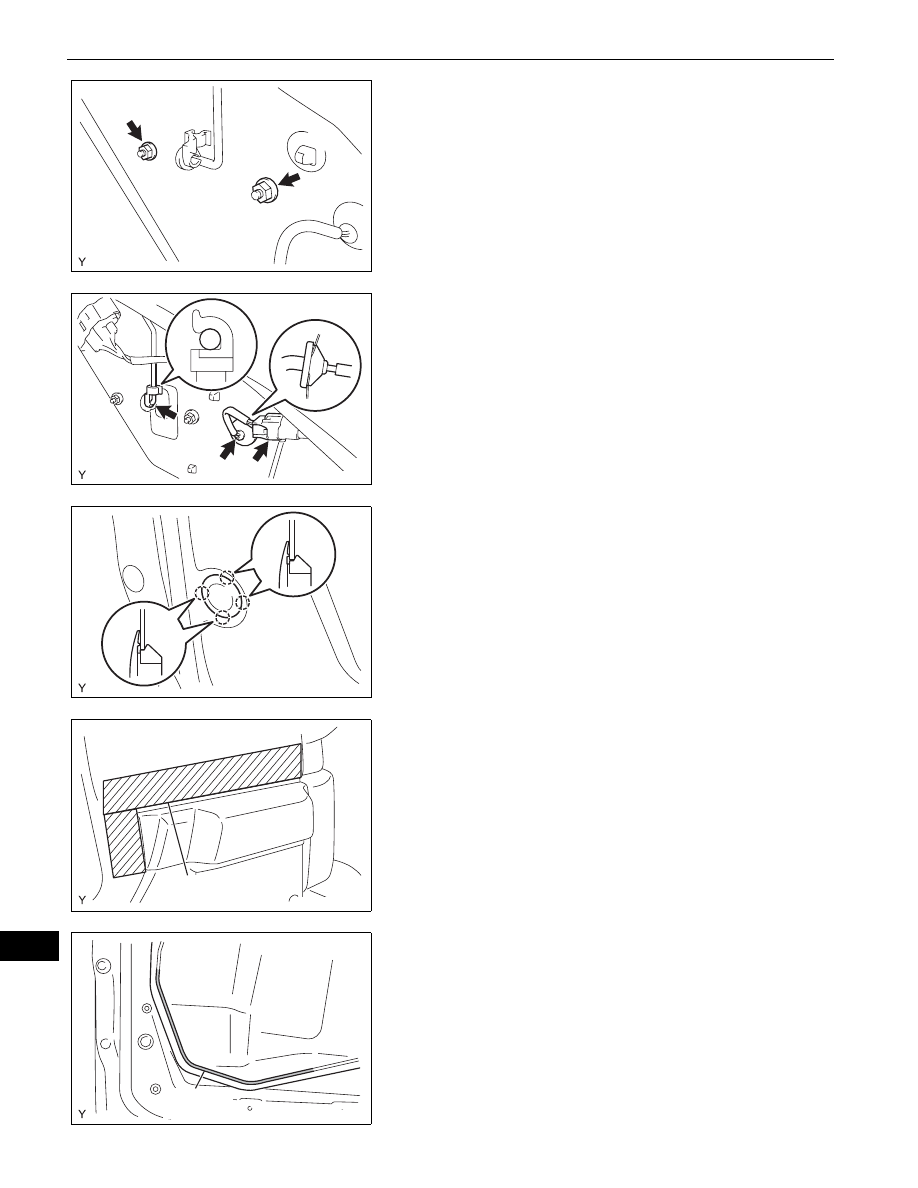

(b) Tighten the 2 nuts.

Torque: 6.0 N*m (60 kgf*cm, 53 in.*lbf)

(c) Connect the back door lock rod.
(d) Connect the license light connector.

(e) Engage the 4 claws and install the plug hole.

(f)

Remove the protective tape.

2.

INSTALL BACK DOOR SERVICE HOLE COVER
(a) Install the back door service hole cover.

3.

INSTALL BACK DOOR TRIM BOARD (See page

ED-

57

)

4.

INSTALL BACK DOOR TRIM COVER RH (See page

ED-57

)

5.

INSTALL BACK DOOR TRIM COVER LH (See page

ED-57

)

B135111

B135110

B135109

Protective Tape

B135112E01

Butyl Tape

B135108E01
