Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 213

EXTERIOR – FENDER PANEL MUDGUARD

ET–81

BODY

EXTERIOR

FENDER PANEL MUDGUARD

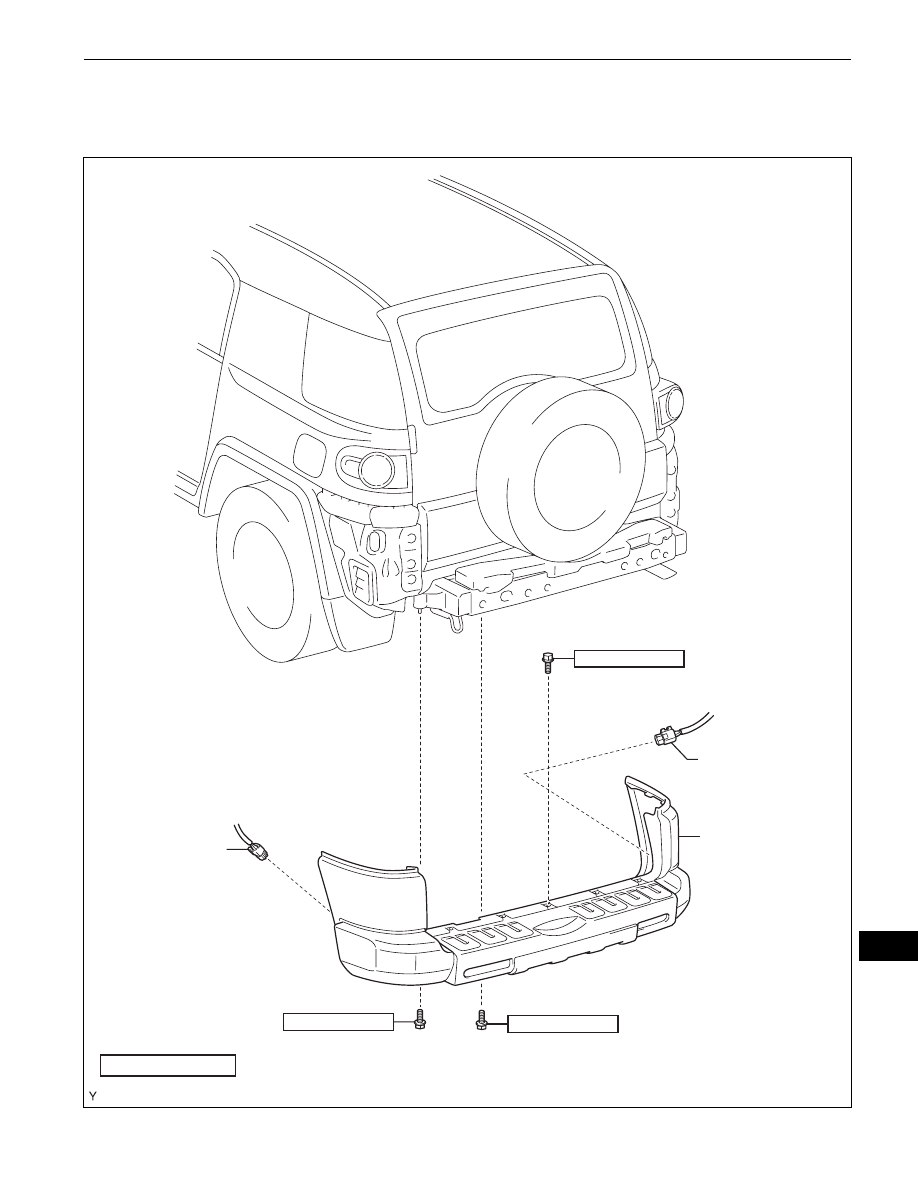

COMPONENTS

REAR BUMPER
COVER

N*m (kgf*cm, ft*lbf) : Specified torque

8.0 (80, 71 in.*lbf)

3.0 (30, 27 in.*lbf)

WIRE to WIRE
CONNECTOR

B135139E01

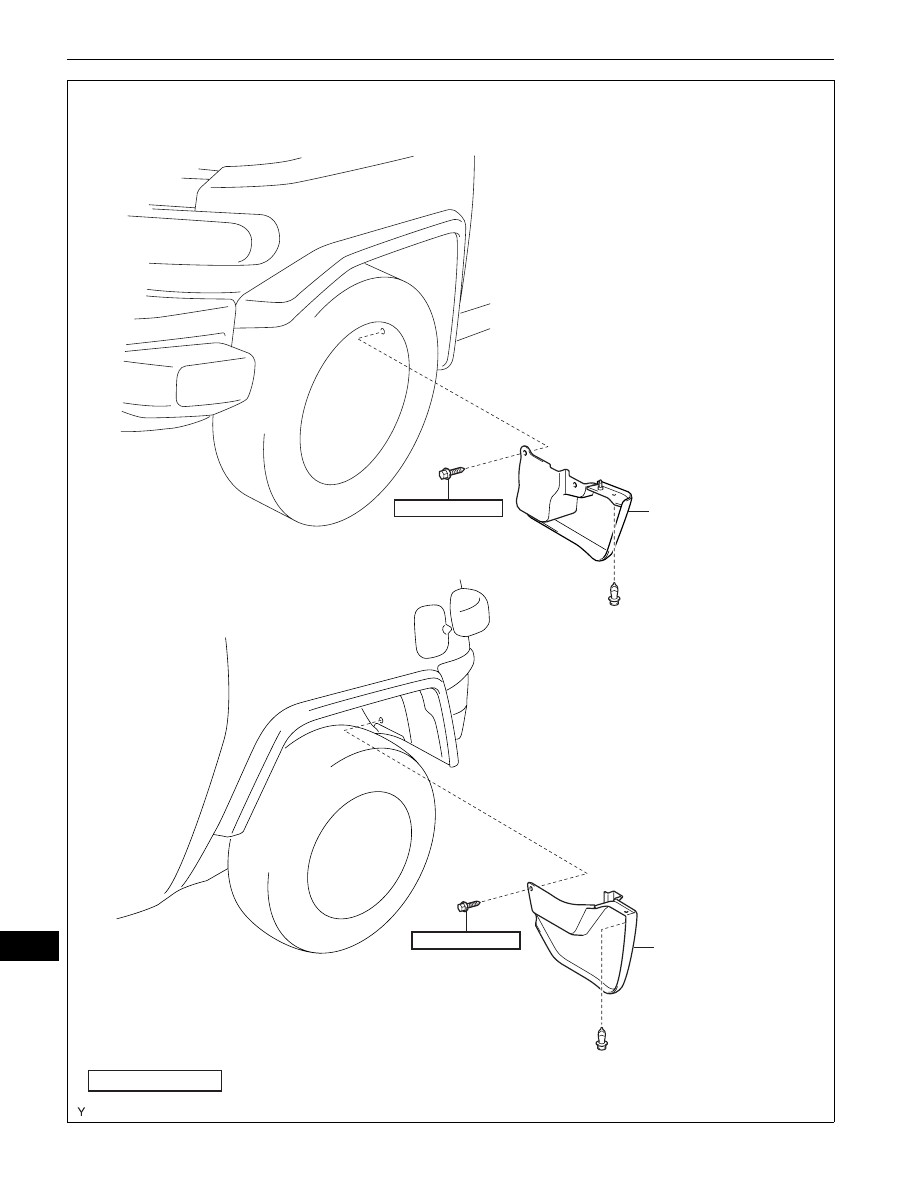

ET–82

EXTERIOR – FENDER PANEL MUDGUARD

FRONT FENDER
MUDGUARD

QUARTER PANEL
MUDGUARD

N*m (kgf*cm, ft*lbf) : Specified torque

5.0 (50, 44 in.*lbf)

B135081E01

EXTERIOR – FENDER PANEL MUDGUARD

ET–83

REMOVAL

HINT:
The procedure described below is for the LH side. Use the
same procedure for both the RH and LH sides, unless
otherwise specified.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL (w/ Back Sonar)

REMOVE REAR BUMPER COVER (See page

ET-17

)

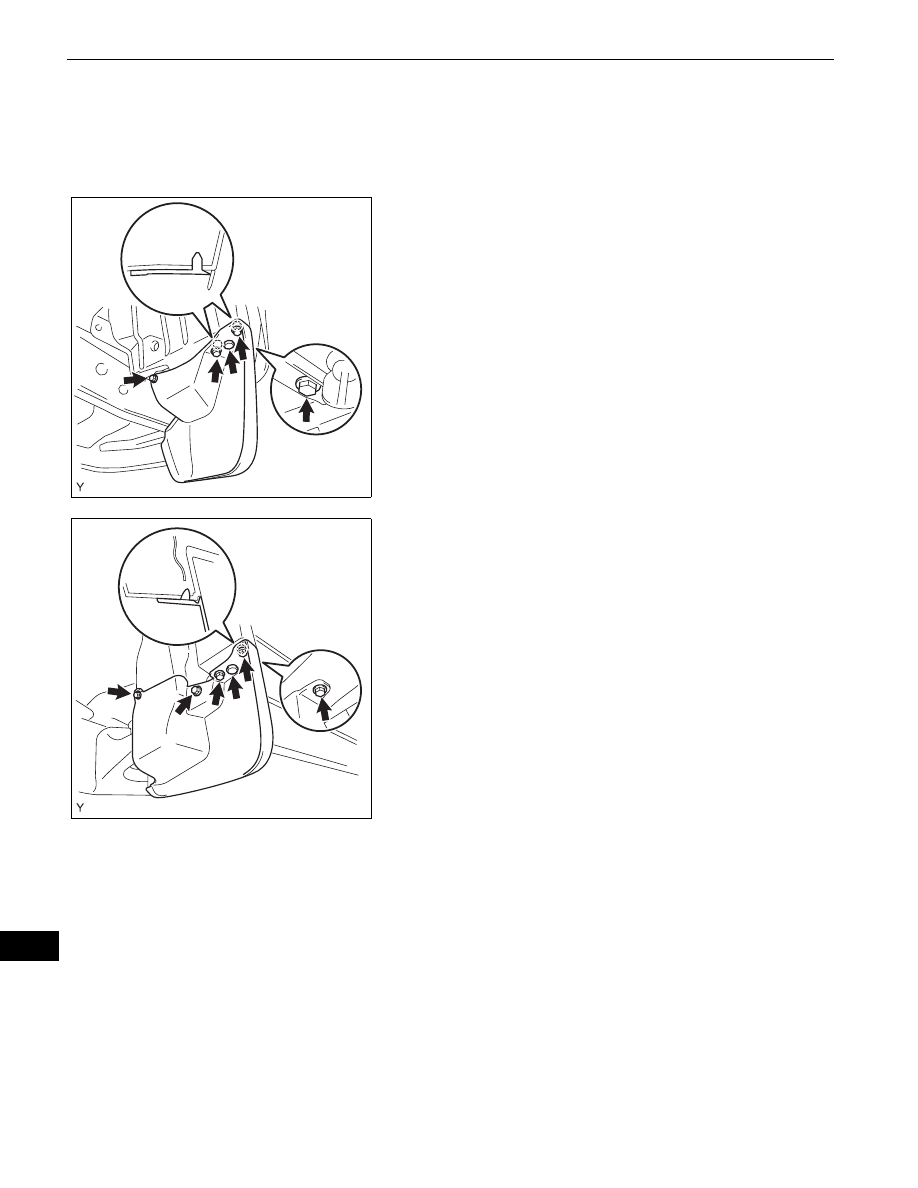

REMOVE FRONT FENDER MUDGUARD
(a) Using a clip remover, remove the clip.
(b) Remove the 5 screws and the front fender

mudguard.

REMOVE QUARTER PANEL MUDGUARD
(a) Using a clip remover, remove the clip.
(b) Remove the 4 screws and the quarter panel

mudguard.

B135082

B135084

ET–84

EXTERIOR – FENDER PANEL MUDGUARD

INSTALLATION

HINT:
The procedure described below is for the LH side. Use the
same procedure for both the RH and LH sides, unless
otherwise specified.

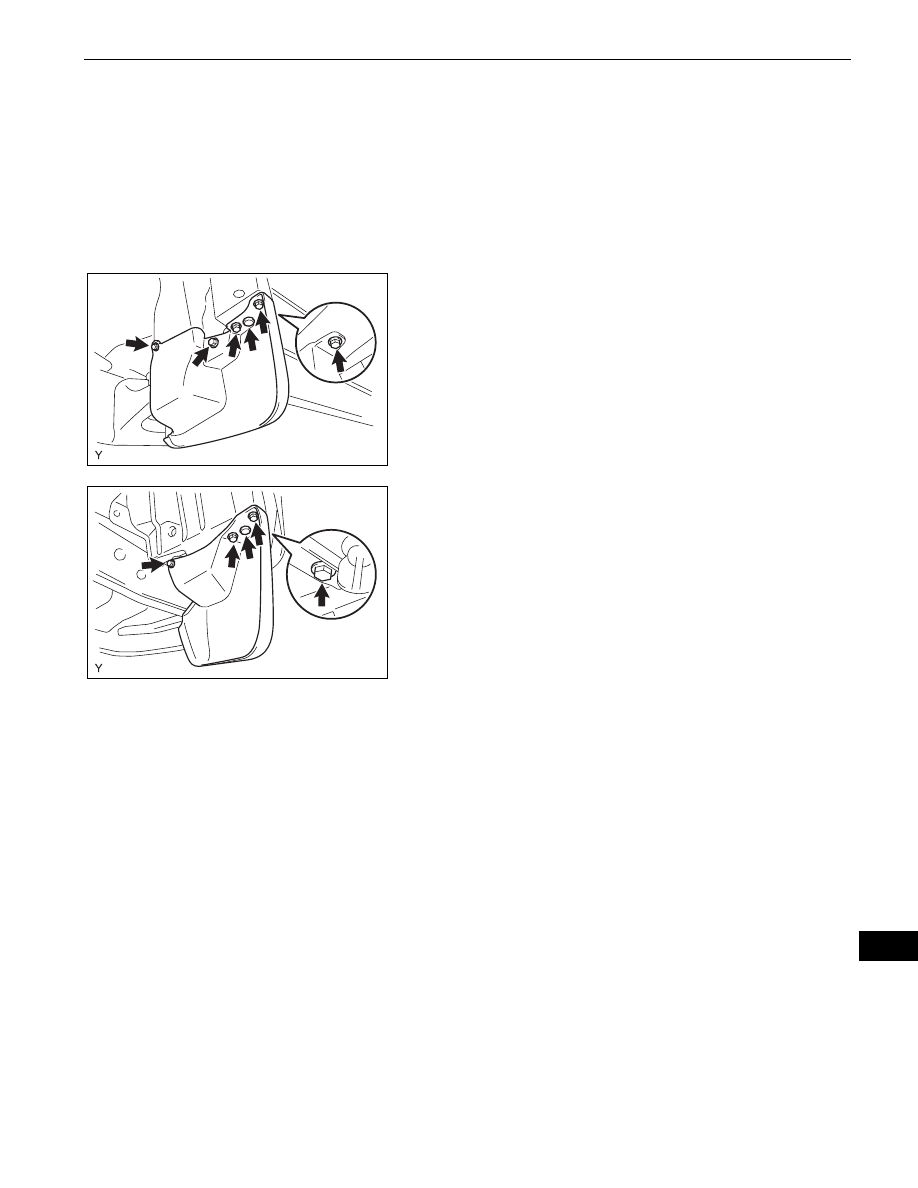

INSTALL QUARTER PANEL MUDGUARD
(a) Align the 2 pins of the quarter panel mudguard with

the installation hole of the quarter outside moulding.

(b) Install the quarter panel mudguard with the 4

screws.
Torque: 5.0 N*m (50 kgf*cm, 44 in.*lbf)

INSTALL FRONT FENDER MUDGUARD
(a) Align the pin of the front fender mudguard with the

installation hole of the front fender moulding.

(b) Install the front fender mudguard with the 5 screws.

Torque: 5.0 N*m (50 kgf*cm, 44 in.*lbf)

INSTALL REAR BUMPER COVER (See page

ET-25

)

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL (w/ Back Sonar)
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

B135085

B135083
