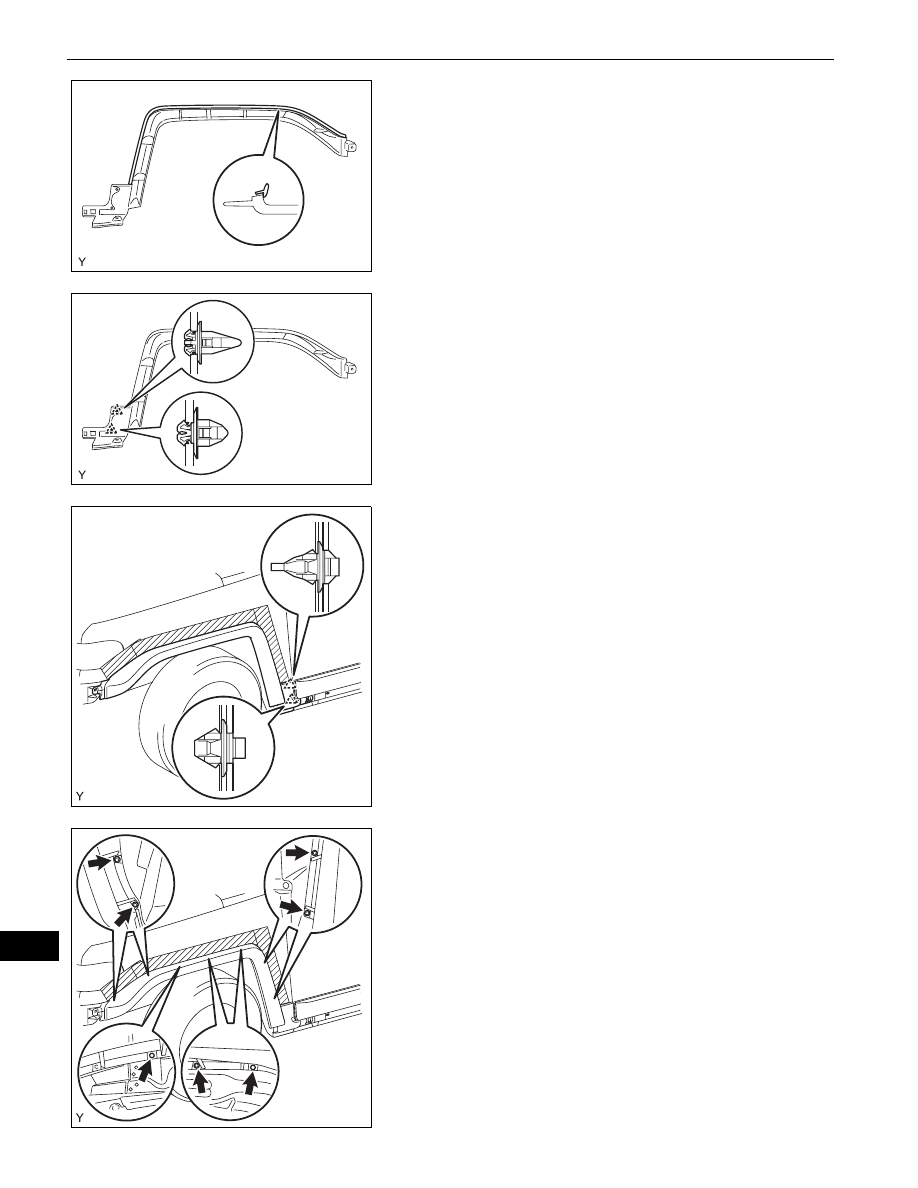

ET–78

EXTERIOR  –  OUTSIDE MOULDING

ET

(a) Install a new front wheel opening extension pad in

the position shown in the illustration.

9.

INSTALL FRONT FENDER MOULDING SUB-
ASSEMBLY
(a) Install 2 new clips in the positions shown in the

illustration.
NOTICE:
If you install the clips wrongly, the installation of
the front fender moulding will be improper.

(b) Engage the 2 clips and install the front fender

moulding.

(c) Tighten the 5 screws.

Torque: 5.0 N*m (50 kgf*cm, 44 in.*lbf)

(d) Install the 2 clips

B135059

B135060

B135057

B135056

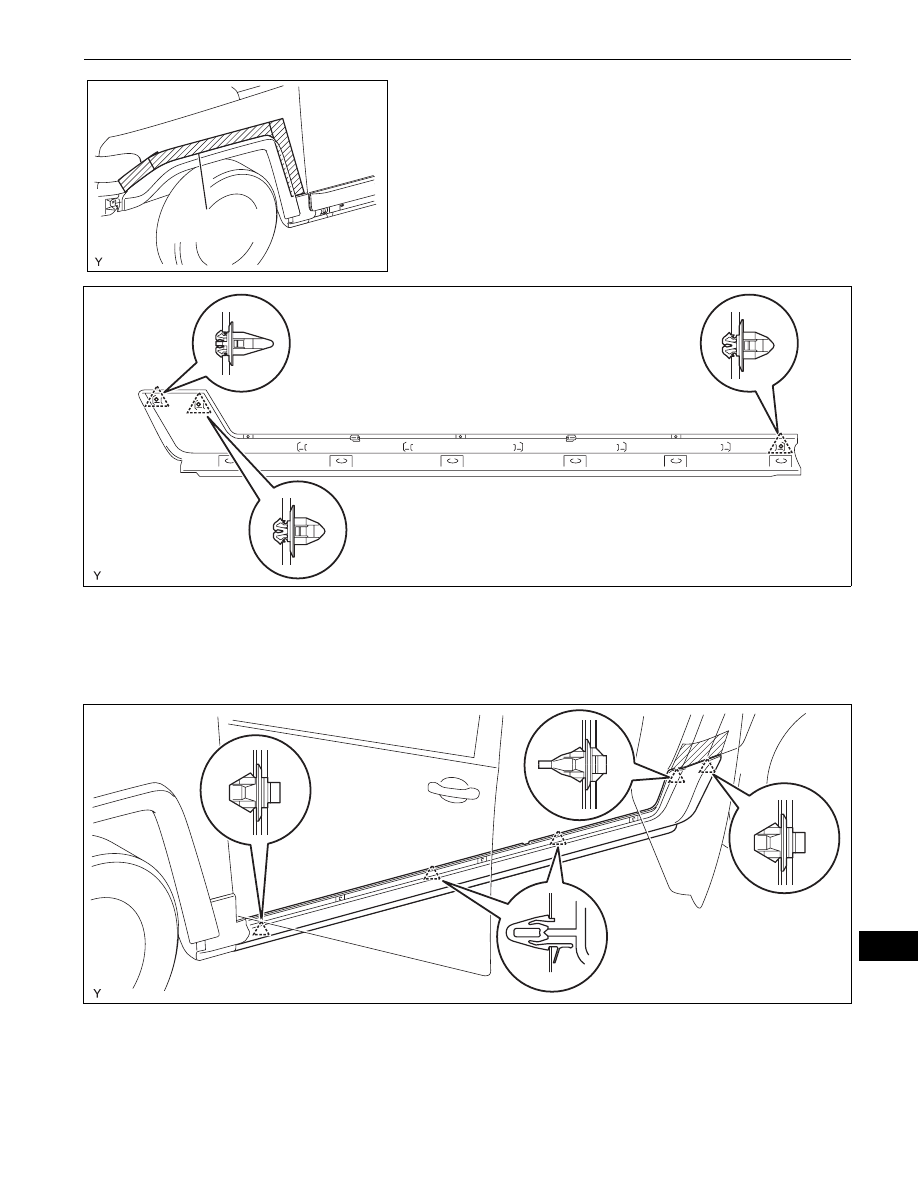

EXTERIOR  –  OUTSIDE MOULDING

ET–79

ET

(e) Remove the protective tape.

10. INSTALL FRONT BUMPER SIDE SUPPORT (See page

ET-9

)

11. INSTALL ROCKER PANEL MOULDING

(a) Install 3 clips in the positions shown in the

illustration.

NOTICE:
If you install the clips wrongly, the installation of
the rocker panel moulding will be improper.

(b) Engage the 5 clips and install the rocker panel

moulding.

(c) Tighten the 3 screws.

Torque: 5.0 N*m (50 kgf*cm, 44 in.*lbf)

Protective Tape

B135055E01

B135053

B135052

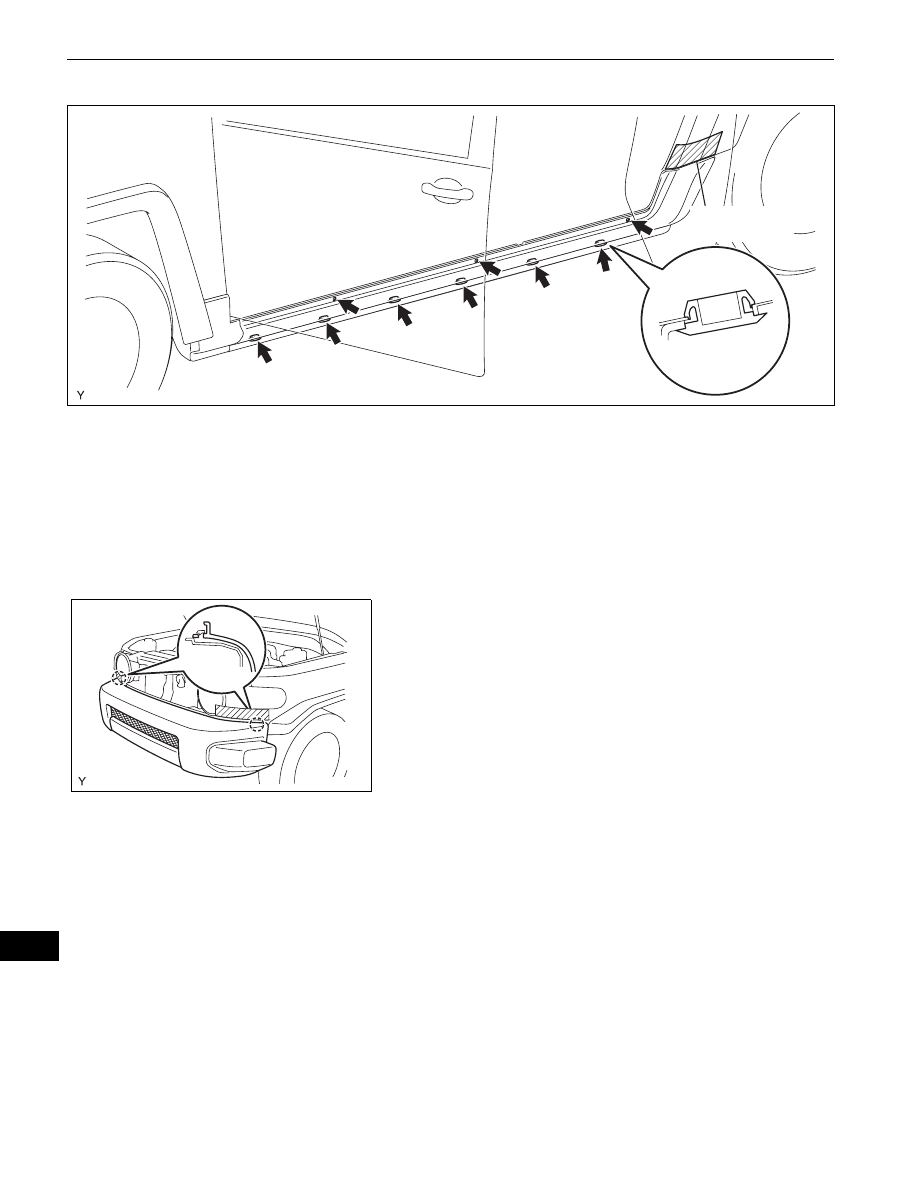

ET–80

EXTERIOR  –  OUTSIDE MOULDING

ET

(d) Install the 6 retainers.

12. INSTALL SIDE STEP SUB-ASSEMBLY (See page

ET-

87

)

13. INSTALL QUARTER PANEL MUDGUARD (See page

ET-83

)

14. INSTALL FRONT FENDER MUDGUARD (See page

ET-84

)

15. INSTALL REAR BUMPER COVER (See page

ET-25

)

16. INSTALL FRONT BUMPER COVER

(a) Engage the 2 claws and install the front bumper

cover.

Protective Tape

B135051E01

B134733

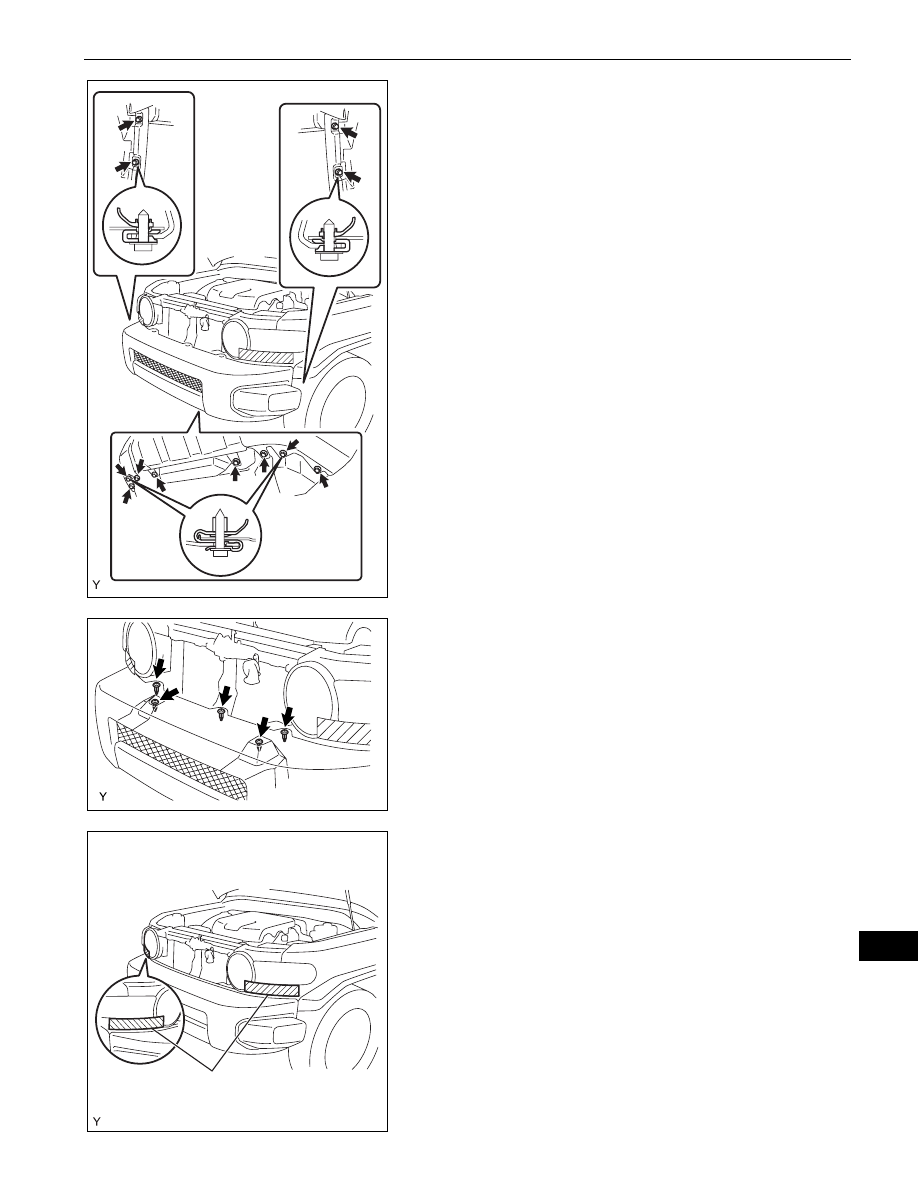

EXTERIOR  –  OUTSIDE MOULDING

ET–81

ET

(b) Tighten the 8 screws and the 4 bolts.

Torque: 3.0 N*m (30 kgf*cm, 27 in.*lbf) for screw

8.0 N*m (80 kgf*cm, 71 in.*lbf) for bolt

(c) Install the 5 clips.

(d) Remove the protective tape.

17. INSTALL RADIATOR GRILLE (See page

ET-11

)

18. CONNECT CABLE TO NEGATIVE BATTERY

TERMINAL (w/ Back Sonar)
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

B134732

B138606

Protective Tape

B134730E01
