ET–70

EXTERIOR  –  OUTSIDE MOULDING

ET

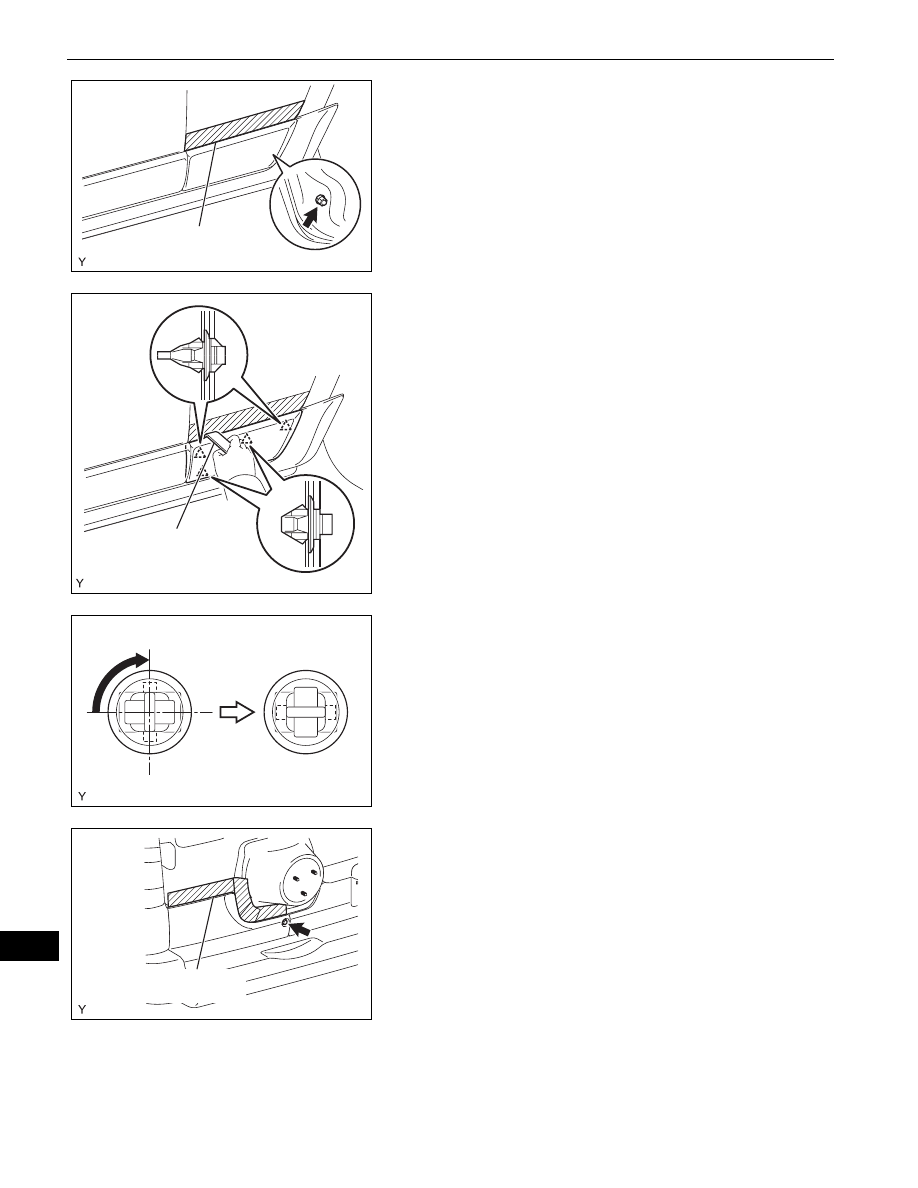

13. REMOVE ACCESS DOOR OUTSIDE MOULDING

SUB-ASSEMBLY
(a) Apply protective tape to the access door panel in the

area around the access door outside moulding.

(b) Remove the nut.

(c) Using a moulding remover, disengage the 4 clips

and remove the access door outside moulding.

(d) Turn the clips 90

° clockwise and remove them.

14. REMOVE SPARE TIRE

15. REMOVE BACK DOOR OUTSIDE MOULDING LH

(a) Apply protective tape to the back door panel in the

area around the back door outside moulding.

(b) Remove the screw.

Protective Tape

B135020E01

Moulding Remover

B135021E01

90°

B135058E01

Protective Tape

B135025E01

EXTERIOR  –  OUTSIDE MOULDING

ET–71

ET

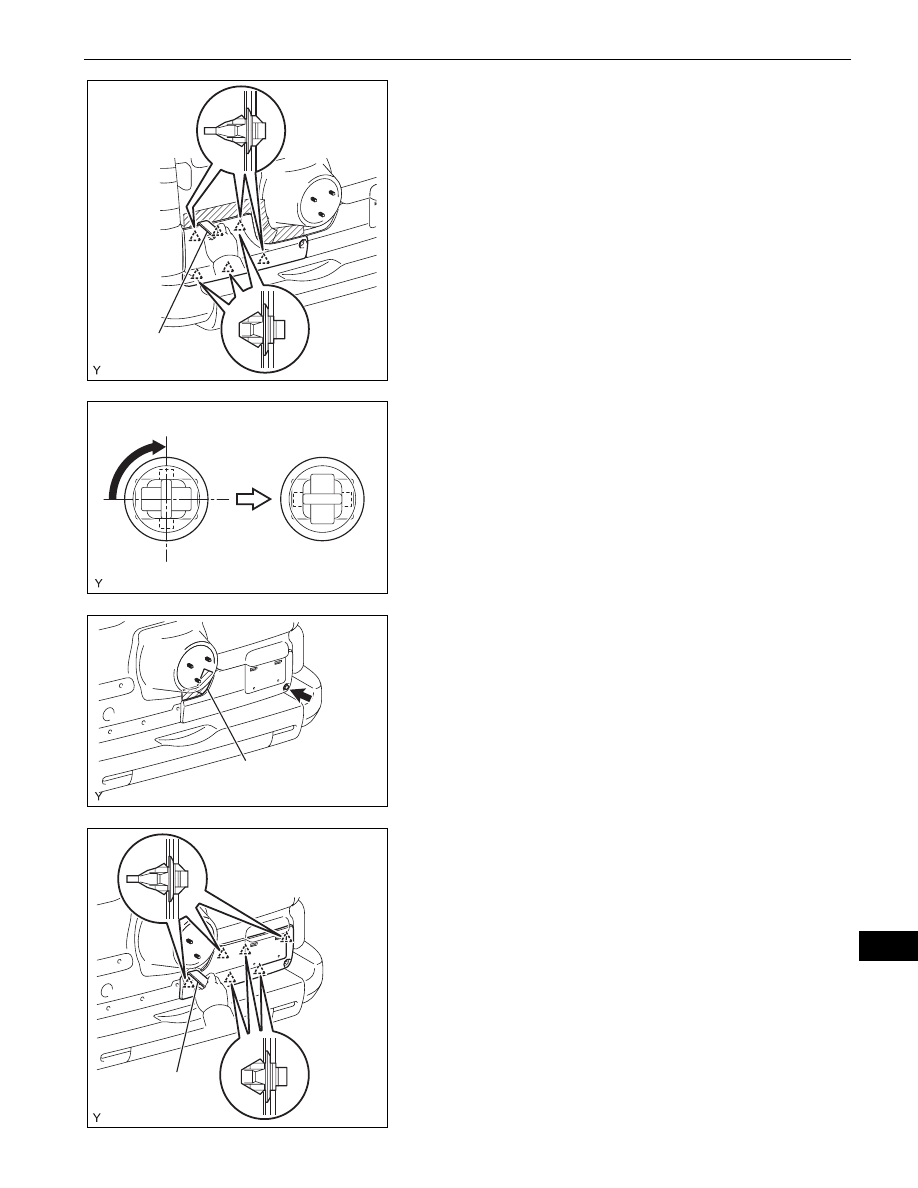

(c) Using a moulding remover, disengage the 6 clips

and remove the back door outside moulding.

(d) Turn the clips 90

° clockwise and remove them.

16. REMOVE BACK DOOR OUTSIDE MOULDING RH

(a) Apply protective tape to the back door panel in the

area around the back door outside moulding.

(b) Remove the screw.

(c) Using a moulding remover, disengage the 6 clips

and remove the back door outside moulding.

Moulding Remover

B135026E01

90°

B135058E01

Protective Tape

B135029E01

Moulding Remover

B135030E01

ET–72

EXTERIOR  –  OUTSIDE MOULDING

ET

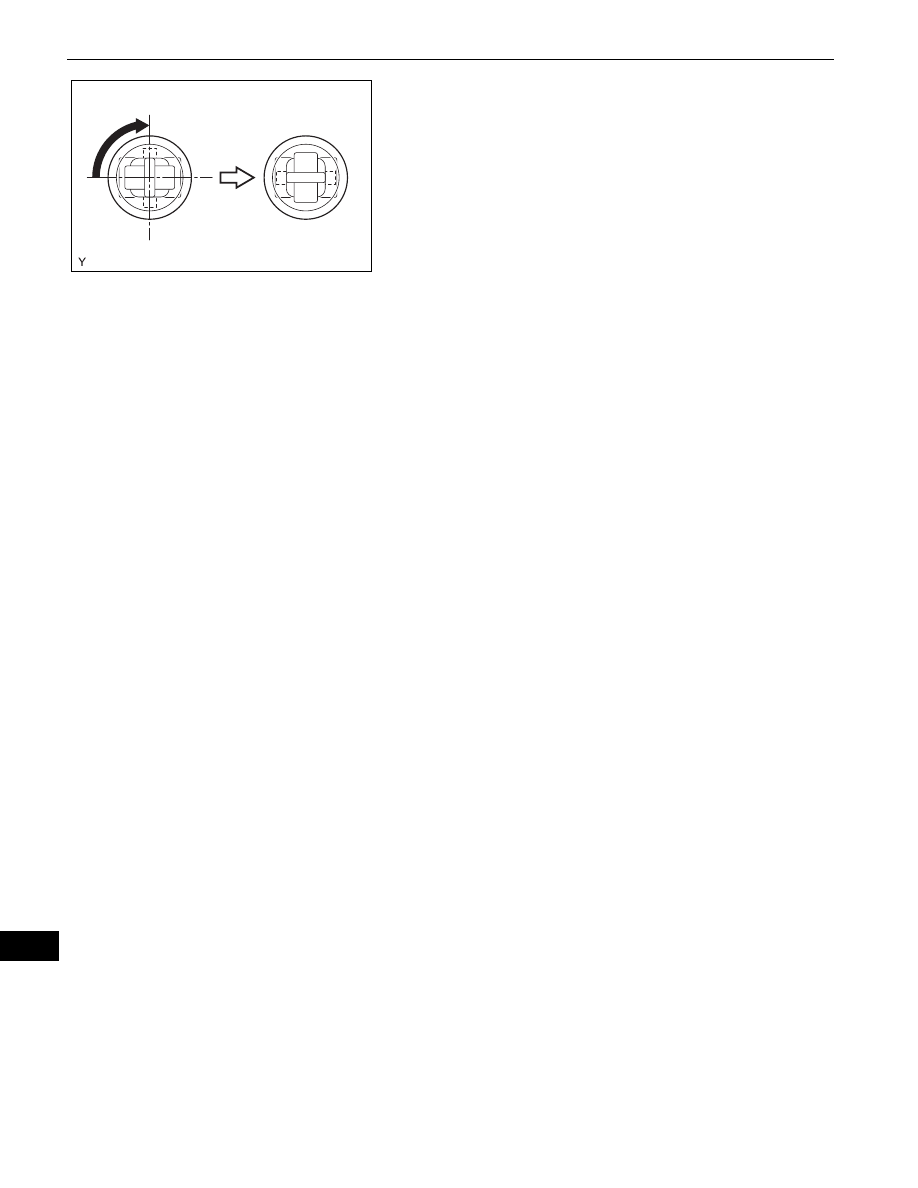

(d) Turn the clips 90

° clockwise and remove them.

90°

B135058E01

EXTERIOR  –  OUTSIDE MOULDING

ET–73

ET

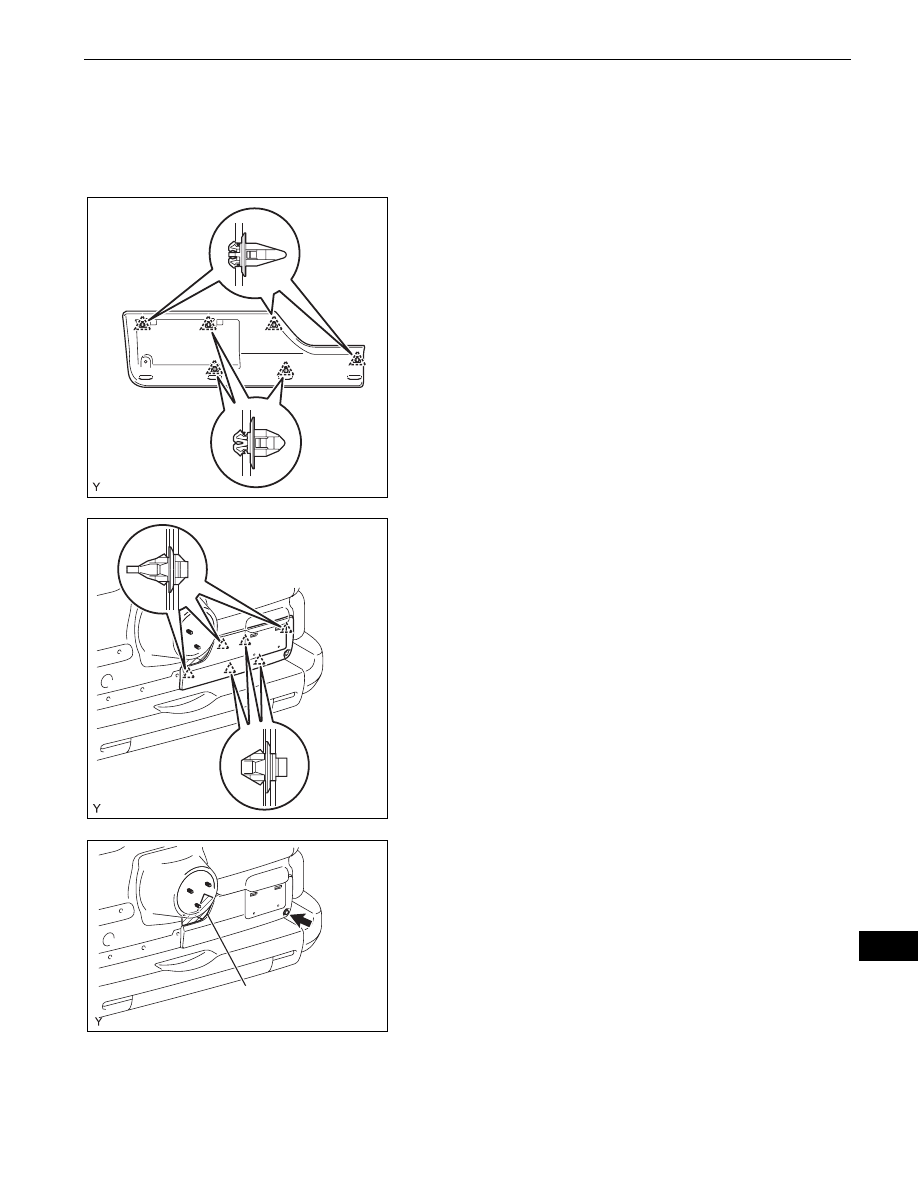

INSTALLATION

HINT:
The procedure described below is for the LH side. Use the
same procedure for both the RH and LH sides, unless
otherwise specified.

1.

INSTALL BACK DOOR OUTSIDE MOULDING RH
(a) Install 6 new clips in the positions shown in the

illustration.
NOTICE:
If you install the clips wrongly, the installation of
the back door outside moulding will be
improper.

(b) Engage the 6 clips and install the back door outside

moulding.

(c) Tighten the screw.
(d) Remove the protective tape.

B135032

B135031

Protective Tape

B135029E01
