ET–74

EXTERIOR  –  OUTSIDE MOULDING

ET

2.

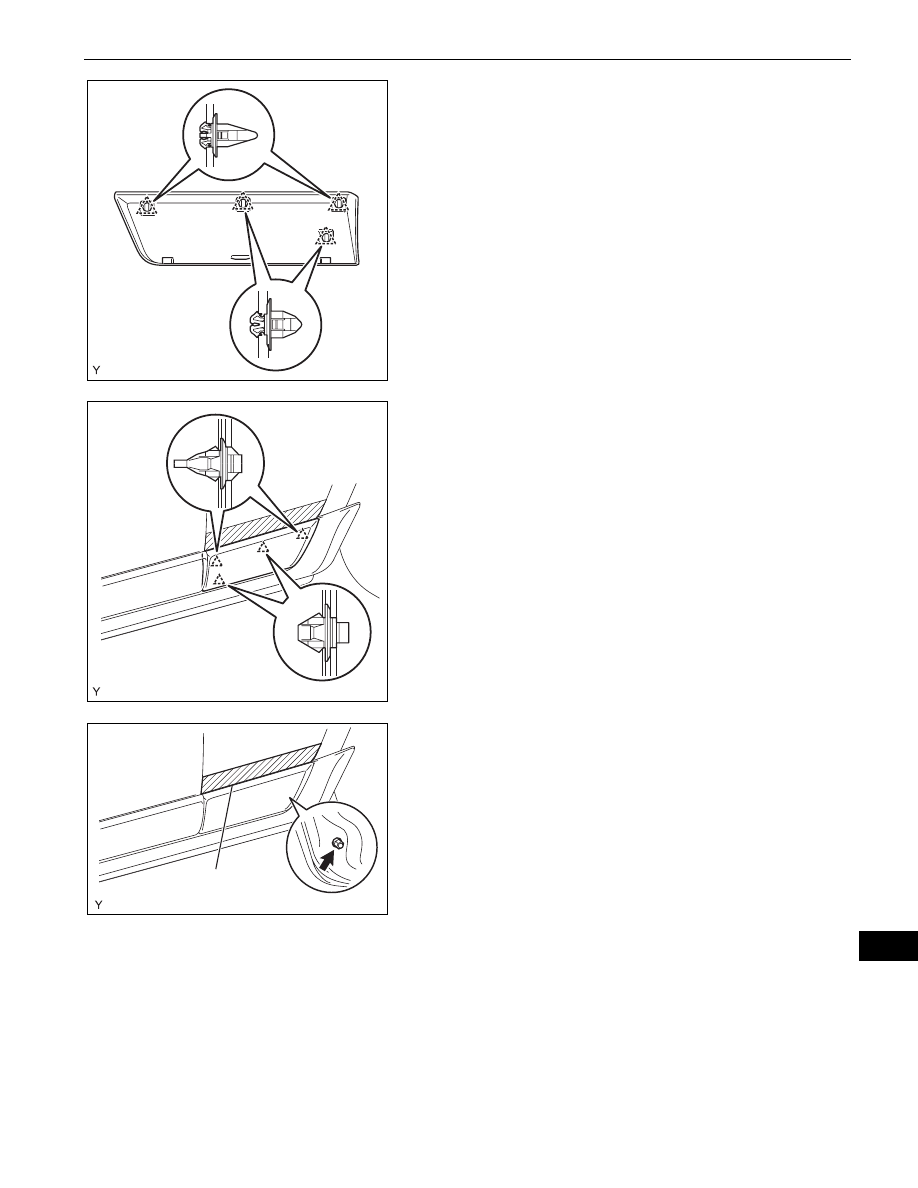

INSTALL BACK DOOR OUTSIDE MOULDING LH
(a) Install 6 new clips in the positions shown in the

illustration.
NOTICE:
If you install the clips wrongly, the installation of
the back door outside moulding will be
improper.

(b) Engage the 6 clips and install the back door outside

moulding.

(c) Tighten the screw.
(d) Remove the protective tape.

3.

INSTALL SPARE TIRE
Torque: 88 N*m (897 kgf*cm, 65 ft.*lbf)

B135028

B135027

Protective Tape

B135025E01

EXTERIOR  –  OUTSIDE MOULDING

ET–75

ET

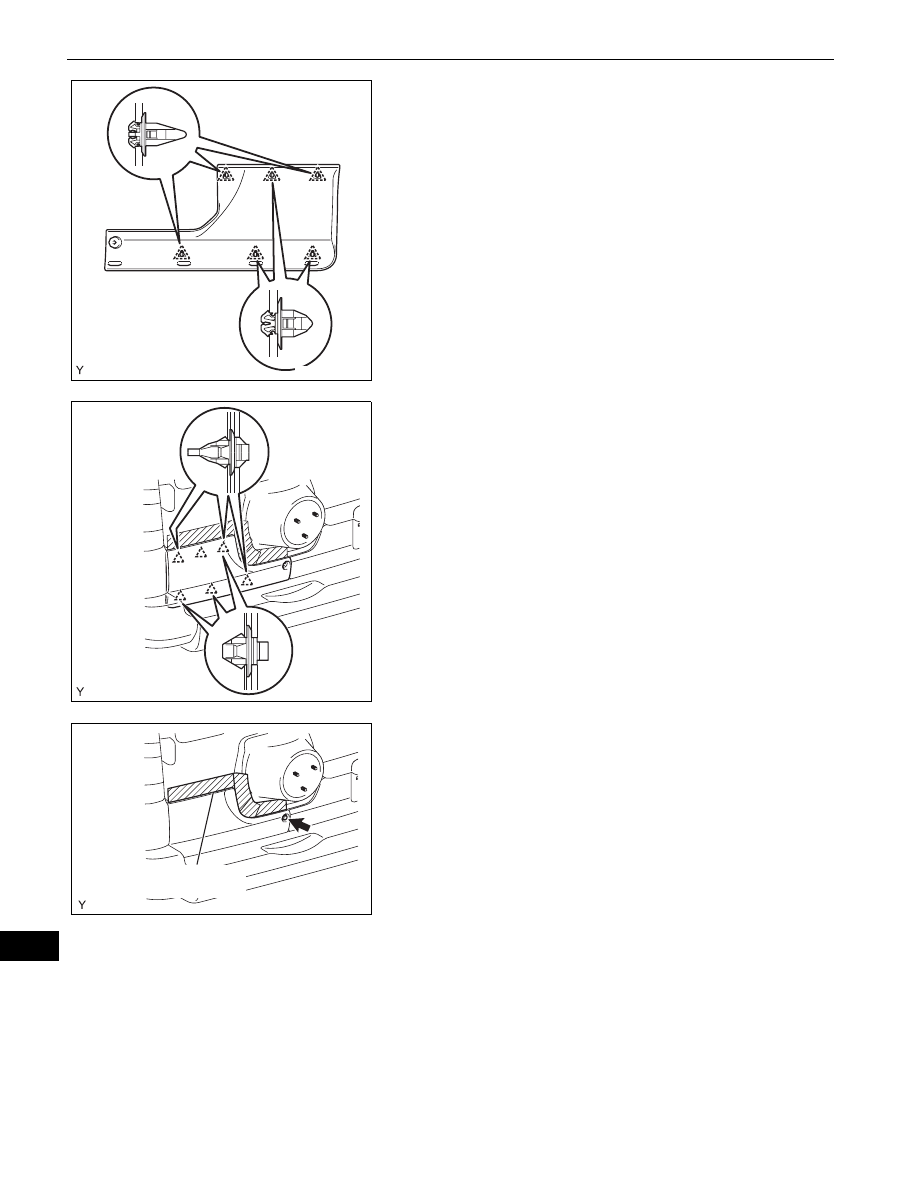

4.

INSTALL ACCESS DOOR OUTSIDE MOULDING SUB-
ASSEMBLY
(a) Install 4 new clips in the positions shown in the

illustration.
NOTICE:
If you install the clips wrongly, the installation of
the access door outside moulding will be
improper.

(b) Engage the 4 clips and install the access door

outside moulding.

(c) Tighten the nut.

Torque: 5.0 N*m (50 kgf*cm, 44 in.*lbf)

(d) Remove the protective tape.

B135023

B135022

Protective Tape

B135020E01

ET–76

EXTERIOR  –  OUTSIDE MOULDING

ET

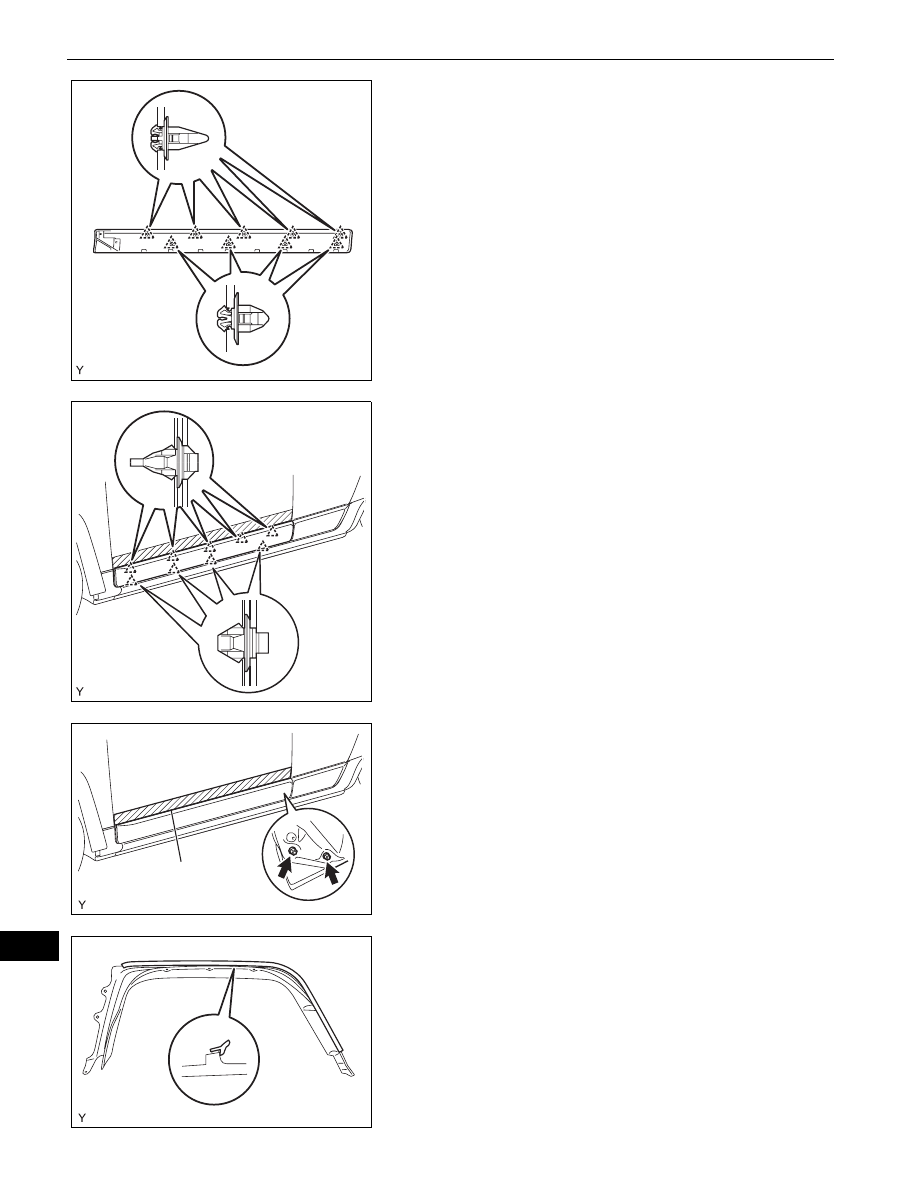

5.

INSTALL FRONT DOOR OUTSIDE MOULDING SUB-
ASSEMBLY
(a) Install 9 new clips in the positions shown in the

illustration.
NOTICE:
If you install the clips wrongly, the installation of
the rear door outside moulding will be improper.

(b) Engage the 9 clips and install the front door outside

moulding.

(c) Tighten the 2 nuts.

Torque: 5.0 N*m (50 kgf*cm, 44 in.*lbf)

(d) Remove the protective tape.

6.

INSTALL QUARTER PANEL MOULDING PAD
HINT:
Only follow this procedure when replacing the quarter
outside moulding pad.

(a) Install a new quarter outside moulding pad in the

position shown in the illustration.

B135019

B135018

Protective Tape

B135016E01

B135064

EXTERIOR  –  OUTSIDE MOULDING

ET–77

ET

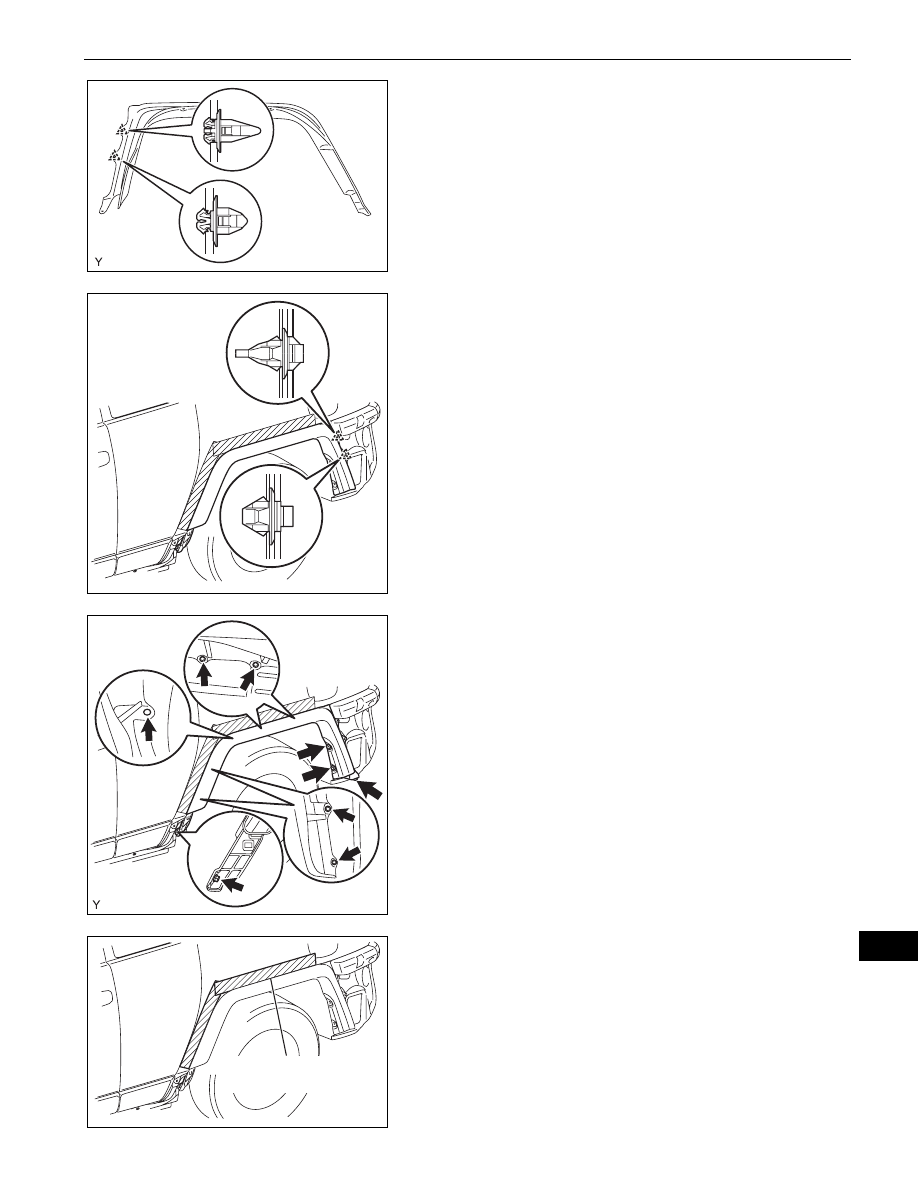

7.

INSTALL QUARTER OUTSIDE MOULDING SUB-
ASSEMBLY
(a) Install 2 new clips in the positions shown in the

illustration.
NOTICE:
If you install the clips wrongly, the installation of
the quarter outside moulding will be improper.

(b) Engage the 2 clips and install the quarter outside

moulding.

(c) Tighten the 8 screws

Torque: 5.0 N*m (50 kgf*cm, 44 in.*lbf)

(d) Install the clip.

(e) Remove the protective tape.

8.

INSTALL FRONT FENDER OUTSIDE MOULDING PAD
HINT:
Only follow this procedure when replacing the front
wheel opening extension pad.

B135065

B135063

B135062

Protective Tape

B135061E01
