Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 208

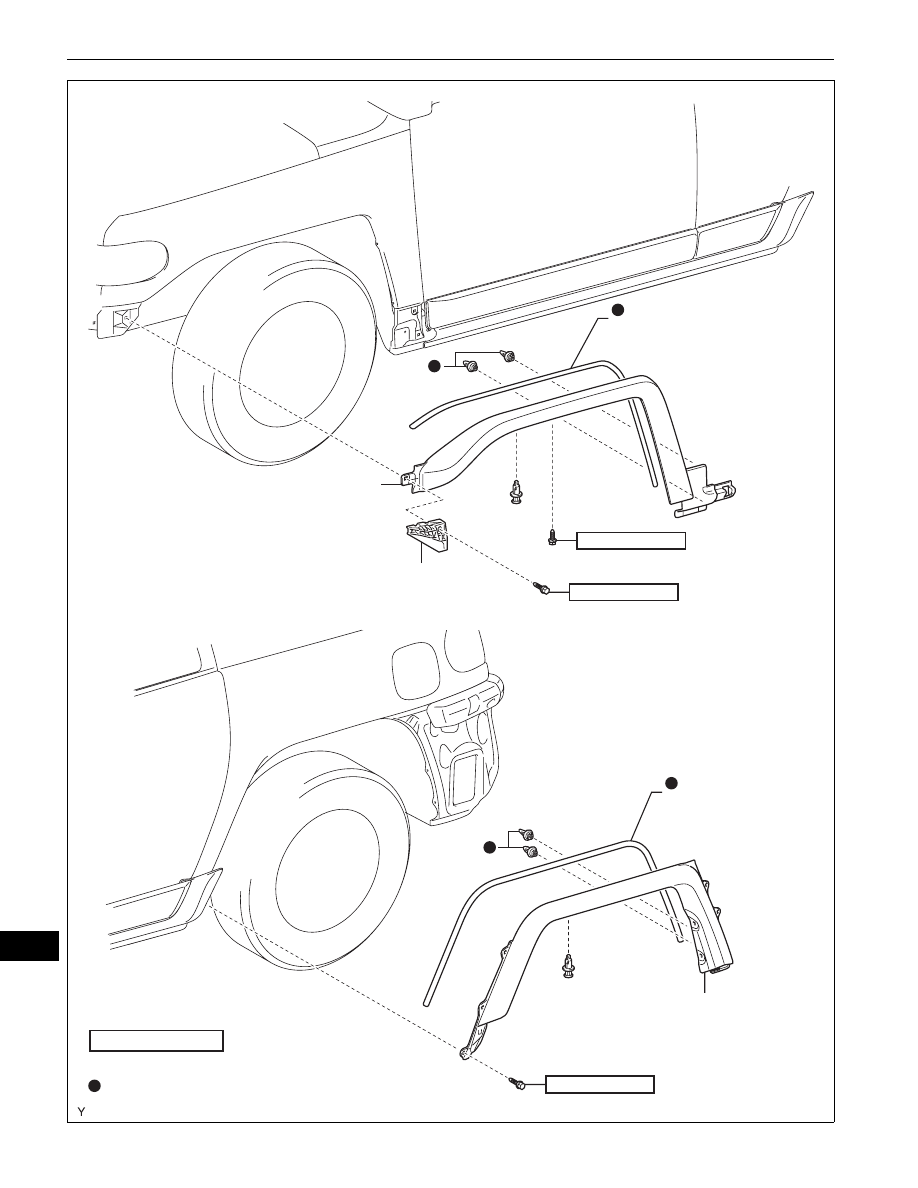

ET–62

EXTERIOR  –  OUTSIDE MOULDING

ET

FRONT BUMPER
SIDE SUPPORT

FRONT FENDER MOULDING
SUB-ASSEMBLY

QUARTER OUTSIDE
MOULDING SUB-ASSEMBLY

N*m (kgf*cm, ft*lbf)  : Specified torque

Non-reusable part

5.0 (50, 44 in.*lbf)

x2

x2

x5

FRONT FENDER OUTSIDE
MOULDING PAD

QUARTER PANEL
MOULDING PAD

x8

3.0 (30, 27 in.*lbf)

5.0 (50, 44 in.*lbf)

B135054E01

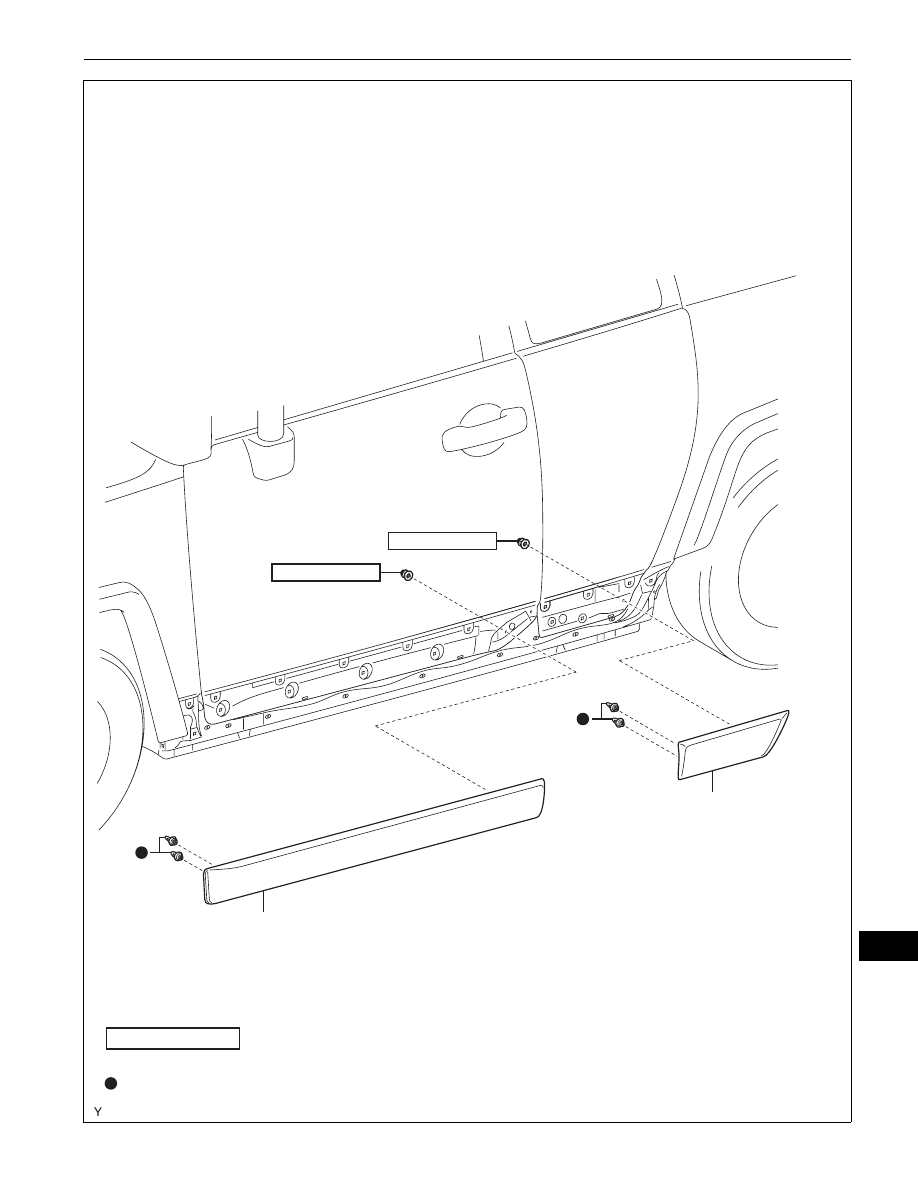

EXTERIOR  –  OUTSIDE MOULDING

ET–63

ET

ACCESS DOOR OUTSIDE
MOULDING SUB-ASSEMBLY

FRONT DOOR OUTSIDE
MOULDING SUB-ASSEMBLY

N*m (kgf*cm, ft*lbf)  : Specified torque

Non-reusable part

5.0 (50, 44 in.*lbf)

x2

5.0 (50, 44 in.*lbf)

x2

x2

x5

x4

B135015E01

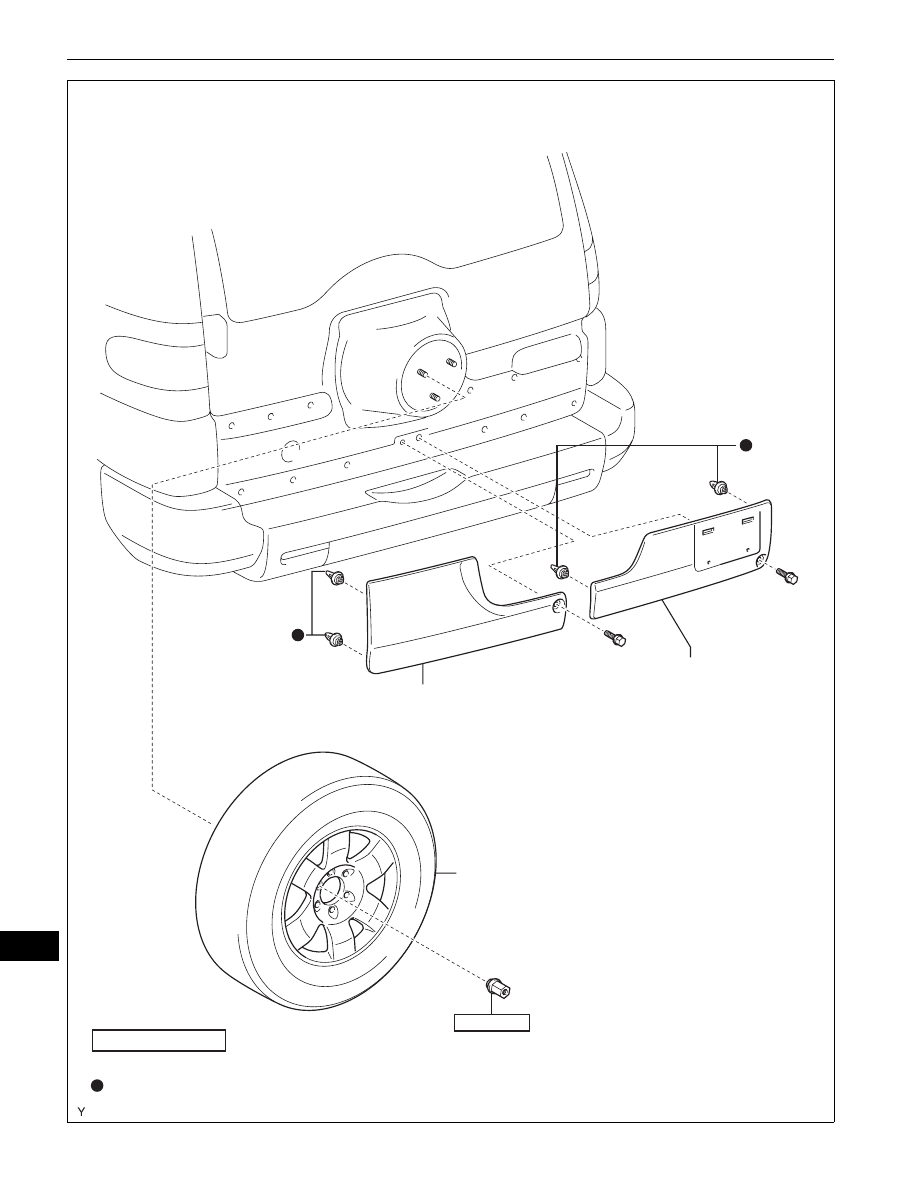

ET–64

EXTERIOR  –  OUTSIDE MOULDING

ET

BACK DOOR OUTSIDE
MOULDING LH

BACK DOOR OUTSIDE
MOULDING RH

SPARE TIRE

x3

x3

x3

x3

x2

N*m (kgf*cm, ft*lbf)  : Specified torque

Non-reusable part

88 (897, 65)

B135024E01

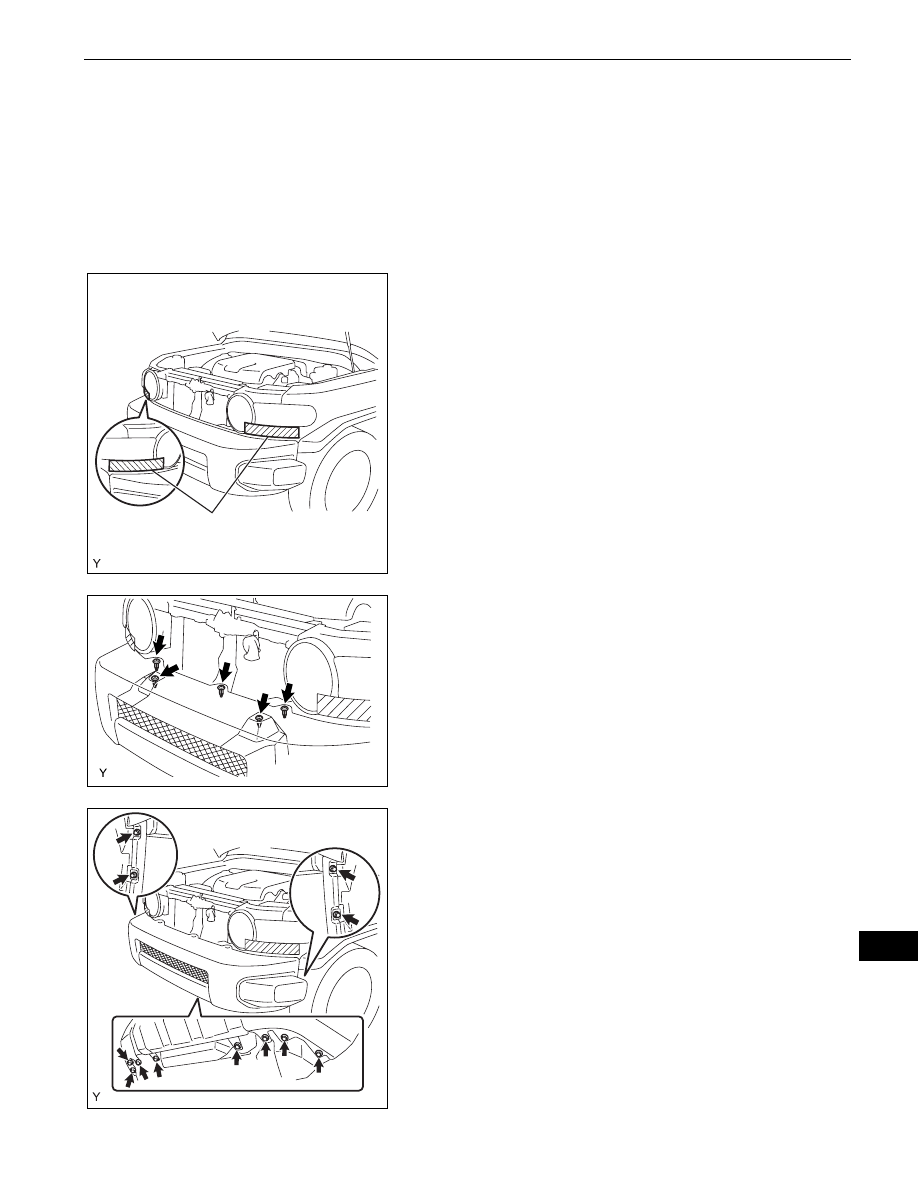

EXTERIOR  –  OUTSIDE MOULDING

ET–65

ET

REMOVAL

HINT:
The procedure described below is for the LH side. Use the
same procedure for both the RH and LH sides, unless
otherwise specified.

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL (w/ Back Sonar)

2.

REMOVE RADIATOR GRILLE (See page

ET-4

)

3.

REMOVE FRONT BUMPER COVER
(a) Apply protective tape as shown in the illustration.

(b) Using a clip remover, remove the 5 clips.

(c) Remove the 8 screws and the 4 bolts.

Protective Tape

B134730E01

B138606

B134731
