Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 207

ET–58

EXTERIOR  –  OUTSIDE MOULDING

ET

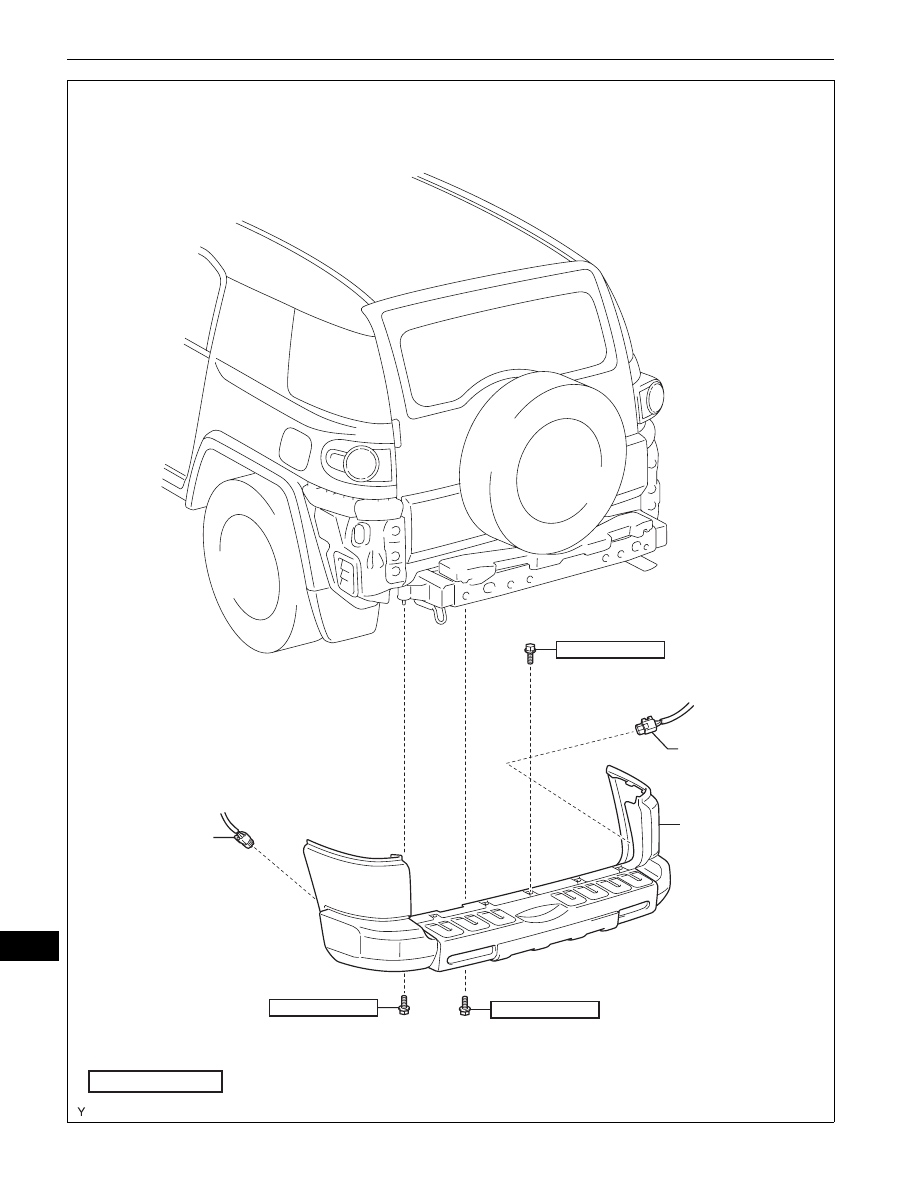

REAR BUMPER
COVER

x5

x2

N*m (kgf*cm, ft*lbf)  : Specified torque

8.0 (80, 71 in.*lbf)

8.0 (80, 71 in.*lbf)

3.0 (30, 27 in.*lbf)

x2

WIRE to WIRE
CONNECTOR

WIRE to WIRE
CONNECTOR

B138481E01

EXTERIOR  –  OUTSIDE MOULDING

ET–59

ET

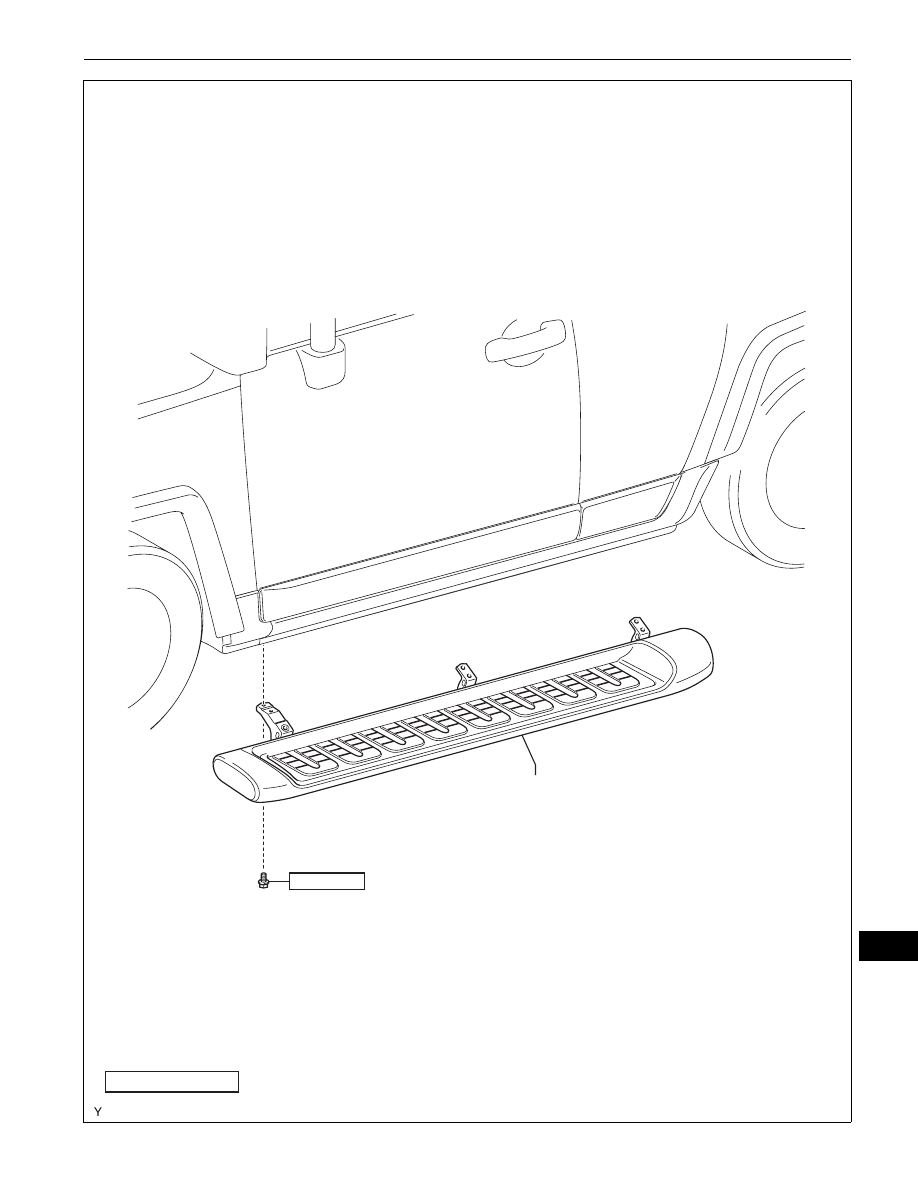

SIDE STEP
SUB-ASSEMBLY

N*m (kgf*cm, ft*lbf)  : Specified torque

20 (200, 14)

x6

w/ Side Step:

B138489E01

ET–60

EXTERIOR  –  OUTSIDE MOULDING

ET

x5

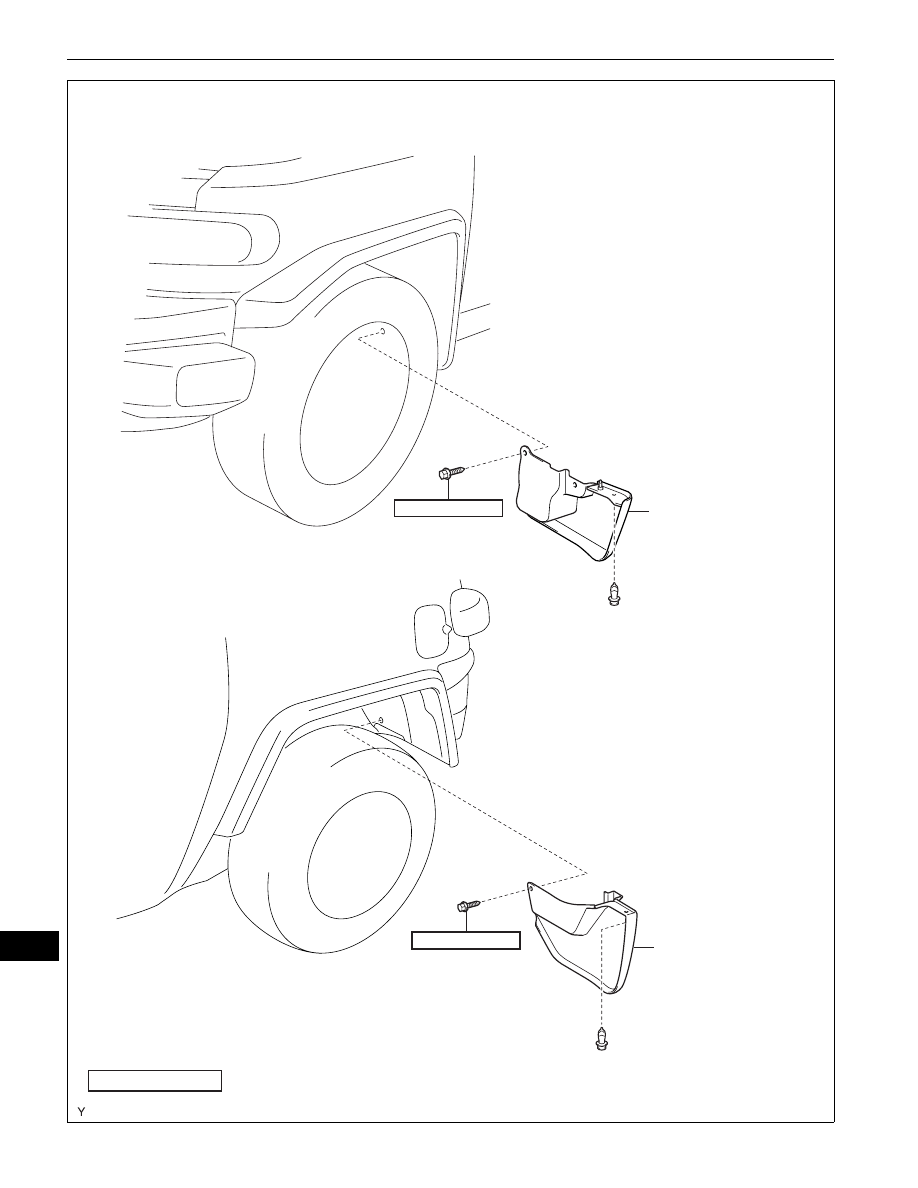

FRONT FENDER
MUDGUARD

QUARTER PANEL
MUDGUARD

x4

N*m (kgf*cm, ft*lbf)  : Specified torque

5.0 (50, 44 in.*lbf)

5.0 (50, 44 in.*lbf)

B135081E01

EXTERIOR  –  OUTSIDE MOULDING

ET–61

ET

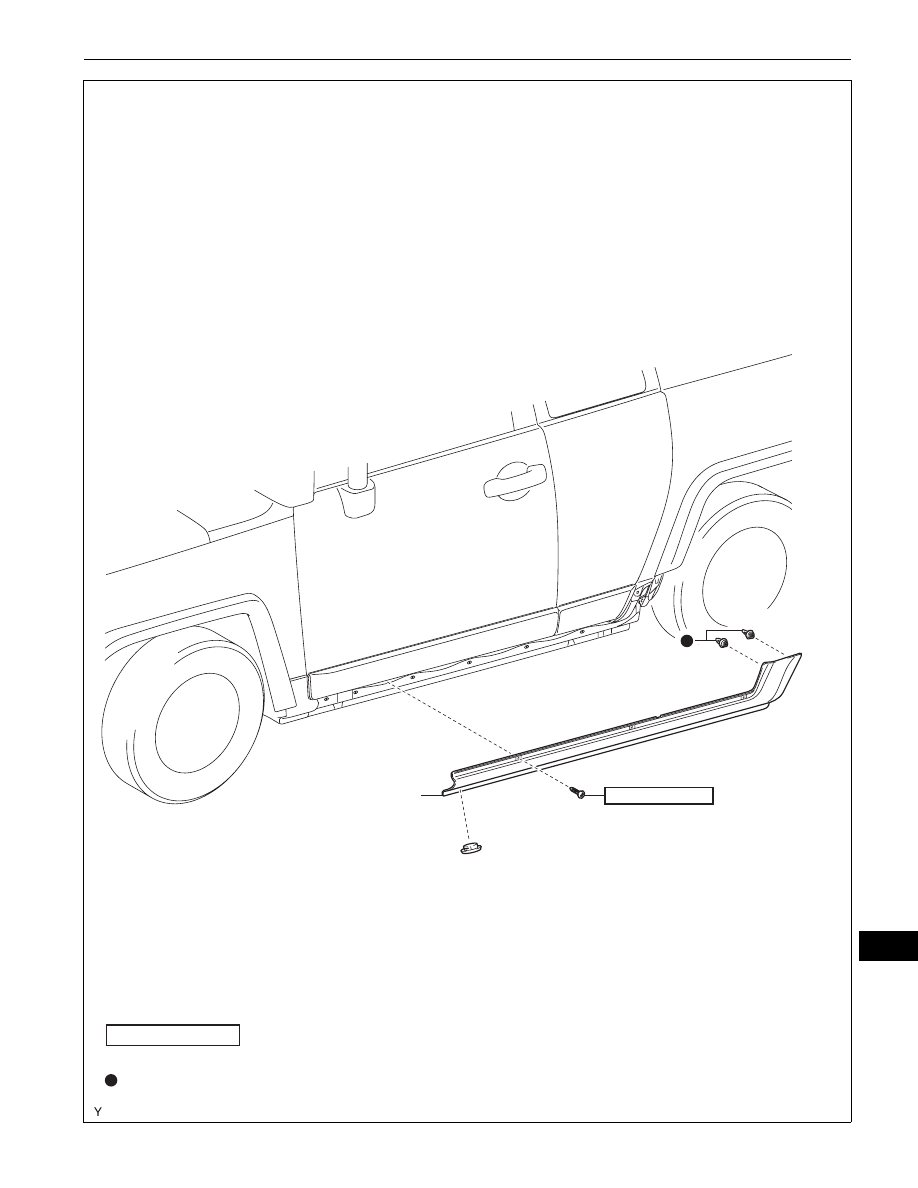

ROCKER PANEL MOULDING

N*m (kgf*cm, ft*lbf)  : Specified torque

Non-reusable part

5.0 (50, 44 in.*lbf)

x6

x3

x2

B135050E01
