ET–54
EXTERIOR – ROOF DRIP SIDE FINISH MOULDING
ET
9.
INSTALL ROOF DRIP SIDE FINISH MOULDING CLIP
NOTICE:
•
Only follow this procedure when replacing the
clips.
•
Wear polyethylene gloves when performing steps
and avoid having direct contact between the
adhesive and your hand.
•
Refer to the label on the adhesive for further
precautions.
(a) Clean the vehicle body.
(1) Using an industrial dryer, heat the tape
remaining on the painted surface to soften it
and peel it off with a bamboo scraper.
(2) Clean the surface using a shop rag or piece of
cloth soaked in a non-residue solvent.
(b) Apply adhesive.
(1) Load an adhesive cartridge into an adhesive
coating gun.
(2) Remove the cap from the adhesive cartridge
and pull the lever of the gun. Make sure that
the adhesive comes out of the nozzle tip ( 2
outlets) uniformly. (Confirm by applying
adhesive to cardboard)
(3) Pull the lever again and apply adhesive to a
part of the cardboard where it has not been
applied before.
HINT:
The amount of the adhesive applied in this step
should be greater than that required 0.5mm
(0.02 in.)
(4) Using a paddle, mix the adhesive 10 times.
(5) Apply the adhesive, with a uniform thickness of
0.5 mm (0.02 in.), to the surface of the
hardening tape on the clip.

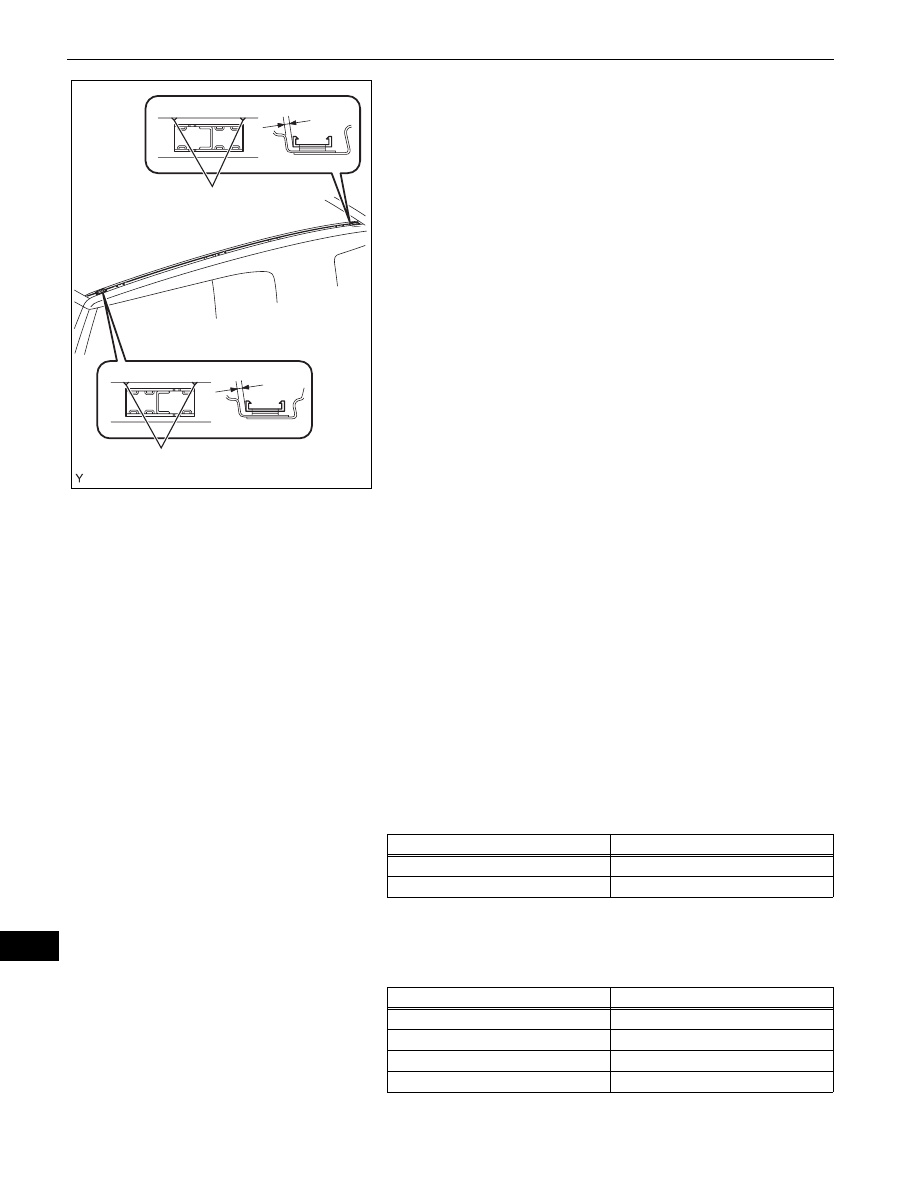

(c) Set the clip in the predetermined position on the
pillar and press in until extra adhesive protrudes
beyond the sides of the tape (20 N (2kgf, 4.4 lb) x 2
seconds).
Specification:

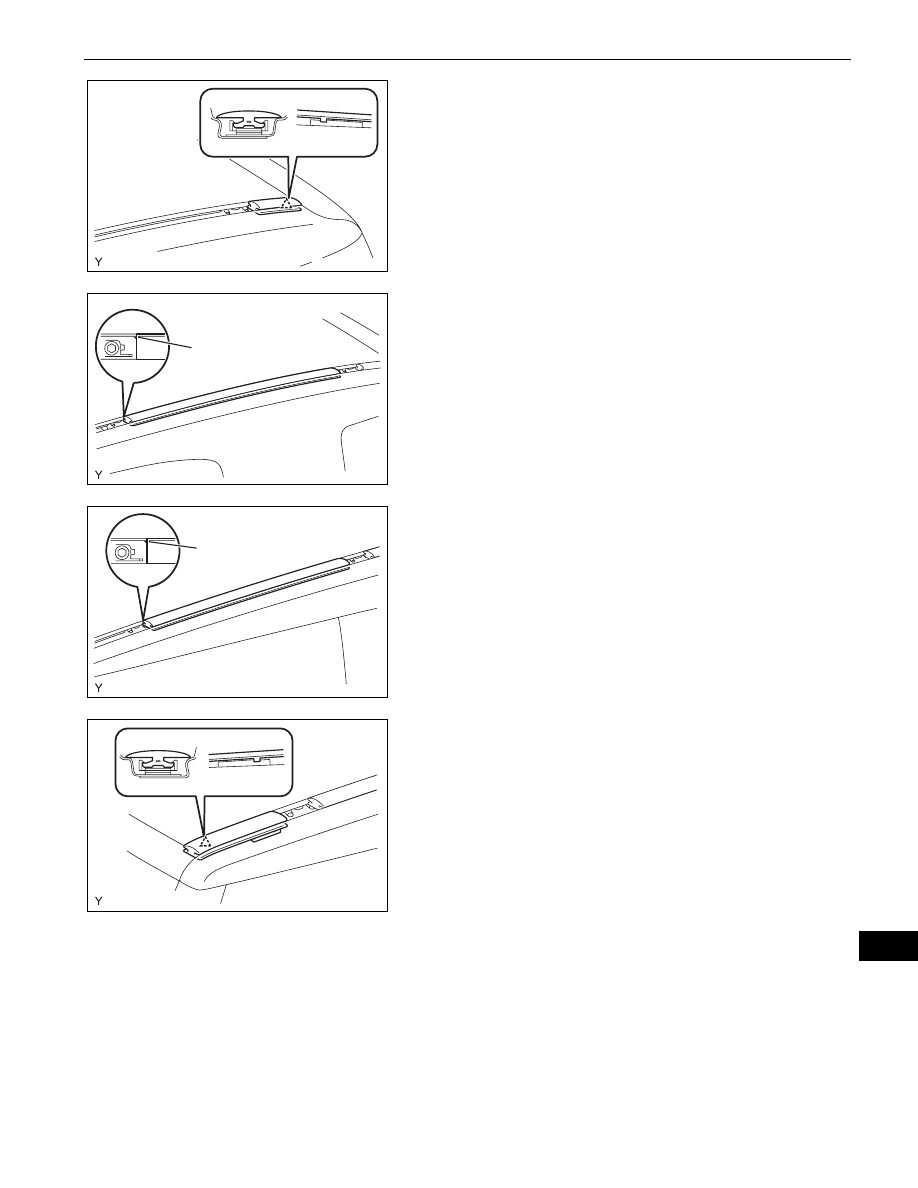

(d) After pressing the clip, leave it for the predetermined
time shown below and then install the moulding.
Ambient temperatures and recommended
leaving times:

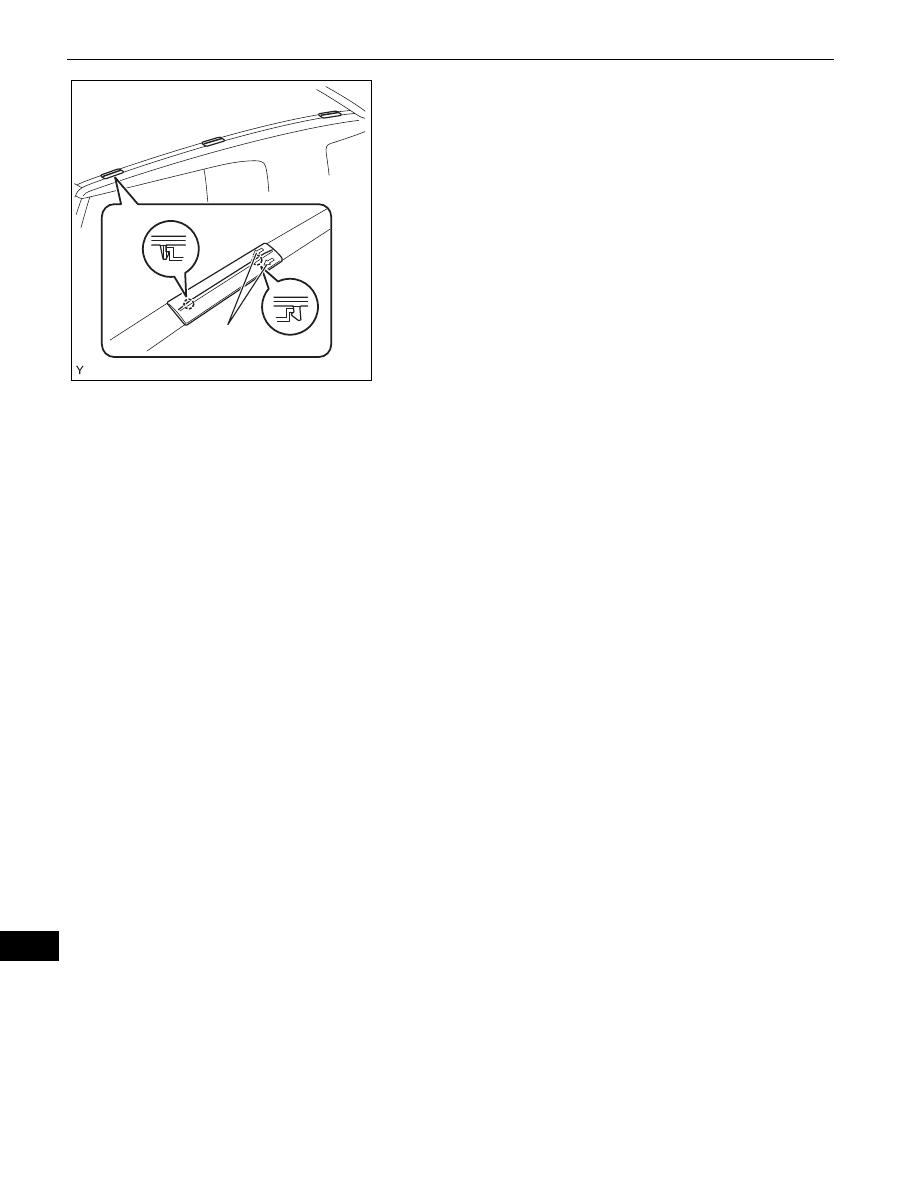

Location Marks
Location Marks
b
a
B135009E01
Area
Measurement
a
2.5 to 3.5 mm (0.098 to 0.138 in.)
b
2 to 3 mm (0.079 to 0.118 in.)
Temperature
Leaving times
5 to 10
°C (41 to 50°F)
1 hour or more
10 to 15
°C (50 to 59°F)
30 minutes or more
15 to 23
°C (59 to 73°F)
30 minutes or more
23
°C (73°F) or more
15 minutes or more
