ET–46

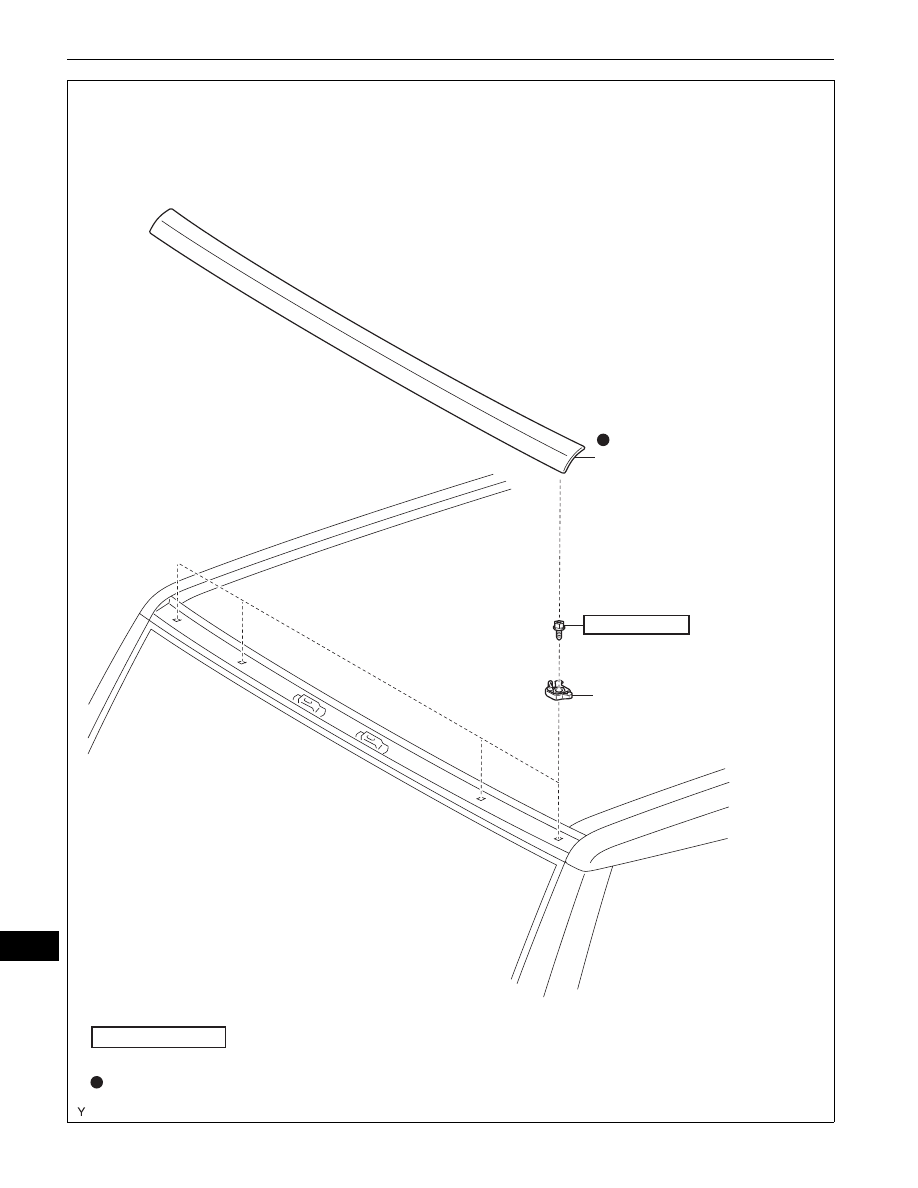

EXTERIOR  –  ROOF DRIP SIDE FINISH MOULDING

ET

ROOF DRIP SIDE FINISH
MOULDING RETAINER

5.0 (50, 44 in.*lbf)

N*m (kgf*cm, ft*lbf)  : Specified torque

Non-reusable part

WINDSHIELD OUTSIDE
UPPER MOULDING
SUB-ASSEMBLY

B135037E01

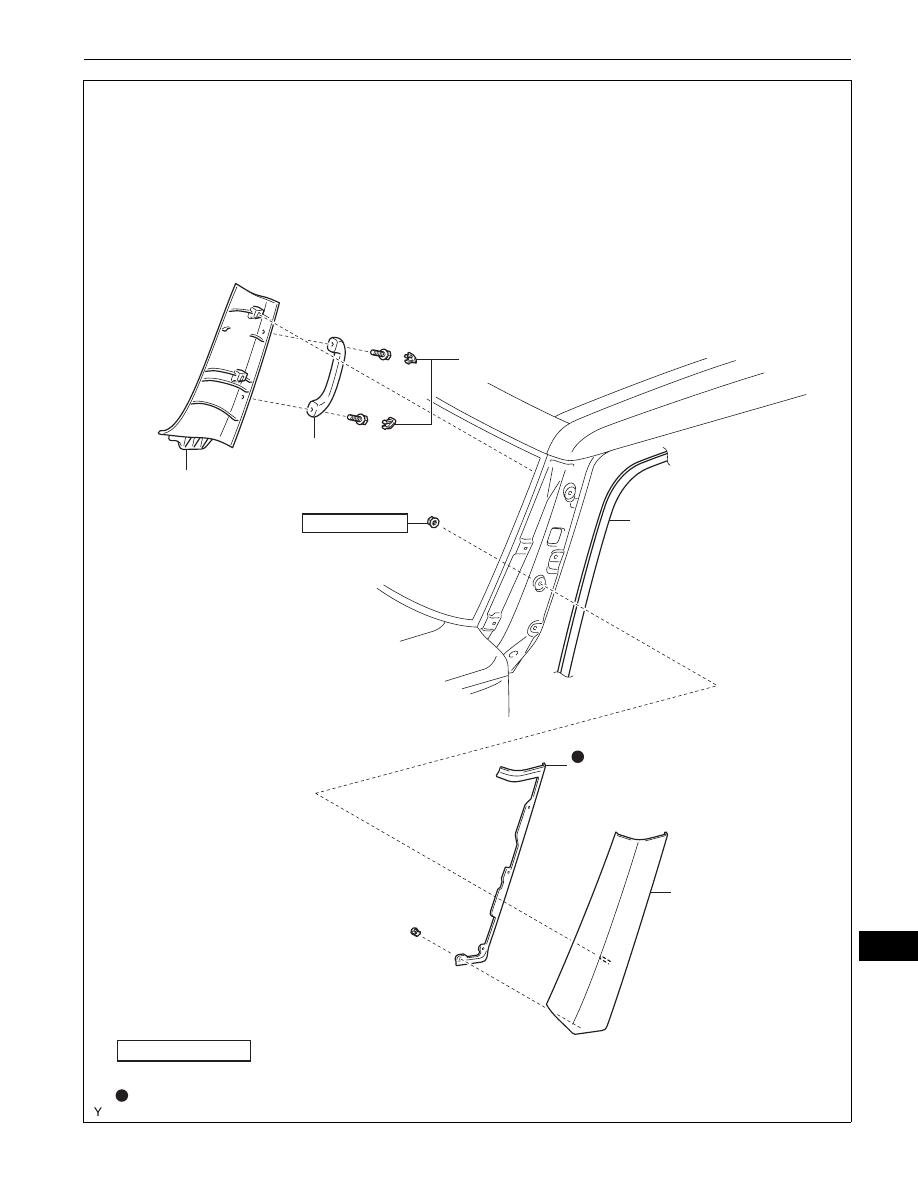

EXTERIOR  –  ROOF DRIP SIDE FINISH MOULDING

ET–47

ET

ASSIST GRIP
ASSEMBLY

ASSIST GRIP PLUG

FRONT DOOR OPENING
TRIM WEATHERSTRIP

FRONT PILLAR
GARNISH

FRONT PILLAR
OUTER GARNISH

Non-reusable part

ROOF SIDE GARNISH
PROTECTOR

N*m (kgf*cm, ft*lbf)  : Specified torque

5.0 (50, 44 in.*lbf)

x4

B135012E01

ET–48

EXTERIOR  –  ROOF DRIP SIDE FINISH MOULDING

ET

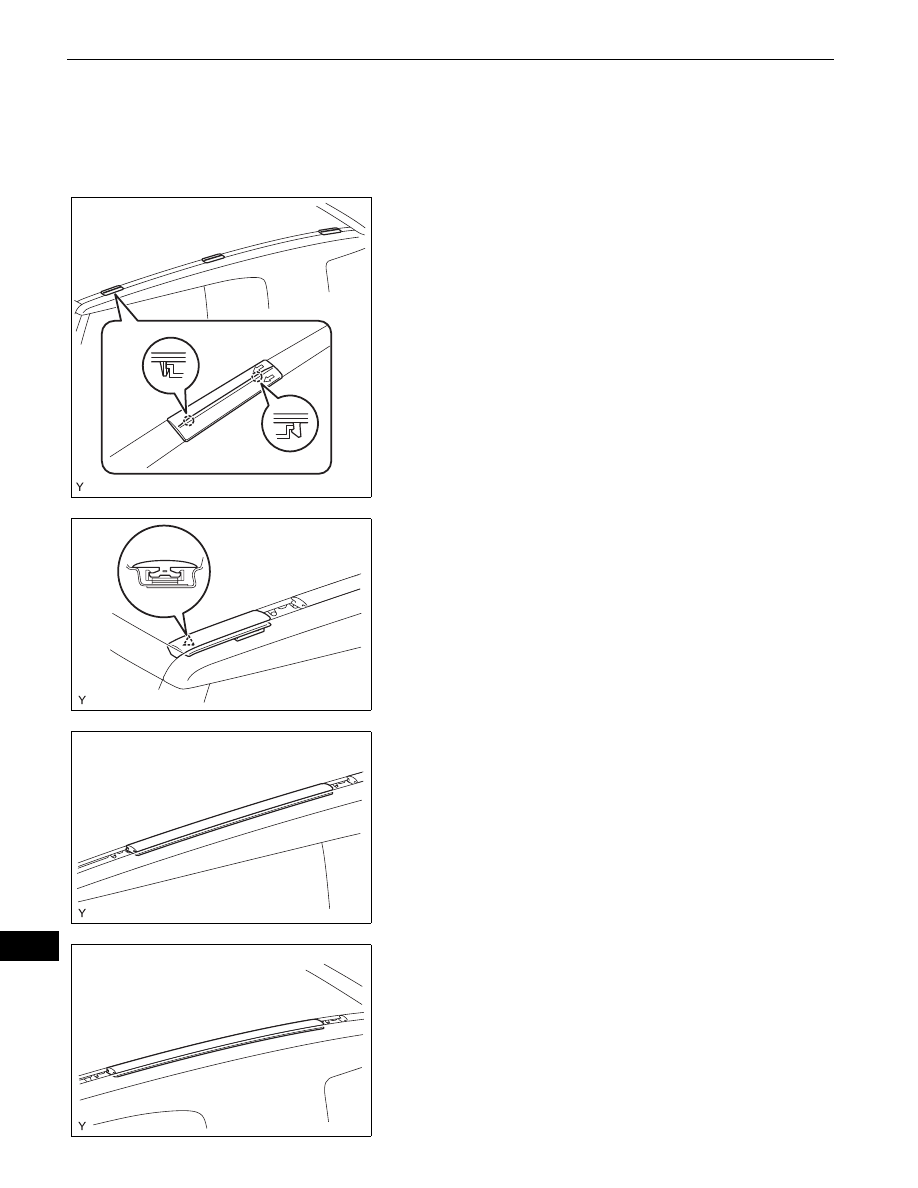

REMOVAL

HINT:
The procedure described below is for the LH side. Use the
same procedure for both the RH and LH sides, unless
otherwise specified.

1.

REMOVE ROOF DRIP SIDE FINISH MOULDING
JOINT COVER
HINT:
Use the same procedure to remove all the roof drip
moulding joint covers.
(a) Disengage the 2 claws and remove the roof drip

moulding joint cover.

2.

REMOVE NO. 1 ROOF DRIP SIDE FINISH MOULDING
(a) Disengage the clip and remove the No. 1 roof drip

side finish moulding.
NOTICE:
•

Do not remove the clip.

•

Replace the clip with a supply clip if
damaged.

3.

REMOVE NO. 2 ROOF DRIP SIDE FINISH MOULDING
(a) Remove the No. 2 roof drip side finish moulding.

4.

REMOVE NO. 3 ROOF DRIP SIDE FINISH MOULDING
(a) Remove the No. 3 roof drip side finish moulding.

B135000

B135001

B135003

B135005

EXTERIOR  –  ROOF DRIP SIDE FINISH MOULDING

ET–49

ET

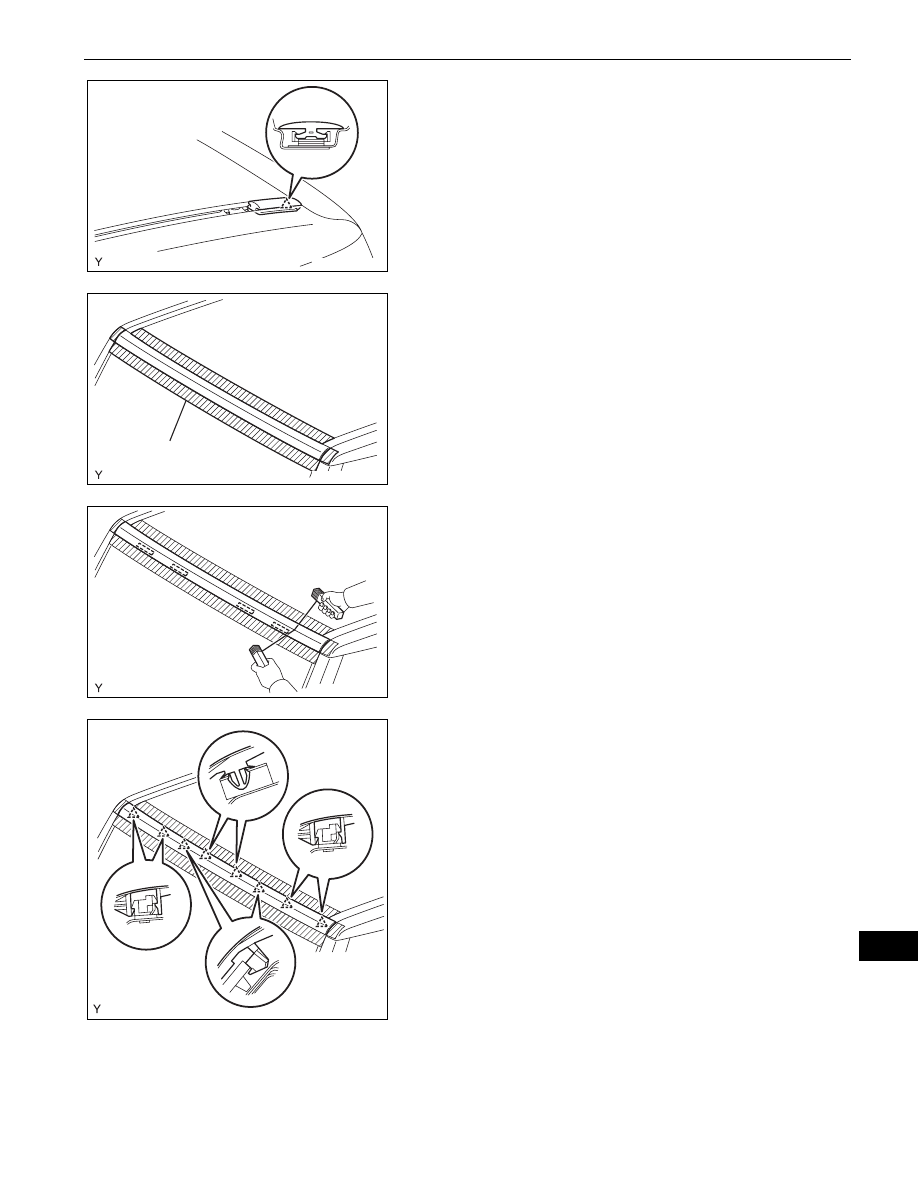

5.

REMOVE NO. 4 ROOF DRIP SIDE FINISH MOULDING
(a) Disengage the clip and remove the No. 4 roof drip

side finish moulding.
NOTICE:
•

Do not remove the clip.

•

Replace the clip with a supply clip if
damaged.

6.

REMOVE WINDSHIELD OUTSIDE UPPER MOULDING
SUB-ASSEMBLY
(a) Apply protective tape to the roof panel in the area

around the windshield outside upper moulding.

(b) Insert the piano wires between the vehicle body and

the windshield outside upper moulding, as shown in
the illustration.

(c) Tie objects that can serve as handles (for example,

wooden blocks) to all wire ends.
NOTICE:
When separating the windshield outside upper
moulding from the vehicle, do not damage the
vehicle's paintwork or exterior ornaments.

(d) Disengage the 6 claws and the 2 clips and remove

the windshield outside upper moulding.

B135007

Protective Tape

B135038E01

B138614

B135039
