Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 202

EXTERIOR  –  FRONT DOOR GLASS WEATHERSTRIP

ET–39

ET

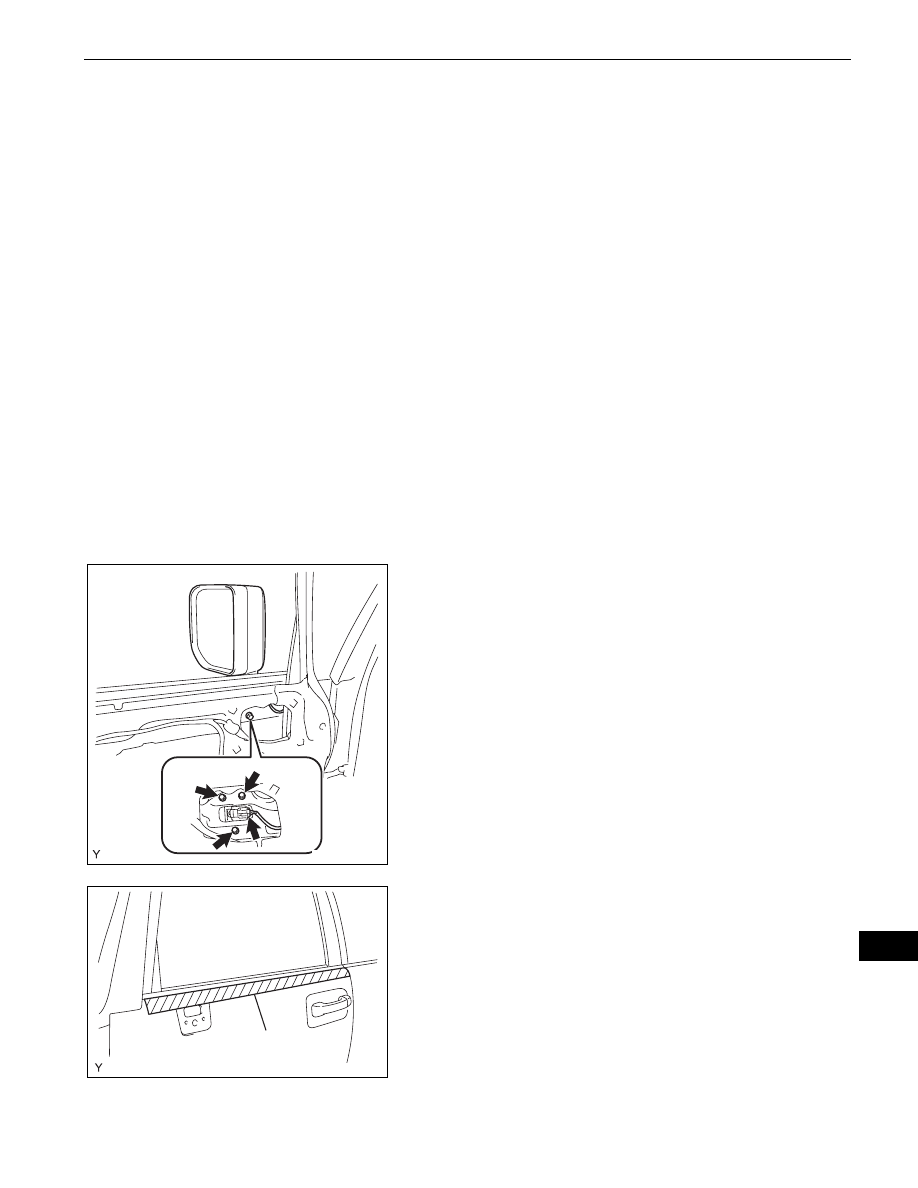

REMOVAL

HINT:
The procedure described below is for the LH side. Use the
same procedure for both the RH and LH sides, unless
otherwise specified.

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

REMOVE FRONT DOOR ARMREST BASE UPPER
PANEL
HINT:
Use the same procedure as for the RH side (See page

ED-9

).

3.

REMOVE FRONT DOOR TRIM BOARD SUB-
ASSEMBLY
HINT:
Use the same procedure as for the RH side (See page

ED-9

).

4.

REMOVE FRONT DOOR NO. 2 SERVICE HOLE
COVER
HINT:
Use the same procedure as for the RH side (See page

ED-10

).

5.

REMOVE OUTER REAR VIEW MIRROR ASSEMBLY
(a) for Driver Side:

(1) Provisionally install the power window regulator

master switch.

(b) for Front Passenger Side:

(1) Provisionally install the power window regulator

switch.

(c) Close the door glass.
(d) Disconnect the connector.
(e) Remove the 3 bolts and the outer rear view mirror.

NOTICE:
Do not drop or damage the outer rear view
mirror when removing the bolts.

6.

REMOVE FRONT DOOR GLASS OUTER
WEATHERSTRIP ASSEMBLY
(a) Apply protective tape to the front door panel in the

area around the front door glass outer weatherstrip.

B135564

Protective Tape

B135099E01

ET–40

EXTERIOR  –  FRONT DOOR GLASS WEATHERSTRIP

ET

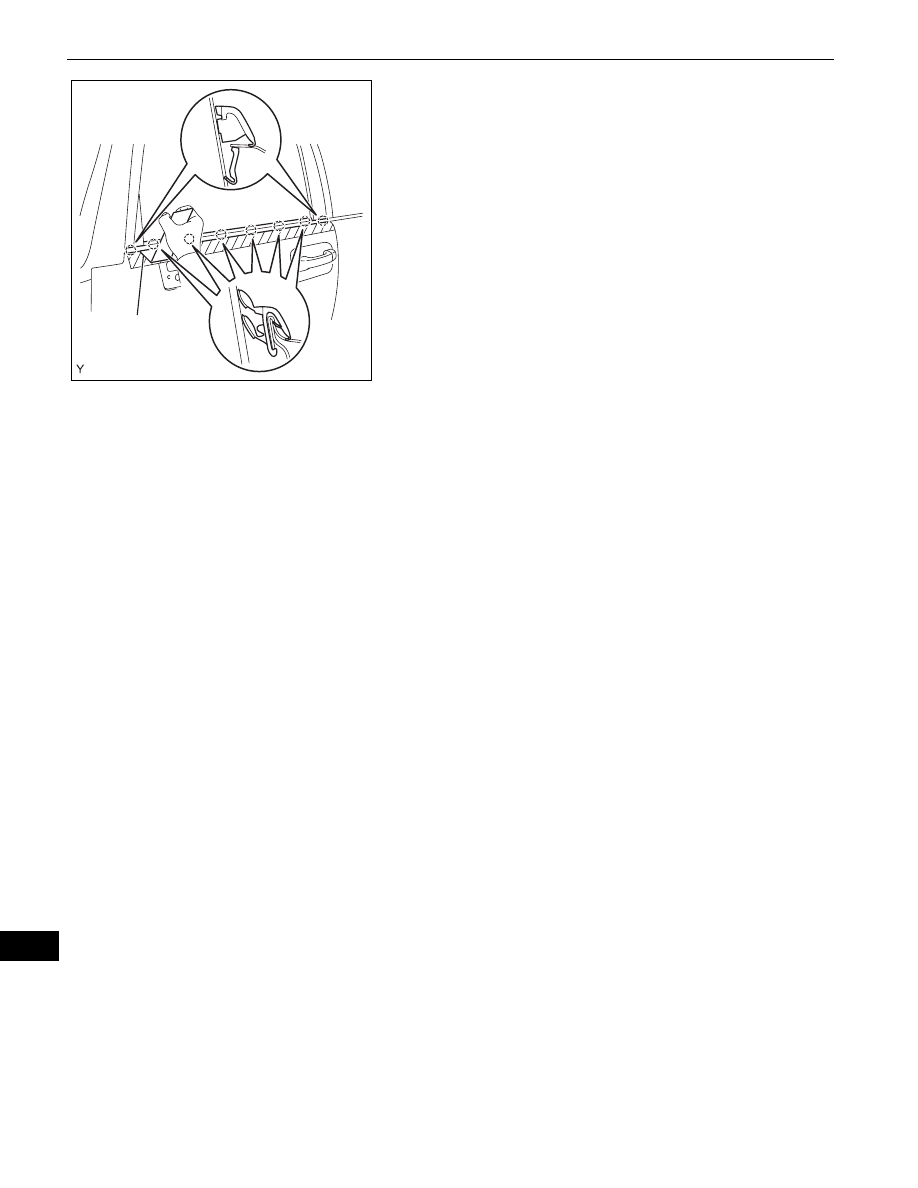

(b) Using a moulding remover, disengage the 8 claws

and remove the front door glass outer weatherstrip.

Moulding Remover

B135100E01

EXTERIOR  –  FRONT DOOR GLASS WEATHERSTRIP

ET–41

ET

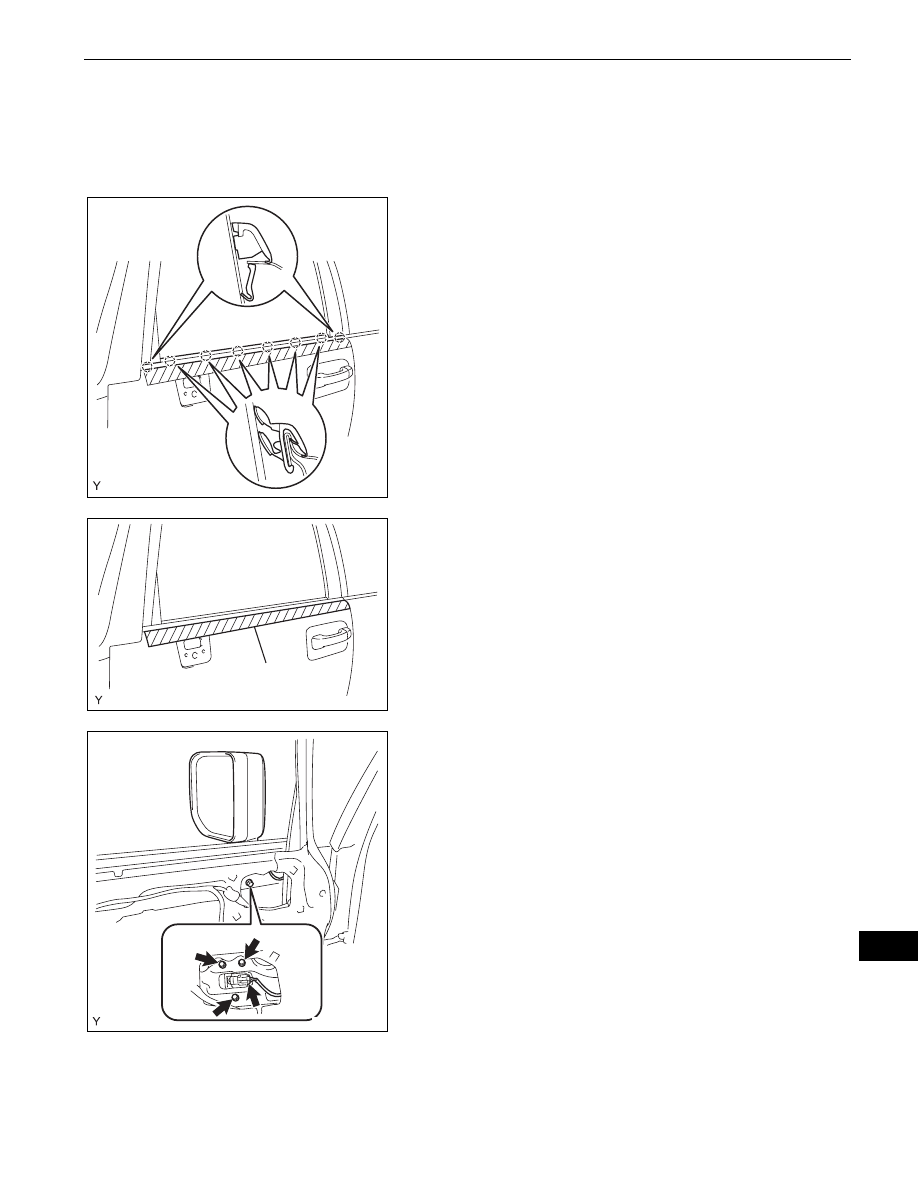

INSTALLATION

HINT:
The procedure described below is for the LH side. Use the
same procedure for both the RH and LH sides, unless
otherwise specified.

1.

INSTALL FRONT DOOR GLASS OUTER
WEATHERSTRIP ASSEMBLY
(a) Engage the 8 claws and install a new front door

glass outer weatherstrip.

(b) Remove the protective tape.

2.

INSTALL OUTER REAR VIEW MIRROR ASSEMBLY
(a) Install the outer rear view mirror with the 3 bolts.

Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

(b) Connect the connector.

3.

INSTALL FRONT DOOR NO. 2 SERVICE HOLE
COVER
HINT:
Use the same procedure as for the RH side (See
page

ED-24

 ).

4.

INSTALL FRONT DOOR TRIM BOARD SUB-
ASSEMBLY
HINT:
Use the same procedure as for the RH side (See page

ED-24

).

5.

INSTALL FRONT DOOR ARMREST BASE UPPER
PANEL
HINT:
Use the same procedure as for the RH side (See page

ED-25

).

B135101

Protective Tape

B135099E01

B135564

ET–42

EXTERIOR  –  FRONT DOOR GLASS WEATHERSTRIP

ET

6.

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
