EXTERIOR  –  REAR SPOILER

ET–35

ET

2.

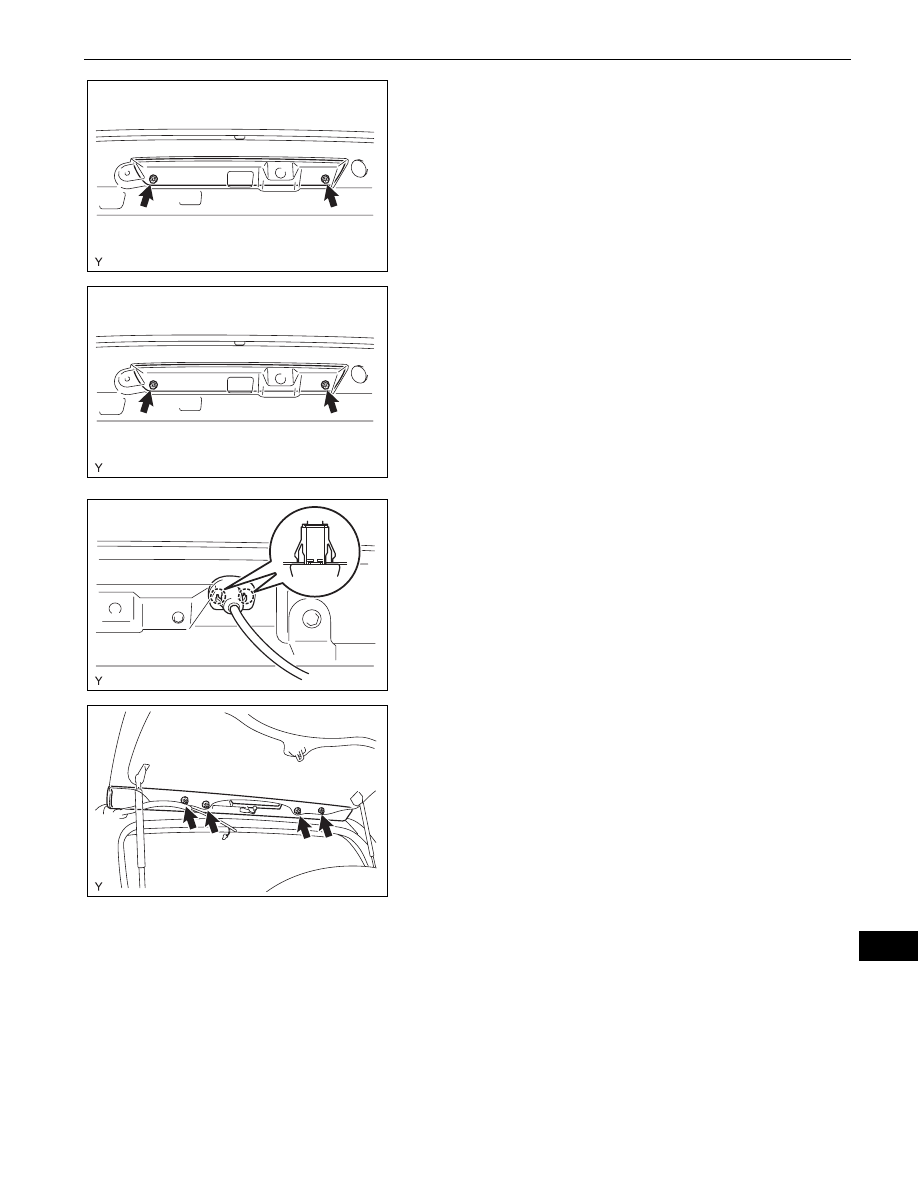

REMOVE HIGH MOUNTED STOP LIGHT ASSEMBLY
(a) Remove the 2 screws and the high mounted stop

light.

REASSEMBLY

1.

INSTALL HIGH MOUNTED STOP LIGHT ASSEMBLY
(a) Install the high mounted stop light with the 2 screws.

2.

INSTALL REAR WASHER NOZZLE (w/ Rear Wiper)
(a) Engage the 2 claws and install the rear washer

nozzle.

INSTALLATION

1.

INSTALL REAR SPOILER
(a) Install the rear spoiler with the 4 nuts.

B135165

B135165

B135164

B135163

ET–36

EXTERIOR  –  REAR SPOILER

ET

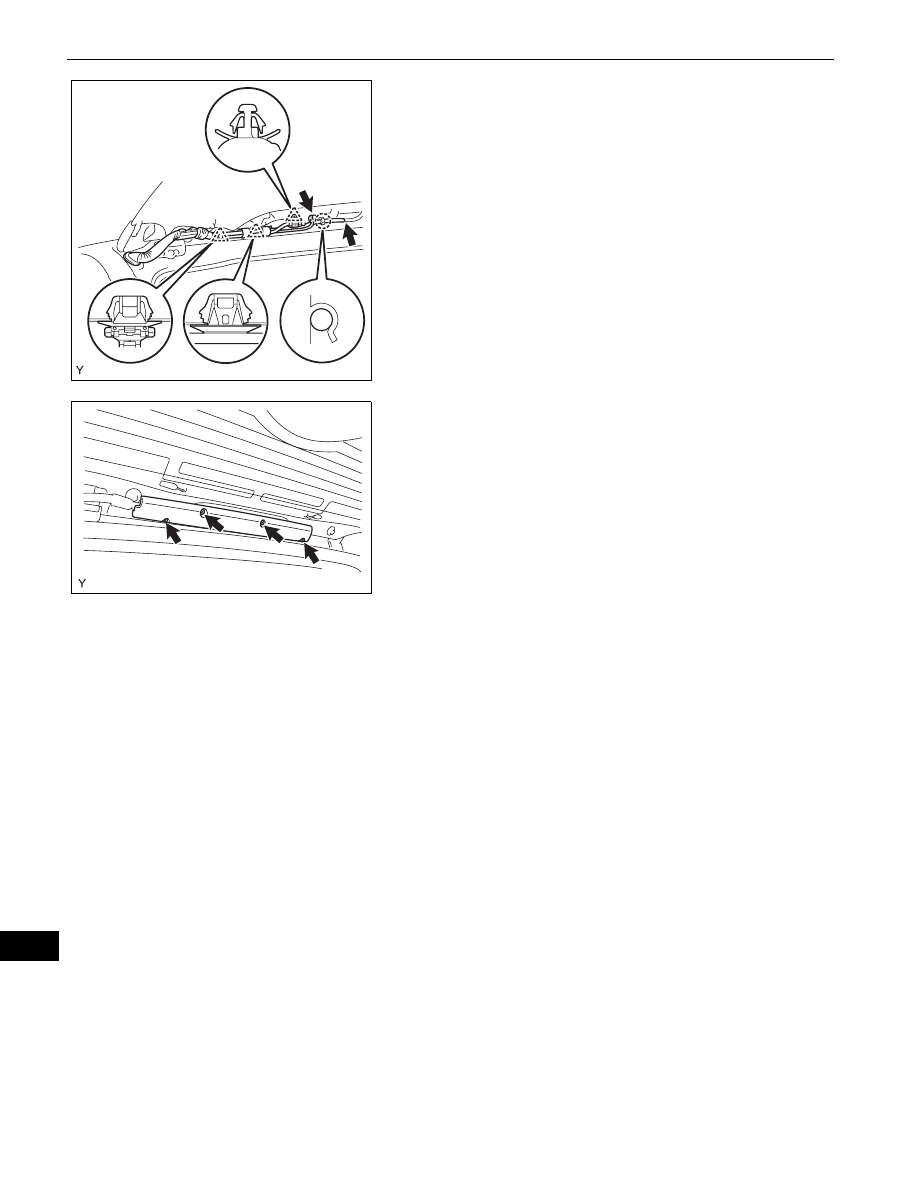

(b) w/ Rear Wiper:

(1) Connect the washer hose.

(c) Install the washer hose into the claw of the rear

spoiler.

(d) Install the 3 clamps.
(e) Connect the high mounted stop light connector.

2.

INSTALL REAR SPOILER COVER
(a) Install the rear spoiler cover with the 4 screws.

Torque: 3.0 N*m (30 kgf*cm, 27 in.*lbf)

3.

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

B135162

B135161

EXTERIOR  –  FRONT DOOR GLASS WEATHERSTRIP

ET–37

ET

BODY

EXTERIOR

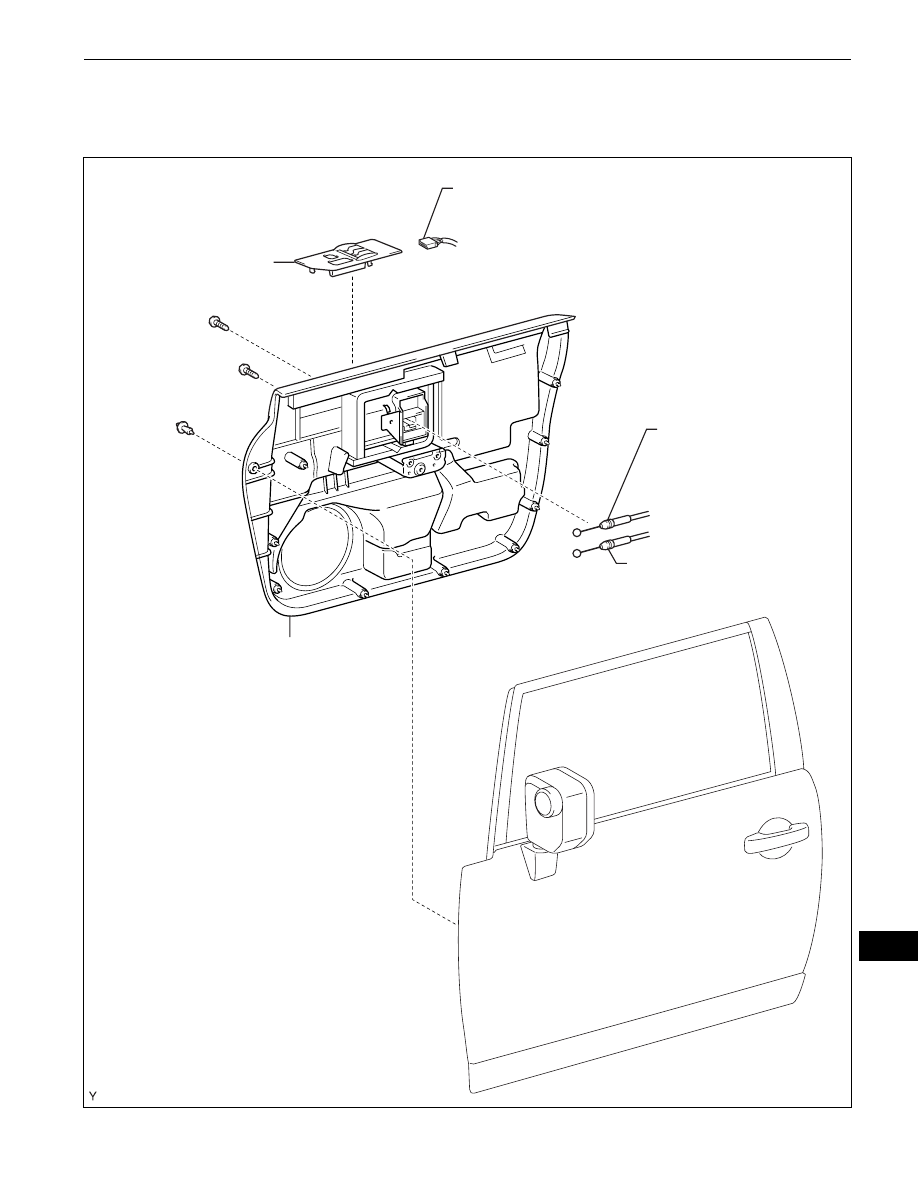

FRONT DOOR GLASS WEATHERSTRIP

COMPONENTS

POWER WINDOW SWITCH
CONNECTOR

FRONT DOOR LOCK
REMOTE CONTROL
CABLE ASSEMBLY

FRONT DOOR INSIDE
LOCKING CABLE ASSEMBLY

FRONT DOOR ARMREST
BASE UPPER PANEL

FRONT DOOR TRIM BOARD
SUB-ASSEMBLY

B135097E01

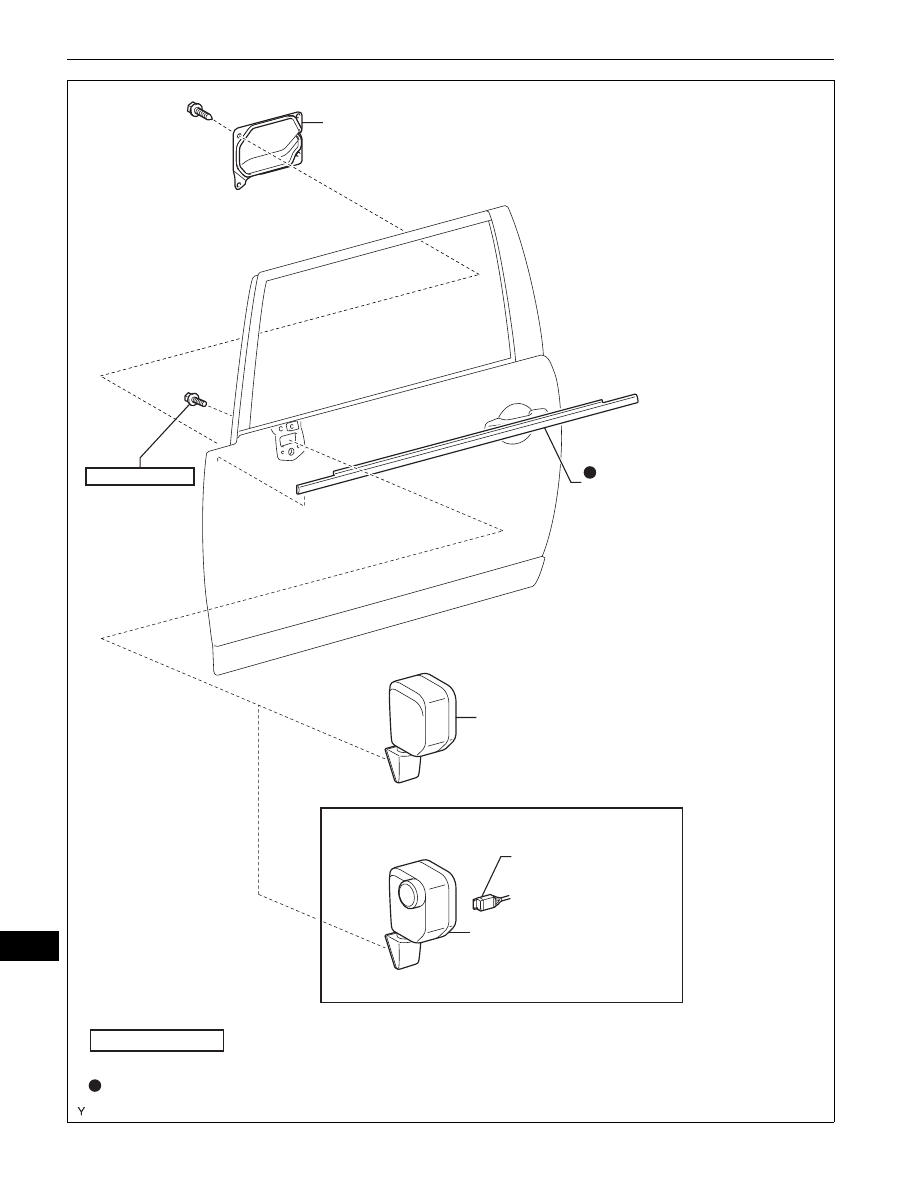

ET–38

EXTERIOR  –  FRONT DOOR GLASS WEATHERSTRIP

ET

MIRROR CONNECTOR

x3

x4

w/ Power and Light:

FRONT DOOR GLASS OUTER
WEATHERSTRIP ASSEMBLY

FRONT DOOR NO. 2
SERVICE HOLE COVER

OUTER REAR VIEW
MIRROR ASSEMBLY

OUTER REAR VIEW
MIRROR ASSEMBLY

N*m (kgf*cm, ft*lbf)  : Specified torque

Non-reusable part

8.0 (82, 71 in.*lbf)

B135098E01
