EXTERIOR – NAME PLATE
ET–31
ET
3.
INSTALL NO. 1 BACK DOOR NAME PLATE
(a) Clean the attachment surface.
(1) Using an infrared light, heat the double-sided
adhesive tape remaining on the back door
panel.
HINT:
Heat at 40 to 60
°C (104 to 140°F) for 1 to 2
minutes.
(2) Using a shop rag or piece of cloth, rub the
remaining double-sided adhesive tape off the
back door panel while it is hot from the infrared
light.
NOTICE:
Installing the No. 1 back door name plate
while any double-sided adhesive tape
remains on the back door panel may cause
adhesion failure. Therefore, completely
remove the double-sided adhesive tape.
(3) Using a non-residue solvent, clean the
attachment surface.
(b) Install a new No. 1 back door name plate as shown

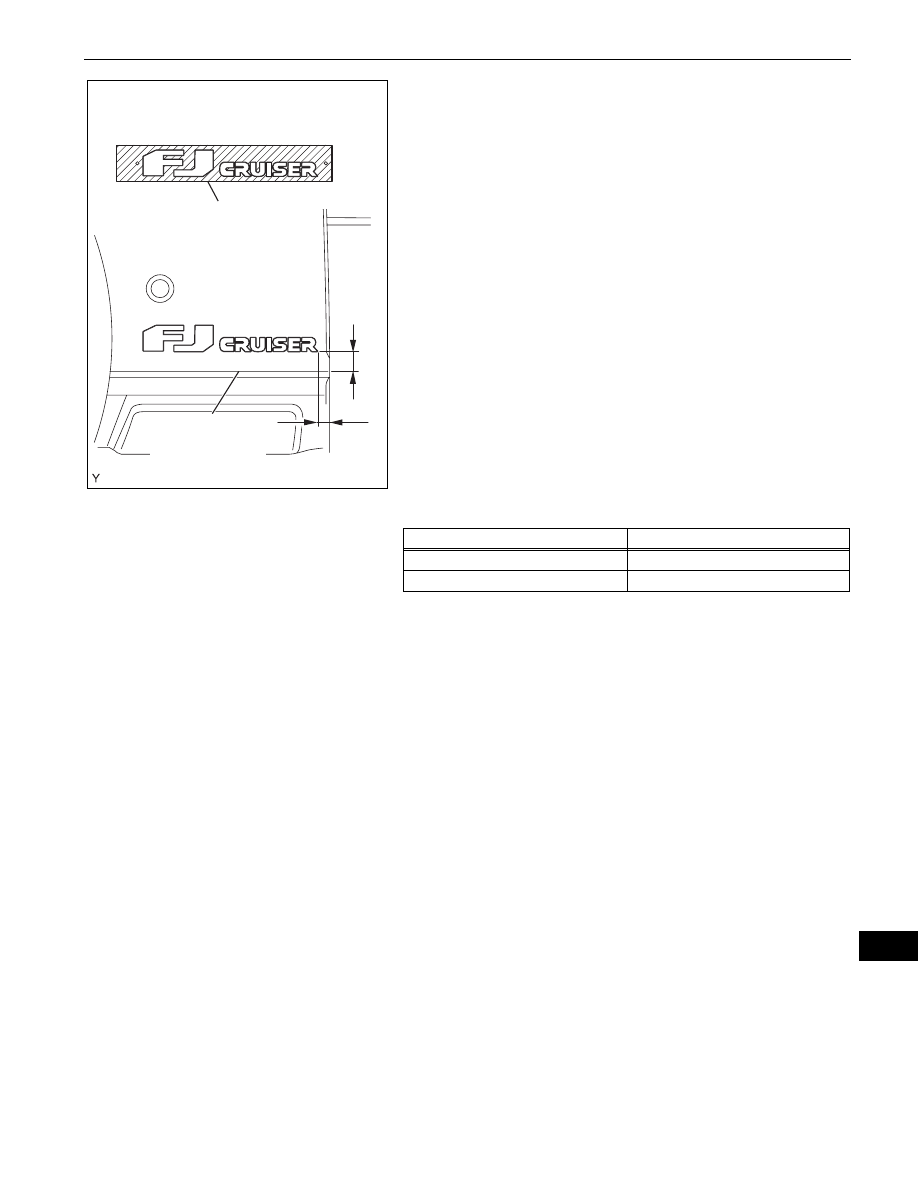

in the illustration.
Installation position
NOTICE:
Install the No. 1 back door name plate in an
environment where the ambient temperature is
over 20
°C (68°F). If it is below 20°C (68°F), using
an infrared light, heat the back door panel and
the No. 1 back door name plate up to 20 to 30
°C
(68 to 86
°F) and install the No. 1 back door name
plate.
Peeling Paper
Back Door Panel
Relief R End Line
a
b
B134742E01
Mark
Measurement (along surface)
a
28.4 mm (1.118 in.)
b
11.5 mm (0.453 in.)
