EXTERIOR – ACCESS DOOR GLASS WEATHERSTRIP

BODY

EXTERIOR

ACCESS DOOR GLASS WEATHERSTRIP

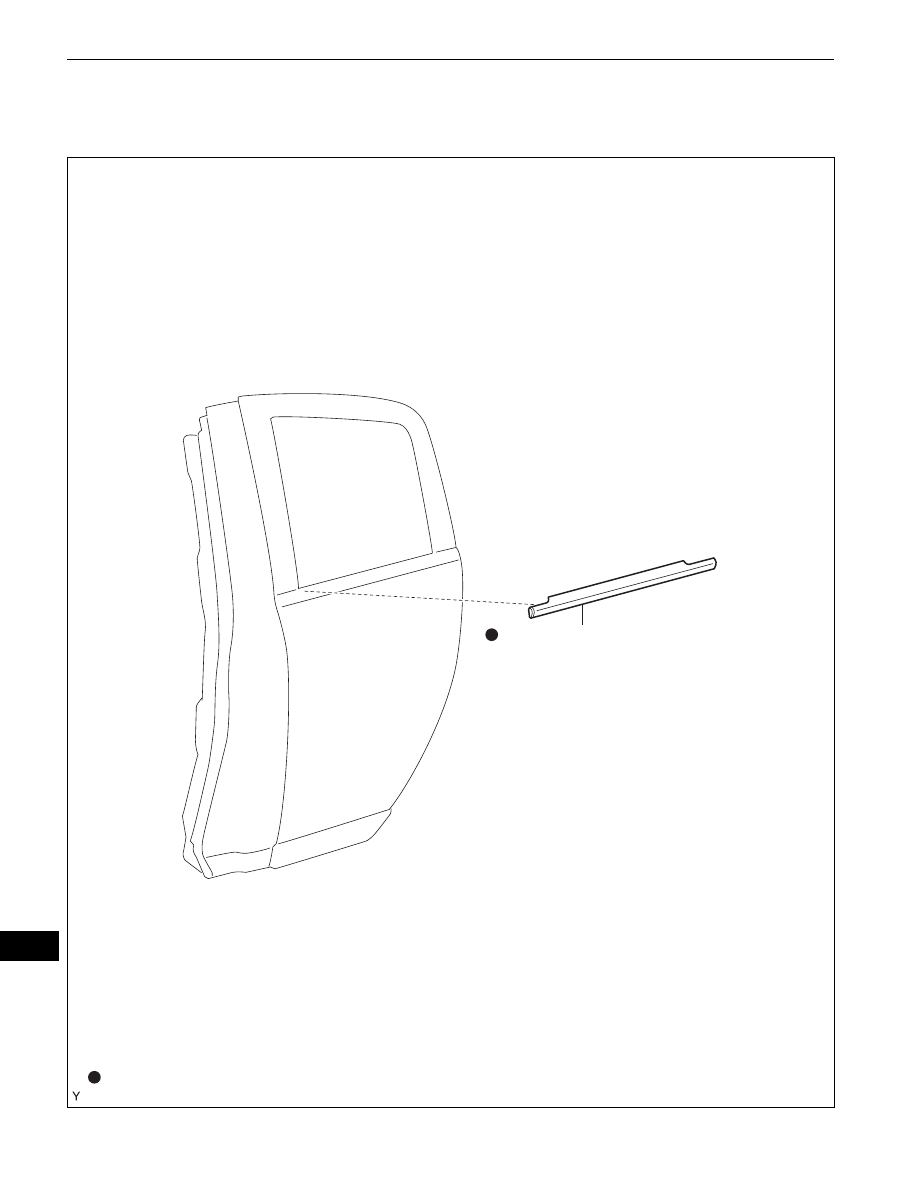

COMPONENTS

Non-reusable part

ACCESS DOOR GLASS
OUTER WEATHERSTRIP

B135102E01

EXTERIOR – ACCESS DOOR GLASS WEATHERSTRIP

ET–43

REMOVAL

HINT:
The procedure described below is for the LH side. Use the
same procedure for both the RH and LH sides, unless
otherwise specified.

REMOVE ACCESS DOOR GLASS OUTER
WEATHERSTRIP

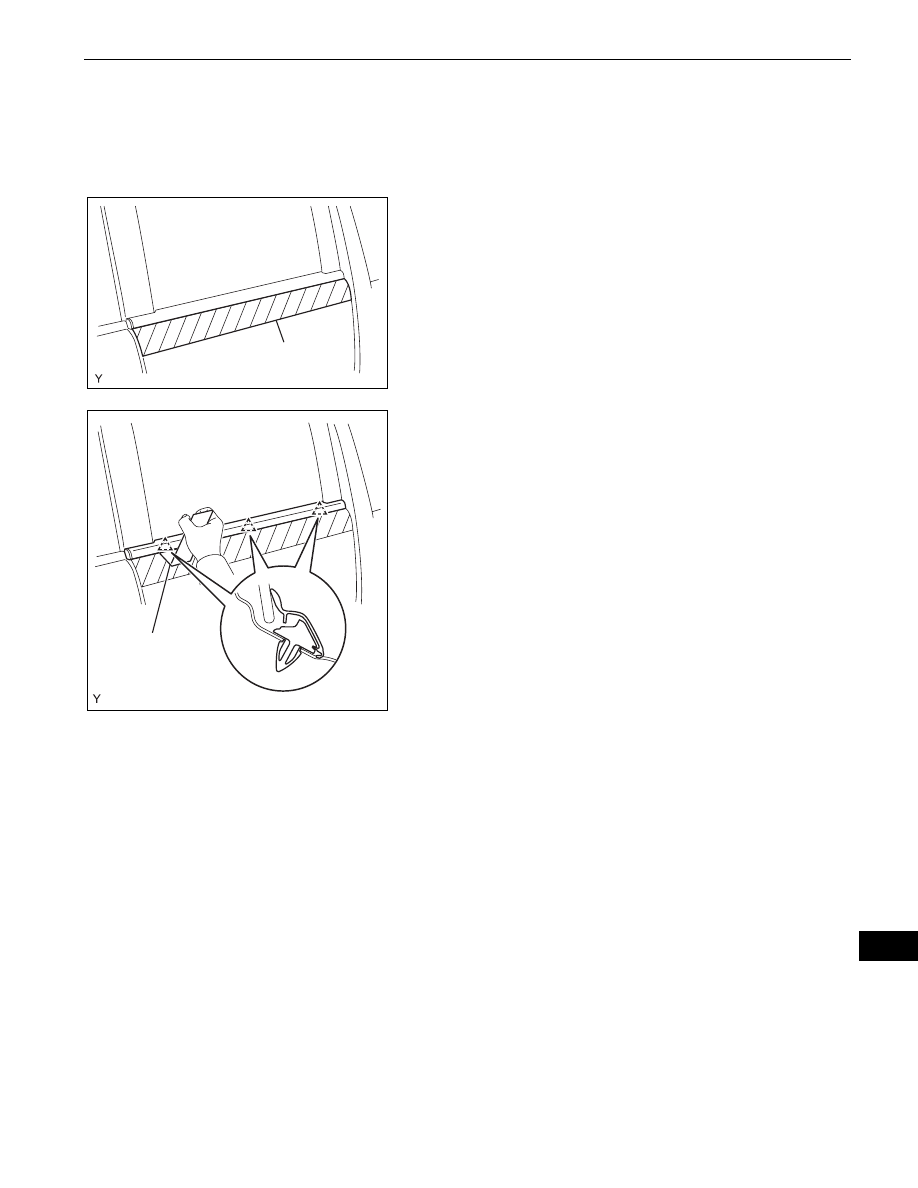

(a) Apply protective tape to the rear door panel in the

area around the access door glass outer
weatherstrip.

(b) Using a moulding remover, disengage the 3 clips

and remove the access door glass outer
weatherstrip.

Protective Tape

B135103E01

Moulding Remover

B135104E01

ET–44

EXTERIOR – ACCESS DOOR GLASS WEATHERSTRIP

INSTALLATION

HINT:
The procedure described below is for the LH side. Use the
same procedure for both the RH and LH sides, unless
otherwise specified.

INSTALL ACCESS DOOR GLASS OUTER
WEATHERSTRIP

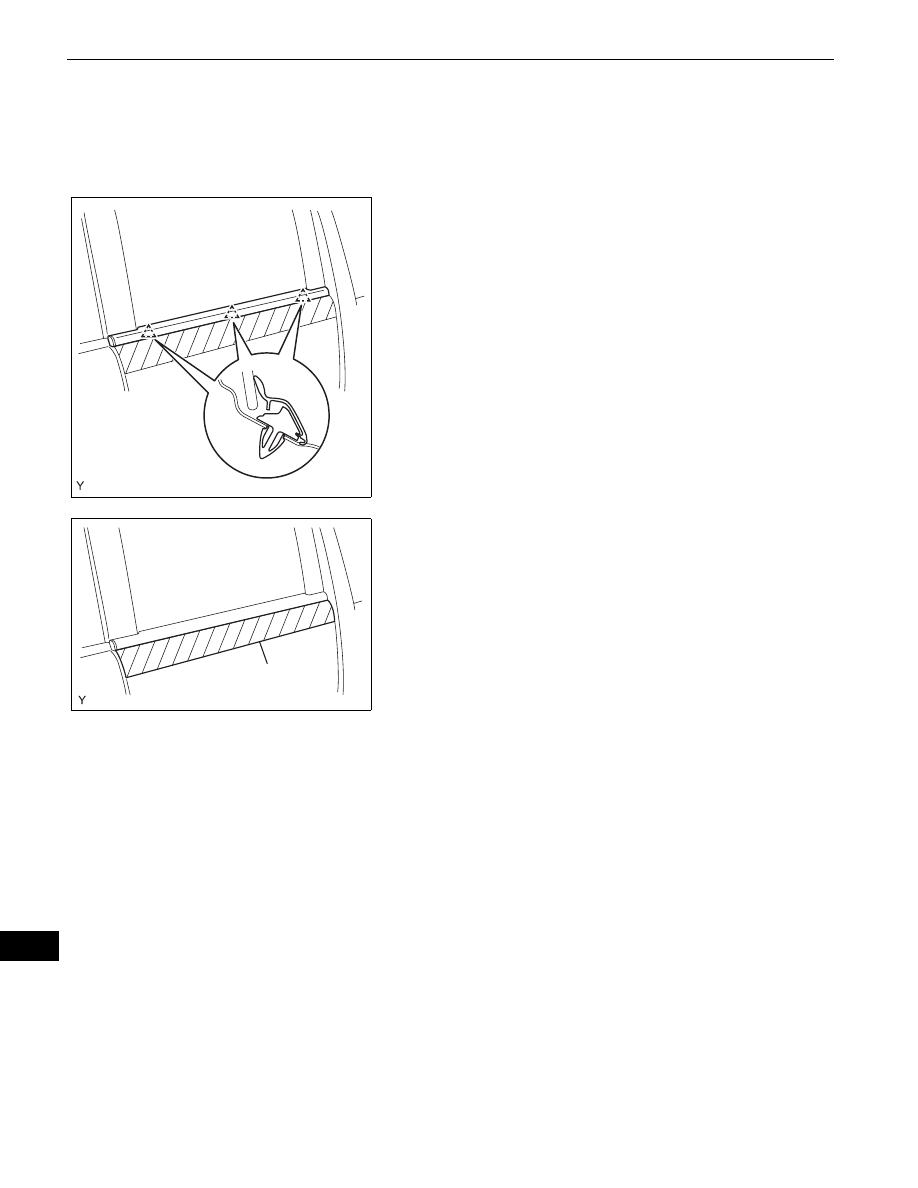

(a) Engage the 3 clips and install a new access door

glass outer weatherstrip.

(b) Remove the protective tape.

B135105

Protective Tape

B135103E01

EXTERIOR – ROOF DRIP SIDE FINISH MOULDING

ET–45

BODY

EXTERIOR

ROOF DRIP SIDE FINISH MOULDING

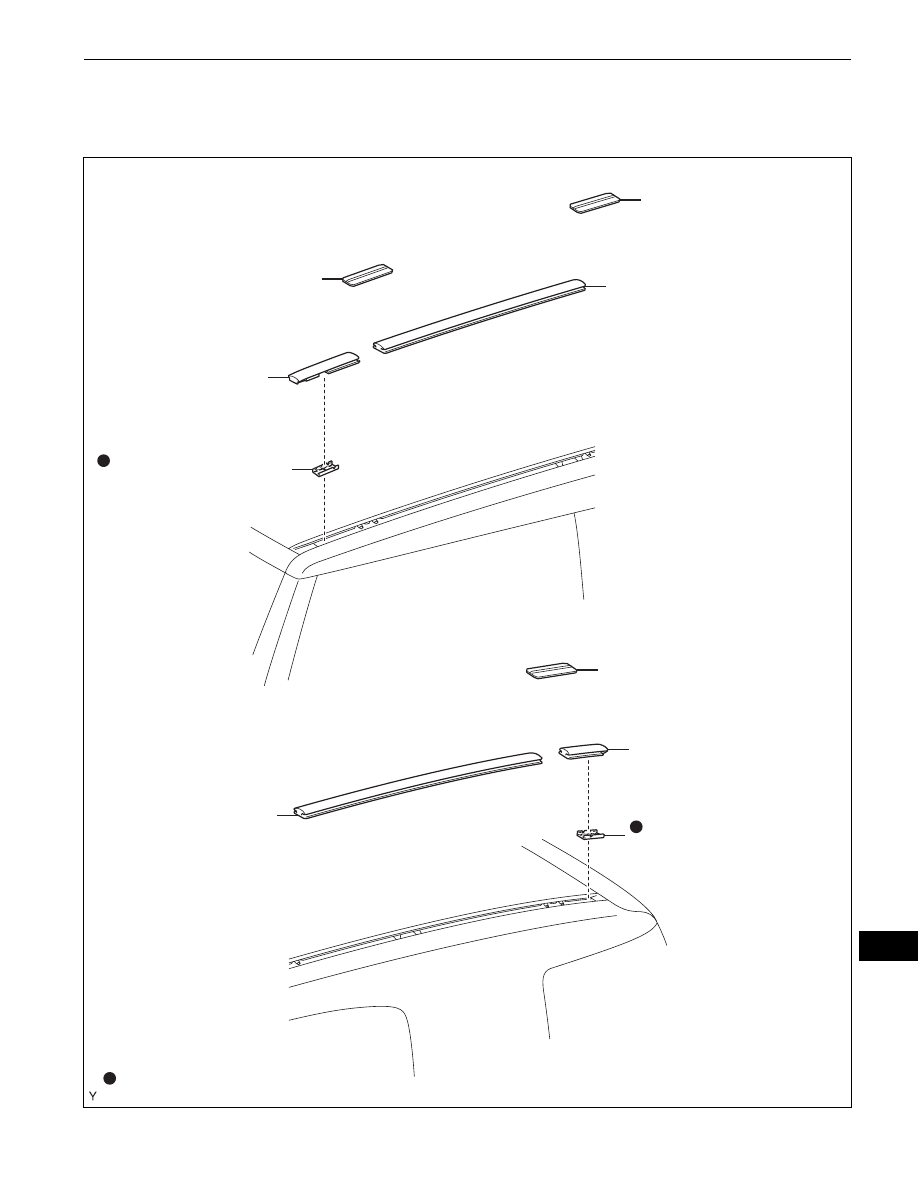

COMPONENTS

NO. 1 ROOF DRIP SIDE
FINISH MOULDING

NO. 2 ROOF DRIP SIDE
FINISH MOULDING

NO. 3 ROOF DRIP SIDE
FINISH MOULDING

NO. 4 ROOF DRIP SIDE
FINISH MOULDING

ROOF DRIP SIDE FINISH
MOULDING JOINT COVER

Non-reusable part

ROOF DRIP SIDE FINISH
MOULDING CLIP

B134999E01
