Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 205





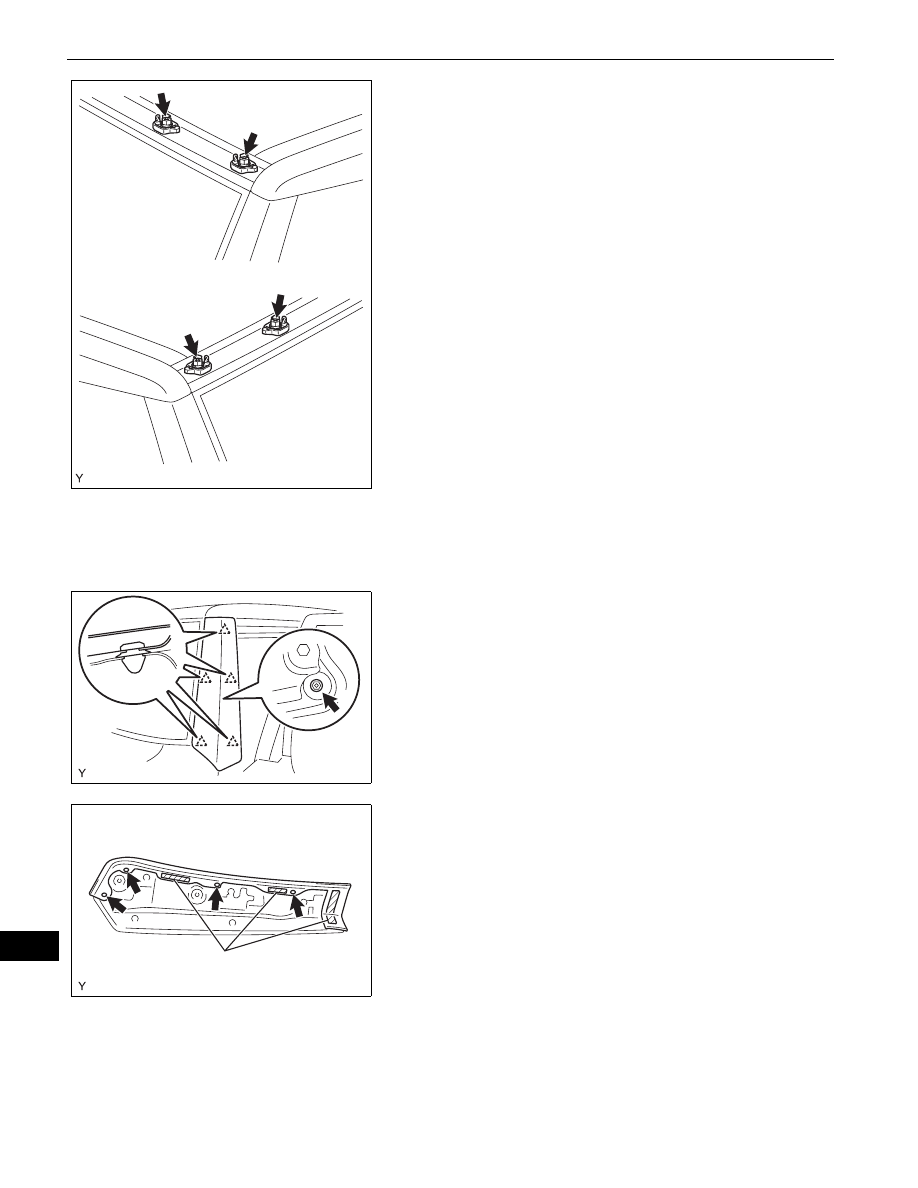

ET–50

EXTERIOR  –  ROOF DRIP SIDE FINISH MOULDING

ET

7.

REMOVE ROOF DRIP SIDE FINISH MOULDING
RETAINER
HINT:
Use the same procedure to remove all the roof drip side
finish moulding retainers.
(a) Remove the screw and the roof drip side finish

moulding retainer.

8.

REMOVE FRONT DOOR OPENING TRIM
WEATHERSTRIP
HINT:
Use the same procedure as for the RH side (See Page

AV-110

).

9.

REMOVE ASSIST GRIP PLUG
HINT:
Use the same procedure as for the RH side (See Page

AV-110

).

10. REMOVE ASSIST GRIP ASSEMBLY

HINT:
Use the same procedure as for the RH side (See Page

AV-110

).

11. REMOVE FRONT PILLAR GARNISH

HINT:
Use the same procedure as for the RH side (See Page

IR-18

).

12. REMOVE FRONT PILLAR OUTER GARNISH

(a) Remove the nut.
(b) Disengage the 5 clips and remove the front pillar

outer garnish.

13. REMOVE ROOF SIDE GARNISH PROTECTOR

(a) Using a clip remover, remove the 4 clips.
(b) Remove the 3 pieces of double-sided adhesive tape

and the roof side garnish protector.

B135040

B135013

Double-sided Adhesive Tape

B135014E01

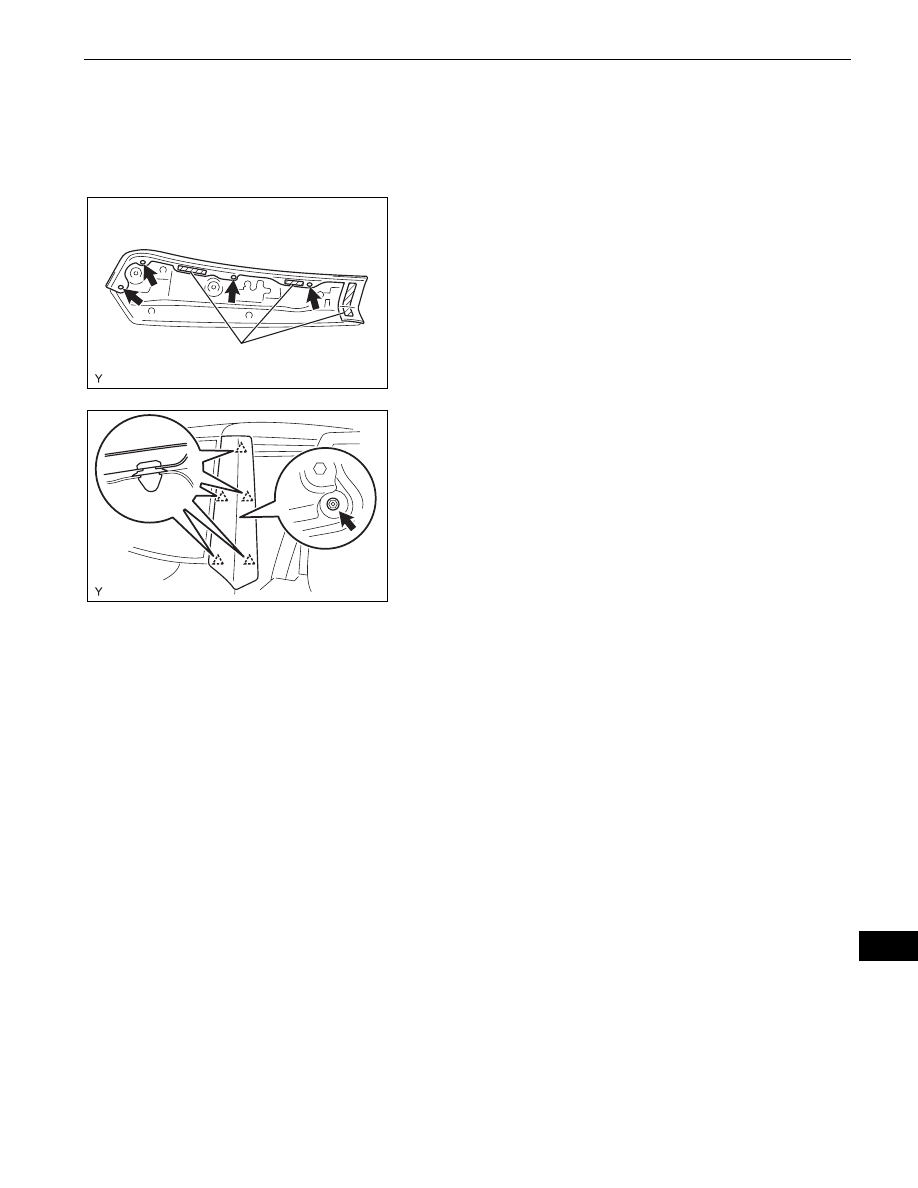

EXTERIOR  –  ROOF DRIP SIDE FINISH MOULDING

ET–51

ET

INSTALLATION

HINT:
The procedure described below is for the LH side. Use the
same procedure for both the RH and LH sides, unless
otherwise specified.

1.

INSTALL ROOF SIDE GARNISH PROTECTOR
(a) Install a new roof side garnish protector with the 4

clips.

2.

INSTALL FRONT PILLAR OUTER GARNISH
(a) Engage the 5 clips and install the front pillar outer

garnish.

(b) Tighten the nut.

Torque: 5.0 N*m (50 kgf*cm, 44 in.*lbf)

3.

INSTALL FRONT PILLAR GARNISH
HINT:
Use the same procedure as for the RH side (See Page

IR-43

).

4.

INSTALL ASSIST GRIP ASSEMBLY
HINT:
Use the same procedure as for the RH side (See Page

AV-113

).

5.

INSTALL ASSIST GRIP PLUG
HINT:
Use the same procedure as for the RH side (See Page

AV-114

).

6.

INSTALL FRONT DOOR OPENING TRIM
WEATHERSTRIP
HINT:
Use the same procedure as for the RH side (See Page

AV-114

).

Double-sided Adhesive Tape

B135014E01

B135013

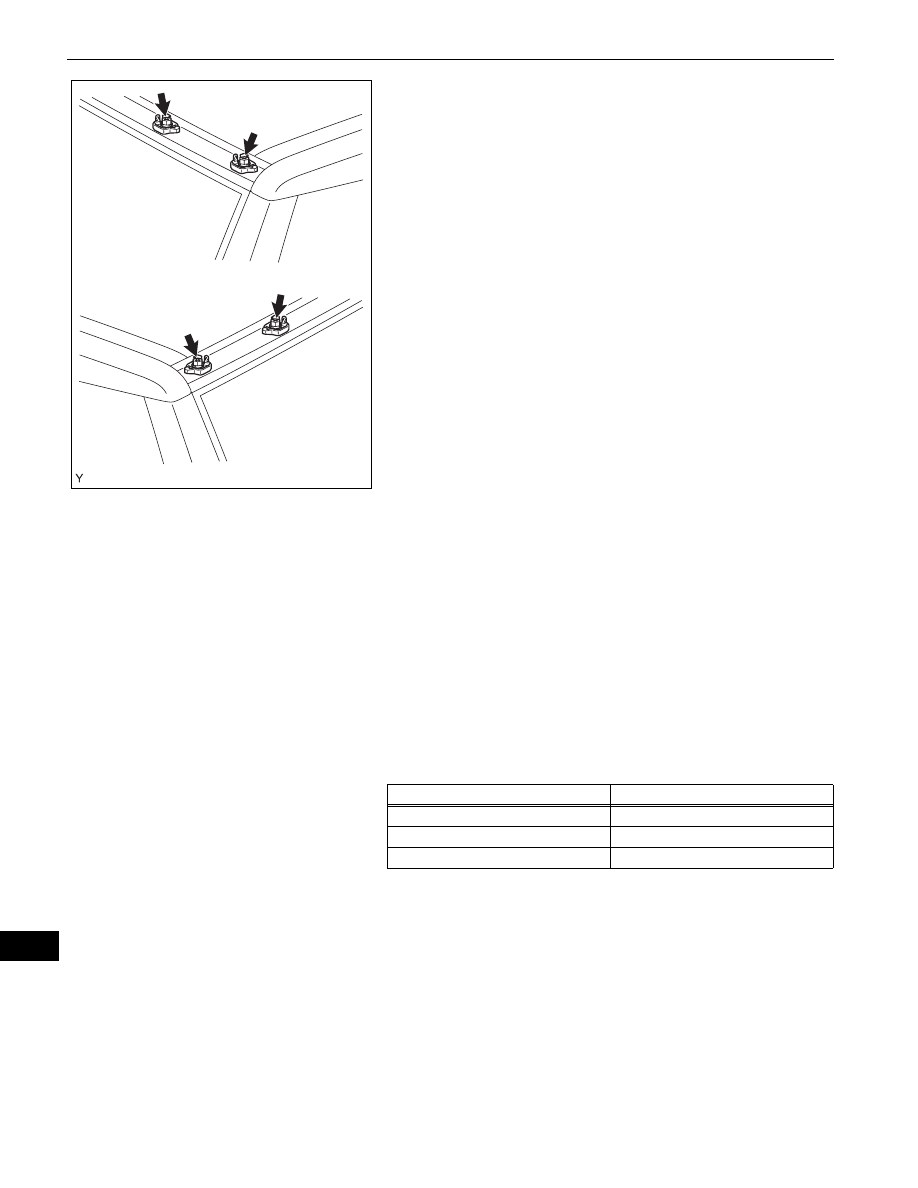

ET–52

EXTERIOR  –  ROOF DRIP SIDE FINISH MOULDING

ET

7.

INSTALL ROOF DRIP SIDE FINISH MOULDING
RETAINER
HINT:
Use the same procedure to install all the roof drip side
finish moulding retainers.
(a) Install the roof drip side finish moulding retainer.

Torque: 5.0 N*m (50 kgf*cm, 44 in.*lbf)

8.

INSTALL WINDSHIELD OUTSIDE UPPER MOULDING
SUB-ASSEMBLY
(a) Clean the windshield glass.

(1) Using a scraper, remove the adhesive from the

windshield glass.

(2) Clean the outer circumference of the

windshield glass with a non-residue solvent.
NOTICE:
Do not touch the windshield glass surface
after cleaning it.

(b) Using a brush or sponge, apply Primer G to the

contact surface.
NOTICE:

Allow the primer to dry for 3 minutes or more.

Throw away any leftover Primer G.

Do not apply too much Primer G.

HINT:
If Primer G is applied to any areas other than those
specified, wipe off the primer with a clean shop rag
or piece of cloth before it dries.

(c) Apply adhesive.

Adhesive:

Toyota Genuine Windshield Glass Adhesive or
the equivalent

(1) Cut the tip off the cartridge nozzle.

HINT:
After cutting off the tip, use all adhesive within
the times indicated in the table below.
Usage time frame:

(2) Load the sealer gun with the cartridge.

B135040

Temperature

Usage Time Frame

35

°C (95°F)

15 minutes

20

°C (68°F)

1 hour 40 minutes

5

°C (41°F)

8 hours

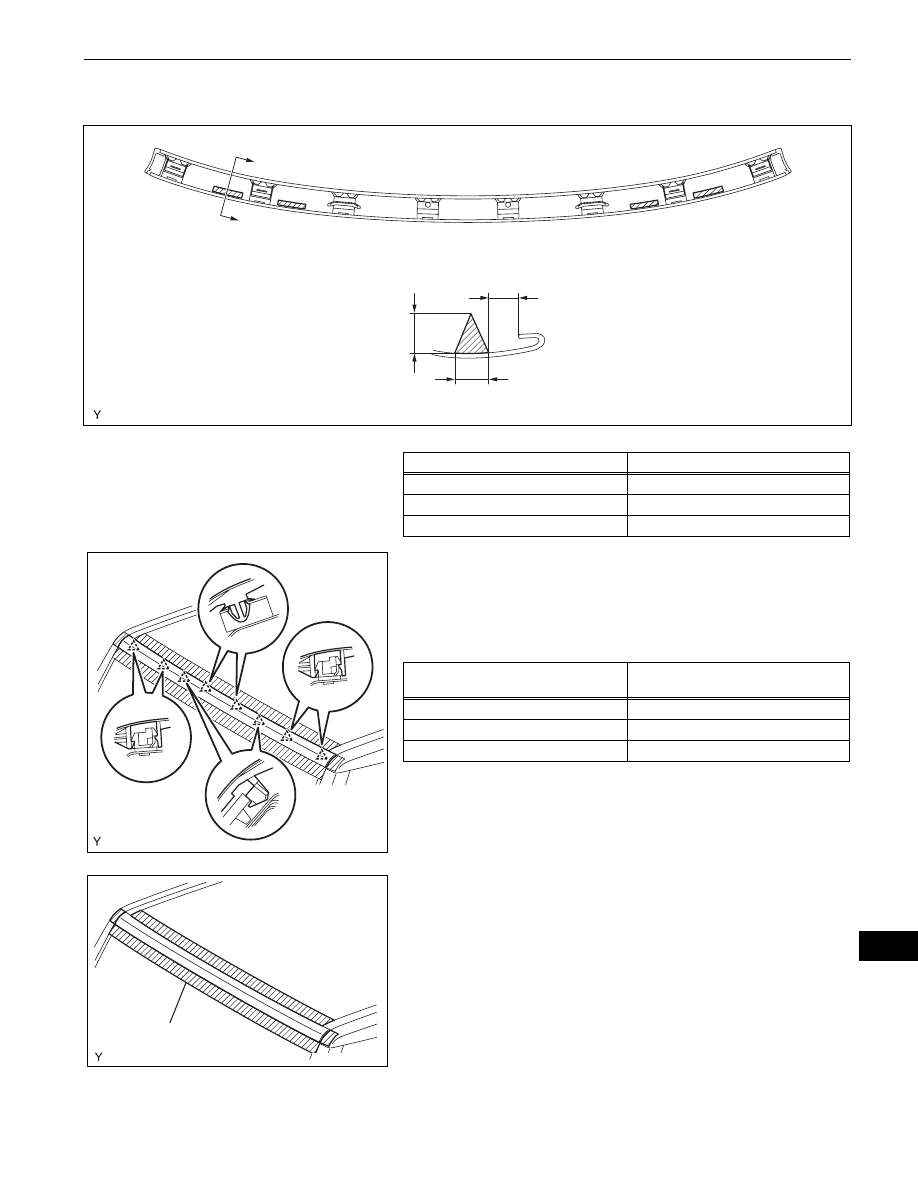

EXTERIOR  –  ROOF DRIP SIDE FINISH MOULDING

ET–53

ET

(3) Apply adhesive to a new windshield outside

upper moulding, as shown in the illustration.

Specification:

(d) Engage the 6 claws and the 2 clips and install a new

windshield outside upper moulding.
NOTICE:
Do not drive the vehicle within the time
indicated in the table below.
Minimum time:

(e) Remove the protective tape.

A

A

A-A

a

b

c

B138634E01

Area

Measurement

a

7 mm (0.276 in.)

b

8 mm (0.315 in.)

c

10 mm (0.394 in.)

B135039

Temperature

Minimum time prior to driving

vehicle

35

°C (95°F)

1 hour 30 minutes

20

°C (68°F)

5 hour

5

°C (41°F)

24 hours

Protective Tape

B135038E01
