Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 214

EXTERIOR  –  SIDE STEP

ET–85

ET

BODY

EXTERIOR

SIDE STEP

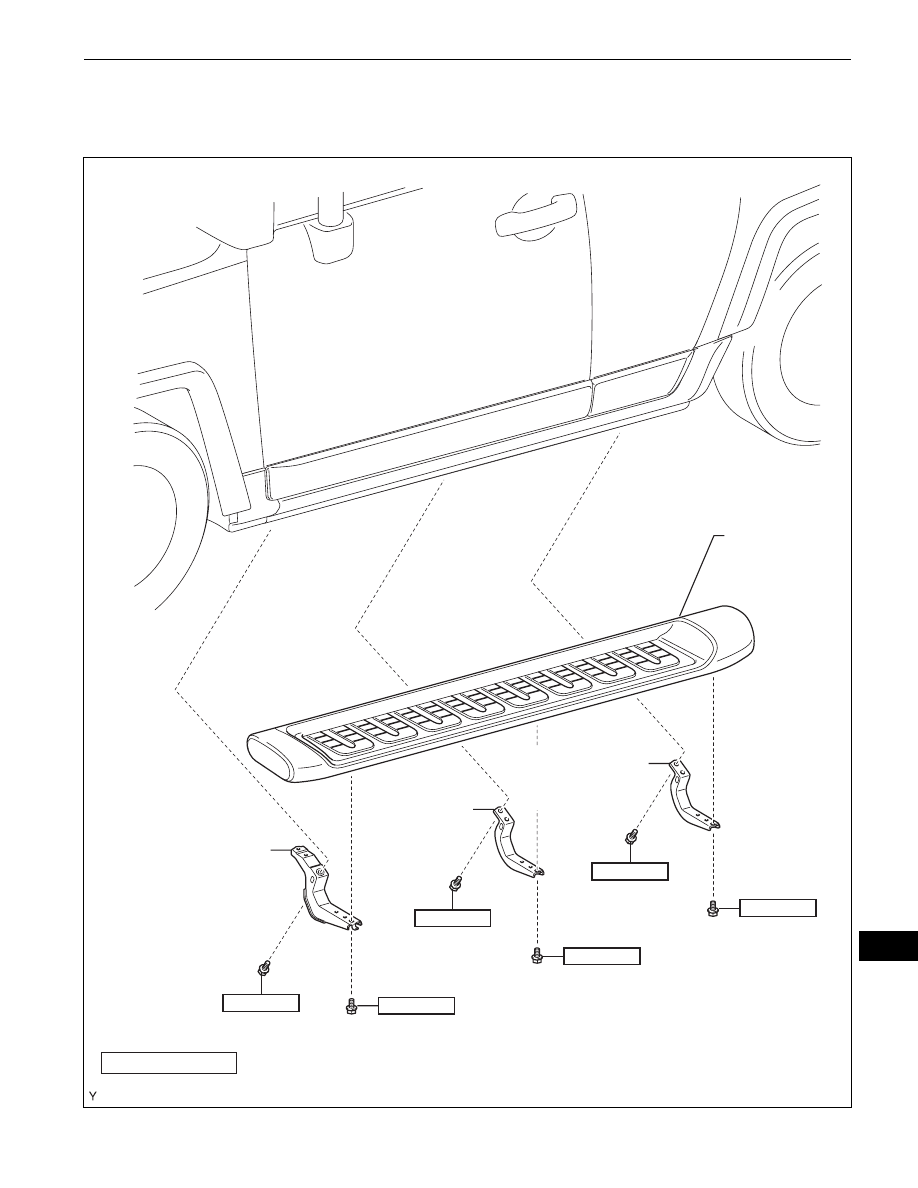

COMPONENTS

N*m (kgf*cm, ft*lbf)  : Specified torque

12.5 (125, 9)

NO. 1 SIDE STEP
BRACKET

NO. 2 SIDE STEP
BRACKET

NO. 3 SIDE STEP
BRACKET

SIDE STEP
SUB-ASSEMBLY

x2

x2

x2

x2

x2

x2

20 (200, 14)

20 (200, 14)

12.5 (125, 9)

20 (200, 14)

12.5 (125, 9)

B135175E01

ET–86

EXTERIOR  –  SIDE STEP

ET

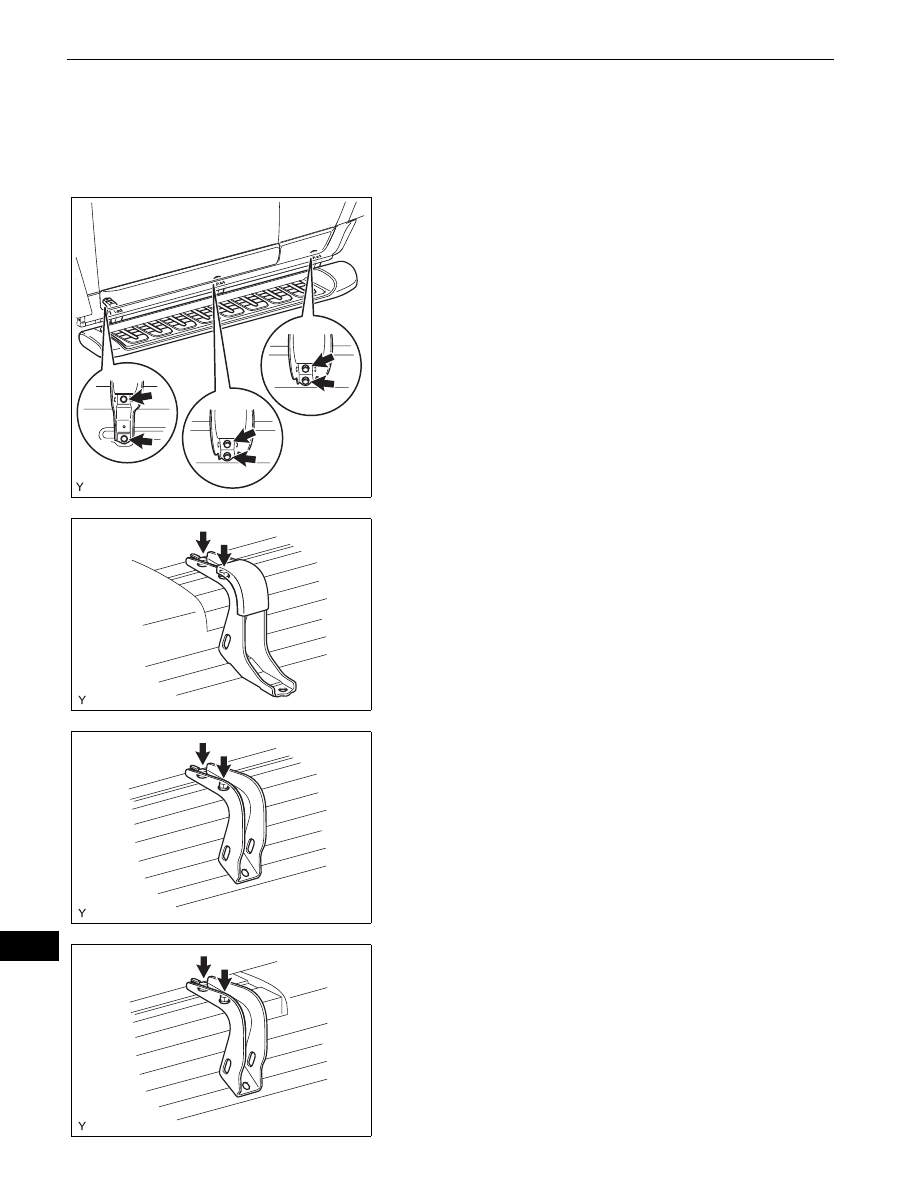

REMOVAL

HINT:
The procedure described below is for the LH side. Use the
same procedure for both the RH and LH sides, unless
otherwise specified.

1.

REMOVE SIDE STEP SUB-ASSEMBLY
(a) Remove the 6 bolts and the side step.

2.

REMOVE NO. 1 SIDE STEP BRACKET
(a) Remove the 2 bolts and the No. 1 side step bracket.

3.

REMOVE NO. 2 SIDE STEP BRACKET
(a) Remove the 2 bolts and the No. 2 side step bracket.

4.

REMOVE NO. 3 SIDE STEP BRACKET
(a) Remove the 2 bolts and the No. 3 side step bracket.

B135176

B135177

B135178

B135179

EXTERIOR  –  SIDE STEP

ET–87

ET

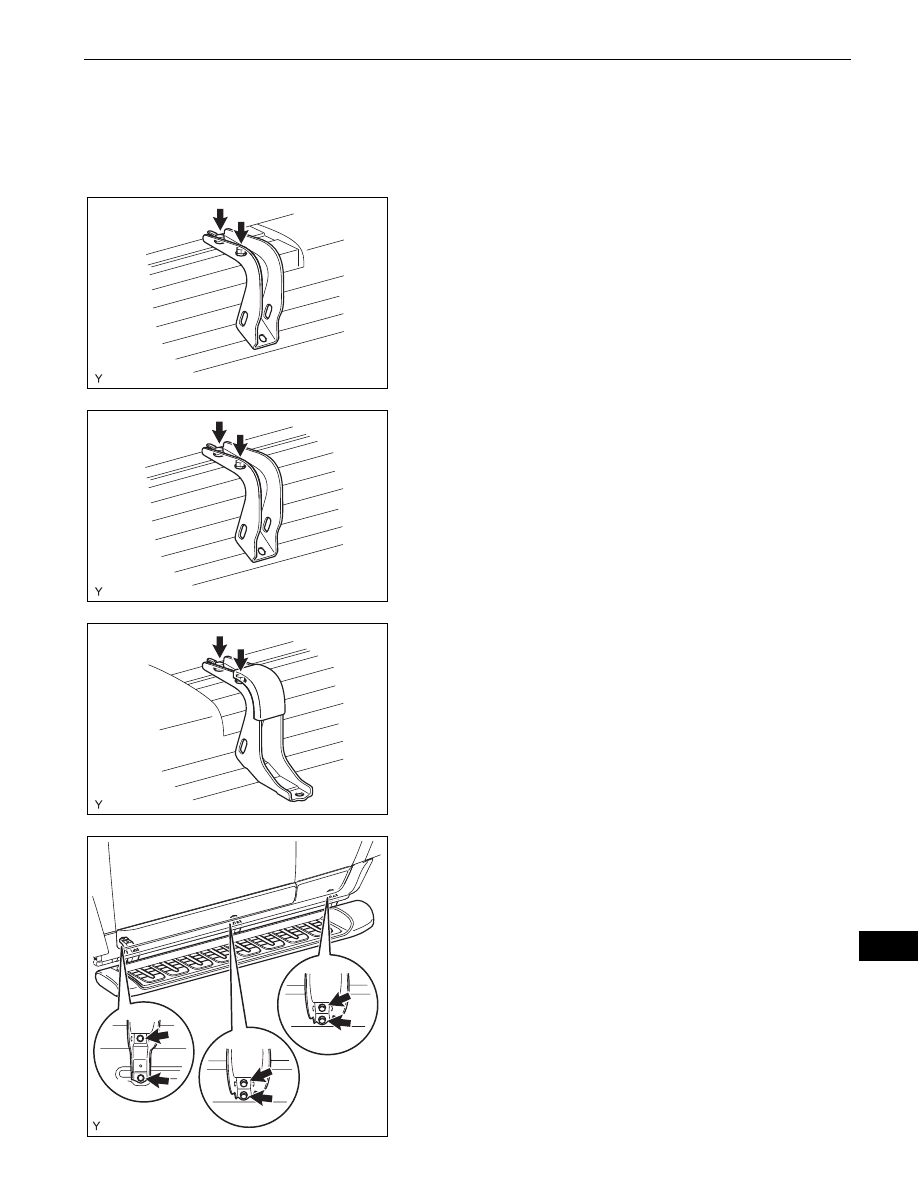

INSTALLATION

HINT:
The procedure described below is for the LH side. Use the
same procedure for both the RH and LH sides, unless
otherwise specified.

1.

INSTALL NO. 3 SIDE STEP BRACKET
(a) Install the No. 3 side step bracket with the 2 bolts.

Torque: 12.5 N*m (125 kgf*cm, 9 ft.*lbf)

2.

INSTALL NO. 2 SIDE STEP BRACKET
(a) Install the No. 2 side step bracket with the 2 bolts.

Torque: 12.5 N*m (125 kgf*cm, 9 ft.*lbf)

3.

INSTALL NO. 1 SIDE STEP BRACKET
(a) Install the No. 1 side step bracket with the 2 bolts.

Torque: 12.5 N*m (125 kgf*cm, 9 ft.*lbf)

4.

INSTALL SIDE STEP SUB-ASSEMBLY
(a) Install the step with 6 bolts.

Torque: 20 N*m (200 kgf*cm, 14 ft.*lbf)

B135179

B135178

B135177

B135176

ET–88

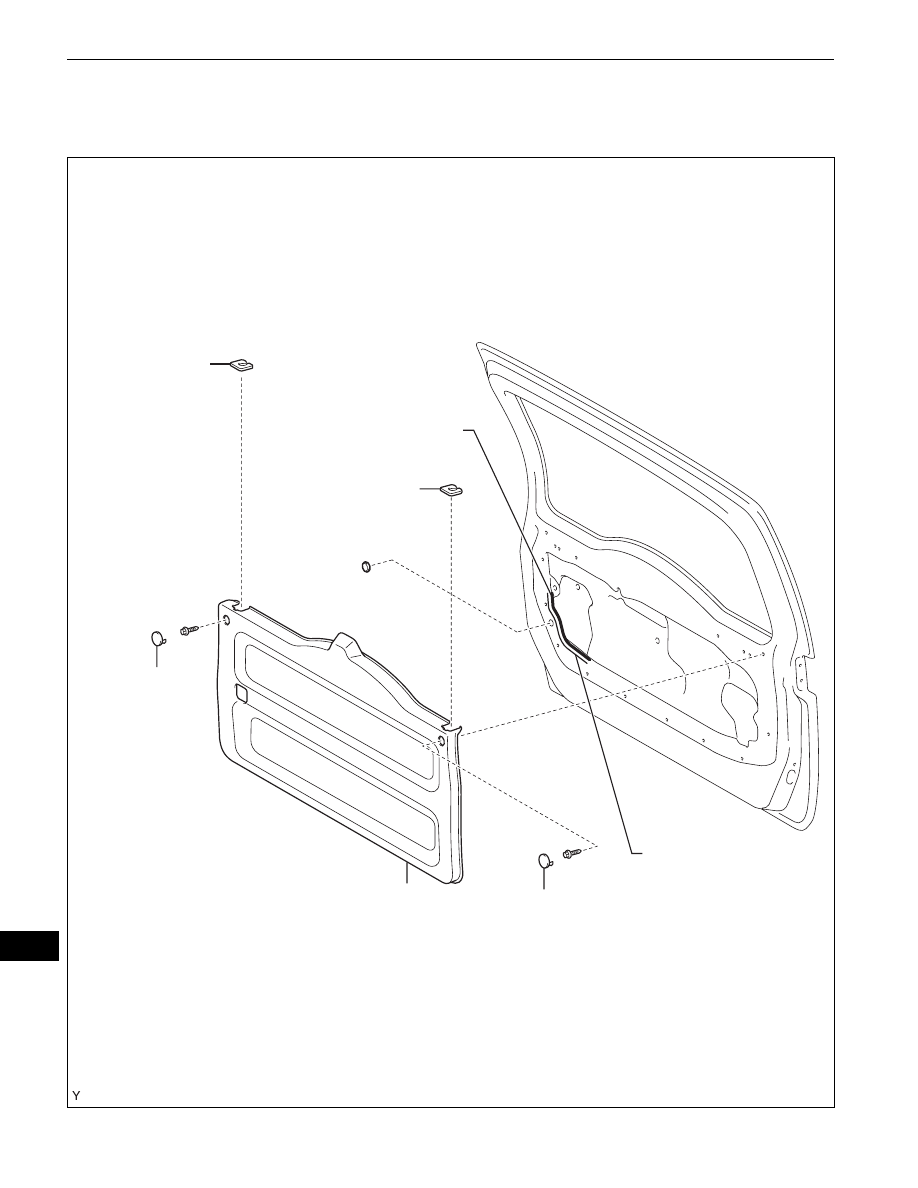

EXTERIOR  –  BACK DOOR OUTSIDE GARNISH

ET

BODY

EXTERIOR

BACK DOOR OUTSIDE GARNISH

COMPONENTS

BACK DOOR SERVICE
HOLE COVER

BACK DOOR
TRIM BOARD

BACK DOOR TRIM
COVER LH

BACK DOOR TRIM
COVER RH

BUTYL TAPE

DOOR TRIM
RETAINER CAP

DOOR TRIM
RETAINER CAP

B135106E01
