EXTERIOR  –  BACK DOOR OUTSIDE GARNISH

ET–93

ET

6.

INSTALL BACK DOOR OUTSIDE MOULDING (See
page

ET-72

)

7.

INSTALL SPARE TIRE
Torque: 88 N*m (897 kgf*cm, 65 ft.*lbf)

8.

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

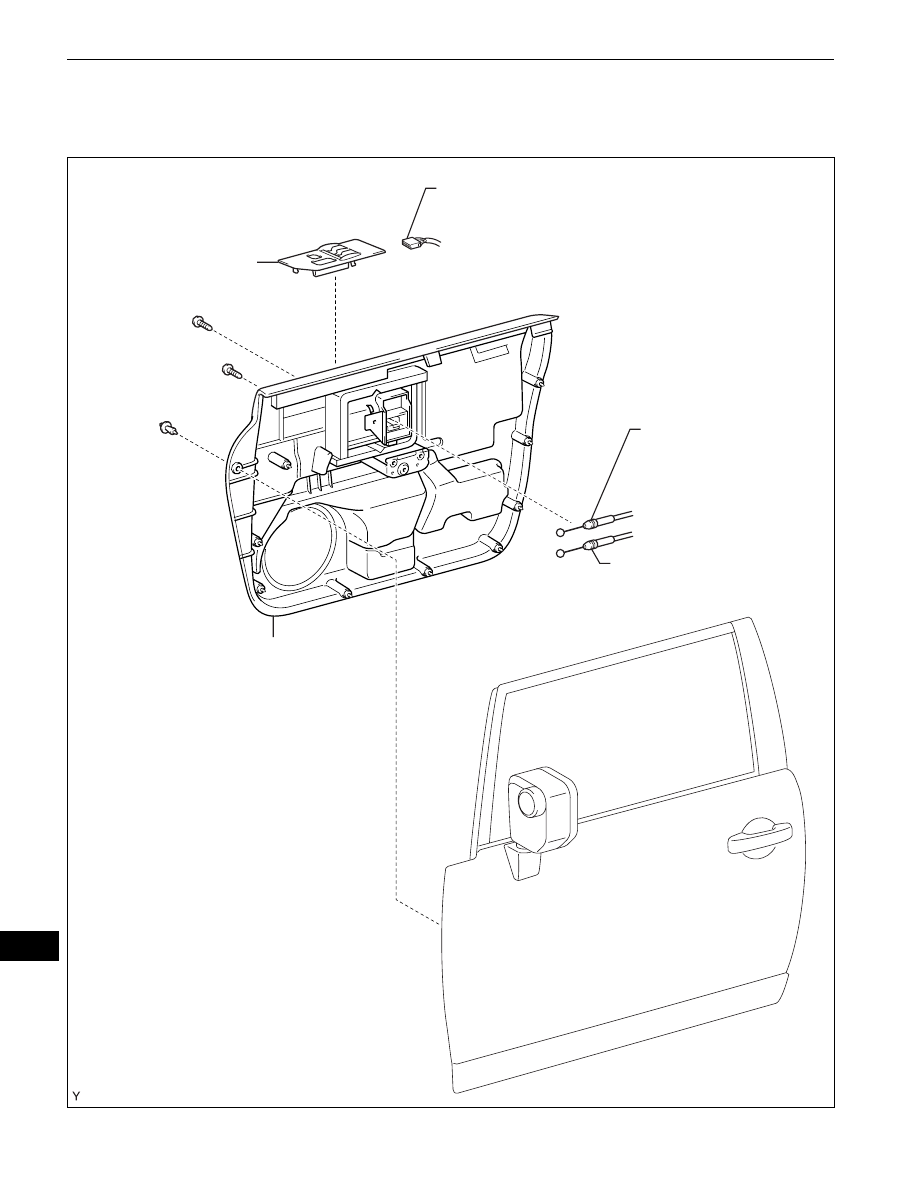

ET–94

EXTERIOR  –  FRONT DOOR BLACK OUT TAPE

ET

BODY

EXTERIOR

FRONT DOOR BLACK OUT TAPE

COMPONENTS

POWER WINDOW SWITCH
CONNECTOR

FRONT DOOR LOCK
REMOTE CONTROL
CABLE ASSEMBLY

FRONT DOOR INSIDE
LOCKING CABLE ASSEMBLY

FRONT DOOR ARMREST
BASE UPPER PANEL

FRONT DOOR TRIM BOARD
SUB-ASSEMBLY

B135097E01

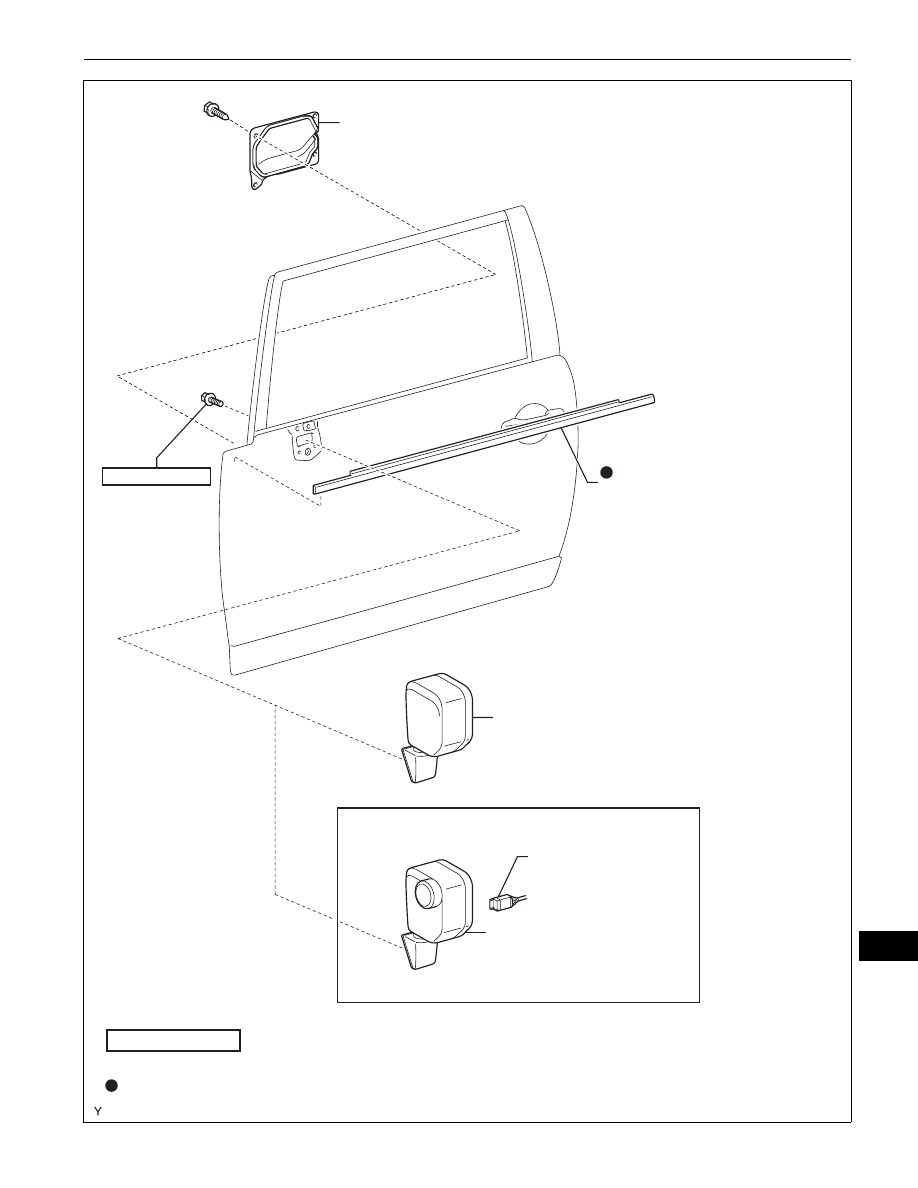

EXTERIOR  –  FRONT DOOR BLACK OUT TAPE

ET–95

ET

MIRROR CONNECTOR

x3

x4

w/ Power and Light:

FRONT DOOR GLASS OUTER
WEATHERSTRIP ASSEMBLY

FRONT DOOR NO. 2
SERVICE HOLE COVER

OUTER REAR VIEW
MIRROR ASSEMBLY

OUTER REAR VIEW
MIRROR ASSEMBLY

N*m (kgf*cm, ft*lbf)  : Specified torque

Non-reusable part

8.0 (82, 71 in.*lbf)

B135098E01

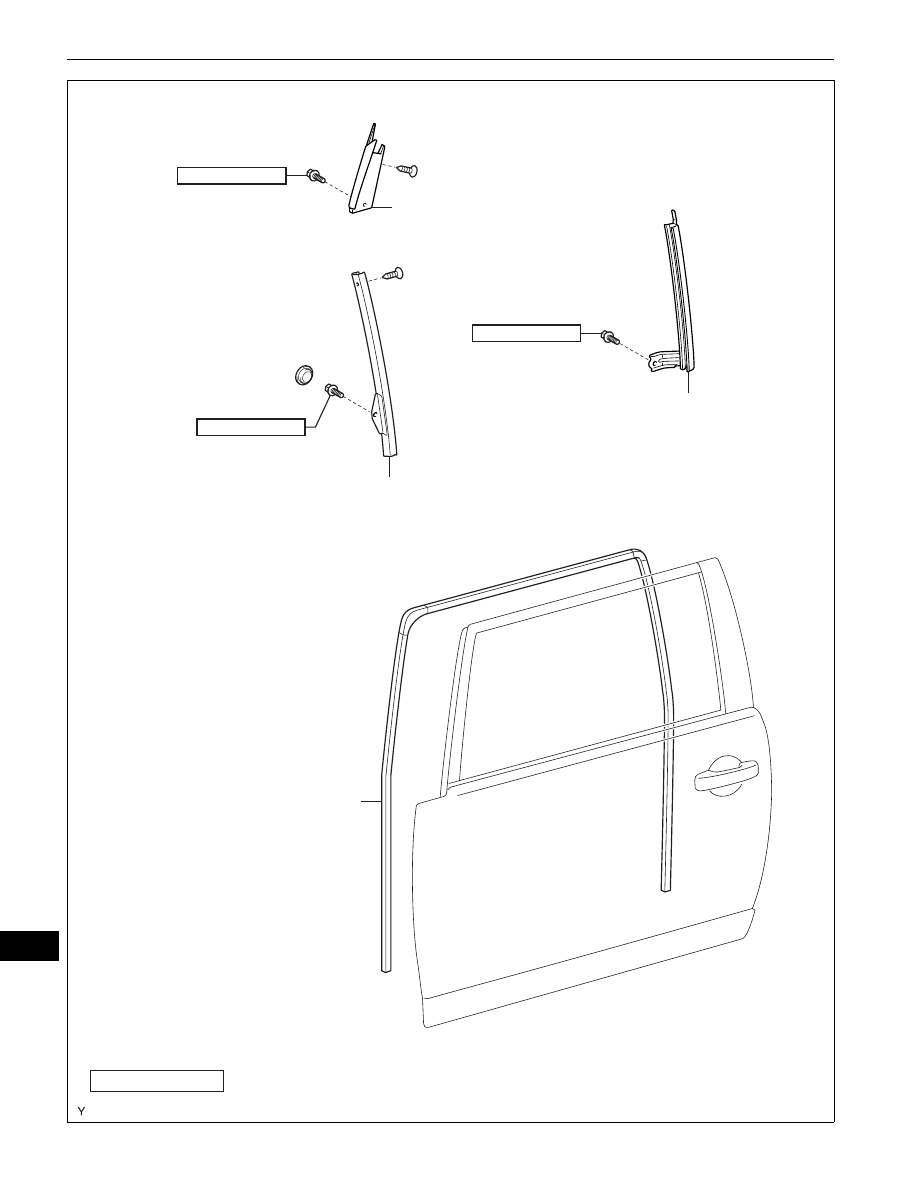

ET–96

EXTERIOR  –  FRONT DOOR BLACK OUT TAPE

ET

FRONT DOOR
GLASS RUN

FRONT DOOR LOWER FRAME
BRACKET GARNISH

FRONT DOOR LOWER
FRAME SUB-ASSEMBLY

FRONT DOOR WINDOW
LOWER FRAME

x2

N*m (kgf*cm, ft*lbf)  : Specified torque

5.5 (56, 49 in.*lbf)

5.5 (56, 49 in.*lbf)

5.5 (56, 49 in.*lbf)

B135200E01
