1GR-FE ENGINE CONTROL SYSTEM  –  ENGINE COOLANT TEMPERATURE SENSOR

ES–425

ES

REMOVAL

1.

DISCHARGE FUEL SYSTEM PRESSURE
(See page

FU-1

)

2.

DRAIN ENGINE COOLANT (See page

CO-3

)

3.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

4.

REMOVE V-BANK COVER (See page

ES-428

)

5.

REMOVE AIR CLEANER ASSEMBLY (See page

ES-

429

)

6.

REMOVE THROTTLE BODY BRACKET (See page

FU-11

)

7.

REMOVE OIL BAFFLE PLATE (See page

FU-11

)

8.

REMOVE NO. 1 SURGE TANK STAY (See page

FU-11

)

9.

REMOVE NO. 2 SURGE TANK STAY (See page

FU-12

)

10. REMOVE INTAKE AIR SURGE TANK (See page

FU-

12

)

11. DISCONNECT NO. 2 FUEL PIPE SUB-ASSEMBLY

(See page

FU-14

)

12. REMOVE ENGINE COOLANT TEMPERATURE

SENSOR

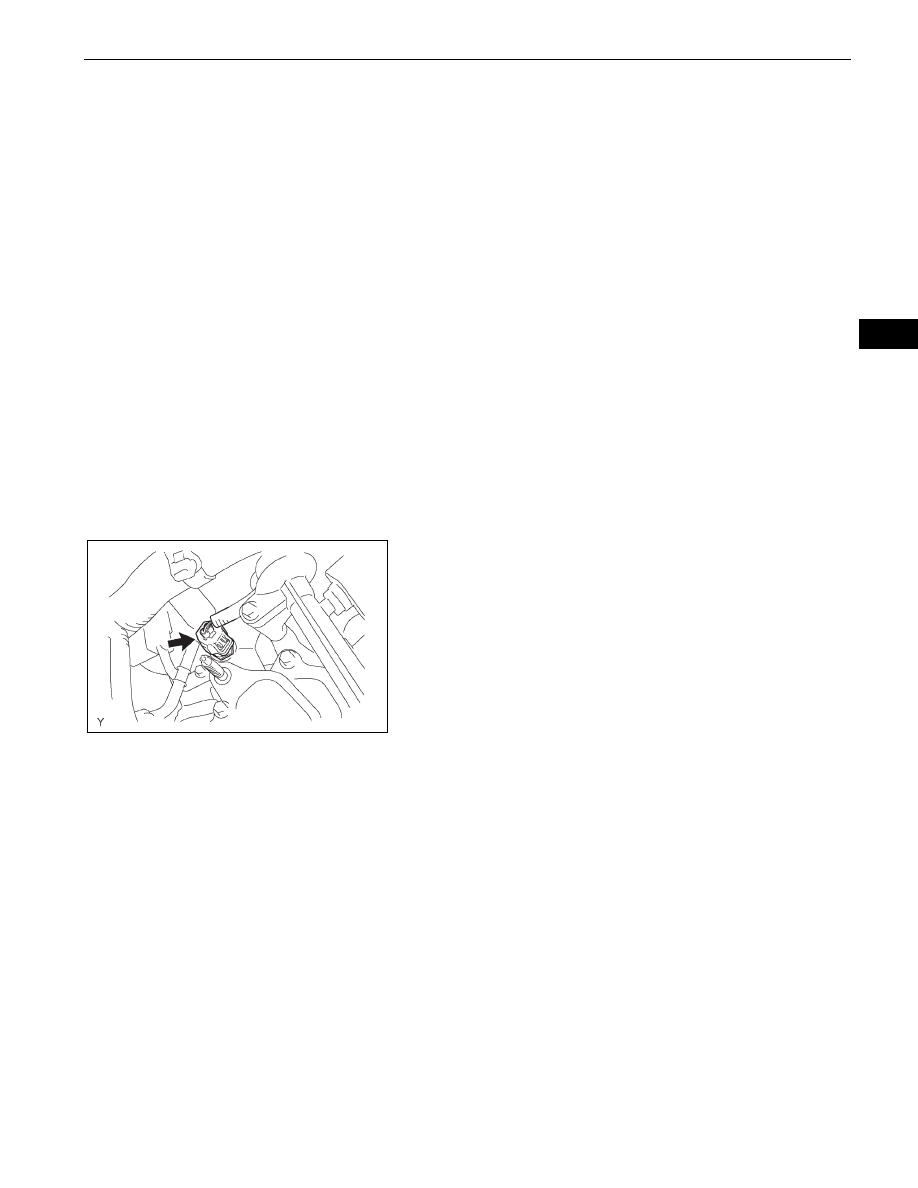

(a) Disconnect the connector.
(b) Using a 19 mm deep socket wrench, remove the

water temperature sensor and gasket.

G036120E01

ES–426

1GR-FE ENGINE CONTROL SYSTEM  –  ENGINE COOLANT TEMPERATURE SENSOR

ES

INSPECTION

1.

INSPECT ENGINE COOLANT TEMPERATURE
SENSOR
(a) Check the resistance.

(1) Using an ohmmeter, measure the resistance

between the terminals.
Standard resistance

NOTICE:
If checking the engine coolant temperature
sensor in water, be careful not to allow
water to enter the terminals. After checking,
wipe the water off the engine coolant
temperature sensor.
If the result is not as specified, replace the
engine coolant temperature sensor.

INSTALLATION

1.

INSTALL ENGINE COOLANT TEMPERATURE
SENSOR
(a) Using a 19 mm deep socket wrench, install the

water temperature sensor with a new gasket.
Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

(b) Connect the connector.

2.

CONNECT NO. 2 FUEL PIPE SUB-ASSEMBLY (See
page

FU-17

)

3.

INSTALL INTAKE AIR SURGE TANK (See page

FU-

17

)

4.

INSTALL NO. 2 SURGE TANK STAY (See page

FU-19

)

5.

INSTALL NO. 1 SURGE TANK STAY (See page

FU-19

)

6.

INSTALL OIL BAFFLE PLATE (See page

FU-19

)

7.

INSTALL THROTTLE BODY BRACKET (See page

FU-

19

)

8.

INSTALL AIR CLEANER ASSEMBLY (See page

ES-

431

)

9.

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

10. ADD ENGINE COOLANT (See page

CO-3

)

11. CHECK FOR ENGINE COOLANT LEAKAGE (See

page

CO-4

)

12. CHECK FOR FUEL LEAKAGE

13. INSTALL V-BANK COVER (See page

ES-431

)

Acceptable

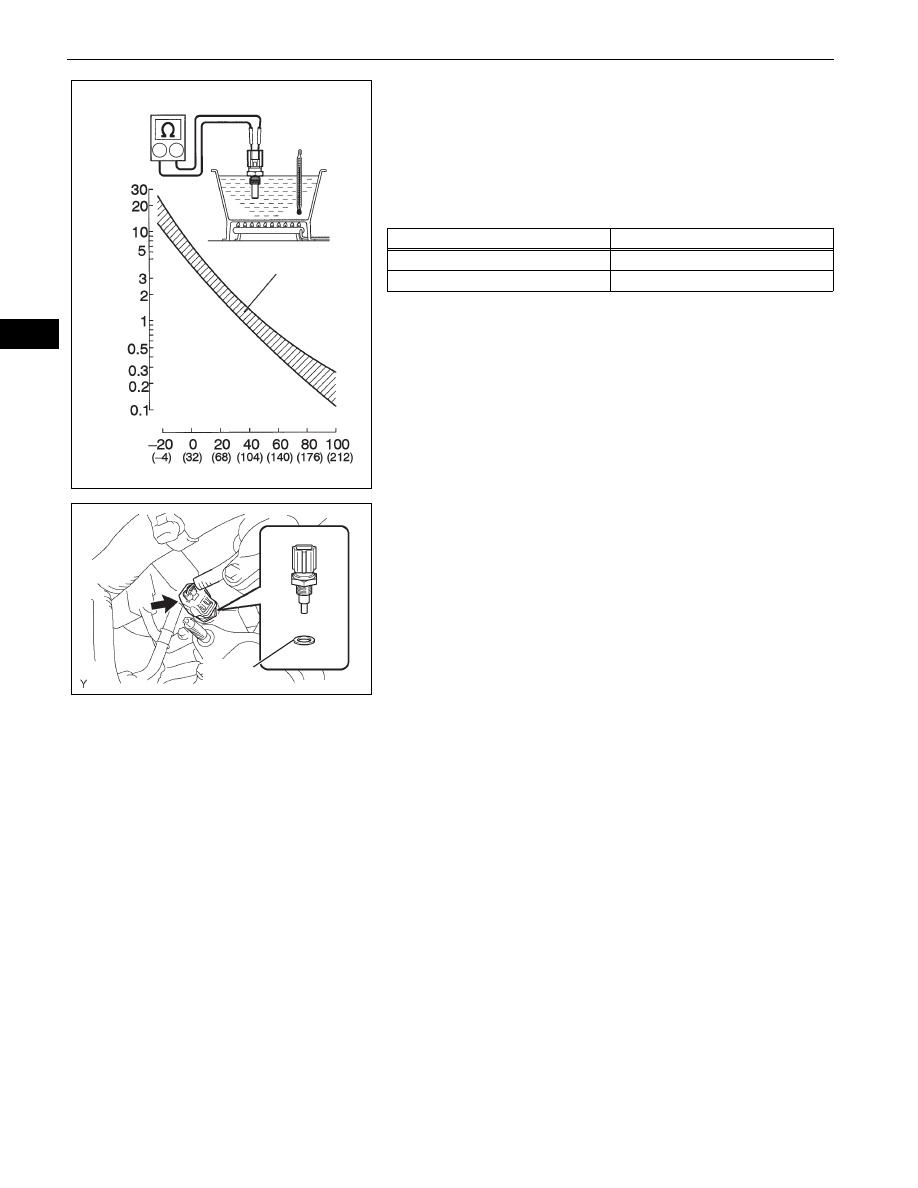

Ohmmeter

q% q(

Z017274E07

Tester Connection

Specified Condition

1 (E2) - 2 (THW)

2.32 to 2.59 k

 at 20°C (68°F)

1 (E2) - 2 (THW)

0.310 to 0.326 k

 at 80°C (176°F)

Gasket

G036121E01

1GR-FE ENGINE CONTROL SYSTEM  –  THROTTLE BODY

ES–427

ES

ENGINE

1GR-FE ENGINE CONTROL SYSTEM

THROTTLE BODY

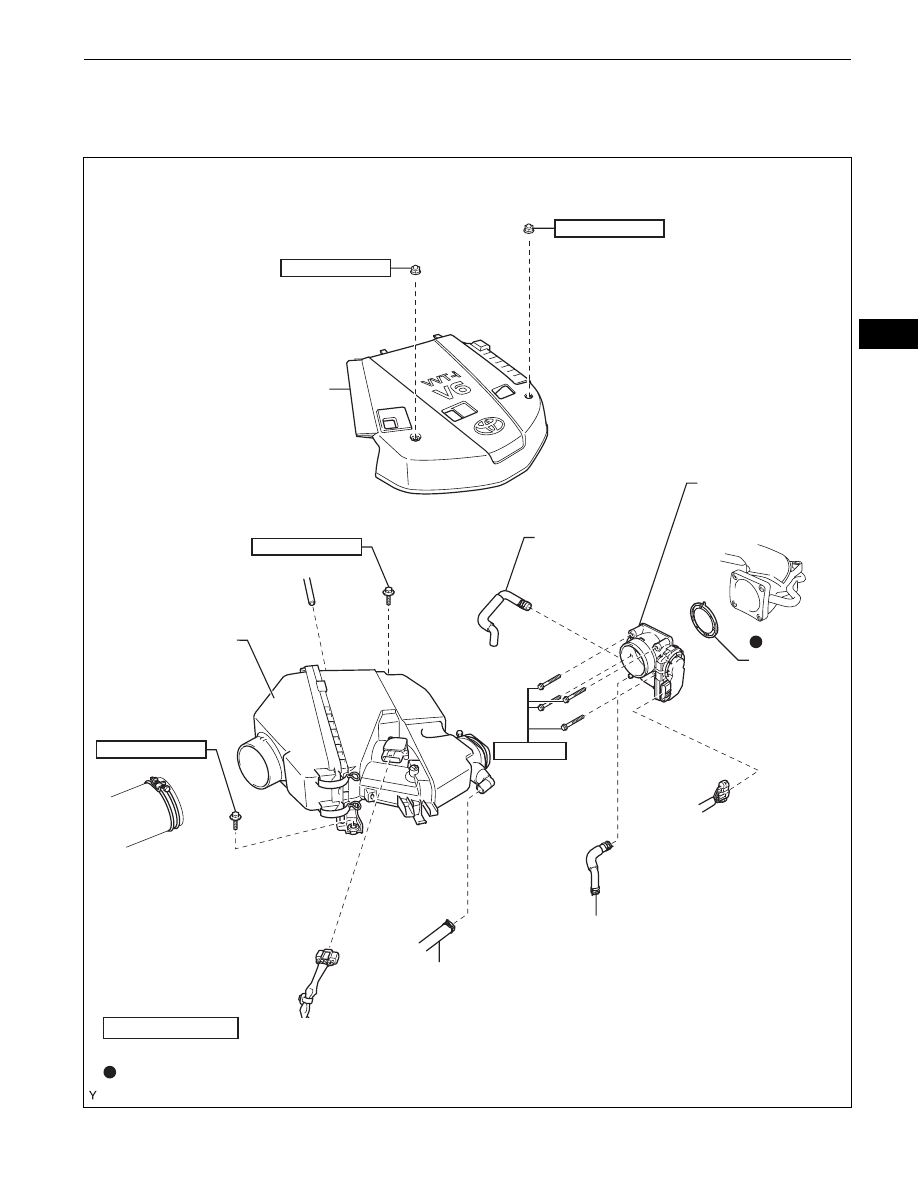

COMPONENTS

AIR CLEANER
ASSEMBLY

THROTTLE BODY
ASSEMBLY

V-BANK COVER

N*m (kgf*cm, ft*lbf)  : Specified torque

Non-reusable part

11 (112, 9)

THROTTLE
BODY
GASKET

7.5 (76, 66 in.*lbf)

NO. 2 VENTILATION HOSE

NO. 5 WATER BY-PASS HOSE

NO. 4 WATER
BY-PASS HOSE

8.0 (82, 71 in.*lbf)

7.5 (76, 66 in.*lbf)

8.0 (82, 71 in.*lbf)

A126404E01

ES–428

1GR-FE ENGINE CONTROL SYSTEM  –  THROTTLE BODY

ES

ON-VEHICLE INSPECTION

1.

INSPECT THROTTLE BODY ASSEMBLY
(a) Listen to the throttle control motor operating sounds.

(1) Turn the ignition switch to ON.
(2) When pressing the accelerator pedal, listen to

the running sound of the motor. Make sure no
friction noises come from the motor.
If friction noises occur, check the throttle body,
wire harness and ECM.

(b) Check the throttle position sensor.

(1) Turn the ignition switch to ON.
(2) Turn the intelligent tester ON.
(3) Start the engine and warm it up.
(4) Select the following menu items: DIAGNOSIS /

ENHANCED OBD II / DATA LIST / PRIMARY /
THROTTLE POS .

(5) Depress the accelerator pedal. When the

throttle valve is fully open, check that the
THROTTLE POS value is within the
specification.
Standard:

60% or more

NOTICE:
When checking the standard throttle valve
opening percentage, the transmission
should be in the neutral position.
If the result is not as specified, check the
throttle body, wire harness and ECM.

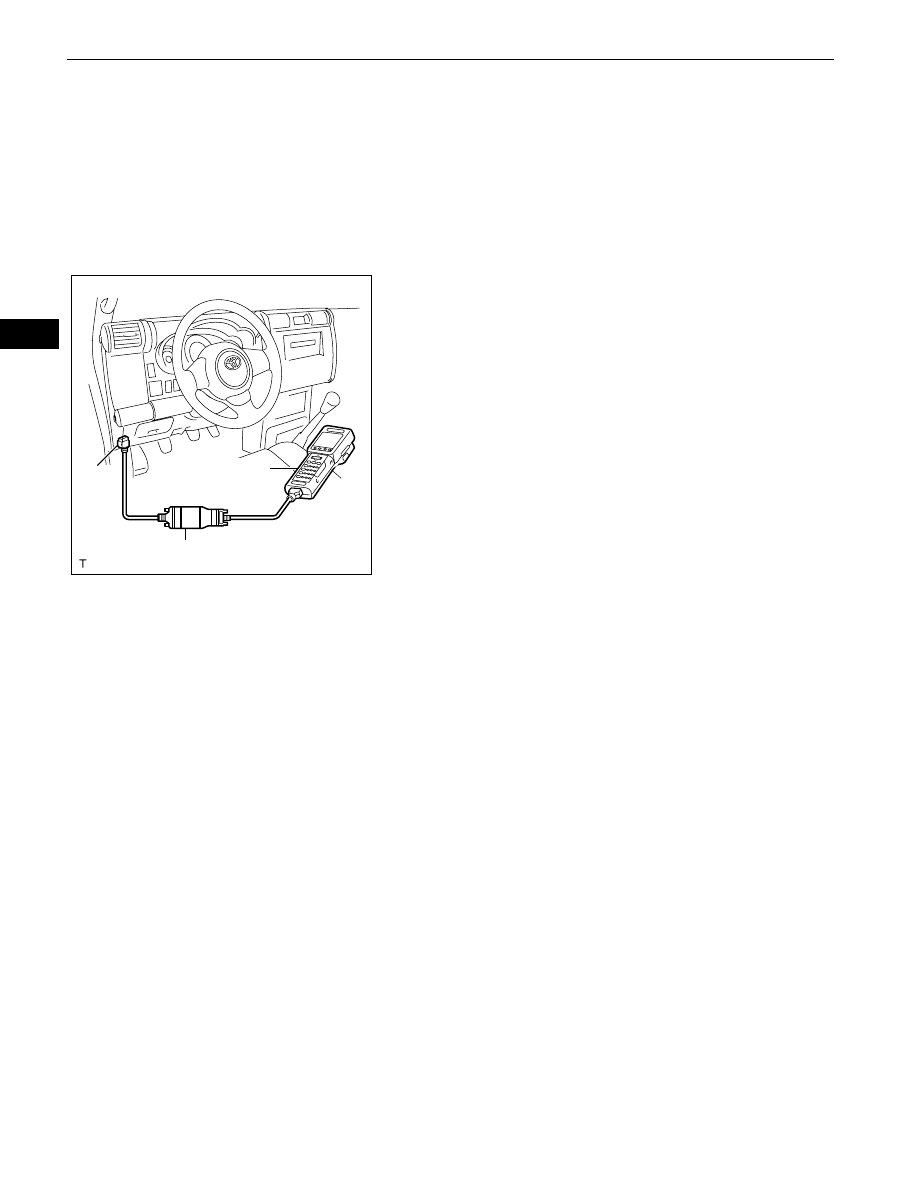

Intelligent Tester

DLC3

CAN VIM

A129958E01
