1GR-FE ENGINE CONTROL SYSTEM – CRANKSHAFT POSITION SENSOR
ES–421
ES
INSPECTION
1.
INSPECT CRANKSHAFT POSITION SENSOR

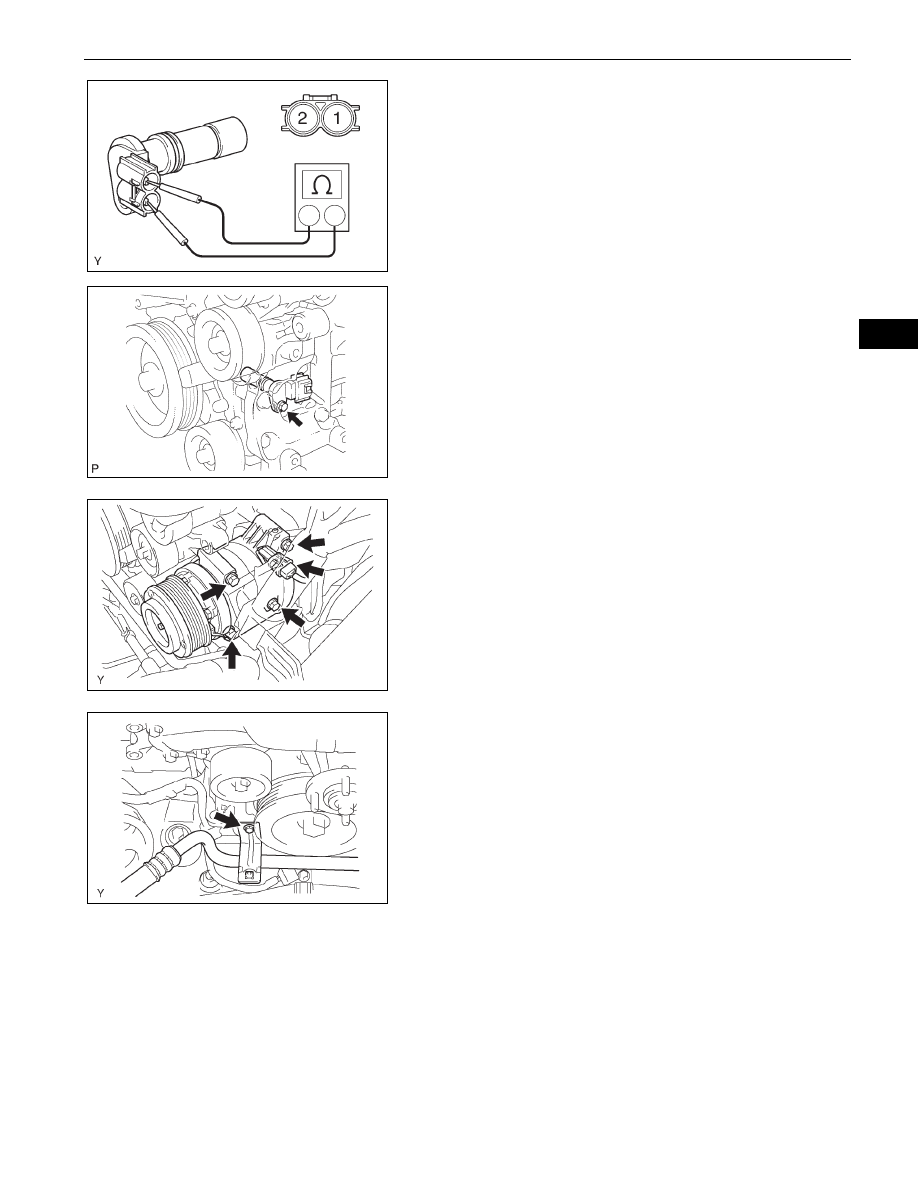

(a) Check the resistance.
(1) Using an ohmmeter, measure the resistance
between the terminals.
Standard resistance:
1,850 to 2,450
Ω at 20°C (68°F)
If the result is not as specified, replace the
crankshaft position sensor.
INSTALLATION
1.
INSTALL CRANKSHAFT POSITION SENSOR
(a) Apply a light coat of engine oil to the O-ring of the
crankshaft position sensor.
(b) Install the crankshaft position sensor with the bolt.
Torque: 10 N*m (102 kgf*cm, 7.4 ft.*lbf)
(c) Connect the crankshaft position sensor connector.
2.
INSTALL COOLER COMPRESSOR ASSEMBLY
(a) Install the cooler compressor assembly with the 4
bolts.
Torque: 24.5 N*m (250 kgf*cm, 18 ft.*lbf)
(b) Connect the cooler compressor assembly
connector.
(c) Install the suction hose sub-assembly with the bolt.
Torque: 7.8 N*m (80 kgf*cm, 69 in.*lbf)
3.
INSTALL GENERATOR ASSEMBLY
Refer to the procedures up to "INSTALL GENERATOR
ASSEMBLY" (See page
4.
INSTALL FAN
Refer to the procedures up to "INSTALL FAN" (See page
).
5.
CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
6.

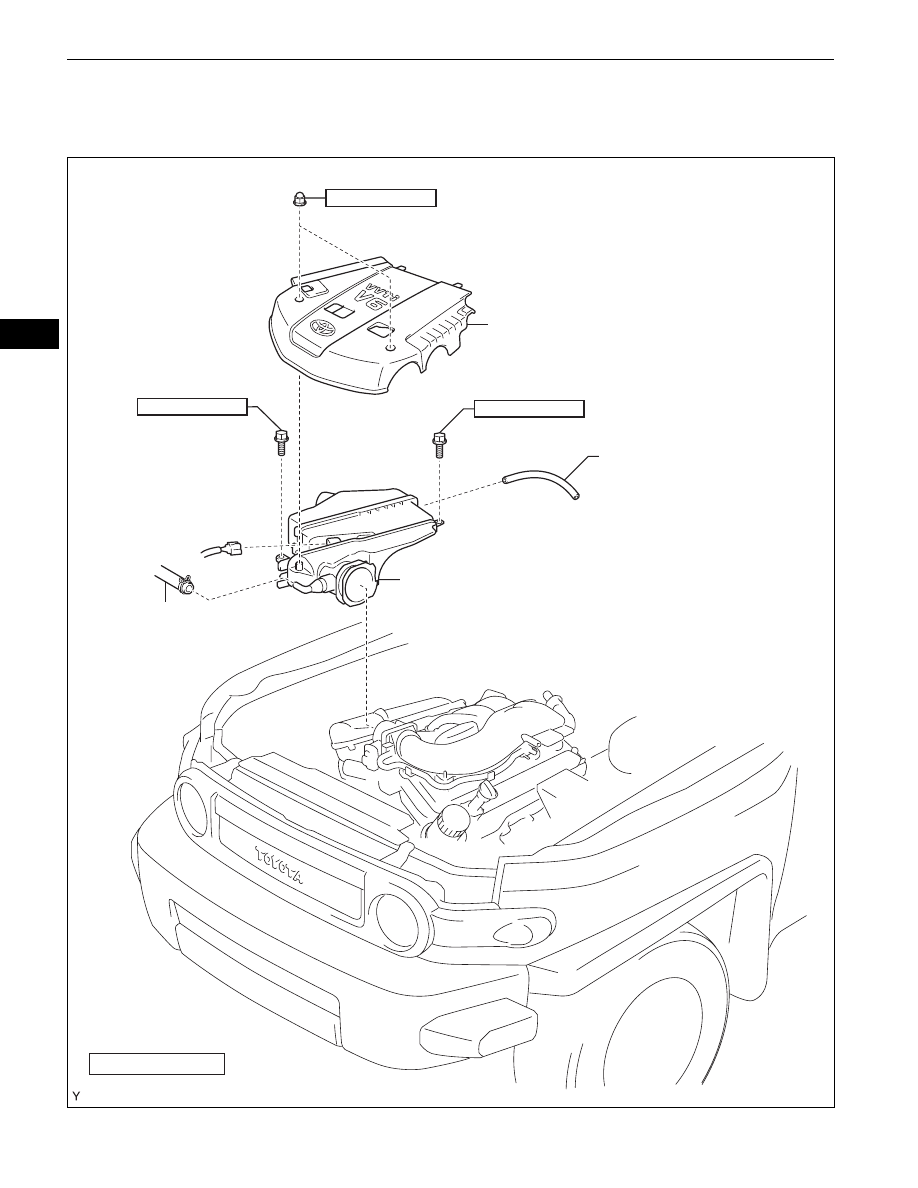

INSTALL V-BANK COVER (See page
)
