REAR NO.1 SEAT (Split Type RH)

3705

7.

REMOVE LH REAR SEAT RECLINING ADJUSTER
AND REAR SEAT LOCK

(a)

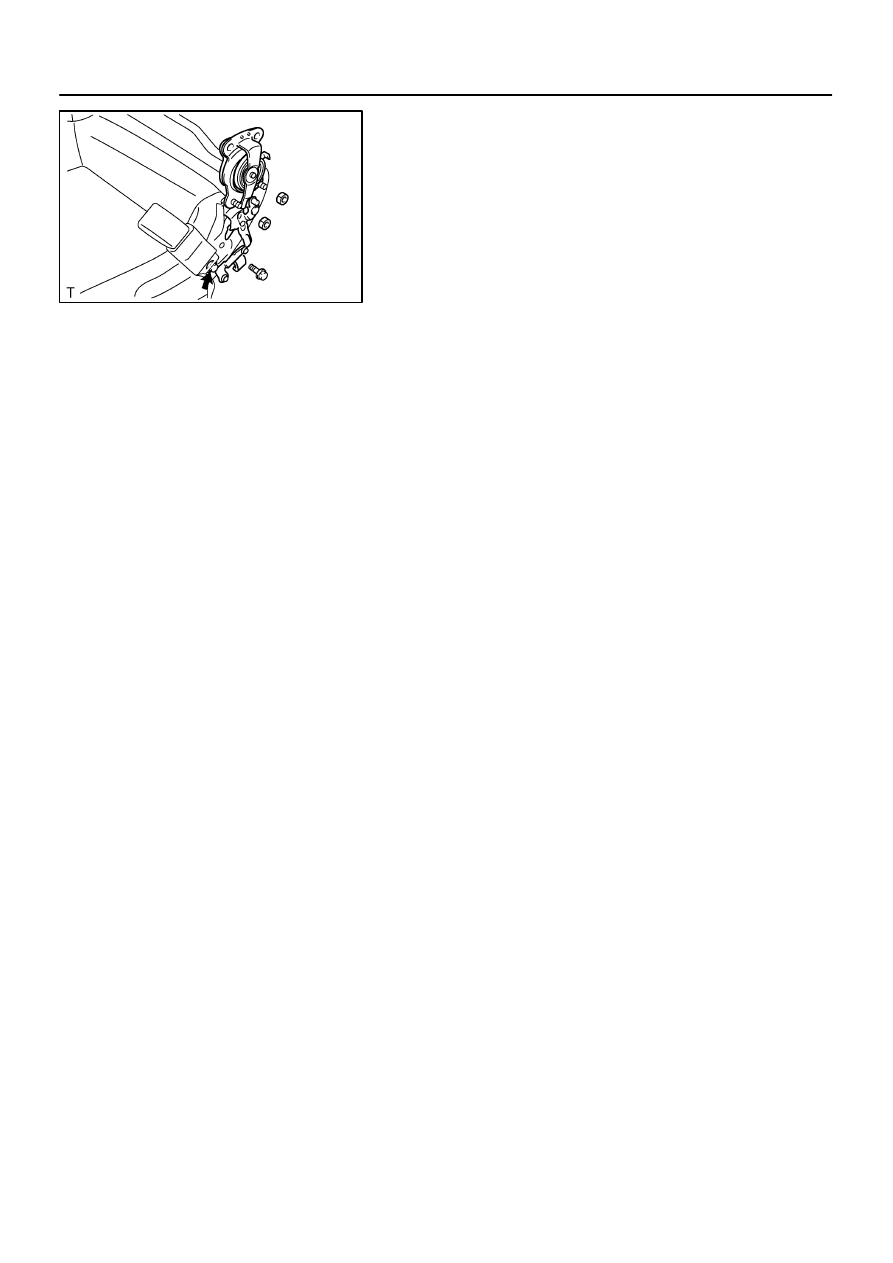

Unfasten the bolt, then remove the rear No. 1 seat inner
belt.
Torque: 42 N·m (430 kgf·cm, 31 ft·lbf)

(b)

Remove the bolt, 2 nut and LH rear seat reclining adjuster
with rear seat lock.
Torque:
bolt: 43 N·m (440 kgf·cm, 32 ft·lbf)
nut: 43 N·m (440 kgf·cm, 32 ft·lbf)

(c)

Using a screwdriver, remove the E–ring, then remove the
LH rear seat reclining adjuster from the rear seat lock.

8.

REMOVE RECLINING CONNECTING PIPE

9.

REMOVE RH REAR SEAT RECLINING ADJUSTER

Remove the 2 nuts and RH rear seat reclining adjuster.

Torque: 43 N·m (440 kgf·cm, 32 ft·lbf)

10.

REMOVE SEAT CUSHION COVER

(a)

Remove the seat cushion cover with pad from the seat
cushion frame.

(b)

Remove the seat cushion cover from the seat cushion
pad.

11.

REMOVE REAR SEAT CUSHION HINGE

(a)

Using a screwdriver, remove the E–ring.

(b)

Remove the pin, bushings, spring, collar and rear seat
cushion hinge.

(c)

Employ the same manner described above to the other
side.

BO4SP–01

–

BODY

REAR NO.1 SEAT (Split Type RH)

BO–153

3706

INSPECTION

INSPECT RECLINING LOCK POSITION SLIPPING OFF
When reclining the seat, inspect that the RH and LH rear seat reclining adjusters are released at the same
time.
HINT:
When the reclining lock position slips off, disassemble the seat to adjust the position.

BO4SQ–01

BO–154

–

BODY

REAR NO.1 SEAT (Split Type RH)

3707

REASSEMBLY

Reassembly is in the reverse order of disassembly (See page

BO–151

).

BO4SR–01

–

BODY

REAR NO.1 SEAT (Split Type RH)

BO–155

3708

INSTALLATION

Installation is in the reverse order of removal (See page

BO–150

).
