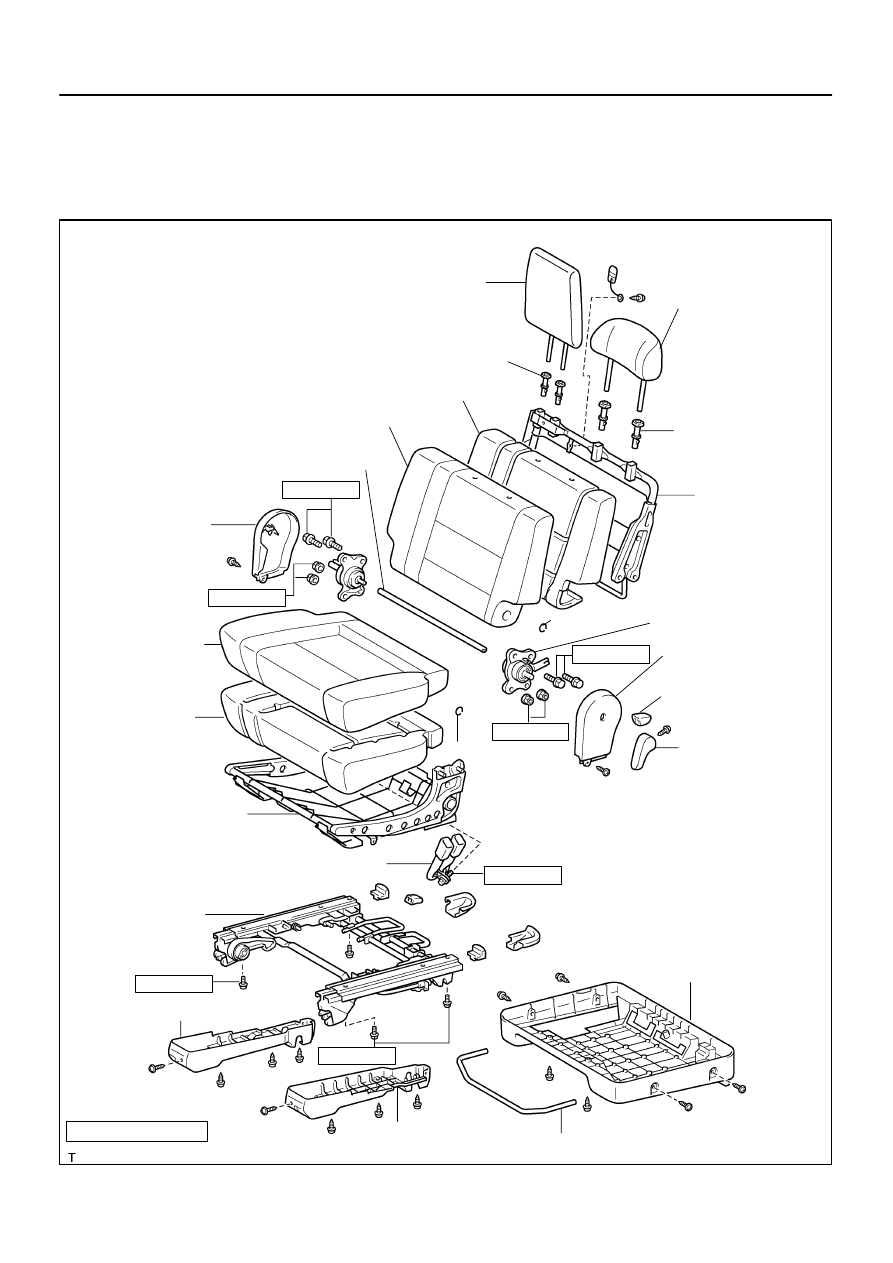

BO47L–04

H24392

Headrest

Headrest
Support

Seatback Cover

Seatback Pad

Seatback Frame

Seat Cushion Cover

Seat Cushion Pad

Seat Cushion Frame

Rear No. 2 Seat Inner Belt

Seat Adjuster

Reclining Connecting Pipe

Reclining Adjuster
Release Handle

Reclining Pedal Cover

No. 2 Rear Seat
Reclining Cover

No. 2 Seat Reclining
Adjuster

 Hog Ring

Rear Seat Cushion
Under Cover

Seat Track Handle

No. 2 Seat Leg Cover

No. 2 Seat Leg Cover

 Hog Ring

No. 2 Rear Seat
Reclining Cover

N·m (kgf·cm, ft·lbf) : Specified torque

 Non–reusable part

19 (195, 14)

43 (440, 32)

43 (440, 32)

43 (440, 32)

19 (195, 14)

42 (430, 31)

43 (440, 32)

Headrest
Support

Headrest

BO–156

–

BODY

REAR NO.2 SEAT

3709

REAR NO.2 SEAT

COMPONENTS

HINT:
The procedures listed below are for the LH side.

BO47M–02

H16771

–

BODY

REAR NO.2 SEAT

BO–157

3710

DISASSEMBLY

CAUTION:
Wear safety gloves, because the sharp edges and surfaces
of the seat frame may cause injury to the hands.
HINT:

The procedures listed below are for the LH side.

A bolt without a torque specification is shown in the stan-
dard bolt chart (see page

SS–2

).

1.

REMOVE HEADRESTS

2.

REMOVE RECLINING ADJUSTER RELEASE HANDLE

3.

REMOVE RECLINING PEDAL COVER

4.

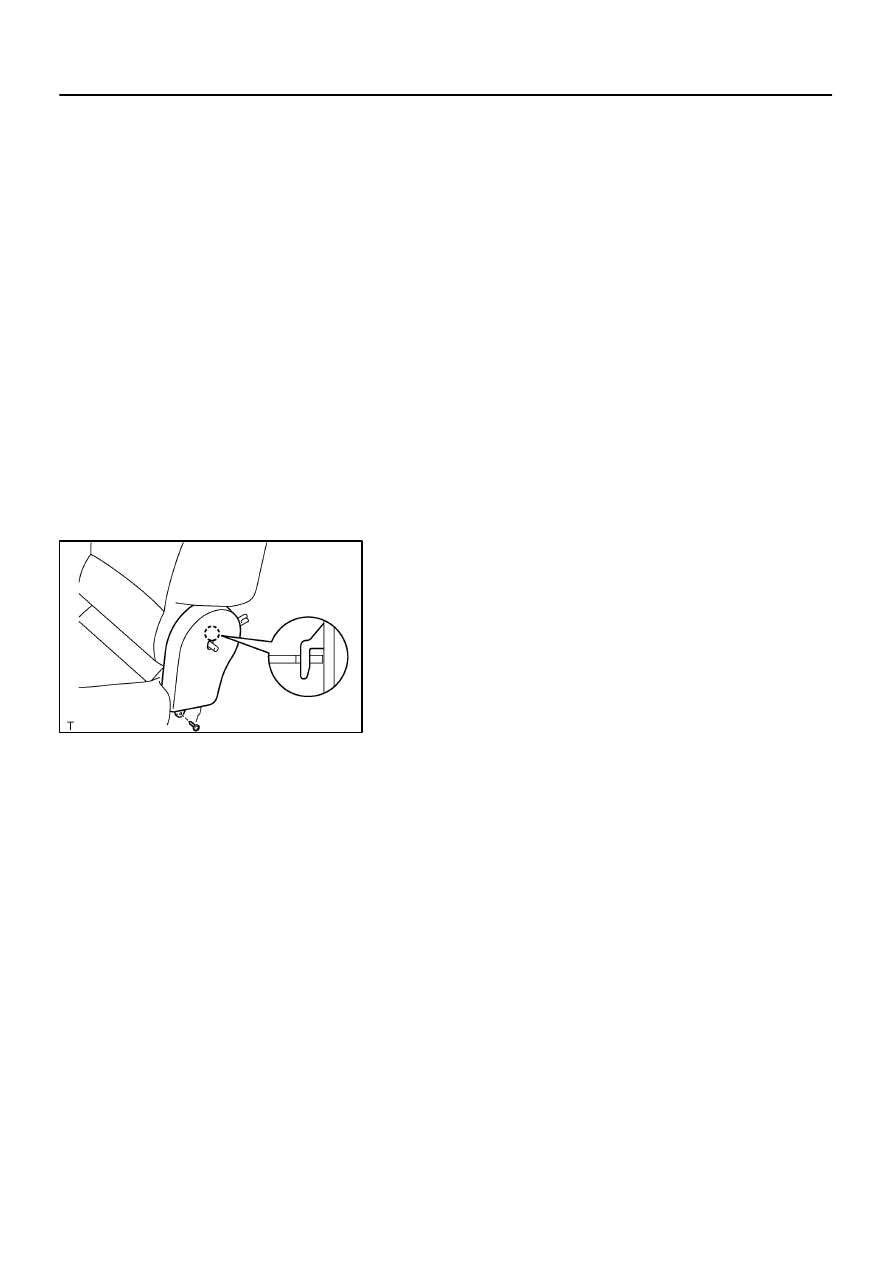

REMOVE NO. 2 REAR SEAT RECLINING COVER

(a)

Remove the screw.

(b)

Remove the No. 2 rear seat reclining cover as shown in
the illustration.

(c)

Employ the same manner described above to the other
side.

5.

REMOVE SEATBACK ASSEMBLY

Remove the 4 bolts and seatback assembly.

Torque: 43 N·m (440 kgf·cm, 32 ft·lbf)

6.

REMOVE SEATBACK COVER

(a)

Remove the seatback cover with pad from the seatback
frame.

(b)

Remove the seatback cover from the seatback pad.

7.

REMOVE NO. 2 SEAT RECLINING ADJUSTER

Remove the 4 nuts, 2 No. 2 seat reclining adjusters and reclin-
ing connecting pipe.
8.

REMOVE NO. 2 SEAT LEG COVERS

9.

REMOVE RECLINING REMOVE CONTROL LEVER

10.

REMOVE SEAT TRACK HANDLE

11.

REMOVE REAR SEAT CUSHION UNDER COVER

12.

REMOVE SEAT CUSHION ASSEMBLY

Remove the 4 screws and seat cushion assembly

Torque: 19 N·m (195 kgf·cm, 14 ft·lbf)

13.

REMOVE SEAT CUSHION COVER

(a)

Remove the rear No. 2 seat inner belt.
Torque: 42 N·m (430 kgf·cm, 31 ft·lbf)

(b)

Remove the seat cushion cover with pad from the seat
cushion frame.

(c)

Remove the seat cushion cover from the seat cushion
pad.

BO47N–01

BO–158

–

BODY

REAR NO.2 SEAT

3711

REASSEMBLY

Reassembly is in the reverse order of disassembly (See page

BO–157

).

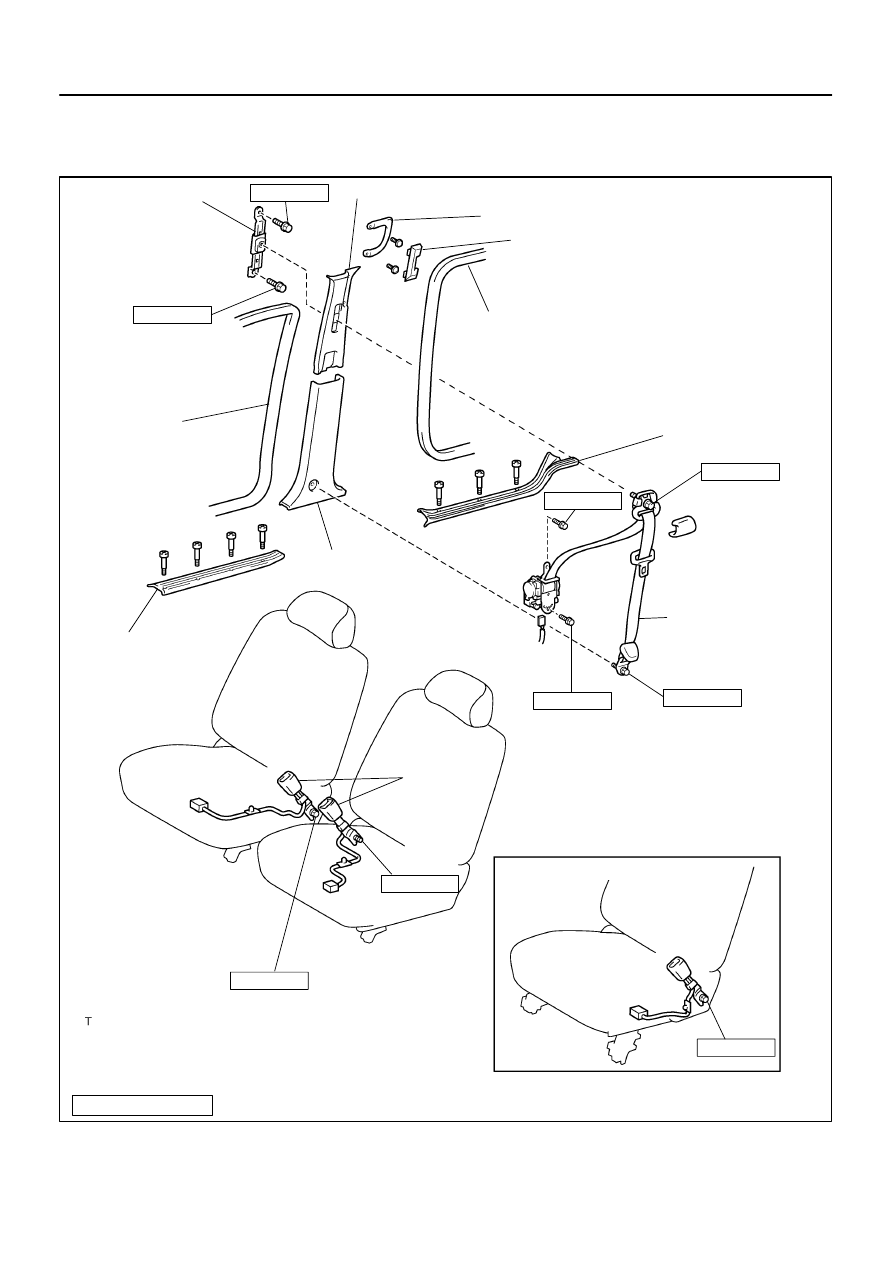

BO47O–02

H16779

Adjustable Anchor

Center Pillar Garnish

Assist Grip

No. 2 Assist Grip Plug

Rear Door Opening
Trim Weatherstrip

Front Door
Opening Trim
Weatherstrip

Rear Door Scuff Plate

Front Seat
Outer Belt

Lower Center
Pillar Garnish

Front Door
Scuff Plate

Front Seat
Inner Belt

Front Seat
Inner Belt

Power seat adjuster type:

42 (430, 31)

42 (430, 31)

42 (430, 31)

42 (430, 31)

42 (430, 31)

42 (430, 31)

42 (430, 31)

42 (430, 31)

N·m (kgf·cm, ft·lbf)

: Specified torque

42 (430, 31)

–

BODY

SEAT BELT

BO–159

3712

SEAT BELT

COMPONENTS
