BO4SL–01

BO–148

–

BODY

REAR NO.1 SEAT (Split Type LH)

3701

INSTALLATION

Installation is in the reverse order of removal (See page

BO–142

).

BO4SM–01

H16770

Headrest

Headrest
Support

Seatback Cover

Seatback Pad

Seatback Frame

Seat Cushion
Cover

Seat Cushion Pad

Seat Cushion
 Frame

Fold Seat
Stopper Band

Rear Seat
Lock

Seat Cushion
Under cover

RH Rear Seat
Reclining Adjuster

Cushion

Seat Leg Cover

Rear No. 1 Seat
Inner Belt

No. 1 Rear Seat
Reclining Cover

Reclining Adjuster
Release Handle

LH Rear Seat
Reclining Adjuster

No. 1 Rear Seat
Reclining Cover

43 (440, 32)

Reclining
Connecting Pipe

42 (430, 31)

37 (380, 27)

37 (380, 27)

N·m (kgf·cm, ft·lbf)

: Specified torque

43 (440, 32)

43 (440, 32)

43 (440, 32)

–

BODY

REAR NO.1 SEAT (Split Type RH)

BO–149

3702

REAR NO.1 SEAT (Split Type RH)

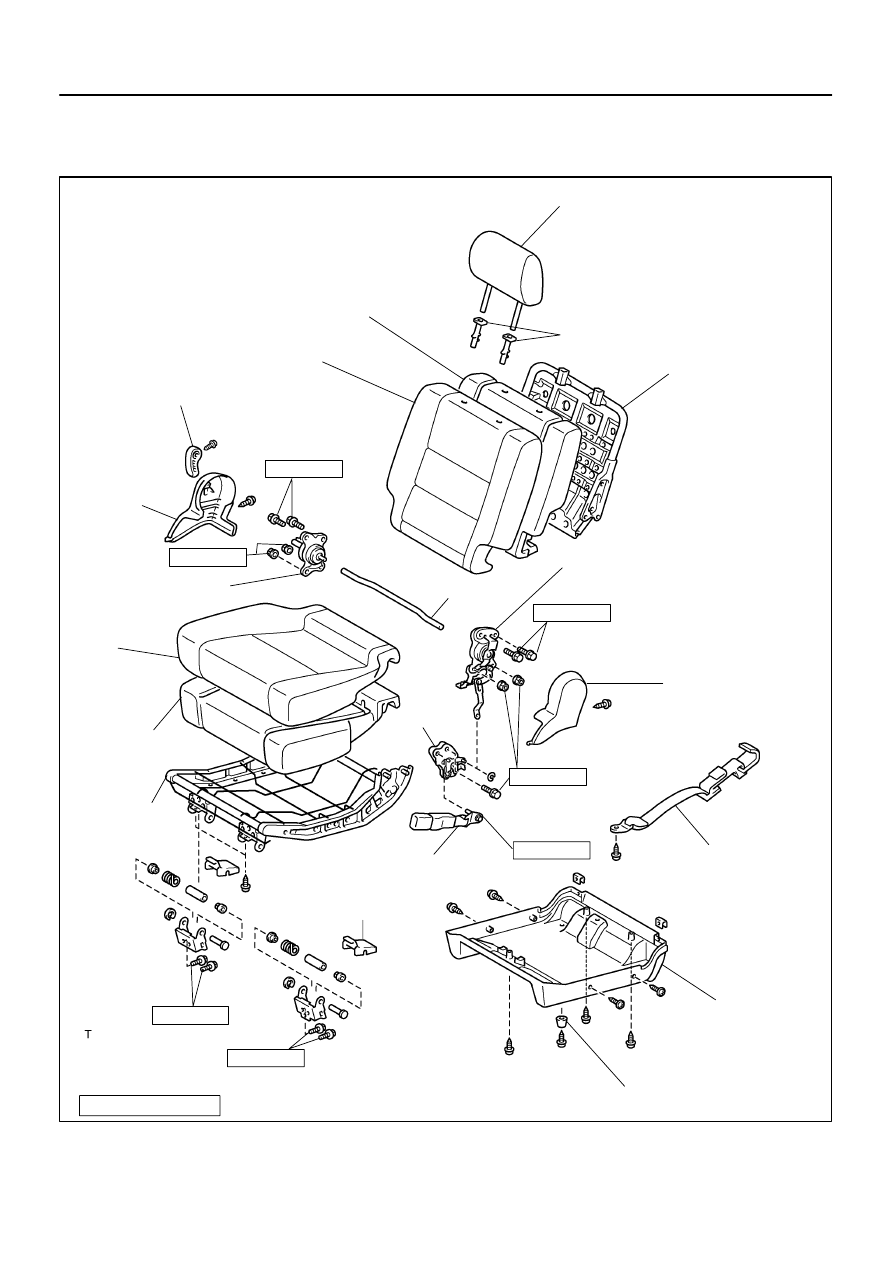

COMPONENTS

BO4SN–01

BO–150

–

BODY

REAR NO.1 SEAT (Split Type RH)

3703

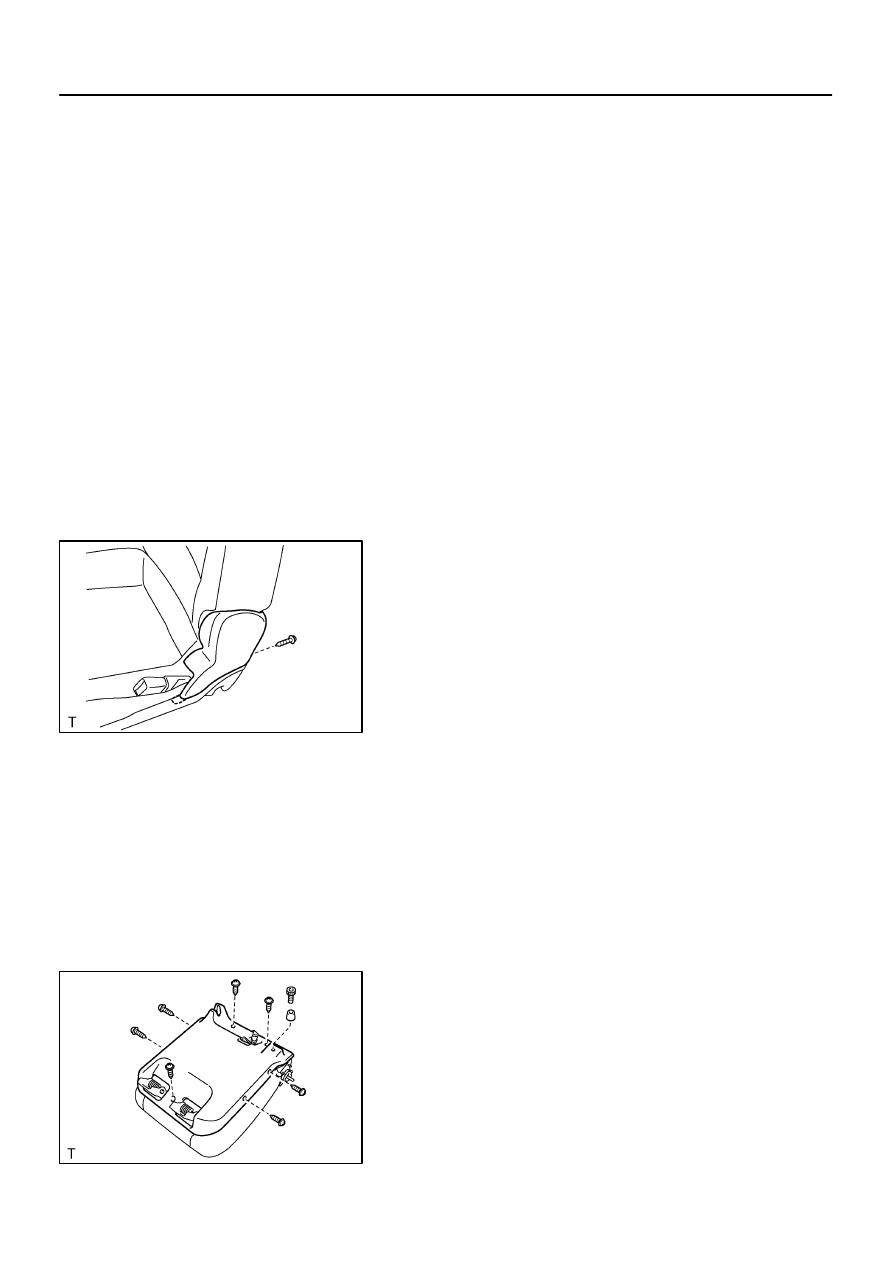

REMOVAL

REMOVE REAR NO.1 SEAT
(a)

Fold the seatback down.

(b)

Unlock the seat lock, and swing the whole seat up and forward.

(c)

Using a screwdriver, remove the seat leg covers.

HINT:
Tape the screwdriver tip before use.
(d)

Remove the 4 bolts and rear No.1 seat.
Torque: 37 N·m (380 kgf·cm, 27 ft·lbf)

BO4SO–01

H17260

H17261

–

BODY

REAR NO.1 SEAT (Split Type RH)

BO–151

3704

DISASSEMBLY

CAUTION:
Wear safety gloves, because the sharp edges and surfaces
of the seat frame may cause injury to the hands.
HINT:

A bolt without a torque specification is shown in the stan-
dard bolt chart (see page

SS–2

).

Tape the screwdriver tip before using it to remove the
parts.

1.

REMOVE HEADREST

2.

REMOVE RECLINING ADJUSTER RELEASE HANDLE

3.

REMOVE NO. 1 REAR SEAT RECLINING COVER

(a)

Remove the screw and No. 1 rear seat reclining cover.

(b)

Employ the same manner described above to the other
side.

4.

REMOVE SEATBACK ASSEMBLY

Remove the 4 bolts and seatback assembly.

Torque: 43 N·m (440 kgf·cm, 32 ft·lbf)

5.

REMOVE SEATBACK COVER

(a)

Remove the headrest supports.

(b)

Remove the seatback frame from the seatback cover with
pad.

(c)

Remove the seatback cover from the seatback pad.

6.

REMOVE REAR SEAT CUSHION UNDER COVER

(a)

Remove the screw and cushion.

(b)

Remove the 7 screws and rear seat cushion under cover.

(c)

Remove the screw and fold seat stopper band.
