Toyota Sequoia (2005). Manual - part 927

H16762

H05324

H05730

H16763

BO–144

–

BODY

REAR NO.1 SEAT (Split Type LH)

3697

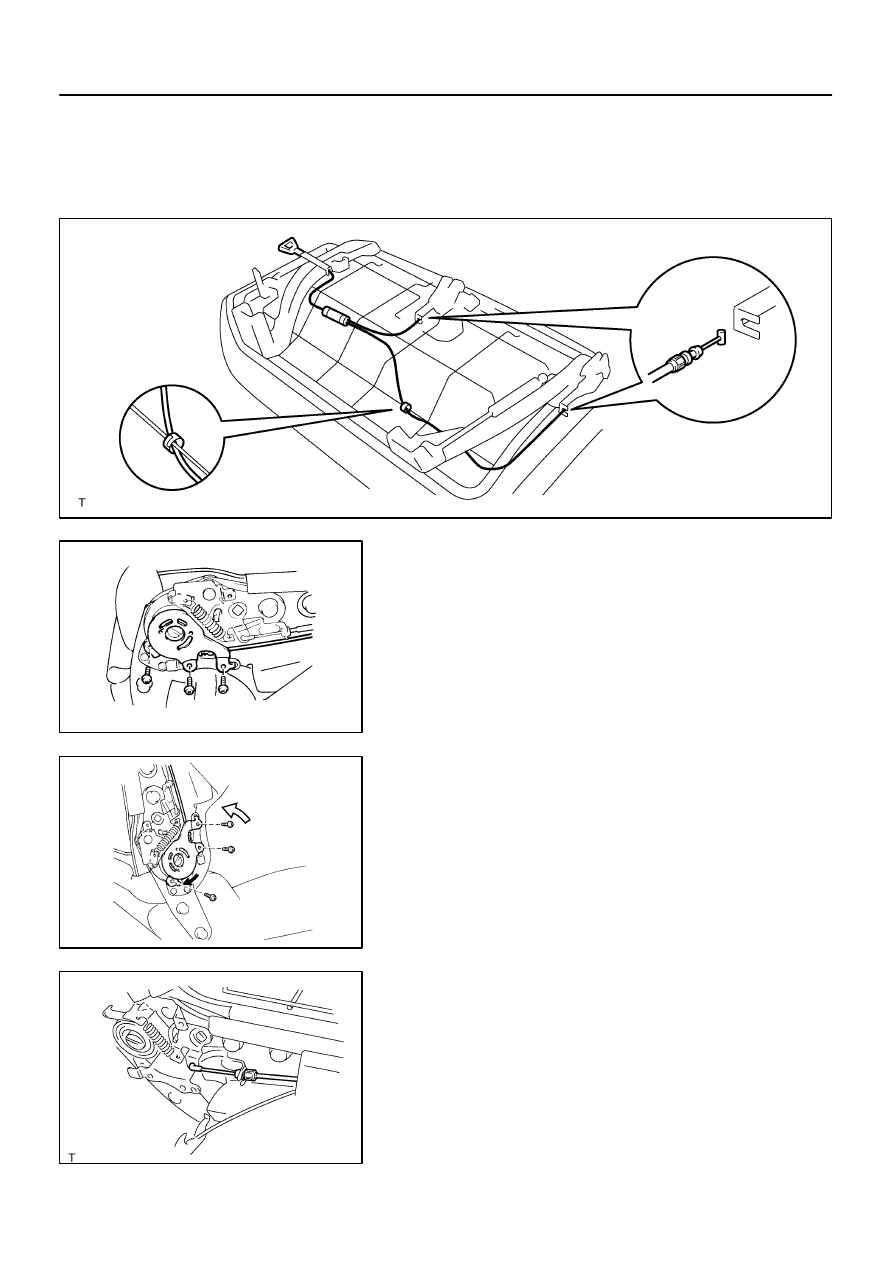

5.

REMOVE NO. 1 FOLD SEAT LOCK CONTROL CABLE

Remove the clamp and No. 1 fold seat lock control cable as
shown in the illustration.

6.

REMOVE SEATBACK ASSEMBLY

(a)

Remove the 3 screws and seat belt reclining detecting
part.

HINT:
At the time of reassembly, please refer to the following items.

Tighten the 2 screws on the seatback side.

Fold down the seatback forward and raise it up to the first
lock position.

Turn A to the rear side of the seat cushion for initial posi-
tioning.

Check visually that the reference holes are penetrated.

Tighten the screws on the cushion side of seat belt reclin-
ing detecting part.

(b)

Remove the reclining connecting wire of LH side edge.

H05326

H05331

H16764

–

BODY

REAR NO.1 SEAT (Split Type LH)

BO–145

3698

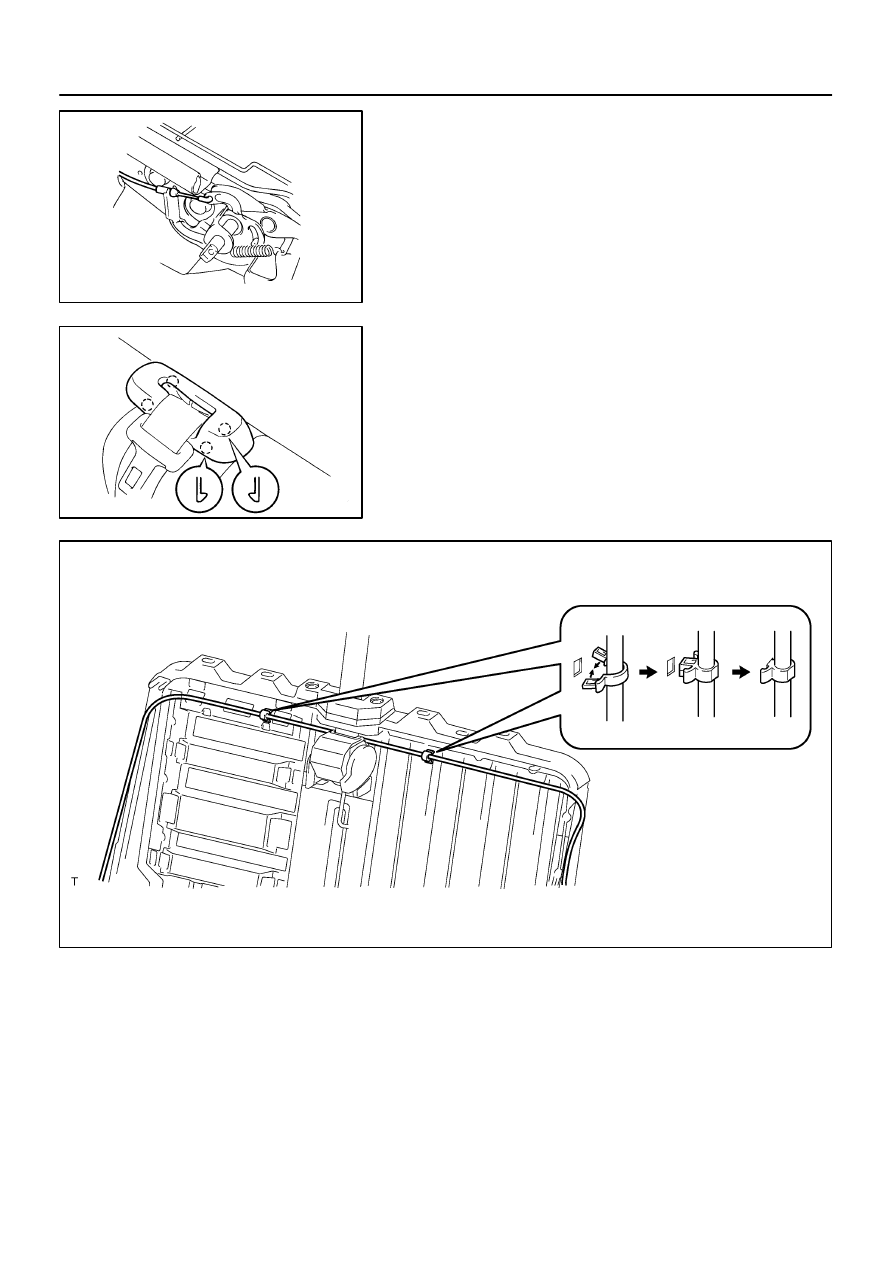

(c)

Remove the reclining connecting wire of RH side edge.

(d)

Remove the 4 bolts and seatback assembly.
Torque: 41 N·m (420 kgf·cm, 30 ft·lbf)

7.

REMOVE ARMREST

8.

REMOVE SEATBACK FRAME

(a)

Using a screwdriver, remove the rear seat shoulder belt
cover.

HINT:
Tape the screwdriver tip before use.
(b)

Remove the 4 headrest supports

(c)

Disengage the hooks, remove the seatback frame.

9.

REMOVE SEAT ADJUSTER CONTROL CABLE

Remove the 2 clamps and seat adjuster control cable.

H16765

H16766

H07940

BO–146

–

BODY

REAR NO.1 SEAT (Split Type LH)

3699

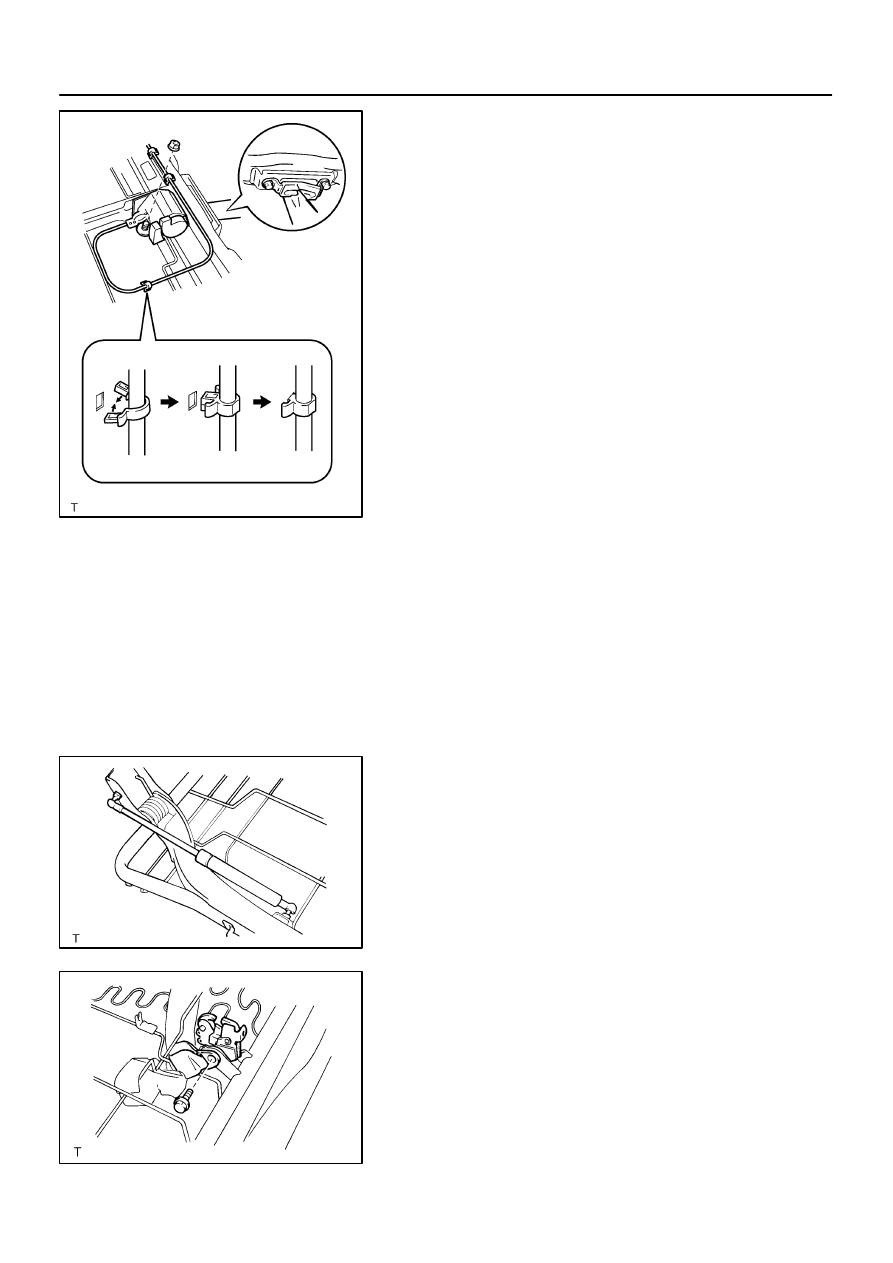

10.

REMOVE REAR SEAT OUTER BELT

(a)

Remove the 2 bolts and rear seat shoulder belt guide.
Torque: 42 N·m (430 kgf·cm, 31 ft·lbf)

HINT:
At the time of reassembly, please refer to the following item.
Install the shoulder belt guide to the seatback frame with a sit
the guide facing to the rear side of the vehicle.
(b)

Remove the nut, 3 clamps and rear seat outer belt.
Torque: 42 N·m (430 kgf·cm, 31 ft·lbf)

11.

REMOVE SEATBACK COVER

Remove the hog rings and seatback cover.
HINT:
At the time of reassembly, please refer to the following item.
When instaling hog rings, take care to prevent wrinkles as little
as possible.
12.

REMOVE SEAT CUSHION FRAME

Remove the hog rings and seat cushion frame.
HINT:
At the time of reassembly, please refer to the following item.
When instaling hog rings, take care to prevent wrinkles as little
as possible.
13.

REMOVE REAR NO. 1 SEAT ADJUSTER

(a)

Remove the 2 bolts and rear No. 1 seat outer adjuster.
Torque: 43 N·m (440 kgf·cm, 32 ft·lbf)

(b)

Remove the 2 bolts and rear No. 1 seat inner adjuster.
Torque: 43 N·m (440 kgf·cm, 32 ft·lbf)

(c)

Remove the 4 screws and 2 hinges covers from the rear
No. 1 seat outer and inner adjusters.

(d)

Remove the 2 screws and 2 reclining inner covers from
the rear No. 1 seat outer and inner adjuster.

14.

REMOVE REAR SEAT STAY

Remove the 2 bolts and rear seat stay.
15.

REMOVE REAR SEAT CUSHION HINGE

(a)

Using a screwdriver, remove the spring nut and E–rings.

(b)

Remove the 2 hinge pins, 2 cushion spacers, 2 cushion
support springs and 2 rear seat cushion hinges.

16.

REMOVE LH REAR SEAT LOCK

Unfasten the bolt, then remove the inner belt and LH rear seat
lock.

17.

REMOVE RH REAR SEAT LOCK

(a)

Remove the screw and rear seat lock cover.

(b)

Remove the bolt, seat belt anchor and inner belt.
Torque: 42 N·m (430 kgf·cm, 31 ft·lbf)

(c)

Remove the RH rear seat lock.

BO4SK–01

–

BODY

REAR NO.1 SEAT (Split Type LH)

BO–147

3700

REASSEMBLY

Reassembly is in the reverse order of disassembly (See page

BO–143

).
