Toyota Sequoia (2005). Manual - part 925

H23455

BO4R9–02

BO–136

–

BODY

REAR NO.1 SEAT (Separate Type)

3689

REMOVAL

HINT:
The procedures listed below are for the RH side.

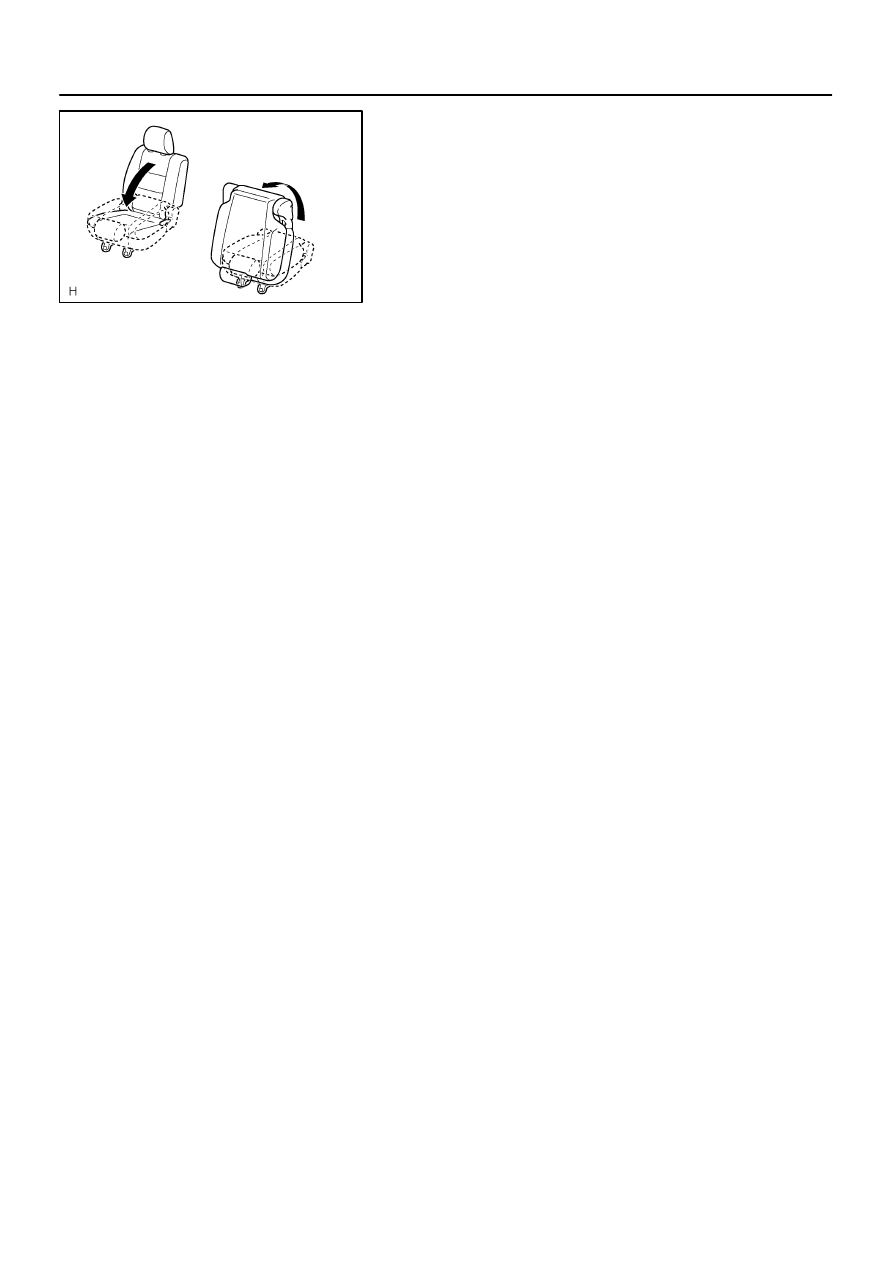

1.

FOLD REAR SEAT RH

(a)

Lower the headrest to the lowest position.

(b)

Pull the seatback angle adjusting lever and fold the seat-
back down.

(c)

Unlock the seat legs by pulling up one of the levers on the
seat legs, and swing the seat up and forward.

2.

REMOVE REAR SEAT RH

(a)

Using a screwdriver, remove the 2 seat leg covers.

HINT:
Tape the screwdriver tip before use.
(b)

Remove the 4 bolts and rear No.1 seat.
Torque: 37 N·m (380 kgf·cm, 27 ft·lbf)

BO4SG–01

H17260

H23459

Hook

–

BODY

REAR NO.1 SEAT (Separate Type)

BO–137

3690

DISASSEMBLY

CAUTION:
Wear safety gloves, because the sharp edges and surfaces
of the seat frame may cause injury to the hands.
HINT:

The procedures listed below are for the RH side.

A bolt without a torque specification is shown in the stan-
dard bolt chart (see page

SS–2

).

Tape the screwdriver tip before using it to remove the
parts.

1.

REMOVE HEADREST

2.

REMOVE RECLINING ADJUSTER RELEASE HANDLE

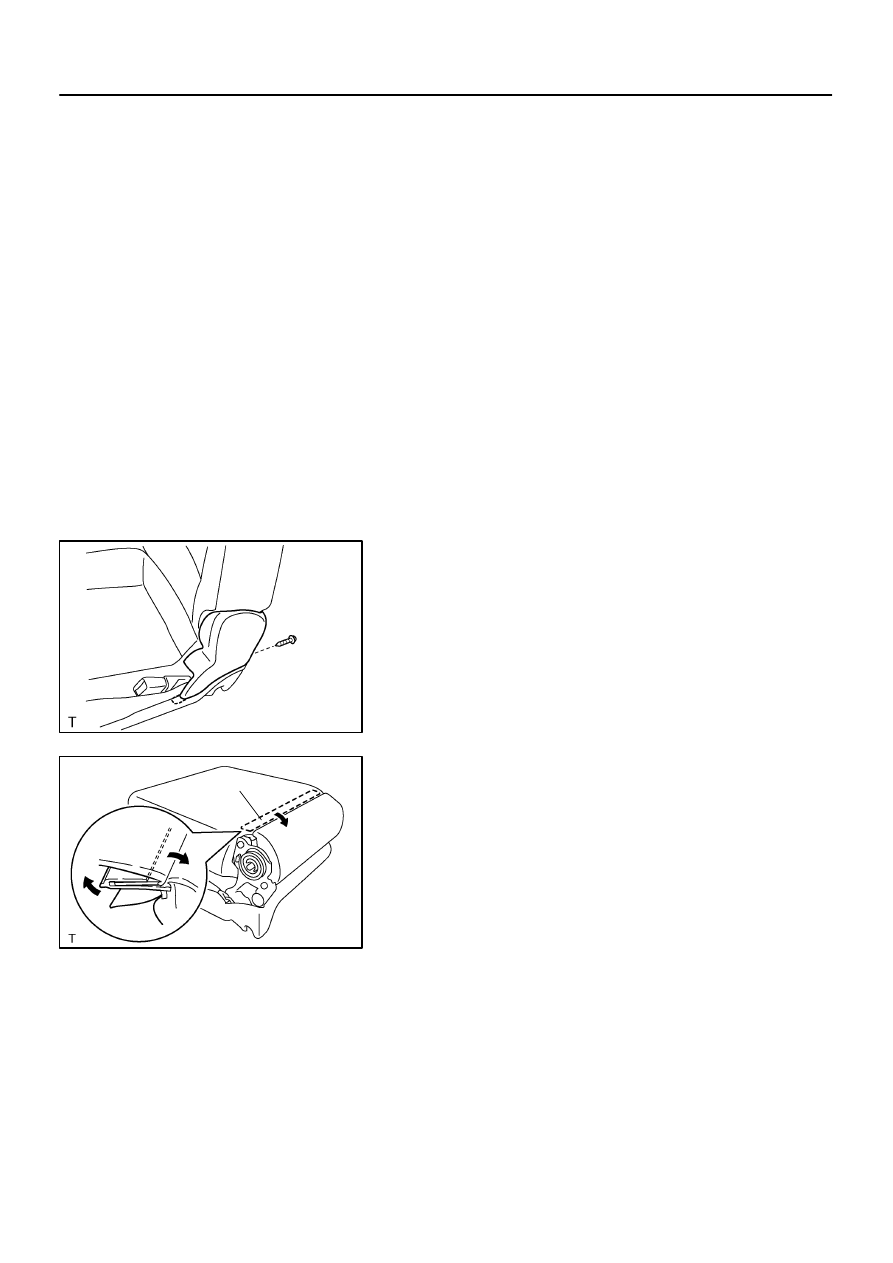

3.

REMOVE NO. 1 REAR SEAT RECLINING COVER

(a)

Remove the screw and No. 1 rear seat reclining cover.

(b)

Perform the same procedure on the other side.

4.

REMOVE SEATBACK ASSEMBLY

(a)

Tilt the seat forward.

(b)

As shown in the illustration, disengage the hook and open
the seatback cover.

(c)

Remove the 4 bolts and the seatback assembly.
Torque: 43 N·m (440 kgf·cm, 32 ft·lbf)

5.

REMOVE SEATBACK COVER

(a)

Remove the headrest supports.

(b)

Disengage the hooks, and remove the seatback frame
from the seatback cover with pad.

(c)

Remove the seatback cover from the seatback pad.

HINT:
At the time of reassembly, take as much care as possible to
minimize wrinkles when installing hog rings.

H17261

Hexagon

Bolt

H23461

BO–138

–

BODY

REAR NO.1 SEAT (Separate Type)

3691

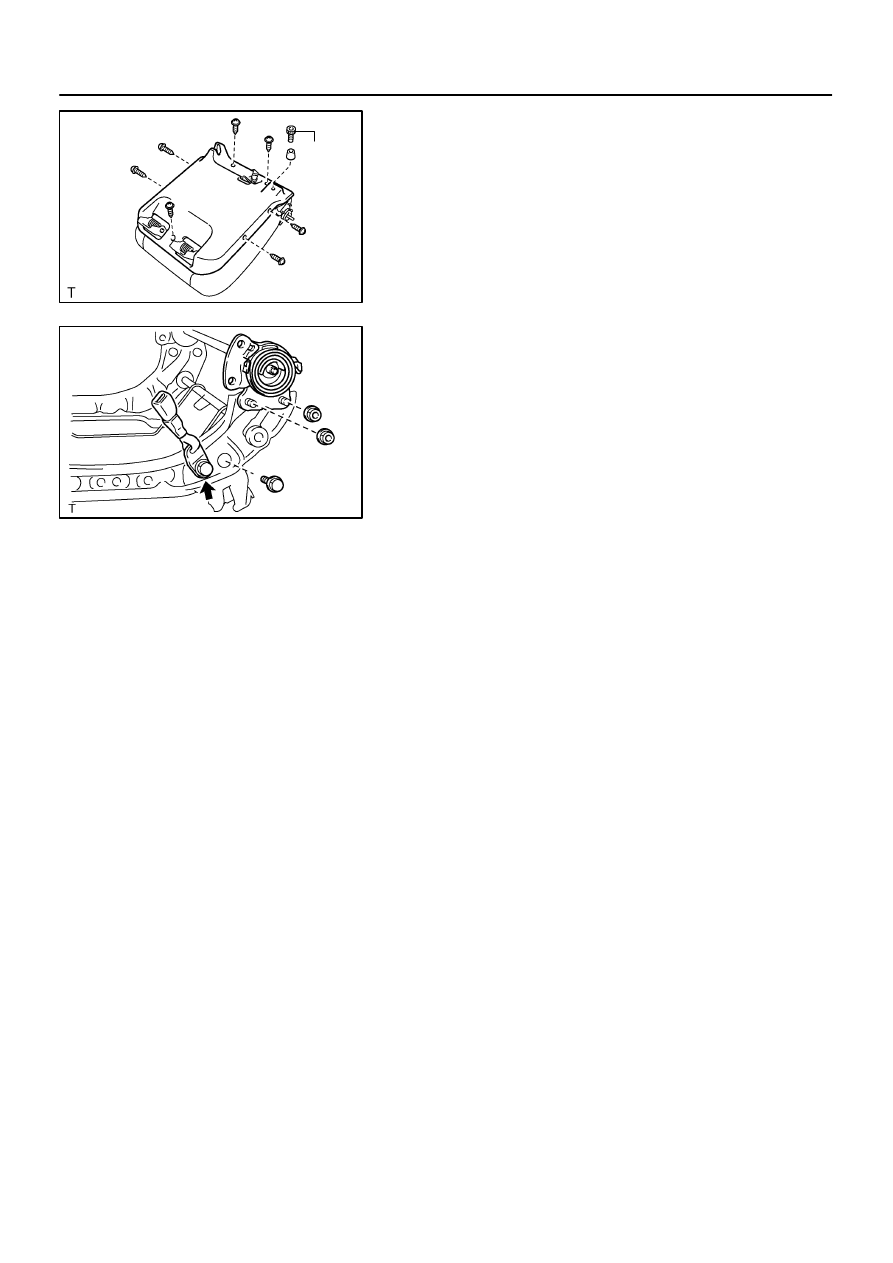

6.

REMOVE REAR SEAT CUSHION UNDER COVER

(a)

Using a 5 mm hexagon wrench, remove the bolt and
cushion.

(b)

Remove the 6 screws and rear seat cushion under cover.

(c)

Remove the screw and fold seat stopper band.

7.

REMOVE FOLD SEAT LOCK CONTROL CABLE NO. 1

Using a screwdriver, remove the fold seat lock control cable No.
1.
HINT:
Tape the screwdriver tip before use.
8.

REMOVE LH REAR SEAT RECLINING ADJUSTER
AND LH REAR SEAT LOCK

(a)

Unfasten the bolt, then remove the rear No. 1 seat inner
belt.
Torque: 42 N·m (430 kgf·cm, 31 ft·lbf)

(b)

Remove the 2 nuts and LH rear seat reclining adjuster.
Torque: 43 N·m (440 kgf·cm, 32 ft·lbf)

(c)

Remove the bolt and LH rear seat lock.
Torque: 43 N·m (440 kgf·cm, 32 ft·lbf)

9.

REMOVE RECLINING CONNECTING PIPE

10.

REMOVE RH REAR SEAT RECLINING ADJUSTER

Remove the 2 nuts and RH rear seat reclining adjuster.

Torque: 43 N·m (440 kgf·cm, 32 ft·lbf)

11.

REMOVE SEAT CUSHION COVER

(a)

Remove the seat cushion cover with pad from the seat
cushion frame.

(b)

Remove the seat cushion cover from the seat cushion
pad.

HINT:
At the time of reassembly, take as much care as possible to
minimize wrinkles when installing hog rings.
12.

REMOVE REAR SEAT CUSHION HINGE LH

(a)

Using a screwdriver, remove the E–ring.

(b)

Remove the pin, bushings, spring, collar and rear seat
cushion hinge.

(c)

Remove the rear seat cushion hinge on the other side us-
ing the same procedures (a) and (b) described above.

13.

REMOVE RH REAR SEAT LOCK

Remove the 2 bolts and RH rear seat lock.

Torque: 64 N·m (653 kgf·cm, 47 ft·lbf)

BO4RB–02

–

BODY

REAR NO.1 SEAT (Separate Type)

BO–139

3692

REASSEMBLY

Reassembly is in the reverse order of disassembly (see page

BO–137

).
