BO4RC–02

BO–140

–

BODY

REAR NO.1 SEAT (Separate Type)

3693

INSTALLATION

Installation is in the reverse order of removal (see page

BO–136

).

BO4SH–01

H16778

Rear Seat Shoulder Belt Cover

Rear Seat Shoulder
Belt Guide

Headrest

Armrest

Seatback Pad

Rear Seat
Protector

No. 1 Reclining Cover

Seat Cushion Cover

Seat Cushion Pad

Seat Cushion Frame

Seatback Frame

Rear Seatback
Protector

Seatback Cover

Hinge
Cover

RH Rear Seat Lock

LH Rear Seat Lock

43 (430, 32)

Hinge Cover

No. 1 Fold Seat
Lock Control Cable

Fold Seat
Stopper Band

Seat Cushion
Under Cover

Rear Seat
Cushion Cover LH

Cushion

Seat Leg Cover

Rear Seat Cushion Hinge

Rear Seat Stay

Rear Seat
Cushion Hinge

Rear No. 1 Seat
Inner Belt

Seat Adjuster
Control Cable

Hinge
Cover

Hinge Cover

Rear Seat
Outer Belt

Rear No. 1 Seat Inner Adjuster

Seat Inner
Bracket

Rear Seat
Cushion Cover RH

37 (380, 27)

37 (380, 27)

N·m (kgf·cm, ft·lbf)

: Specified torque

 Non–reusable part

Reclining Adjuster
Release Handle

No. 1 Reclining Cover

Rear No. 1

Seat Outer

Adjuster

42 (430, 31)

43 (440, 32)

42 (430, 31)

43 (440, 32)

42 (430, 31)

42 (430, 31)

 Hog Ring

 Hog Ring

–

BODY

REAR NO.1 SEAT (Split Type LH)

BO–141

3694

REAR NO.1 SEAT (Split Type LH)

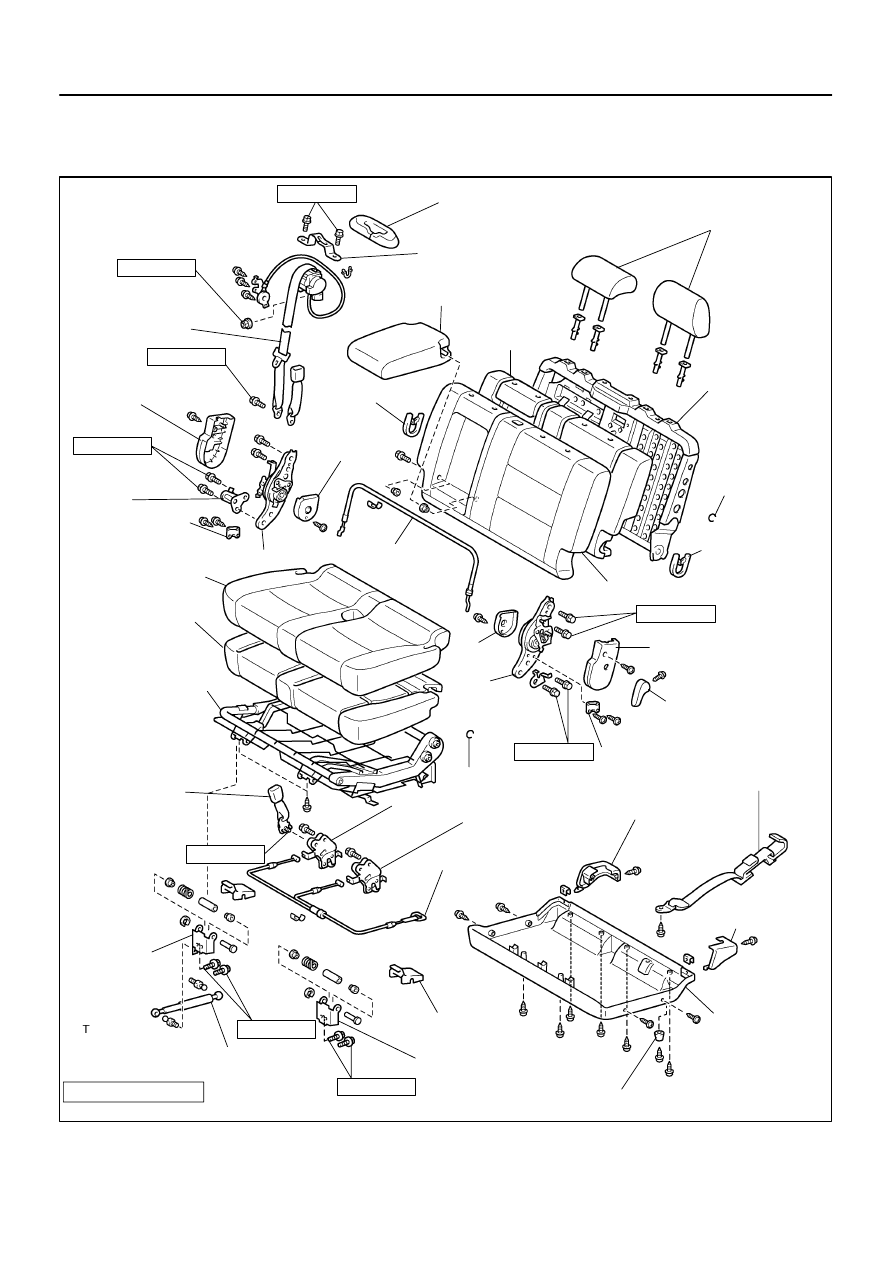

COMPONENTS

BO4SI–01

BO–142

–

BODY

REAR NO.1 SEAT (Split Type LH)

3695

REMOVAL

REMOVE REAR NO.1 SEAT
(a)

Fold the seatback down.

(b)

Unlock the seat lock, and swing the whole seat up and forward.

(c)

Using a screwdriver, remove the seat leg covers.

HINT:
Tape the screwdriver tip before use.
(d)

Remove the 4 bolts and rear No.1 seat.
Torque: 37 N·m (380 kgf·cm, 27 ft·lbf)

BO4SJ–01

H05304

H05321

–

BODY

REAR NO.1 SEAT (Split Type LH)

BO–143

3696

DISASSEMBLY

CAUTION:
Wear safety gloves, because the sharp edges and surfaces
of the seat frame may cause injury to the hands.
HINT:

A bolt without a torque specification is shown in the stan-
dard bolt chart (see page

SS–2

).

Tape the screwdriver tip before using it to remove the
parts.

1.

REMOVE HEADREST

2.

REMOVE RECLINING ADJUSTER RELEASE HANDLE

3.

REMOVE NO. 1 RECLINING COVERS

(a)

Zip the seat cushion cover open.

(b)

Remove the 2 screws and 2 No. 1 reclining covers.

4.

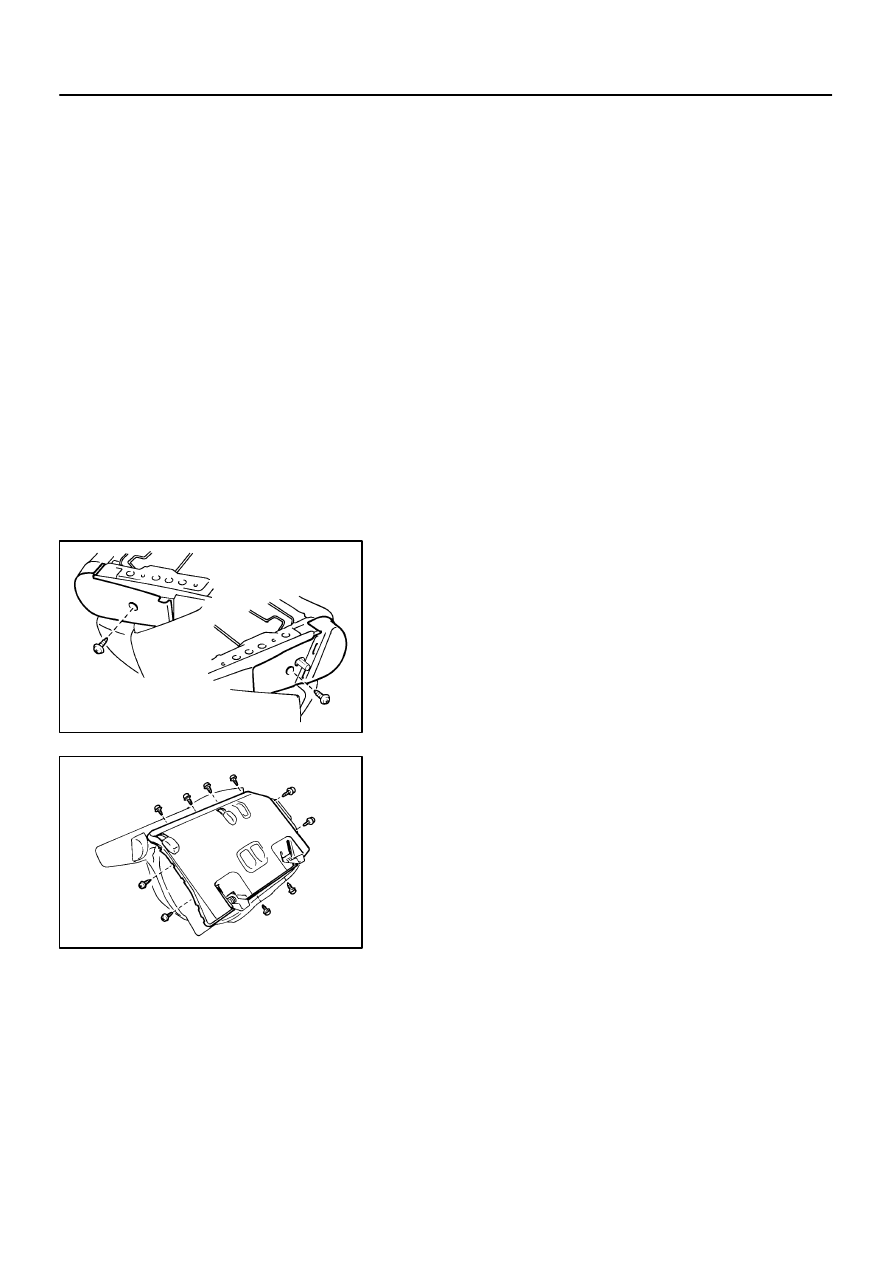

REMOVE SEAT CUSHION UNDER COVER

(a)

Remove the 2 screws and 2 seat cushion under covers.

(b)

Remove the 10 screws and seat cushion under cover
sub–assembly.
