Toyota Sequoia (2005). Manual - part 924

H24861

H24337

H24316

H24334

Claws

Clip

BO–132

–

BODY

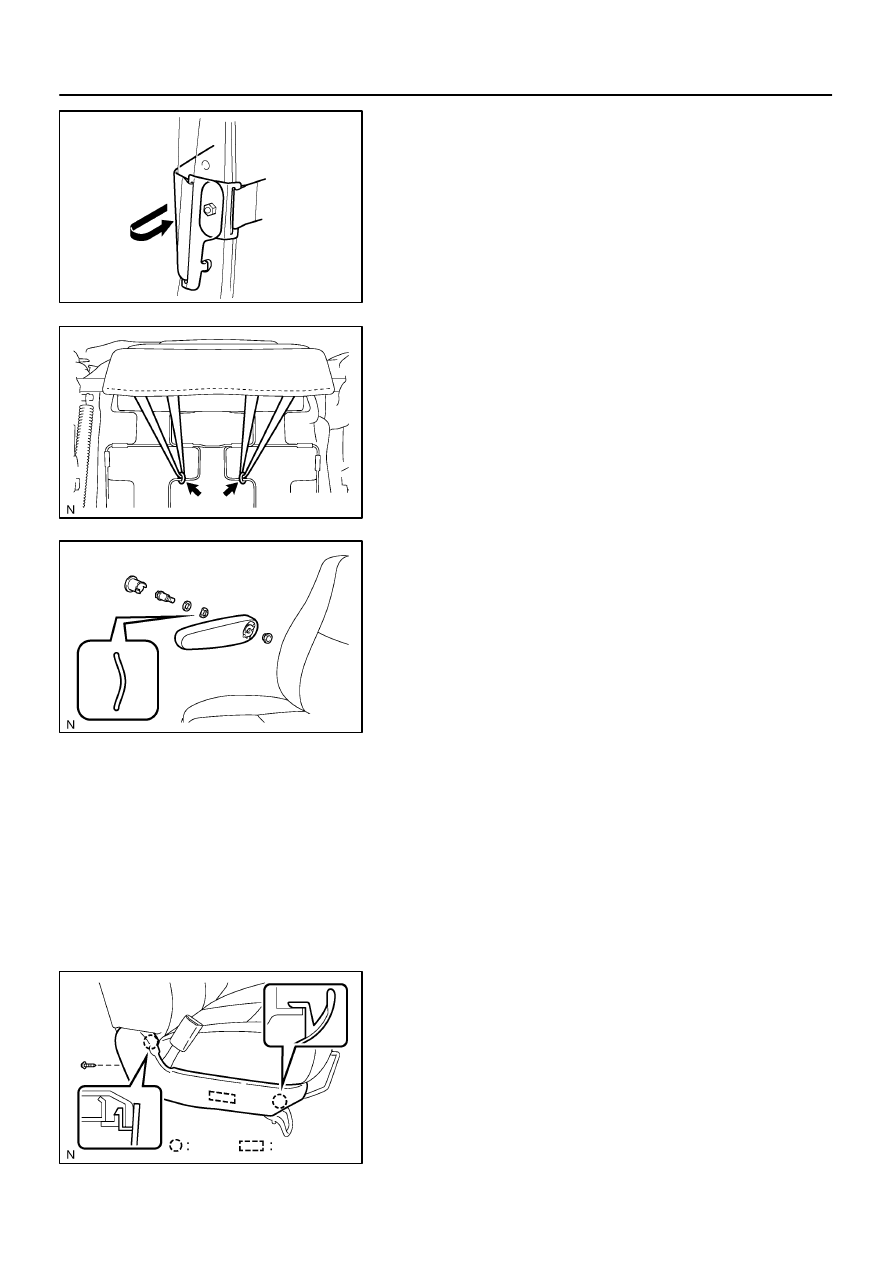

FRONT SEAT (Manual Adjuster Type)

3685

(d)

w/ Side airbag:
Connect the seatback cover bracket to the seat frame as-
sembly with the nut.
Torque: 5.5 N·m (56 kgf·cm, 49 in.·lbf)

(e)

Close the fastener.

(f)

Install the hog rings to the seat frame assembly.

9.

INSTALL ARMREST ASSEMBLY

(a)

Install the spacer to the armrest assembly.

(b)

Install the armrest assembly, armrest lock plate and arm-
rest spacer with the bolt.
Torque: 37 N·m (380 kgf·cm, 27 ft·lbf)

HINT:
Install the armrest lock plate as shown in the illustration.
(c)

Install the armrest cap.

10.

INSTALL FRONT SEAT INNER BELT.

(a)

Install the front seat inner belt with the nut.
Torque: 42 N·m (430 kgf·cm, 32 ft·lbf)

(b)

Connect the connectors and wire harness clamps.

11.

INSTALL SEAT CUSHION INNER SHIELD

Install the seat cushion inner shield with the screw.

H24333

H24331

Claws

Clip

–

BODY

FRONT SEAT (Manual Adjuster Type)

BO–133

3686

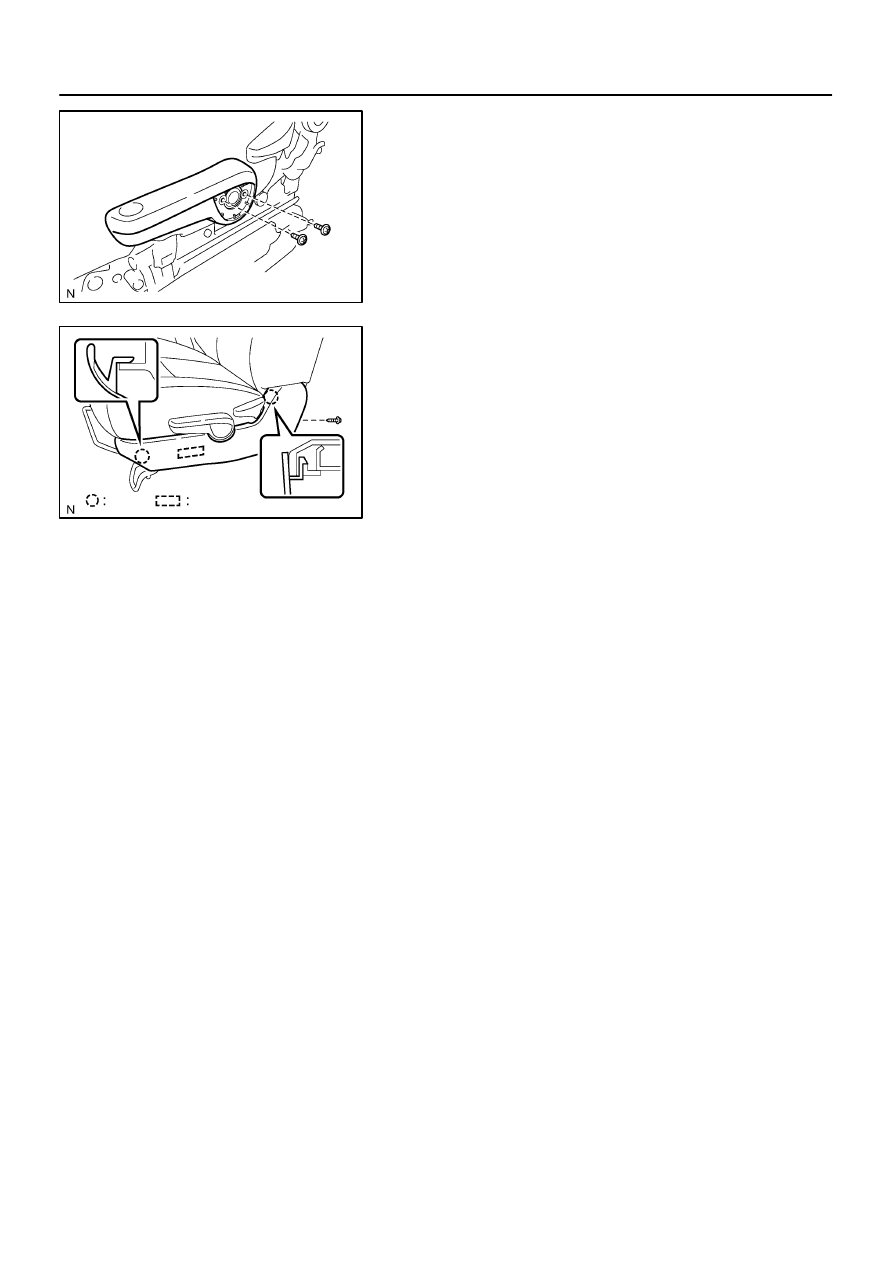

12.

INSTALL VERTICAL ADJUSTER HANDLE

(a)

Install the vertical adjuster handle with the 2 screws.

(b)

Install the vertical adjuster handle cap.

13.

INSTALL RECLINING ADJUSTER RELEASE HANDLE

14.

INSTALL SEAT CUSHION OUTER SHIELD

Install the seat cushion outer shield with the screw.
15.

INSTALL HEADREST

BO4SF–01

BO–134

–

BODY

FRONT SEAT (Manual Adjuster Type)

3687

INSTALLATION

HINT:
The procedures listed below are for the LH side.
1.

INSTALL FRONT SEAT

(a)

Mount the front seat to the vehicle.

NOTICE:
Be careful not to damage the vehicle body.
(b)

w/ Side airbag:
Connect the airbag connector.

(c)

Connect the connectors.

(d)

Slide the front seat to the rearmost position.

(e)

Tighten the bolts on the front side temporarily, starting from the bolt on the inner side.

(f)

Tighten them completely.
Torque: 37 N·m (380 kgf·cm, 27 ft·lbf)

(g)

Slide the front seat to the foremost position.

(h)

Tighten the bolts on the rear side temporarily, starting from the bolt on the inner side.

(i)

Tighten them completely.
Torque: 37 N·m (380 kgf·cm, 27 ft·lbf)

2.

INSTALL SEAT TRACK COVERS

3.

CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

4.

Passenger ’s seat:
PERFORM PASSENGER OCCUPANT CLASSIFICATION SYSTEM ZERO POINT CALIBRATION
(See page

DI–1128

)

5.

PERFORM INITIALIZATION (See page

IN–20

)

Some systems need initialization when disconnecting the cable from the negative battery terminal.

BO4R8–02

H24385

Headrest

Headrest
Support

Seatback Cover

Seatback Pad

Seatback Frame

Seat Cushion
Cover

Seat Cushion Pad

Seat Cushion
 Frame

Fold Seat
Stopper Band

LH Rear Seat Lock

Seat Cushion
Under cover

RH Rear Seat
Reclining Adjuster

Cushion

Rear No. 1 Seat
Inner Belt

No. 1 Rear Seat
Reclining Cover
RH

Reclining Adjuster
Release Handle

LH Rear Seat
Reclining Adjuster

No. 1 Rear Seat
Reclining Cover LH

43 (440, 32)

Reclining
Connecting Pipe

42 (430, 31)

37 (380, 27)

37 (380, 27)

N·m (kgf·cm, ft·lbf)

: Specified torque

43 (440, 32)

43 (440, 32)

43 (440, 32)

Seat Leg Cover LH

Seat Leg
Cover RH

 Hog Ring

 Non–reusable part

 Hog Ring

Fold Seat Lock Control Cable No. 1

Rear Seat Cushion
Hinge RH

Rear Seat Cushion
Hinge LH

43 (440, 32)

64 (653, 47)

RH Rear Seat Lock

–

BODY

REAR NO.1 SEAT (Separate Type)

BO–135

3688

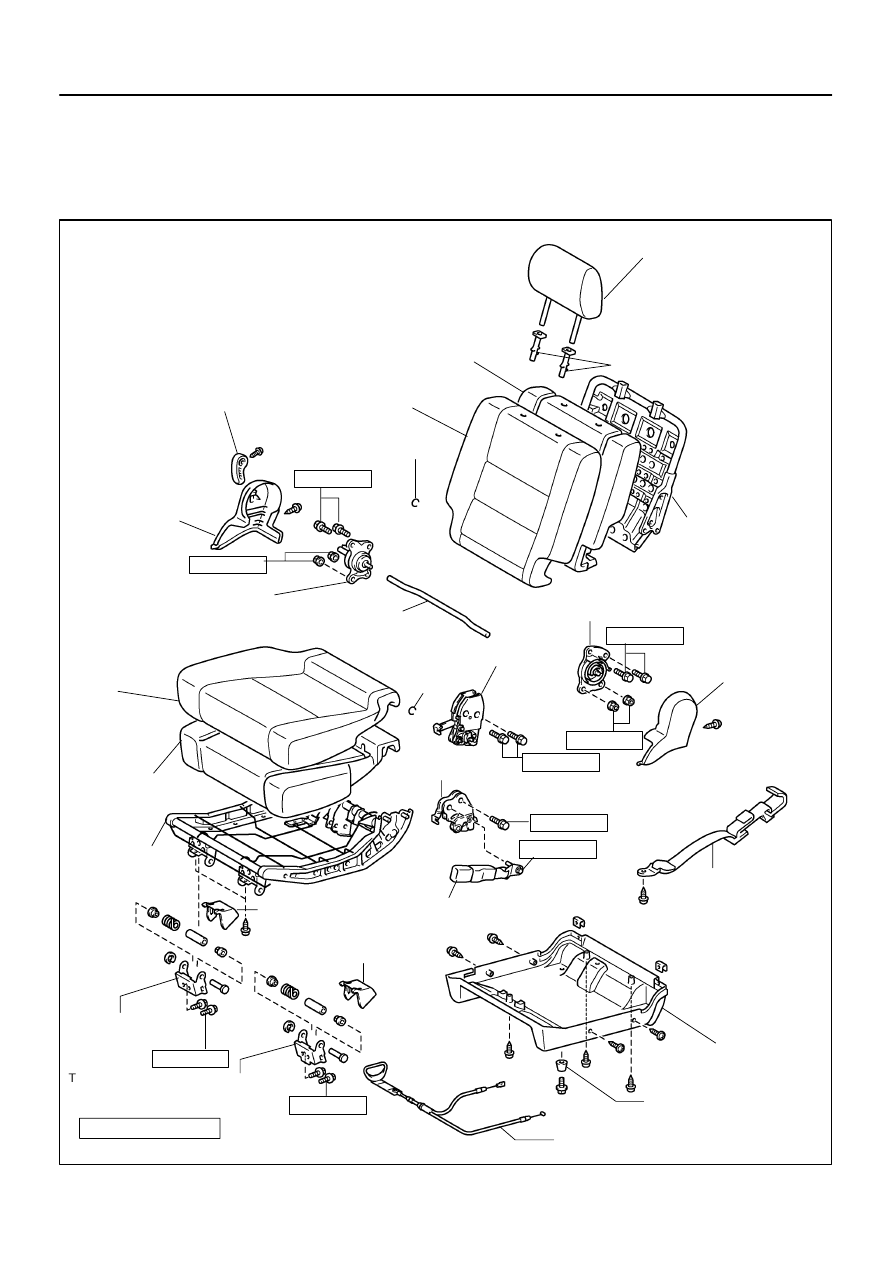

REAR NO.1 SEAT (Separate Type)

COMPONENTS

HINT:
The procedures listed below are for the RH side.
