BO–128

–

BODY

FRONT SEAT (Manual Adjuster Type)

3681

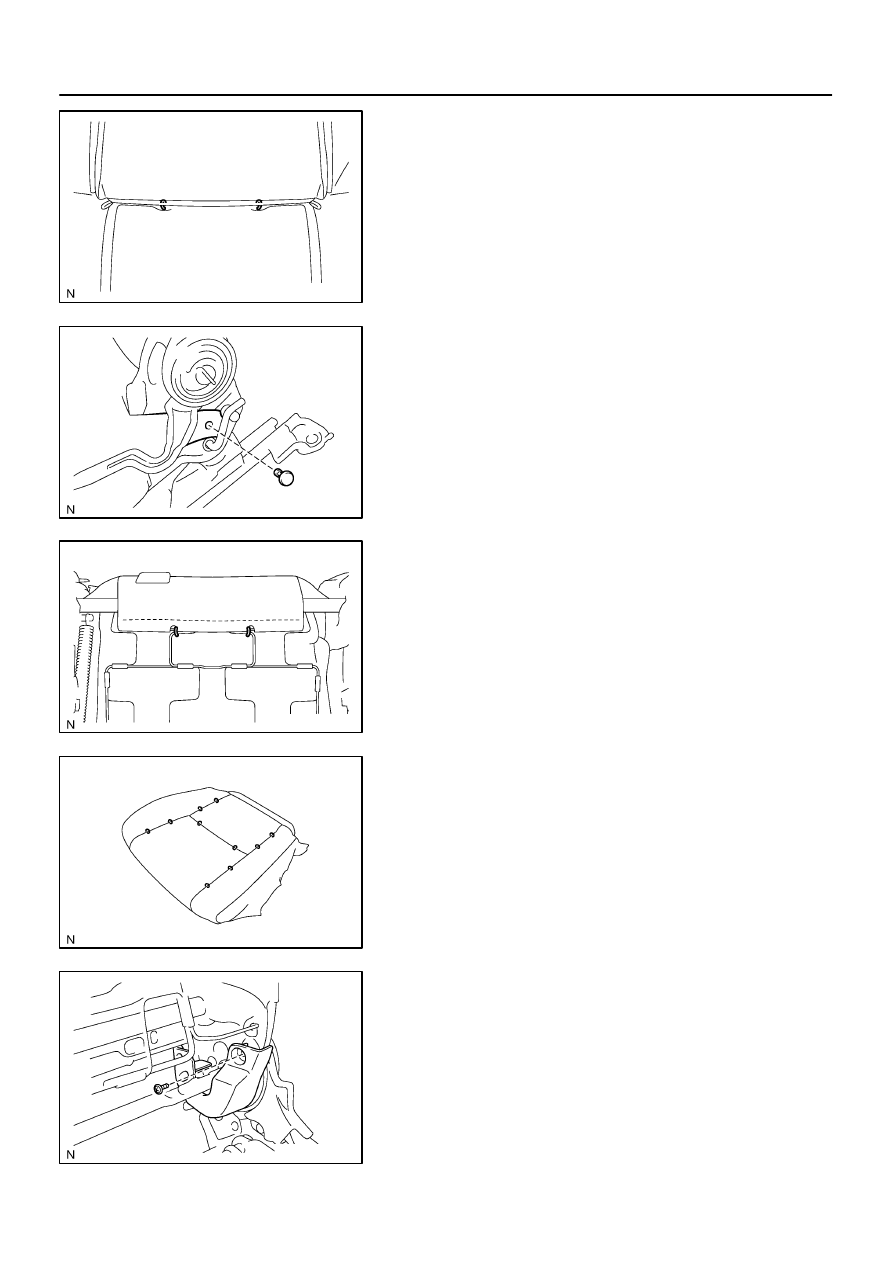

9.

REMOVE SEATBACK COVER

(a)

Turn up the seatback cover and remove the hog rings.

(b)

Remove the 2 headrest supports.

(c)

Remove the seatback cover from the seatback pad.

10.

REMOVE SEAT CUSHION COVER AND PAD

(a)

Remove the clip.

(b)

Perform the same procedure on the other side.

(c)

Remove the hog rings from the seat cushion cover.

(d)

Unlatch the seat cushion cover hooks, then remove the
seat cushion cover with seat cushion pad.

11.

REMOVE SEAT CUSHION COVER

Remove the hog rings and seat cushion cover from the seat
cushion pad.

12.

REMOVE RH AND LH UPPER RECLINING ADJUSTER
INSIDE COVERS

(a)

Remove the screw and LH upper reclining adjuster inside
cover.

(b)

Perform the same procedure on the other side.

H24343

H24341

–

BODY

FRONT SEAT (Manual Adjuster Type)

BO–129

3682

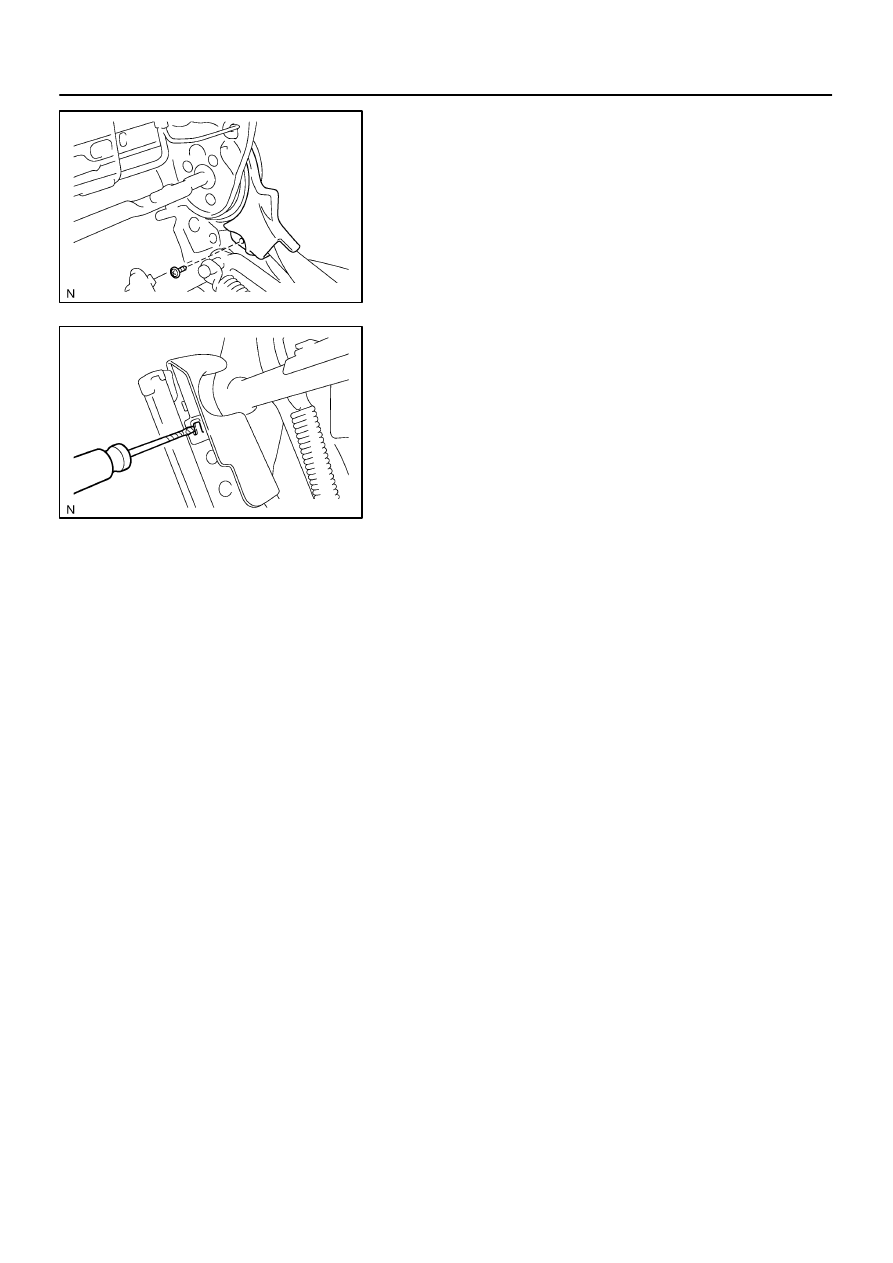

13.

REMOVE RH AND LH LOWER RECLINING ADJUSTER
INSIDE COVERS

(a)

Remove the screw and LH lower reclining adjuster inside
cover.

(b)

Perform the same procedure on the other side.

14.

REMOVE RH AND LH SEAT CUSHION LOWER
SHIELDS

(a)

Using a screwdriver, disengage the claw and remove the
LH seat cushion lower shield.

HINT:
Tape the screwdriver tip before use.
(b)

Perform the same procedure on the other side.

15.

Driver’s seat:
REMOVE SEAT POSITION SENSOR
(See page

RS–104

)

BO4SE–01

H24343

H24342

H24395

BO–130

–

BODY

FRONT SEAT (Manual Adjuster Type)

3683

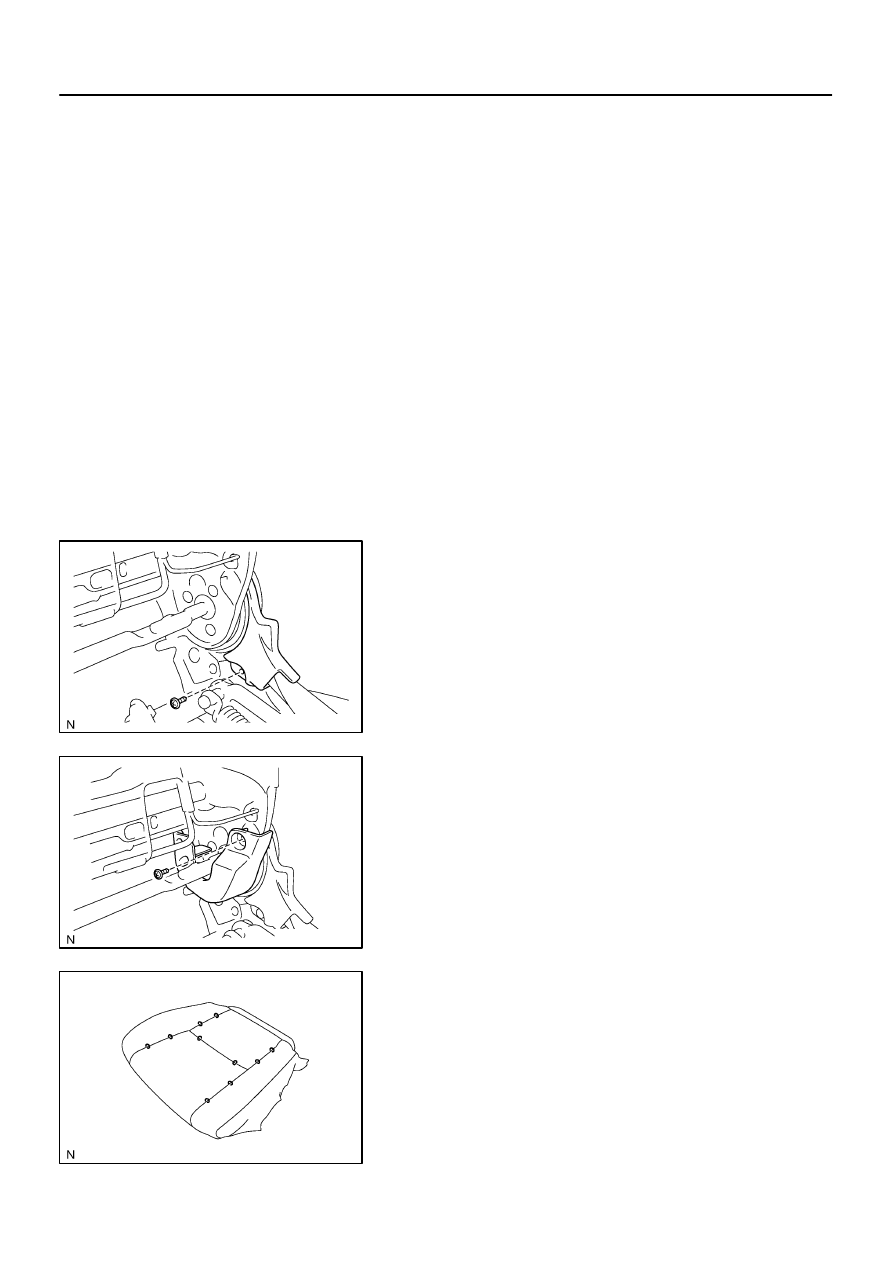

REASSEMBLY

CAUTION:
Wear safety gloves, because the sharp edges and surfaces
of the seat frame may cause injury to the hands.
HINT:

The procedures listed below are for the LH side.

A bolt without a torque specification is shown in the stan-
dard bolt chart (see page

SS–2

).

1.

Driver’s seat:
INSTALL SEAT POSITION SENSOR
(SEE PAGE

RS–108

)

2.

INSTALL RH AND LH SEAT CUSHION LOWER
SHIELDS

3.

INSTALL RH AND LH LOWER RECLINING ADJUSTER
INSIDE COVERS

(a)

Install the LH lower reclining adjuster inside cover with the
screw.

(b)

Perform the same procedure on the other side.

4.

INSTALL RH AND LH UPPER RECLINING ADJUSTER
INSIDE COVERS

(a)

Install the LH upper reclining adjuster inside cover with
the screw.

(b)

Perform the same procedure on the other side.

5.

INSTALL SEAT CUSHION COVER

Install the seat cushion cover to the seat cushion pad with the
hog rings.
HINT:
When installing the hog rings, take as much care as possible to
prevent wrinkles.
6.

INSTALL SEAT CUSHION COVER AND PAD

(a)

Install the seat cushion cover with seat cushion pad, and
latch the seat cushion cover hooks.

H24336

H24335

H24319

H24339

Hog Ring

H24338

Hog Ring

–

BODY

FRONT SEAT (Manual Adjuster Type)

BO–131

3684

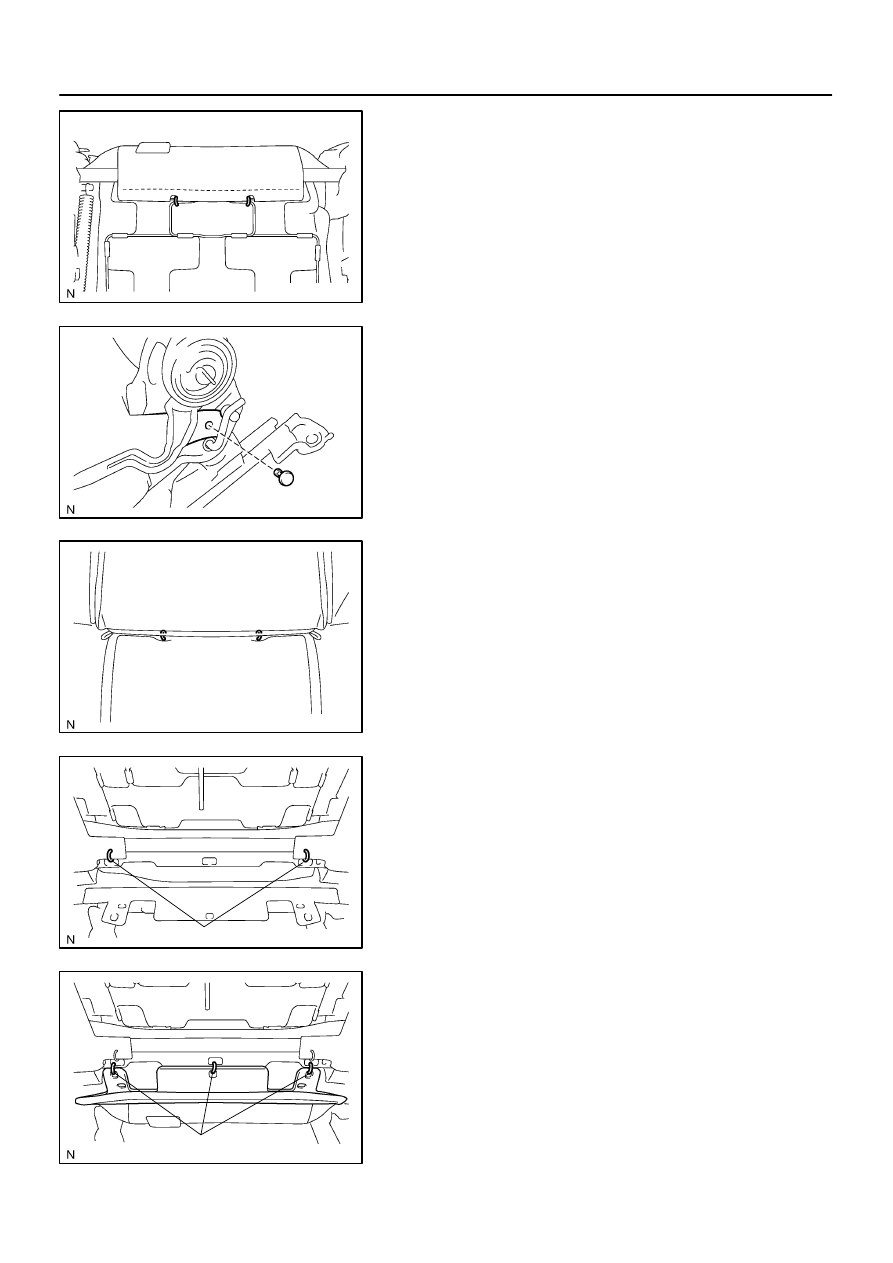

(b)

Install the hog rings to the seat cushion cover.

(c)

Install the clip.

(d)

Perform the same procedure on the other side.

7.

INSTALL SEATBACK COVER

(a)

Install the seatback cover to the seatback pad.

(b)

Install the 2 headrest supports.

(c)

Turn up the seatback cover and install the hog rings.

8.

INSTALL SEATBACK COVER AND PAD

(a)

Install the seatback cover and pad to the seat frame as-
sembly.

(b)

Install the hog rings to the seat frame assembly.

(c)

Install the hog rings to the seat frame assembly.
