Toyota Sequoia (2005). Manual - part 921

H24319

H24318

Hog Ring

H24321

Hog Ring

H24861

H24317

BO–120

–

BODY

FRONT SEAT (Power Adjuster Type)

3673

(c)

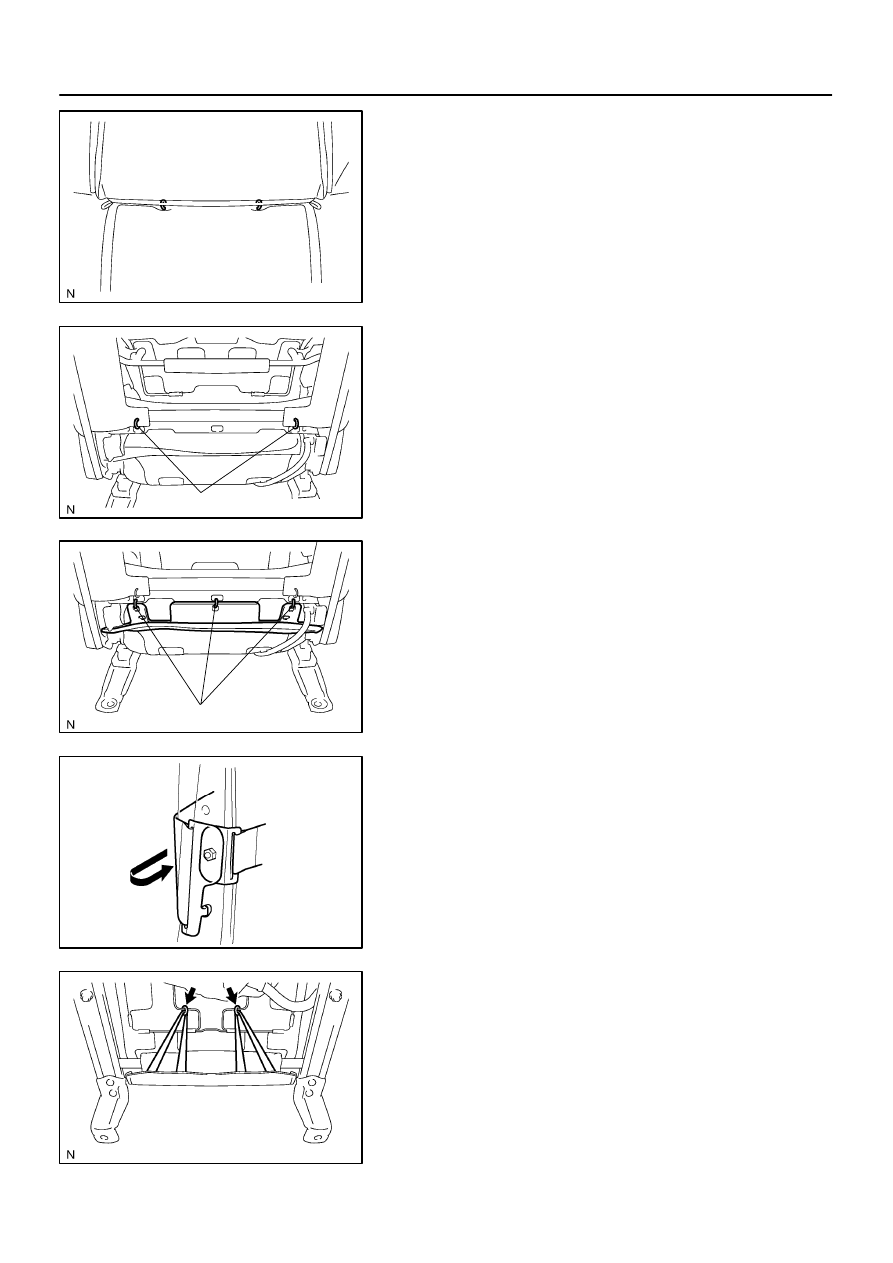

Turn up the seatback cover and install the hog rings.

11.

INSTALL SEATBACK COVER AND PAD

(a)

Install the seatback cover and pad to the seat frame as-
sembly.

(b)

Install the hog rings to the seat frame assembly.

(c)

Install the hog rings to the seat frame assembly.

(d)

w/ Side airbag:
Connect the seatback cover bracket to the seat frame as-
sembly with the nut.
Torque: 5.5 N·m (56 kgf·cm, 49 in.·lbf)

(e)

Close the fastener.

(f)

Install the hog rings to the seat frame assembly.

H24316

H24315

H24314

H24313

–

BODY

FRONT SEAT (Power Adjuster Type)

BO–121

3674

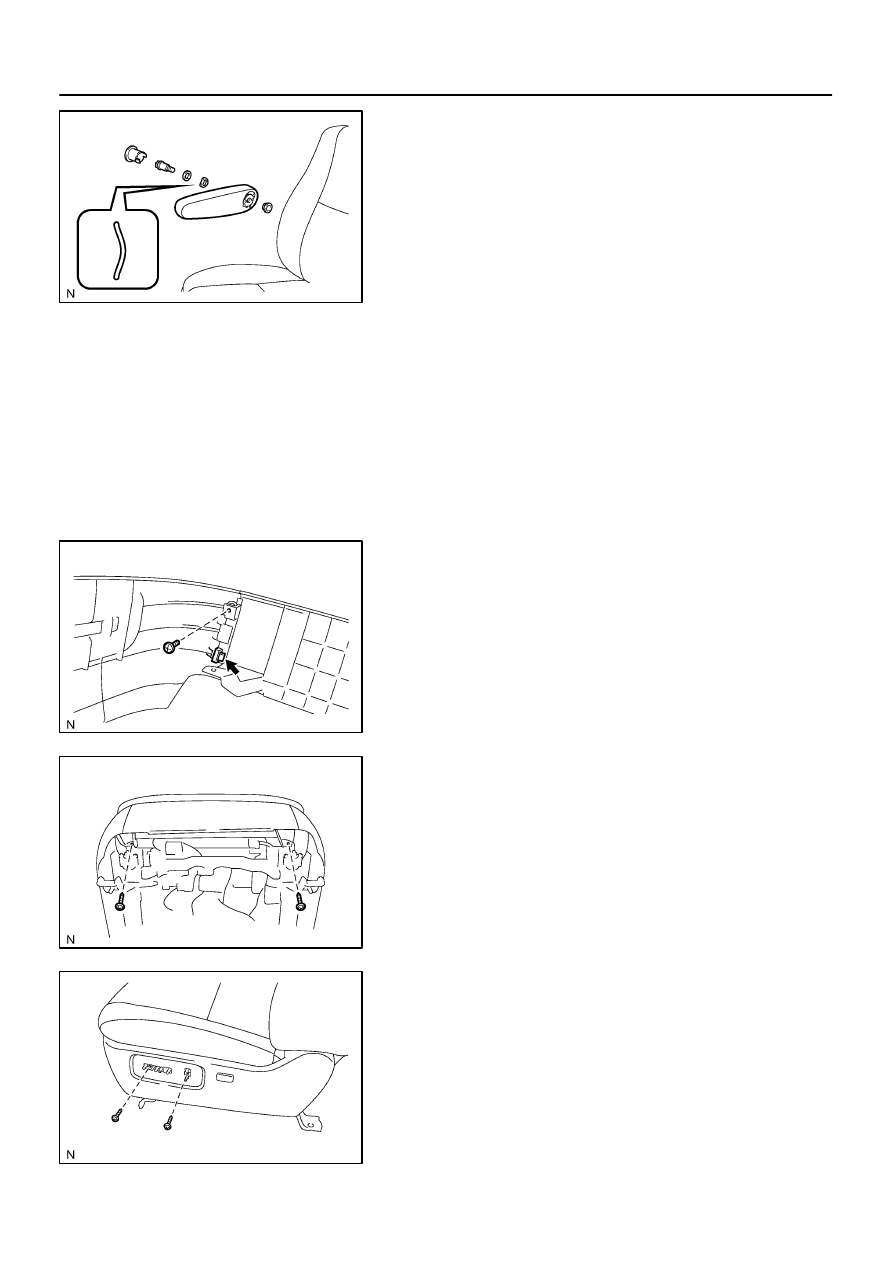

12.

INSTALL ARMREST ASSEMBLY

(a)

Install the spacer to the armrest assembly.

(b)

Install the armrest assembly, armrest lock plate and arm-
rest spacer with the bolt.
Torque: 37 N·m (380 kgf·cm, 27 ft·lbf)

HINT:
Install the armrest lock plate as shown in the illustration.
(c)

Install the armrest cap.

13.

INSTALL POWER SWITCH

Install the power switch with the 3 screws.
14.

INSTALL LUMBAR SWITCH

Install the lumbar switch with the 2 screws to the seat cushion
outer shield.
15.

INSTALL FRONT SEAT INNER BELT

(a)

Install the front seat inner belt with the nut.
Torque: 42 N·m (430 kgf·cm, 32 ft·lbf)

(b)

Connect the connectors and wire harness clamps.

16.

INSTALL SEAT CUSHION LOWER SHIELD, SEAT
CUSHION OUTER SHIELD AND SEAT CUSHION IN-
NER SHIELD

(a)

Assemble the seat cushion lower shield and seat cushion
outer shield with the screw.

(b)

Perform the same procedure on the other side.

(c)

Connect the lumbar switch connector to the seat cushion
outer shield, and install the seat cushion lower shield, out-
er shield and inner shield.

(d)

Install the 2 screws to the seat cushion lower shield.

(e)

Install the screw to the seat cushion inner shield.

(f)

Install the 2 screws to the seat cushion outer shield.

H24312

BO–122

–

BODY

FRONT SEAT (Power Adjuster Type)

3675

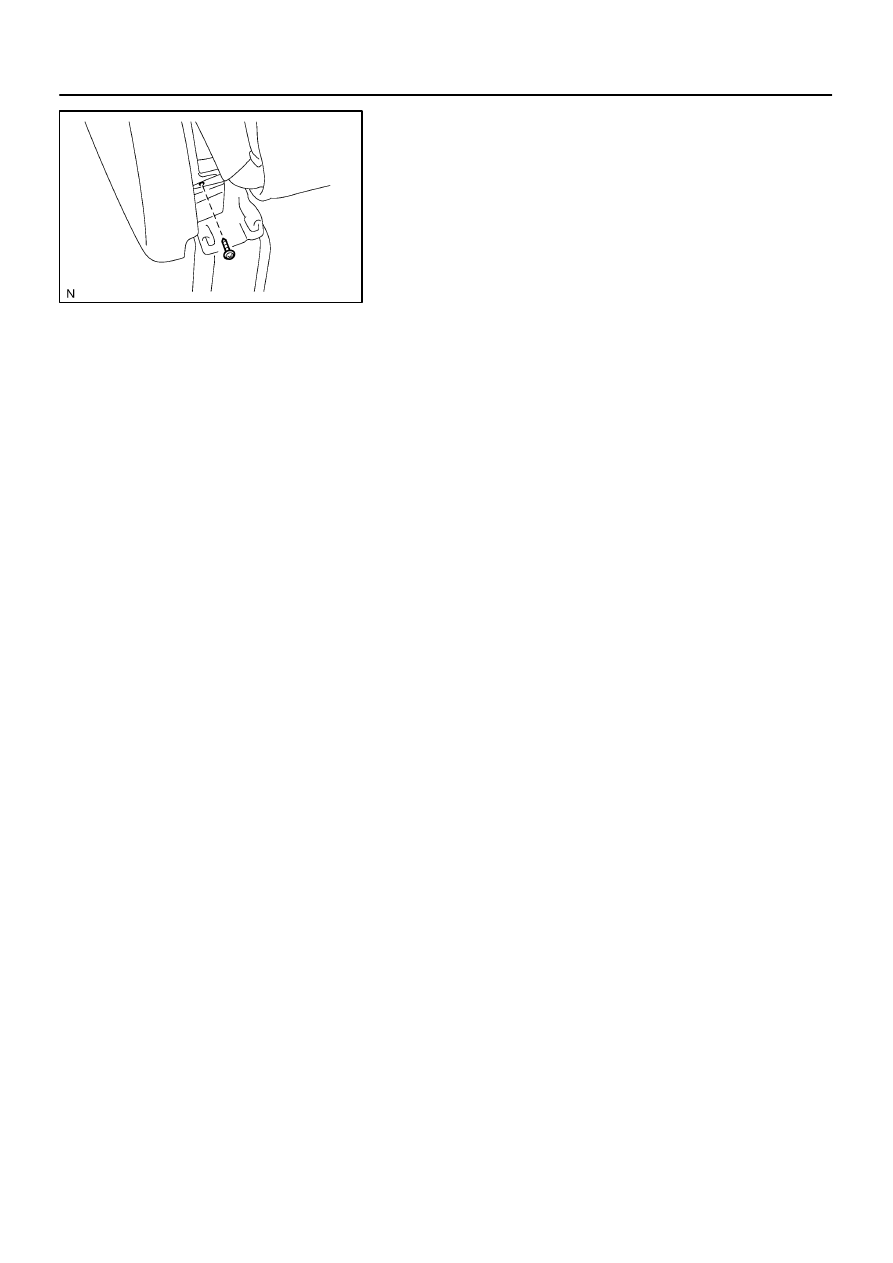

(g)

Install the screw to the seat cushion outer shield.

(h)

Perform the same procedure on the seat cushion inner
shield.

17.

INSTALL SLIDE KNOB AND RECLINING KNOB

18.

INSTALL HEADREST

BO4S9–01

–

BODY

FRONT SEAT (Power Adjuster Type)

BO–123

3676

INSTALLATION

HINT:
The procedures listed below are for the LH side.
1.

INSTALL FRONT SEAT

(a)

Mount the front seat to the vehicle.

NOTICE:
Be careful not to damage the vehicle body.
(b)

w/ Side airbag:
Connect the airbag connector.

(c)

Connect the connectors.

(d)

Slide the front seat to the rearmost position.

(e)

Tighten the bolts on the front side temporarily, starting from the bolt on the inner side.

(f)

Tighten them completely.
Torque: 37 N·m (380 kgf·cm, 27 ft·lbf)

(g)

Slide the front seat to the foremost position.

(h)

Tighten the bolts on the rear side temporarily, starting from the bolt on the inner side.

(i)

Tighten them completely.
Torque: 37 N·m (380 kgf·cm, 27 ft·lbf)

2.

INSTALL SEAT TRACK COVERS

3.

CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

4.

Passenger ’s seat:
PERFORM PASSENGER OCCUPANT CLASSIFICATION SYSTEM ZERO POINT CALIBRATION
(See page

DI–1128

)

5.

PERFORM INITIALIZATION (See page

IN–20

)

Some systems need initialization when disconnecting the cable from the negative battery terminal.
