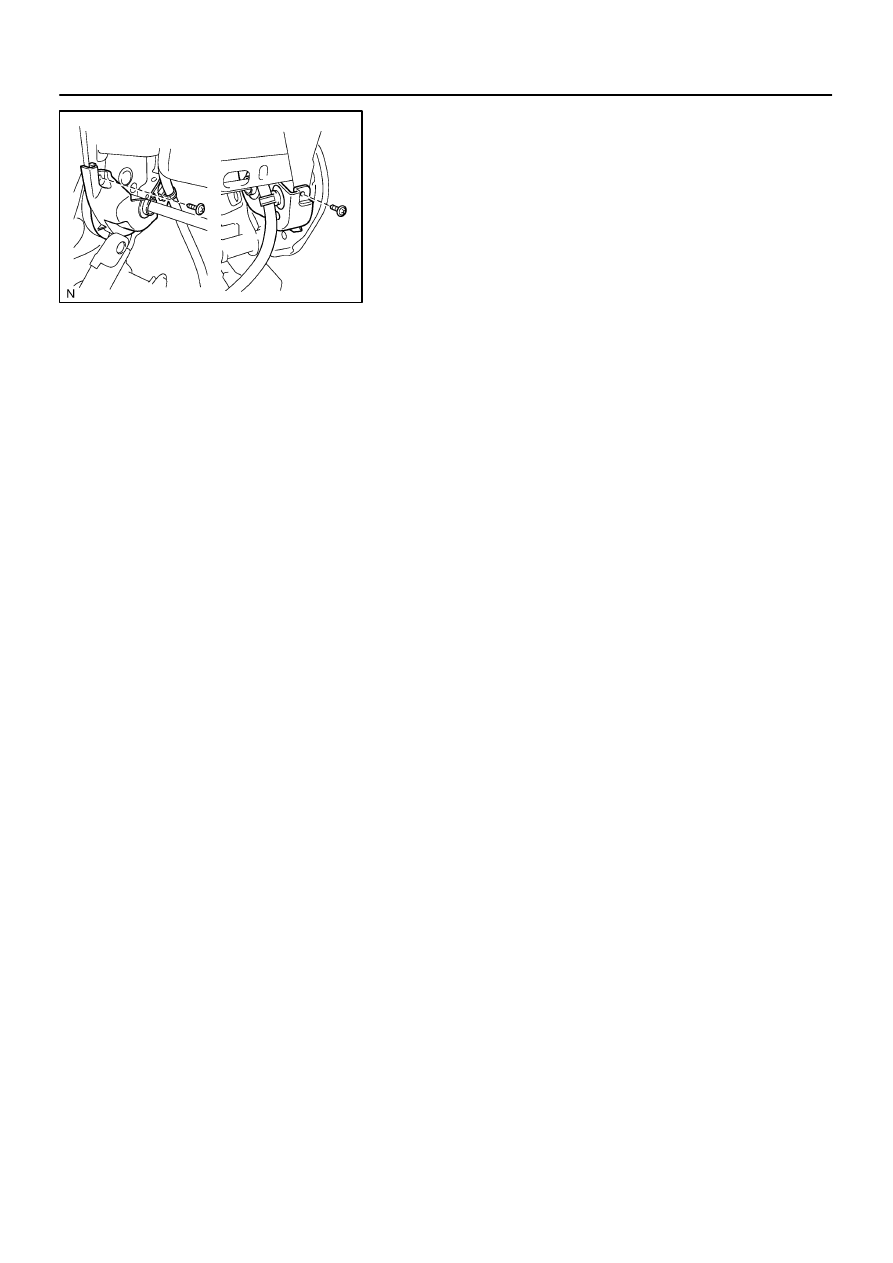

H24327

BO–116

–

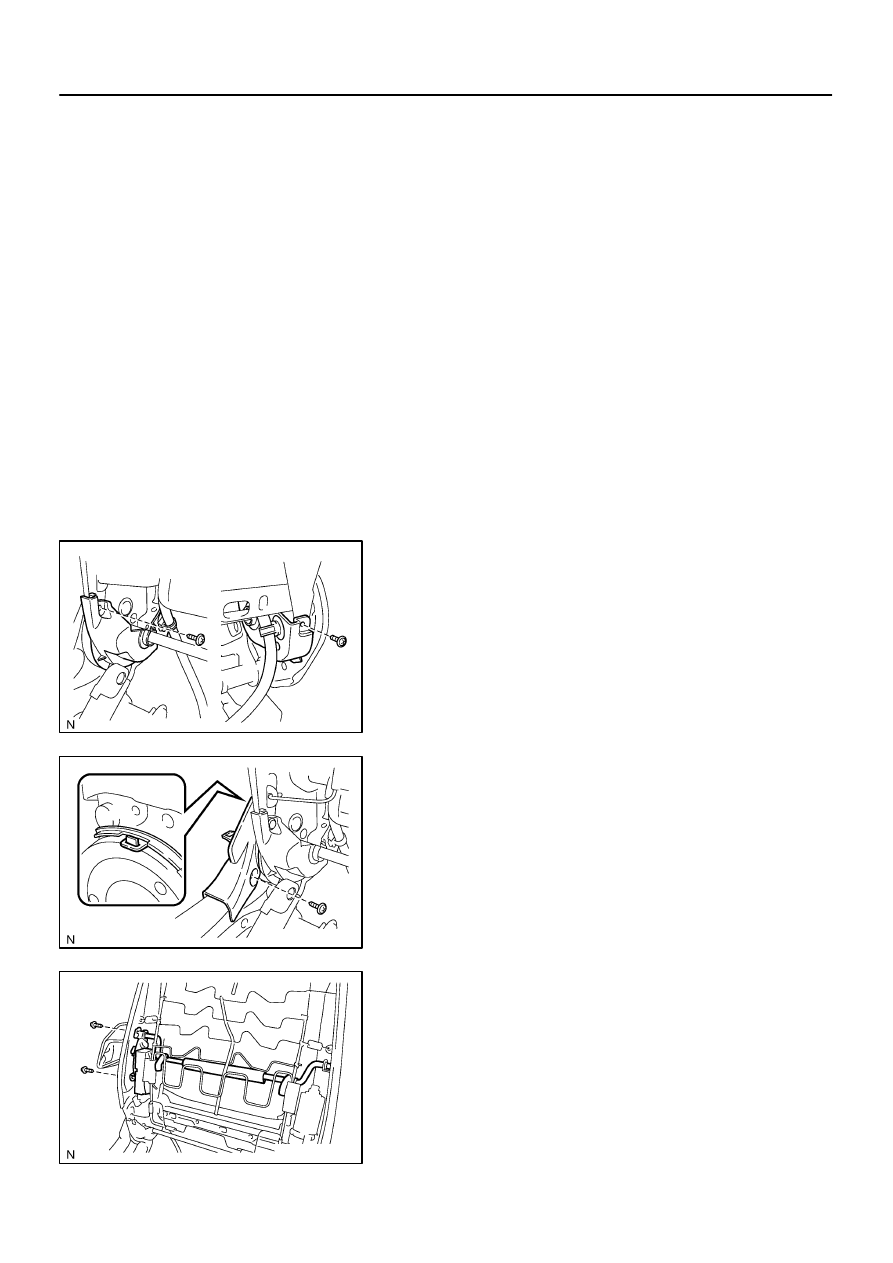

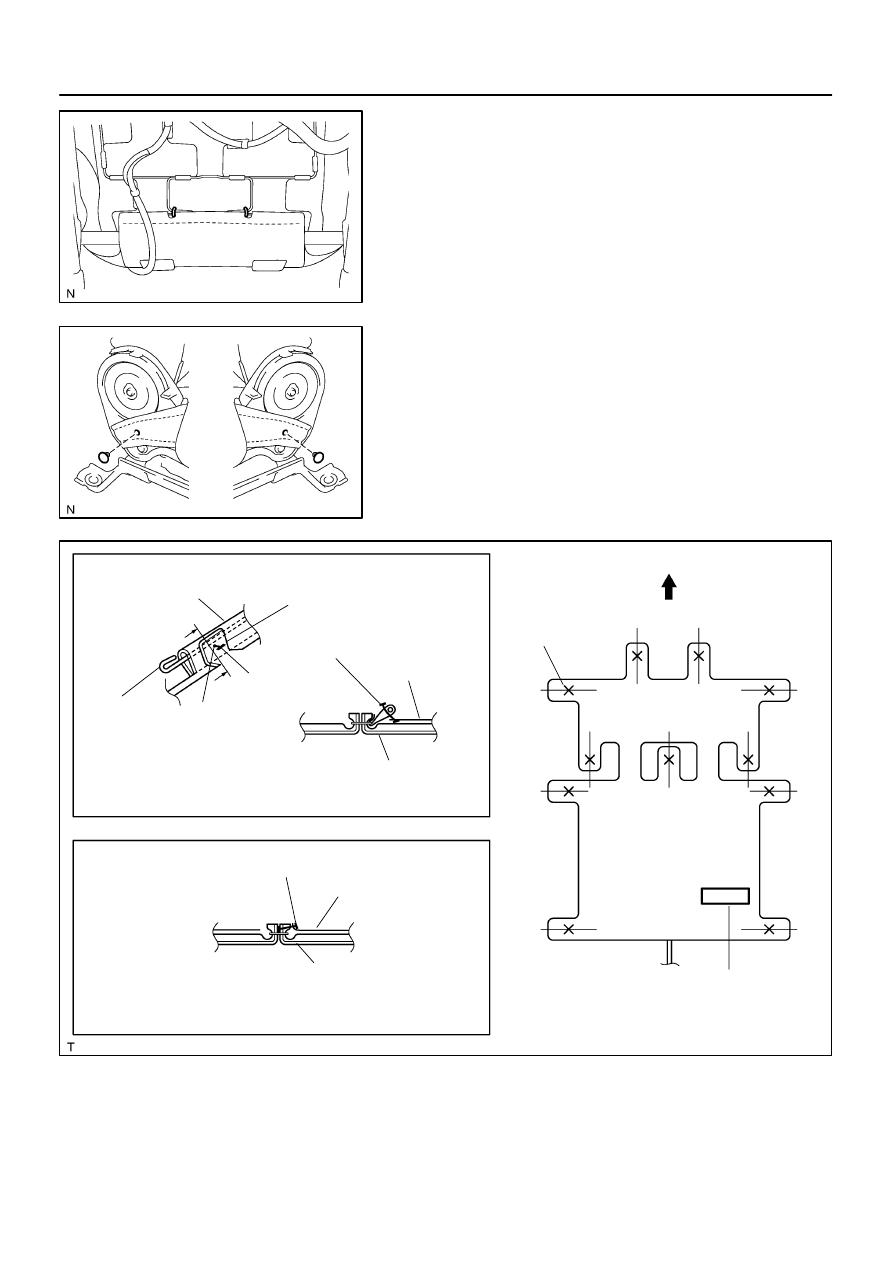

BODY

FRONT SEAT (Power Adjuster Type)

3669

16.

REMOVE RH AND LH SEATBACK SHIELDS

(a)

Remove the 2 screws and RH seatback shield.

(b)

Perform the same procedure on the other side.

17.

REMOVE VERTICAL ADJUSTER BRACKET INNER
AND OUTER COVERS

(a)

Remove the screw and vertical adjuster bracket inner
cover.

(b)

Perform the same procedure on the other side.

18.

Driver’s seat:
REMOVE SEAT POSITION SENSOR
(See page

RS–104

)

BO4SA–01

H24327

H24326

H24325

–

BODY

FRONT SEAT (Power Adjuster Type)

BO–117

3670

REASSEMBLY

CAUTION:
Wear safety gloves, because the sharp edges and surfaces
of the seat frame may cause injury to the hands.
HINT:

The procedures listed below are for the LH side.

A bolt without a torque specification is shown in the stan-
dard bolt chart (see page

SS–2

).

1.

Driver’s seat:
INSTALL SEAT POSITION SENSOR
(SEE PAGE

RS–108

)

2.

INSTALL VERTICAL ADJUSTER BRACKET INNER
AND OUTER COVERS

(a)

Install the vertical adjuster bracket inner cover with the
screw.

(b)

Perform the same procedure on the other side.

3.

INSTALL RH AND LH SEATBACK SHIELDS

(a)

Install the RH seatback shield with the 2 screws.

(b)

Perform the same procedure on the other side.

4.

INSTALL RH AND LH RECLINING ADJUSTER INSIDE
COVERS

(a)

Connect the wire harness clamp.

(b)

Install the RH reclining adjuster inside cover with the
screw.

(c)

Perform the same procedure on the other side.

5.

INSTALL LUMBAR SUPPORT ADJUSTER

(a)

Install a new bushing to the lumbar support adjuster.

(b)

Install the lumbar support adjuster with the 2 screws.

H24324

H24394

Listing Pocket

Seat Wire

Seat Heater

Tack Pin

Seat Cushion Cover

A: Install the tack pins under the wire.

A

Seat Heater Strap

Tack pins should not be beyond the seat.

Front

Name Stamp

a–a:

Tack Pin

Seat Heater

b–b:

Tack Pin

Seat Heater

Seat Cushion Cover

Tack Pin

a

b

a

b

a

a

b

b

b

b

b

b

b

b

b

b

b

b

b

b

H24395

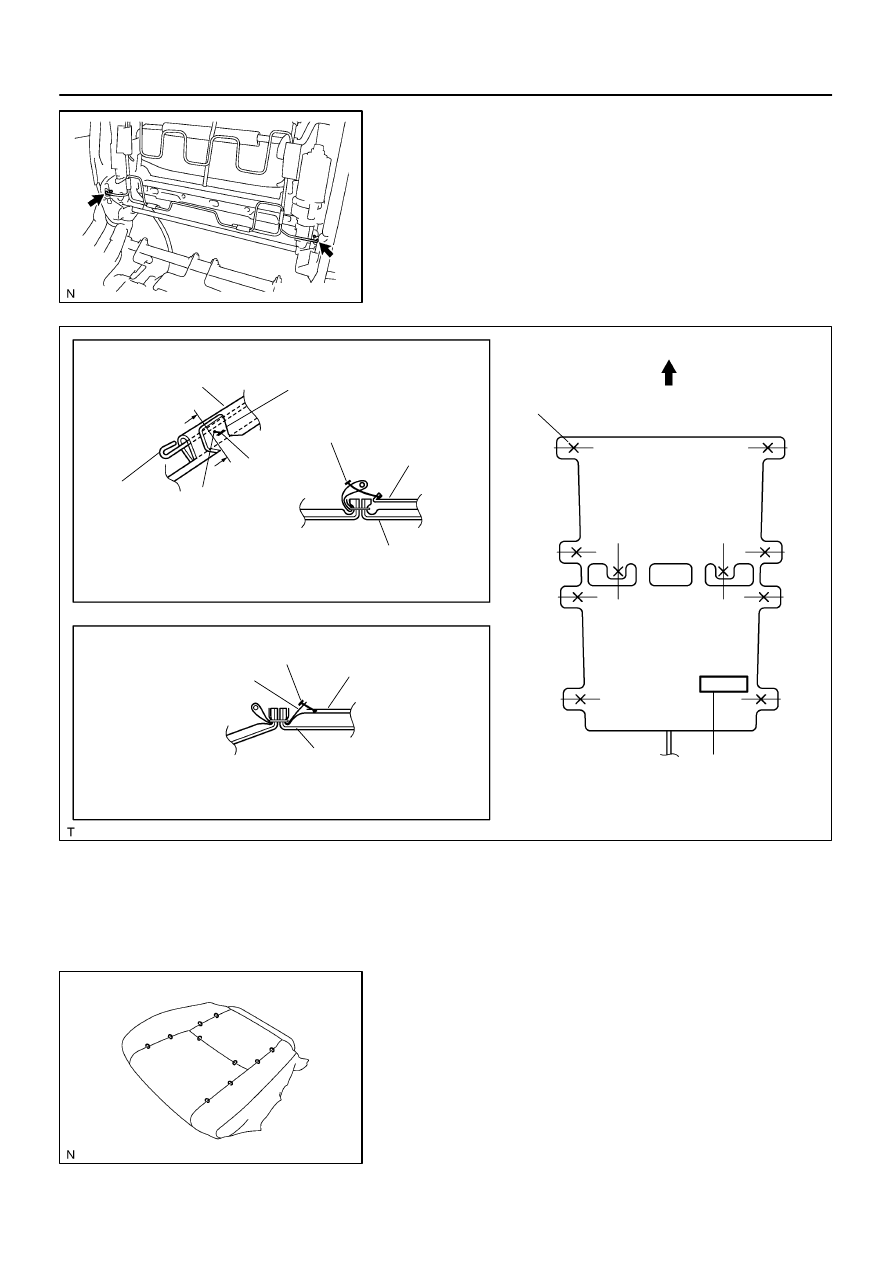

BO–118

–

BODY

FRONT SEAT (Power Adjuster Type)

3671

(c)

Engage the seatback spring edge with the seat frame as-
sembly.

6.

w/ Seat heater:
INSTALL SEAT CUSHION HEATER ASSEMBLY

(a)

Set the seat cushion heater assembly with the name
stamp side facing the seat cushion cover.

(b)

Install the seat cushion heater assembly with the 10 tack
pins.

NOTICE:
Do not substitute other metal parts for tack pins.

7.

INSTALL SEAT CUSHION COVER

Install the seat cushion cover to the seat cushion pad with the
hog rings.
HINT:
When installing the hog rings, take as much care as possible to
prevent wrinkles.
8.

INSTALL SEAT CUSHION COVER AND PAD

(a)

Install the seat cushion cover with seat cushion pad, and
latch the seat cushion cover hooks.

H24378

H24320

H24393

Listing Pocket

Seat Wire

Seat Heater

Tack Pin

Seatback Cover

A: Install the tack pins under the wire.

A

Tack pins should not be beyond the seat.

Upper

Name Stamp

a–a:

Tack Pin

Seat Heater

b–b:

Tack Pin

Seat Heater

Tack Pin

a

b

a

b

Seatback Cover

a

a

b

b

b

b

b

b

b

b

b

b

b

b

b

b

b

b

–

BODY

FRONT SEAT (Power Adjuster Type)

BO–119

3672

(b)

Install the hog rings to the seat cushion cover.

(c)

Install the 2 clips.

(d)

Connect the wire harness clamp.

9.

w/ Seat heater:
INSTALL SEATBACK HEATER ASSEMBLY

(a)

Set the seatback heater assembly with the name stamp
side facing the seatback cover.

(b)

Install the seatback heater assembly with the 11 tack
pins.

NOTICE:
Do not substitute other metal parts for tack pins.

10.

INSTALL SEATBACK COVER

(a)

Install the seatback cover to the seatback pad.

(b)

Install the 2 headrest supports.
