BO46X–01

BO–108

–

BODY

ROOF HEADLINING

3661

INSTALLATION

Installation is in the reverse order of removal (See page

BO–101

).

BO46Y–01

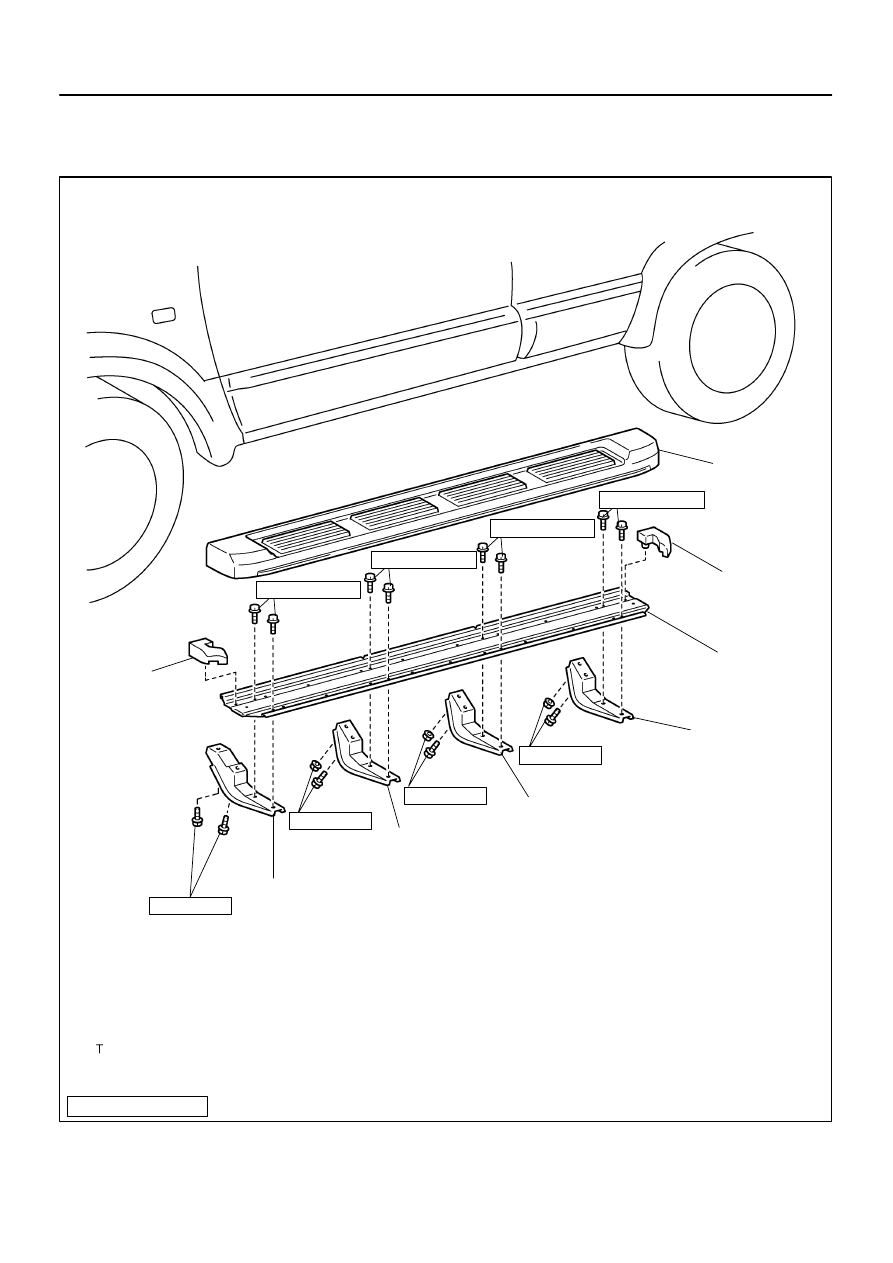

H16753

Side Door Step
Plate Cover

Step Cover
Protector

Step Plate

Side Step Bracket

No. 3 Side Step Bracket

No. 2 Side Step Bracket

No. 1 Side Step Bracket

Step Cover
Protector

N·m (kgf·cm, ft·lbf)

: Specified torque

19 (195, 14)

19 (195, 14)

19 (195, 14)

19 (195, 14)

4.9 (50, 43 in.·lbf)

4.9 (50, 43 in.·lbf)

4.9 (50, 43 in.·lbf)

4.9 (50, 43 in.·lbf)

–

BODY

SIDE STEP

BO–109

3662

SIDE STEP

COMPONENTS

BO4S6–01

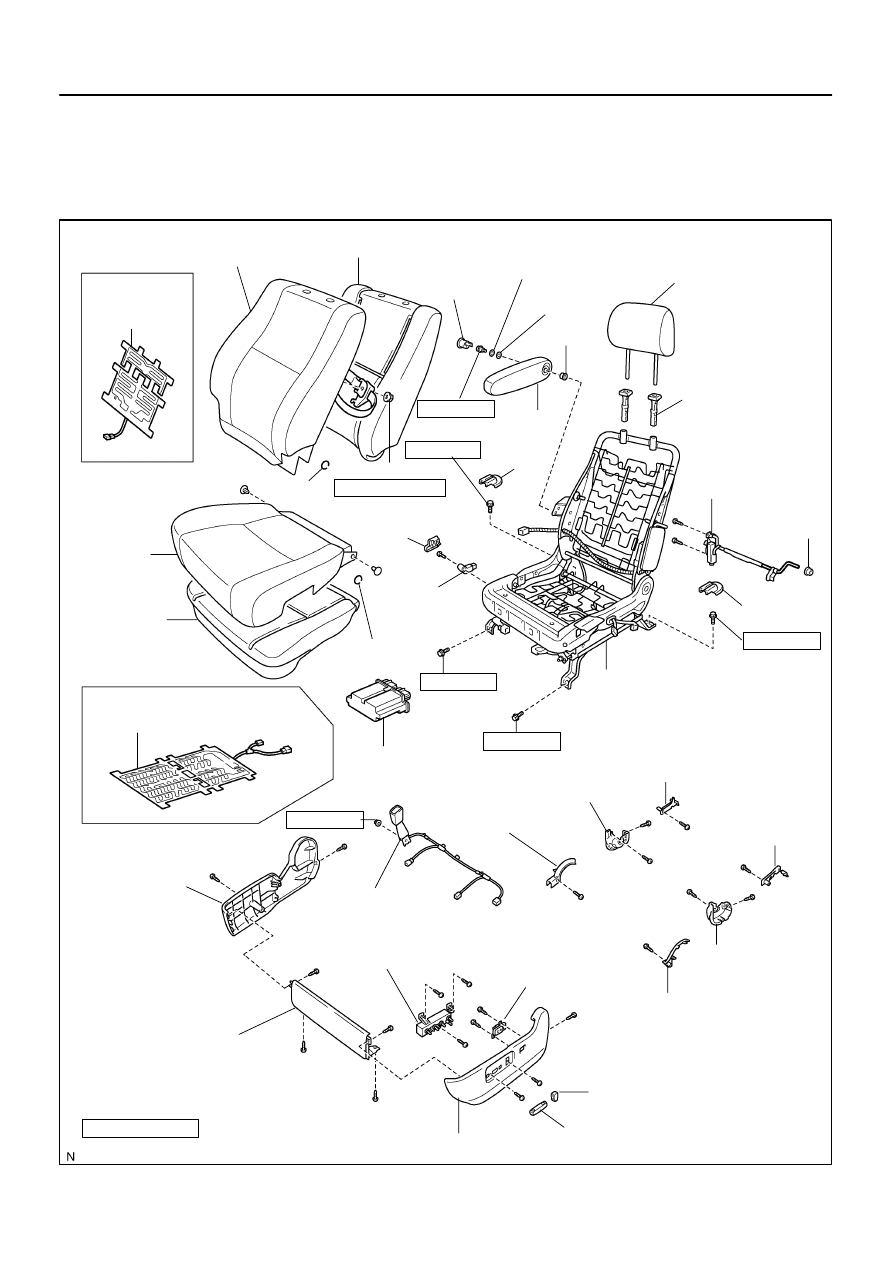

H24329

37 (380, 27)

37 (380, 27)

37 (380, 27)

37 (380, 27)

37 (380, 27)

42 (430, 32)

Seatback Cover

Seat Cushion
Cover

Seat Cushion
Pad

Armrest Cap

Armrest Spacer

Armrest
Lock Plate

Spacer

Armrest
Assembly

Headrest

Headrest Support

Seatback Pad

Lumbar Support
Adjuster

Seat Frame Assembly

Seat Position Sensor
Protector

Seat Position
Sensor

Seat Cushion
Inner Shield

Seat Cushion
Lower Shield

Front Seat Inner Belt

RH Reclining
Adjuster Inside
Cover

RH Seatback
Shield

Vertical Adjuster
Bracket Inner Cover

Vertical Adjuster
Bracket Outer Cover

LH Reclining
Adjuster Inside Cover

Reclining Knob

Slide Knob

Seat Cushion Outer Shield

Lumbar Switch

Power Seat Switch

LH Seatback Shield

Hog Ring

Seat Track
Cover

Seat Track
Cover

Bushing

Hog Ring

Non–reusable part

: Specified torque

N·m (kgf·cm, ft·lbf)

w/ Side airbag:

5.5 (56, 49 in.·lbf)

w/ Seat heater:

w/ Seat heater:

Seat Cushion Heater Assembly

Seatback
Heater Assembly

Occupant Classification ECU

Passenger’s seat:

Driver’s seat:

Driver’s seat:

BO–110

–

BODY

FRONT SEAT (Power Adjuster Type)

3663

FRONT SEAT (Power Adjuster Type)

COMPONENTS

HINT:
The procedures listed below are for the LH side.

BO4S7–01

–

BODY

FRONT SEAT (Power Adjuster Type)

BO–111

3664

REMOVAL

CAUTION:
Work must not be started until at least 90 seconds after the ignition switch is turned to the LOCK posi-
tion and the negative (–) terminal cable is disconnected from the battery.
(The SRS is equipped with a back–up power source. If work is started within 90 seconds from discon-
necting the negative (–) terminal cable of the battery, the SRS may deploy.)
NOTICE:
When removing/installing and overhauling the passenger seat, check the passenger occupant clas-
sification system and perform the zero point calibration (see page

DI–1128

).

HINT:
The procedures listed below are for the LH side.
1.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
2.

REMOVE SEAT TRACK COVERS

Using a screwdriver, remove the seat track covers.
HINT:
Tape the screwdriver tip before use.
3.

REMOVE FRONT SEAT

(a)

Remove the 4 bolts.

(b)

Disconnect the connectors.

(c)

w/ Side airbag:
Disconnect the airbag connector.

(d)

Remove the front seat.

NOTICE:
Be careful not to damage the body.
