Toyota Sequoia (2005). Manual - part 916

H16754

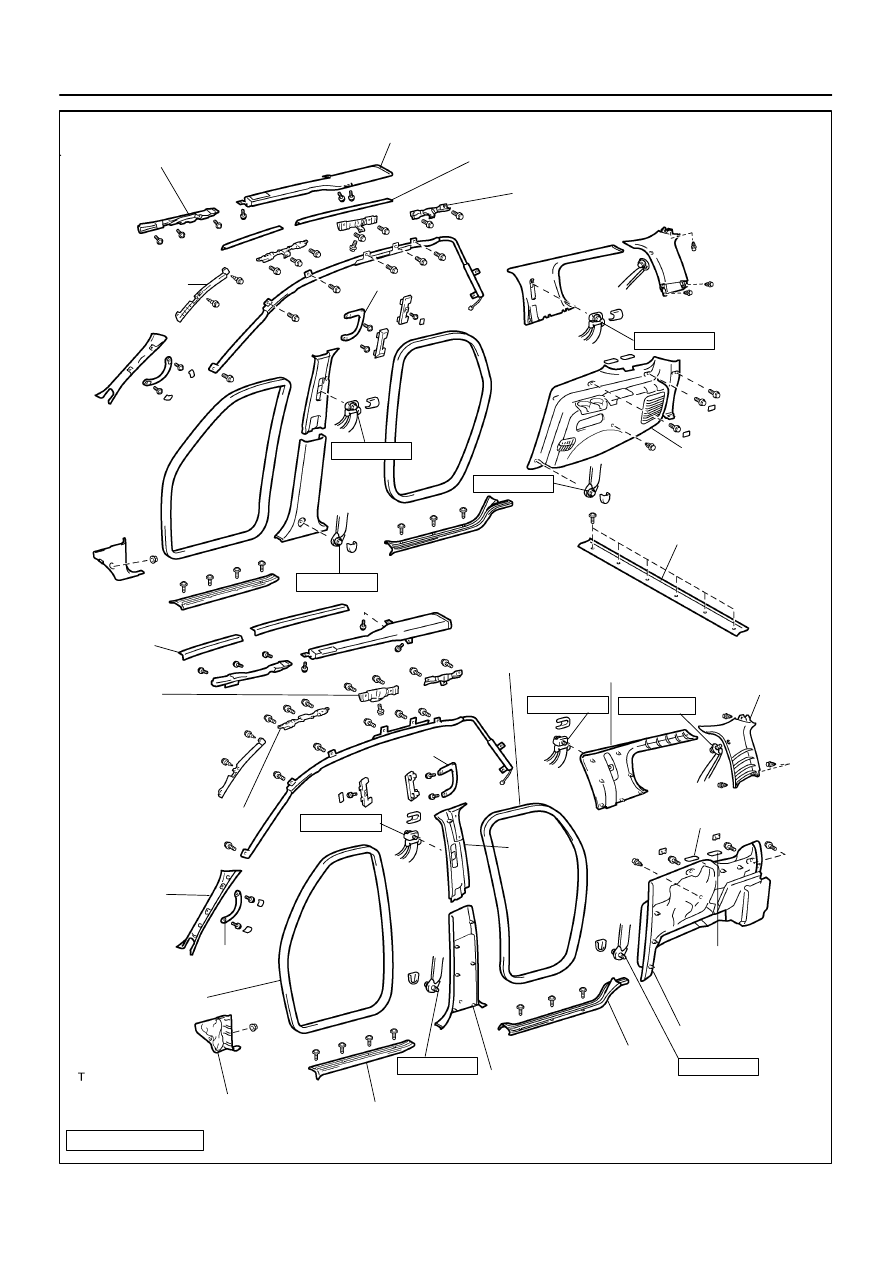

Rear No. 3 Air Duct

w/o Rear A/C:
Rear No. 2 Side Rail Spacer

No. 1 Roof Headlining Trim Side Retainer

w/ Rear A/C:
Front Side Rail Spacer

w/o Curtain shield
airbag assembly:
Front Pillar Spacer

Quarter Trim Panel

Front Door
Scuff Plate

Lower Center
Pillar Garnish

Quarter Trim Panel

w/ Rear No. 2 seat:
Quarter Trim Upper
Belt Hole Cover

Rear Door
Scuff Plate

Center
Pillar
Garnish

Assist Grip

Assist Grip

Front Door Opening
Trim Weatherstrip

Cowl Side Trim Board

Front Pillar
Garnish

Front Roof Headlining
Trim Retainer

Rear Roof
Headlining
Trim Retainer

w/o Rear A/C:
Rear No. 2 Side
Rail Spacer

Rear Window
Side Garnish

No. 2 Rear
Window
Side Garnish

Rear Door
Opening Trim
Weatherstrip

w/o Rear No. 2 seat:
Quarter Trim Hole Cover

Rear Floor Mat
Support Plate

42 (430, 31)

42 (430, 31)

42 (430, 31)

42 (430, 31)

N·m (kgf·cm, ft·lbf) : Specified torque

42 (430, 31)

42 (430, 31)

42 (430, 31)

42 (430, 31)

42 (430, 31)

Assist Grip

BO–100

–

BODY

ROOF HEADLINING

3653

BO4HN–04

H24383

Claw

H16716

2 Clips

H16717

Clip

–

BODY

ROOF HEADLINING

BO–101

3654

REMOVAL

1.

w/ Rear No 2 seat:
REMOVE REAR NO. 2 SEAT

2.

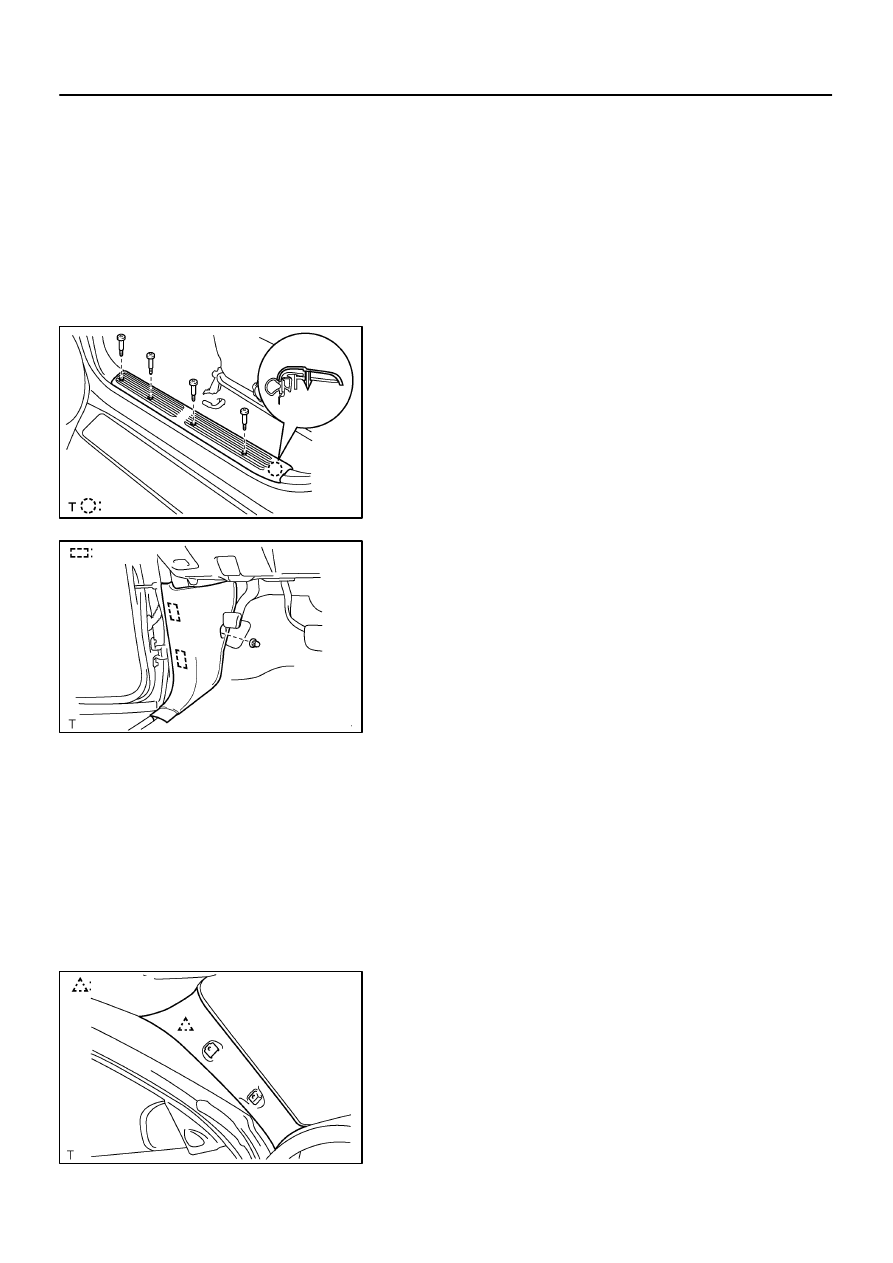

REMOVE FRONT DOOR SCUFF PLATE

(a)

Remove the 4 screws and front door scuff plate.

(b)

Use the same manner described above to the other side.

3.

REMOVE COWL SIDE TRIM BOARD

(a)

Remove the nut and cowl side trim board.

(b)

Use the same manner described above to the other side.

4.

REMOVE FRONT DOOR OPENING TRIM WEATH-
ERSTRIP

5.

REMOVE FRONT PILLAR GARNISH

(a)

Remove the assist grip.
(1)

Using a screwdriver, remove the 2 assist grip plugs.

HINT:
Tape the screwdriver tip before use.

(2)

Remove the 2 screws and assist grip.

(b)

Remove the front pillar garnish.

(c)

Use the same manner described above to the other side.

H16718

Clip

H16719

4 Clips

H10441

H17900

4 Claws

BO–102

–

BODY

ROOF HEADLINING

3655

6.

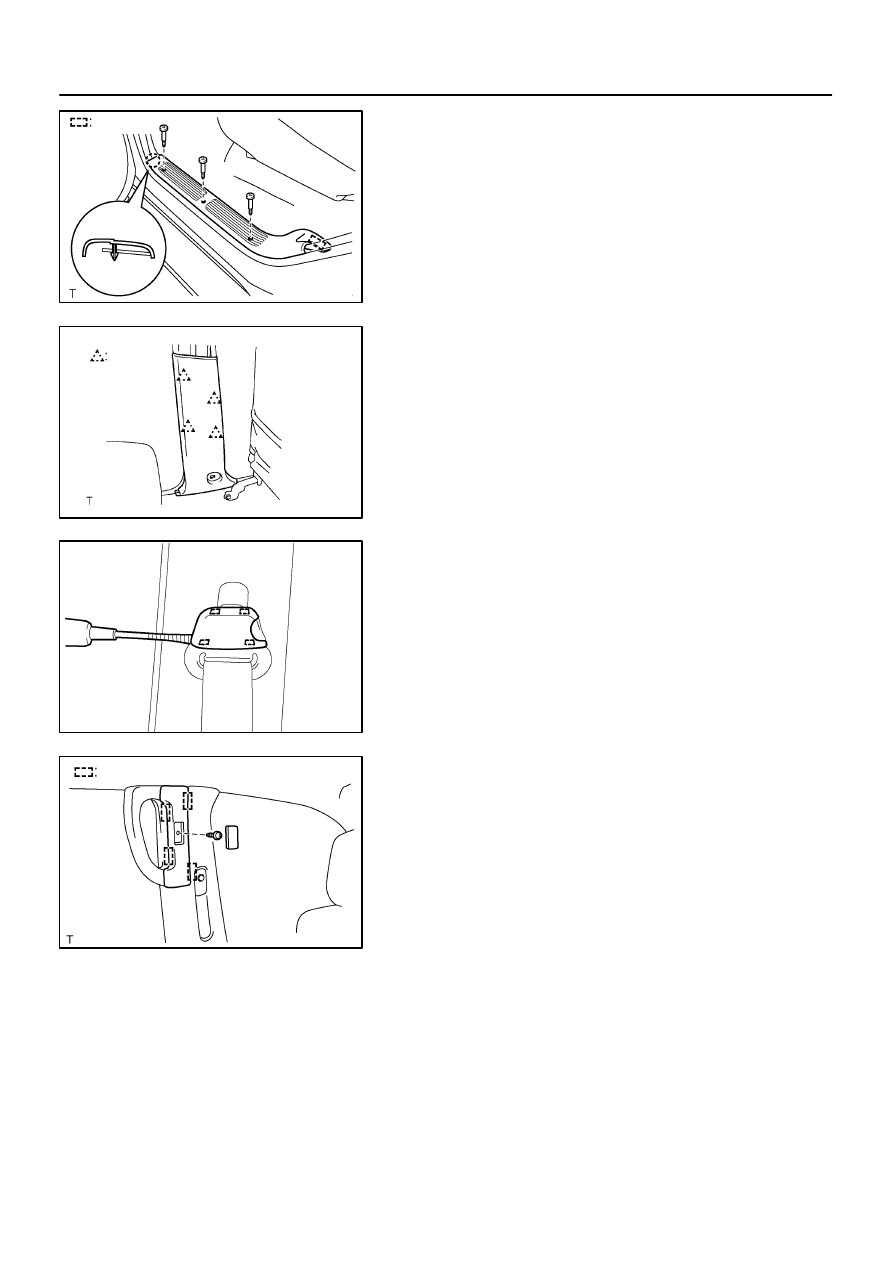

REMOVE REAR DOOR SCUFF PLATE

(a)

Remove the 3 screws.

(b)

Using a screwdriver, remove the rear door scuff plate.

HINT:
Tape the screwdriver tip before use.
(c)

Use the same manner described above to the other side.

7.

REMOVE REAR DOOR OPENING TRIM WEATH-
ERSTRIPS

8.

REMOVE LOWER CENTER PILLAR GARNISH

(a)

Remove the front seat outer belt floor anchor.
Torque: 42 N·m (430 kgf·cm, 31 ft·lbf)

(b)

Using a screwdriver, remove the lower center pillar gar-
nish.

HINT:
Tape the screwdriver tip before use.
(c)

Use the same manner described above to the other side.

9.

REMOVE FRONT SEAT OUTER BELT SHOULDER AN-
CHOR

(a)

Using a screwdriver, remove the anchor cap.

HINT:
Tape the screwdriver tip before use.
(b)

Remove the front seat outer belt shoulder anchor.
Torque: 42 N·m (430 kgf·cm, 31 ft·lbf)

10.

w/ Curtain shield airbag assembly:
REMOVE ASSIST GRIP

(a)

Using a screwdriver, remove the cap.

HINT:
Tape the screwdriver tip before use.
(b)

Remove the screw.

(c)

Using a screwdriver, remove the No. 2 assist grip plug.

HINT:
Tape the screwdriver tip before use.
(d)

Remove the 2 screws and assist grip.

(e)

Use the same manner described above to the other side.

H16720

4 Claws

H16721

Clip

H11151

H17633

w/o Rear No. 2 seat:

w/ Rear No. 2 seat:

–

BODY

ROOF HEADLINING

BO–103

3656

11.

w/o Curtain shield airbag asseindly:
REMOVE ASSIST GRIP

(a)

Using a screwdriver, remove the No. 2 assist grip piug.

HINT:
Tape the screwdriver tip before use.
(b)

Remove the 2 screws and assist grip.

(c)

Use the same manner described above to the other side.

12.

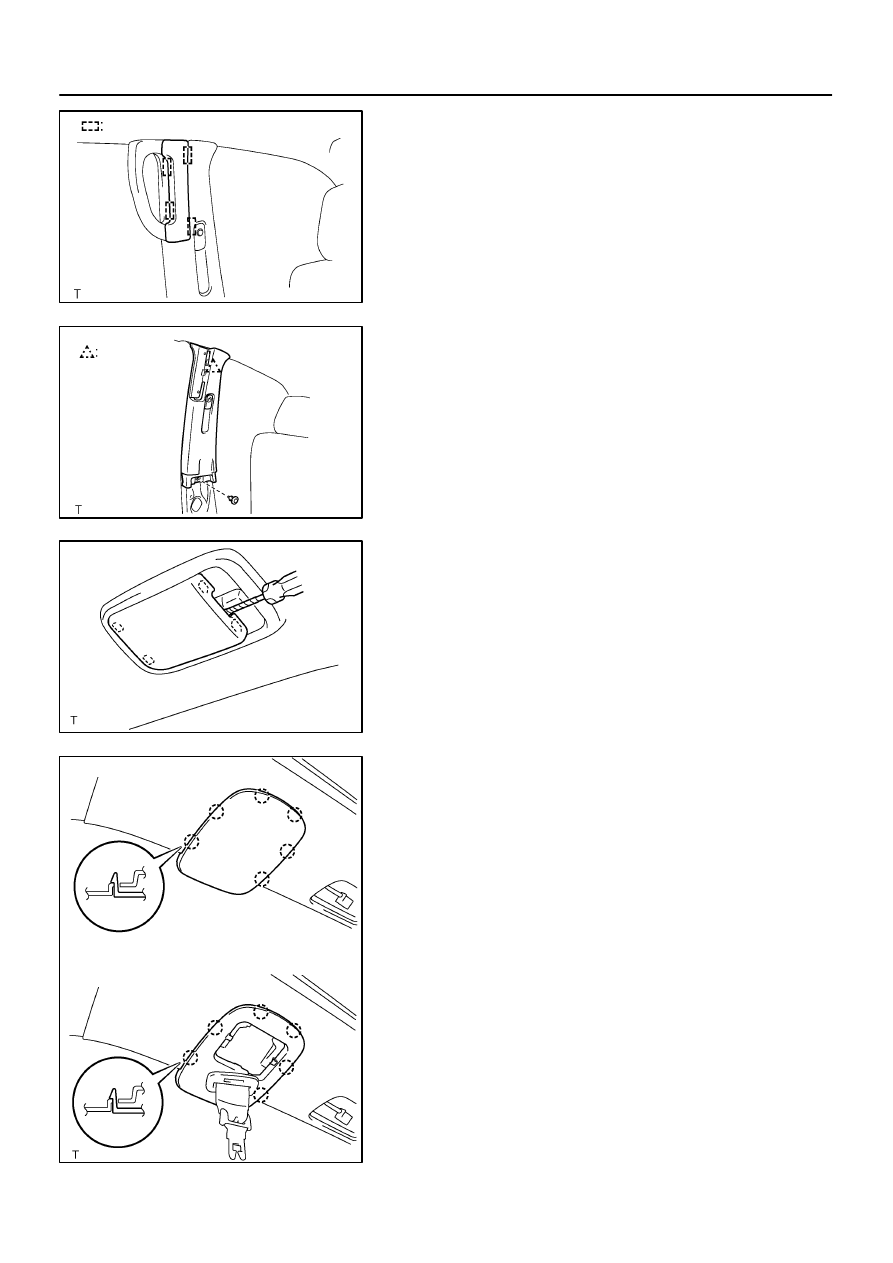

REMOVE CENTER PILLAR GARNISH

(a)

Remove the clip.

(b)

Remove the center pillar garnish.

(c)

Use the same manner described above to the other side.

13.

REMOVE DOME LIGHT

(a)

Using a screwdriver, remove the lens.

HINT:
Tape the screwdriver tip before use.
(b)

Remove the 2 screws and dome light, then disconnect the
connector.

14.

REMOVE REAR TRIM COVER

Using a screwdriver, remove the rear trim cover.
HINT:
Tape the screwdriver tip before use.
