BO4SB–01

H24345

RH Lower Reclining
Adjuster Inside Cover

Seat Cushion
Outer Shield

Vertical Adjuster Handle Cap

Reclining Adjuster Release Handle

Seat Cushion
Inner Shield

RH Upper Reclining
Adjuster Inside Cover

RH Seat Cushion
Lower Shield

LH Lower Reclining
Adjuster Inside Cover

LH Upper Reclining
Adjuster Inside Cover

LH Seat Cushion
Lower Shield

Vertical Adjuster Handle

Non–reusable part

: Specified torque

N·m (kgf·cm, ft·lbf)

Driver’s seat:

Driver’s seat:

37 (380, 27)

37 (380, 27)

37 (380, 27)

37 (380, 27)

42 (430, 32)

Seatback Cover

Seat Cushion
Cover

Seat Cushion
Pad

Armrest Cap

Armrest Spacer

Armrest
Lock Plate

Spacer

Armrest Assembly

Headrest

Headrest Support

Seatback Pad

Seat Frame Assembly

Seat Position Sensor
Protector

Seat Position Sensor

Front Seat
Inner Belt

Hog Ring

Seat Track Cover

Seat Track Cover

Hog Ring

37 (380, 27)

Occupant Classification ECU

Passenger’s seat:

w/ Side airbag:

5.5 (56, 49 in.·lbf)

BO–124

–

BODY

FRONT SEAT (Manual Adjuster Type)

3677

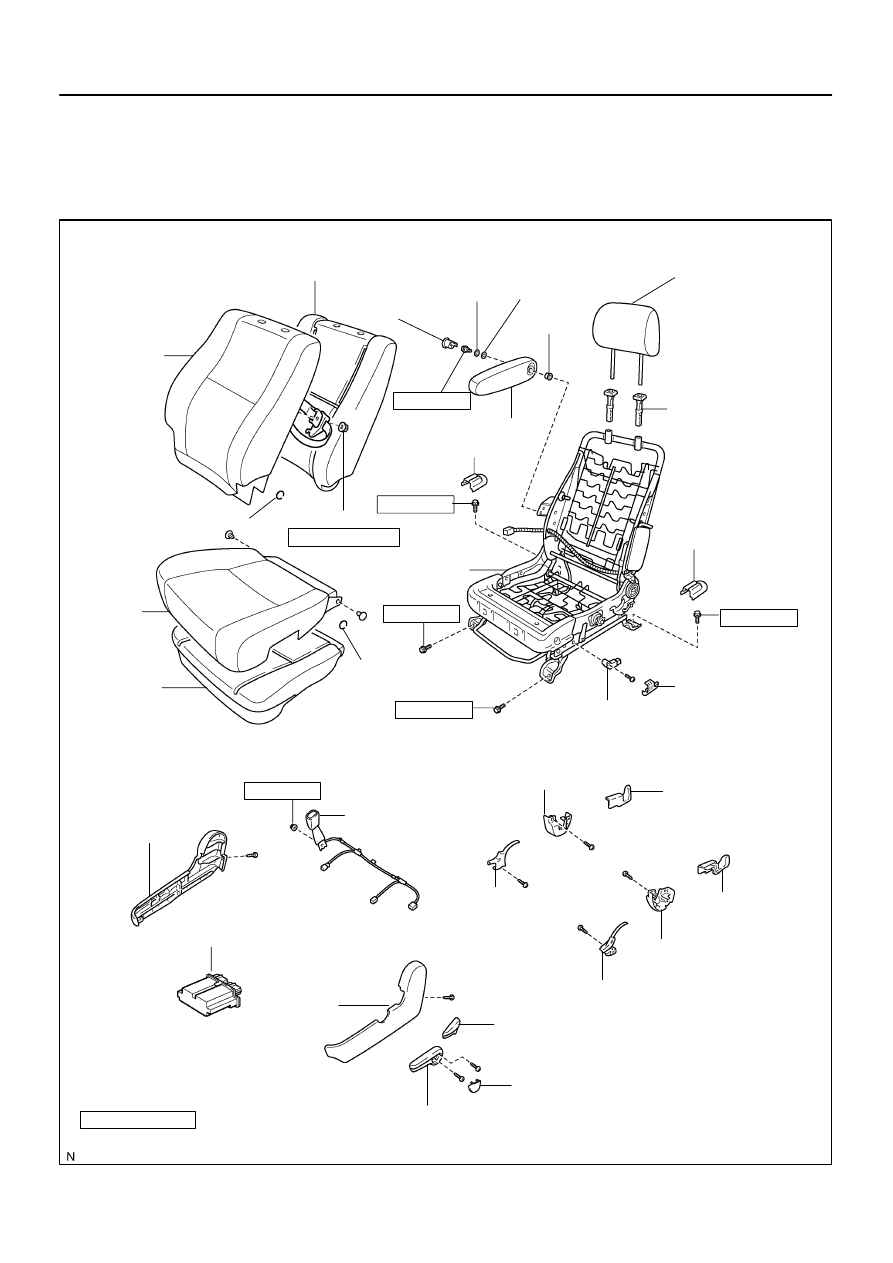

FRONT SEAT (Manual Adjuster Type)

COMPONENTS

HINT:
The procedures listed below are for the LH side.

BO4SC–01

–

BODY

FRONT SEAT (Manual Adjuster Type)

BO–125

3678

REMOVAL

CAUTION:
Work must not be started until at least 90 seconds after the ignition switch is turned to the LOCK posi-
tion and the negative (–) terminal cable is disconnected from the battery.
(The SRS is equipped with a back–up power source. If work is started within 90 seconds from discon-
necting the negative (–) terminal cable of the battery, the SRS may deploy.)
NOTICE:
When removing/installing and overhauling the passenger seat, check the passenger occupant clas-
sification system and perform the zero point calibration (see page

DI–1128

).

HINT:
The procedures listed below are for the LH side.
1.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
2.

REMOVE SEAT TRACK COVERS

Using a screwdriver, remove the seat track covers.
HINT:
Tape the screwdriver tip before use.
3.

REMOVE FRONT SEAT

(a)

Remove the 4 bolts.

(b)

Disconnect the connectors.

(c)

w/ Side airbag:
Disconnect the airbag connector.

(d)

Remove the front seat.

NOTICE:
Be careful not to damage the vehicle body.

BO4SD–01

H24331

Claws

Clip

H24332

H24333

H24334

Claws

Clip

BO–126

–

BODY

FRONT SEAT (Manual Adjuster Type)

3679

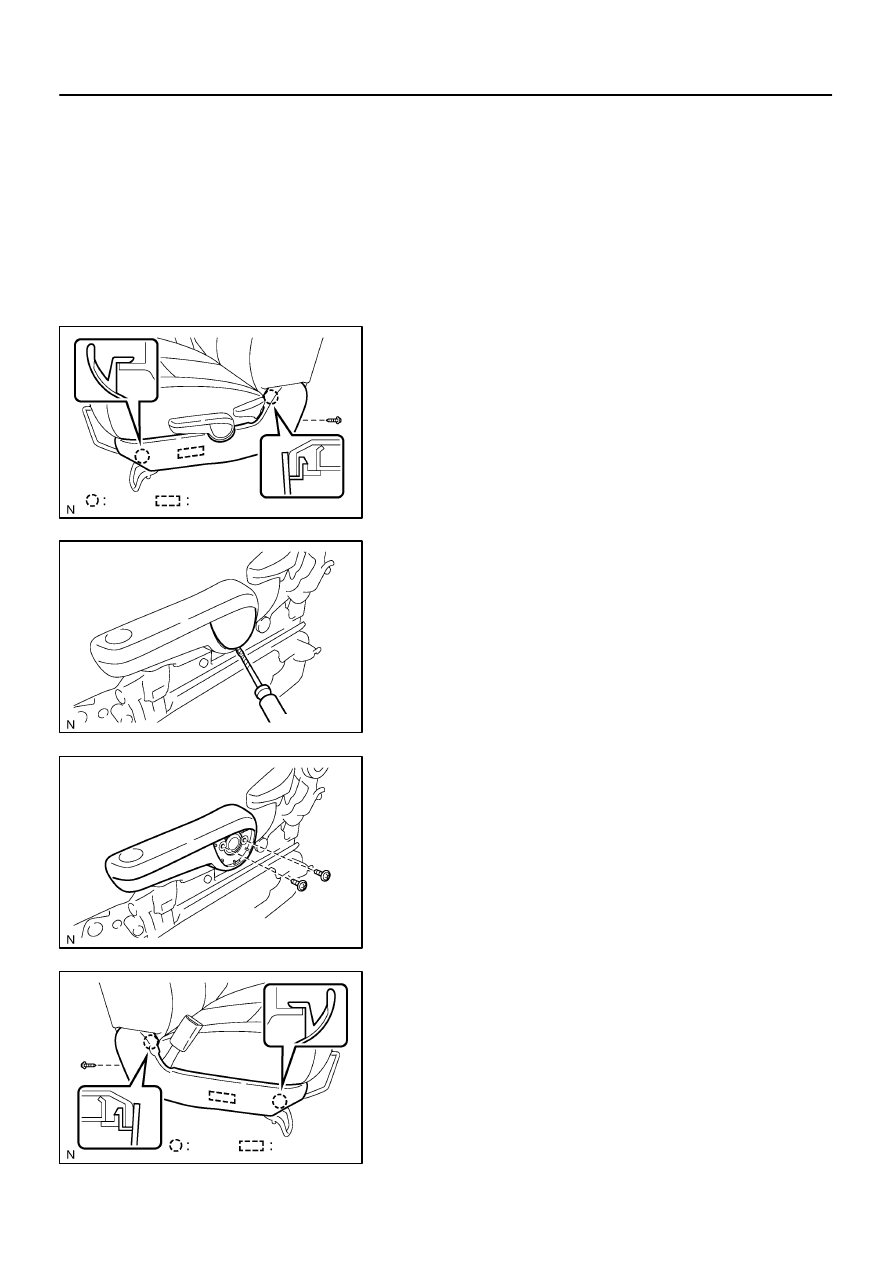

DISASSEMBLY

CAUTION:
Wear safety gloves, because the sharp edges and surfaces
of the seat frame may cause injury to the hands.
HINT:

The procedures listed below are for the LH side.

Tape the screwdriver tip before using it to remove the
parts.

1.

REMOVE HEADREST

2.

REMOVE SEAT CUSHION OUTER SHIELD

(a)

Remove the screw from the seat cushion outer shield.

(b)

Using a screwdriver, remove the seat cushion outer
shield.

HINT:
Tape the screwdriver tip before use.
3.

REMOVE RECLINING ADJUSTER RELEASE HANDLE

4.

REMOVE VERTICAL ADJUSTER HANDLE

(a)

Using a screwdriver, remove the vertical adjuster handle
cap.

HINT:
Tape the screwdriver tip before use.

(b)

Remove the 2 screws and the vertical adjuster handle.

5.

REMOVE SEAT CUSHION INNER SHIELD

(a)

Remove the screw from the seat cushion inner shield.

(b)

Using a screwdriver, remove the seat cushion inner
shield.

HINT:
Tape the screwdriver tip before use.
6.

REMOVE FRONT SEAT INNER BELT

(a)

Disconnect the wire harness clamps and connectors.

(b)

Remove the nut and front seat inner belt.

H24316

H24337

H24861

H24338

Hog Ring

H24339

Hog Ring

–

BODY

FRONT SEAT (Manual Adjuster Type)

BO–127

3680

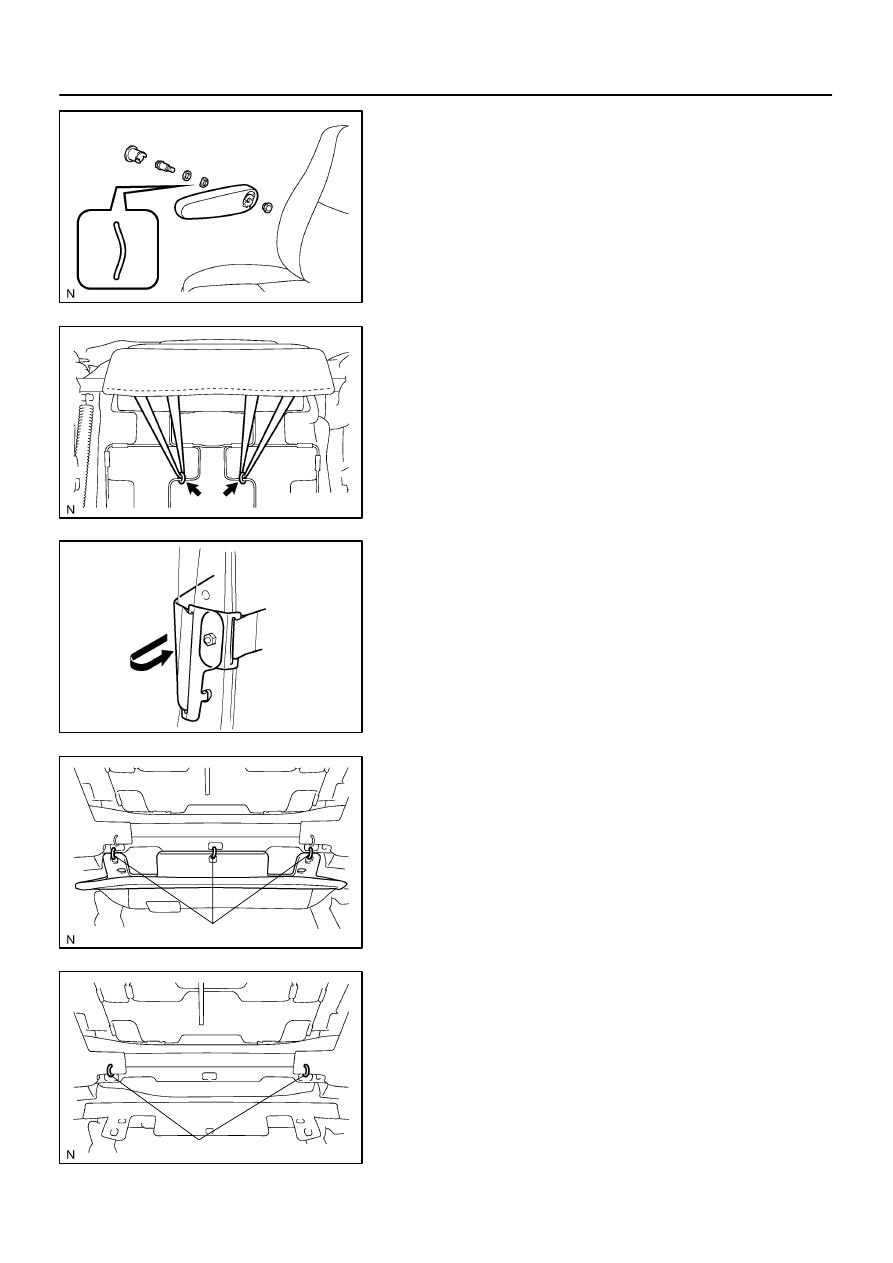

7.

REMOVE ARMREST ASSEMBLY

(a)

Using a screwdriver, remove the armrest cap.

(b)

Remove the bolt, armrest spacer, armrest lock plate and
armrest assembly.

(c)

Remove the spacer from the armrest assembly.

8.

REMOVE SEATBACK COVER AND PAD

(a)

Remove the hog rings from the seat frame assembly.

(b)

Open the fastener.

(c)

w/ Side airbag:
Remove the nut and disconnect the seatback cover
bracket from the seat frame assembly.

(d)

Remove the hog rings shown in the illustration from the
seat frame assembly.

(e)

Remove the hog rings shown in the illustration from the
seat frame assembly.

(f)

Remove the seatback cover and pad from the seat frame
assembly.
