BO46L–01

H16781

Rear Trim

w/ Rear No.2 seat:
Rear Trim Cover

Dome Light

Lens

Quarter Window Glass

Rear Window Side Garnish

No. 2 Rear Window
Side Garnish

w/ Rear No. 2 seat:
Quarter Trim Upper Belt Hole Cover

Quarter Trim Panel

Rear Door Scuff Plate

Rear Door Opening
Trim Weatherstrip

Rear Floor Mat Support Plate

 Non–reusable part

N·m (kgf·cm, ft·lbf) : Specified Torque

w/o Rear No. 2 seat:
Quarter Trim Hole Cover

42 (430, 31)

42 (430, 31)

42 (430, 31)

Dam

w/o Rear No.2 seat:
Rear Trim Cover

BO–68

–

BODY

QUARTER WINDOW GLASS

3621

QUARTER WINDOW GLASS

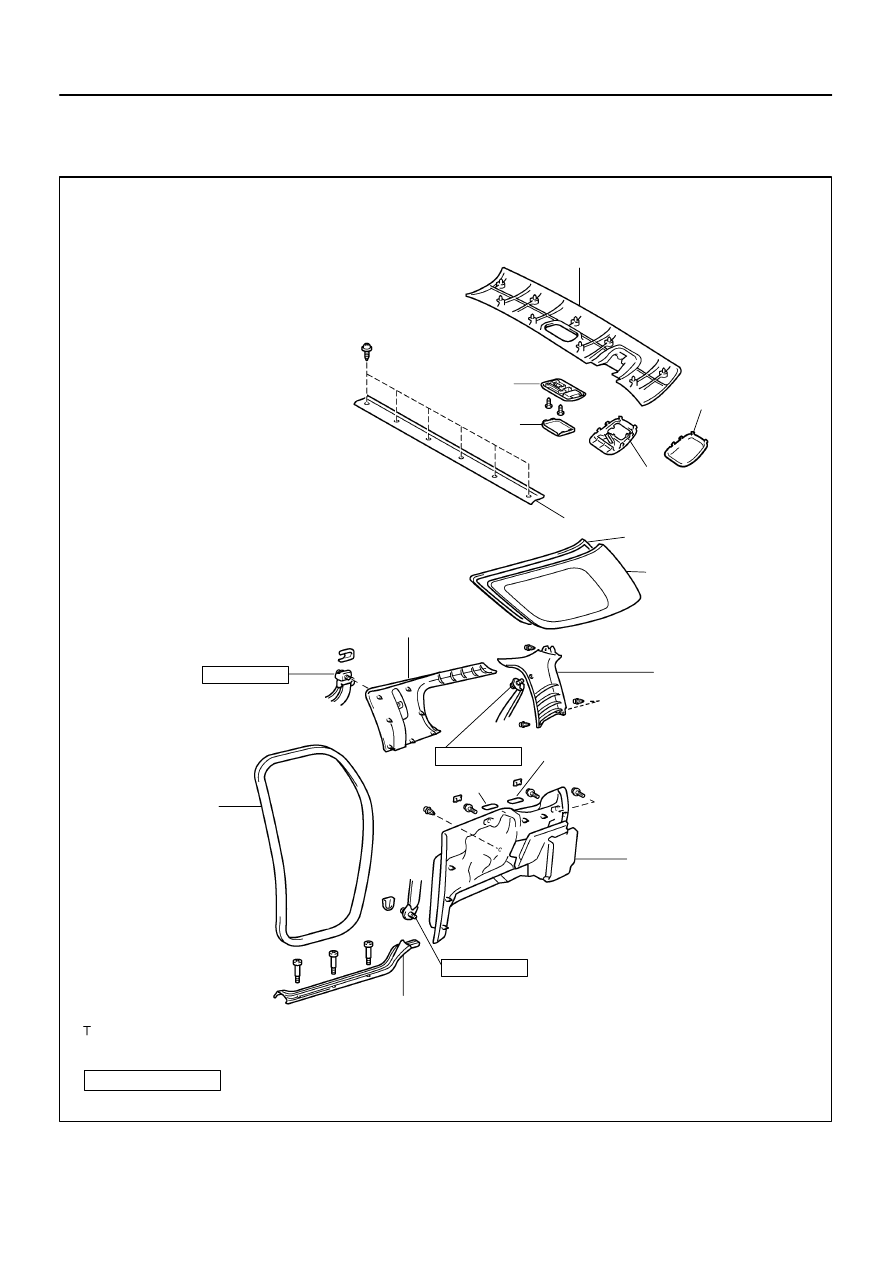

COMPONENTS

BO46M–02

H16718

Clip

H11151

H17633

w/ Rear No. 2 seat:

w/o Rear No. 2 seat:

–

BODY

QUARTER WINDOW GLASS

BO–69

3622

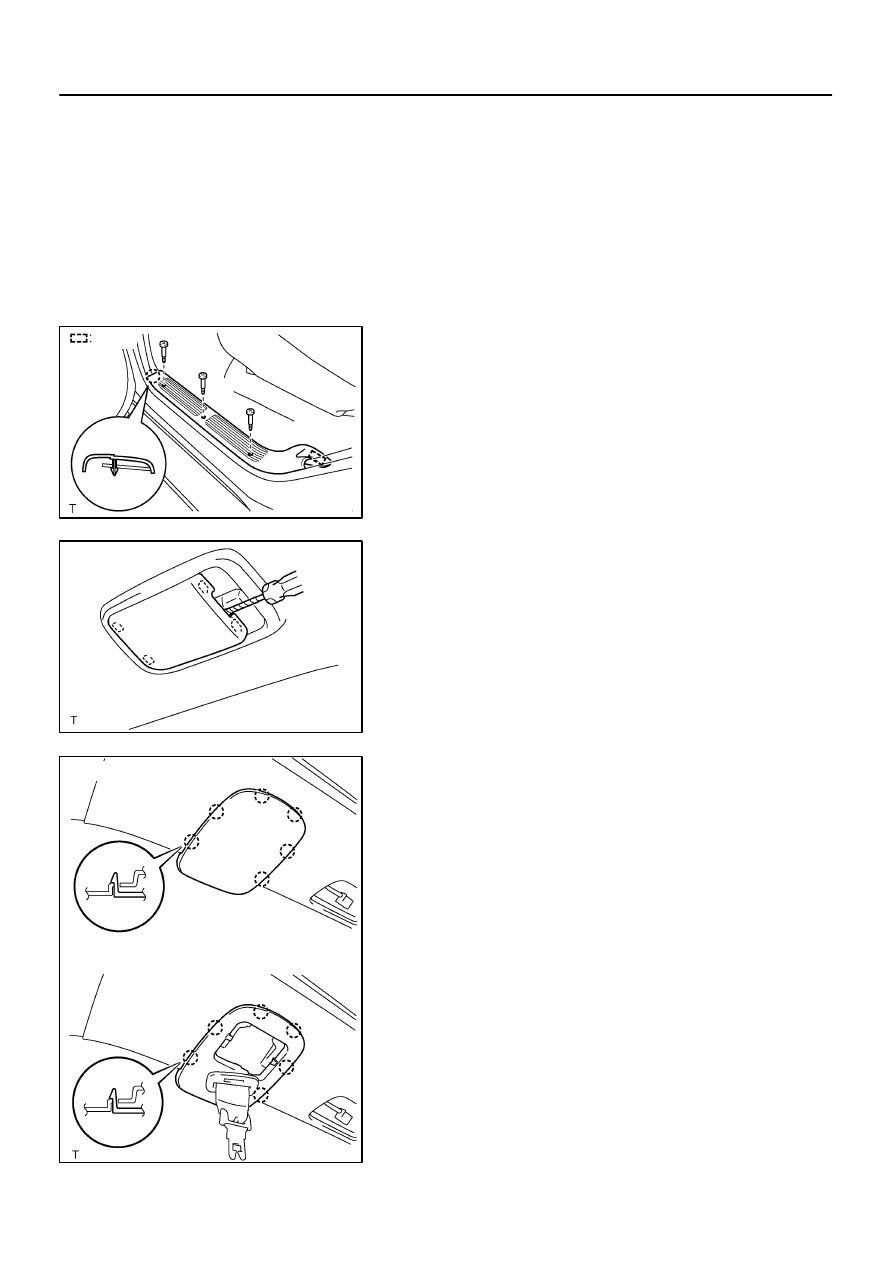

REMOVAL

1.

w/ Rear No. 2 seat:
REMOVE REAR NO. 2 SEAT

2.

REMOVE REAR DOOR SCUFF PLATE

(a)

Remove the 3 screws.

(b)

Using a screwdriver, remove the rear door scuff plate.

HINT:
Tape the screwdriver tip before use.
3.

REMOVE REAR DOOR OPENING TRIM WEATH-
ERSTRIP

4.

REMOVE DOME LIGHT

(a)

Using a screwdriver, remove the lens.

HINT:
Tape the screwdriver tip before use.
(b)

Remove the 2 screws and dome light, then disconnect the
connector.

5.

REMOVE REAR TRIM COVER

Using a screwdriver, remove the rear trim cover.
HINT:
Tape the screwdriver tip before use.

H16724

9 Clips

H16725

H16726

H16727

BO–70

–

BODY

QUARTER WINDOW GLASS

3623

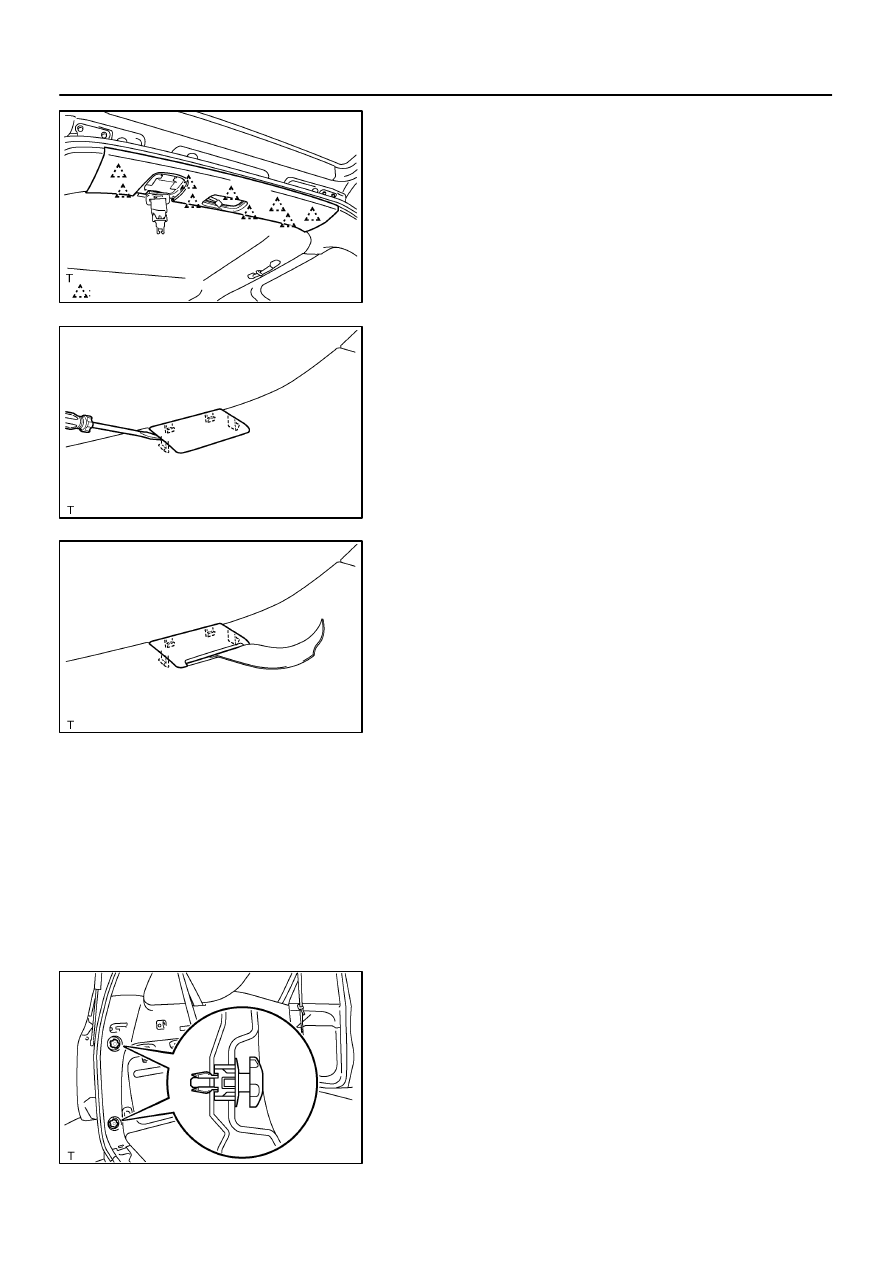

6.

REMOVE REAR TRIM

Using a screwdriver, remove the rear trim.
HINT:
Tape the screwdriver tip before use.
7.

REMOVE REAR FLOOR MAT SUPPORT PLATE

8.

w/o Rear No. 2 seat:
REMOVE QUARTER TRIM HOLE COVER

Using a screwdriver, remove the quarter trim hole cover.
HINT:
Tape the screwdriver tip before use.

9.

w/ Rear No. 2 seat:
REMOVE QUARTER TRIM UPPER BELT HOLE COV-
ER

Using a screwdriver, remove the quarter trim upper belt hole
cover.
HINT:
Tape the screwdriver tip before use.
10.

REMOVE QUARTER TRIM PANEL

(a)

w/o Tonneau cover:
Using a screwdriver, remove the 2 No. 1 tonneau cover
holder caps.

HINT:
Tape the screwdriver tip before use.

(b)

Remove the 2 package holder net hooks.

(c)

Remove the rear No. 1 seat outer belt floor anchor.

H16728

5 Clips
4 Clips

H16731

2 Clips
Clip

H16732

7 Clips
2 Clips

H16741

Protective Tape

–

BODY

QUARTER WINDOW GLASS

BO–71

3624

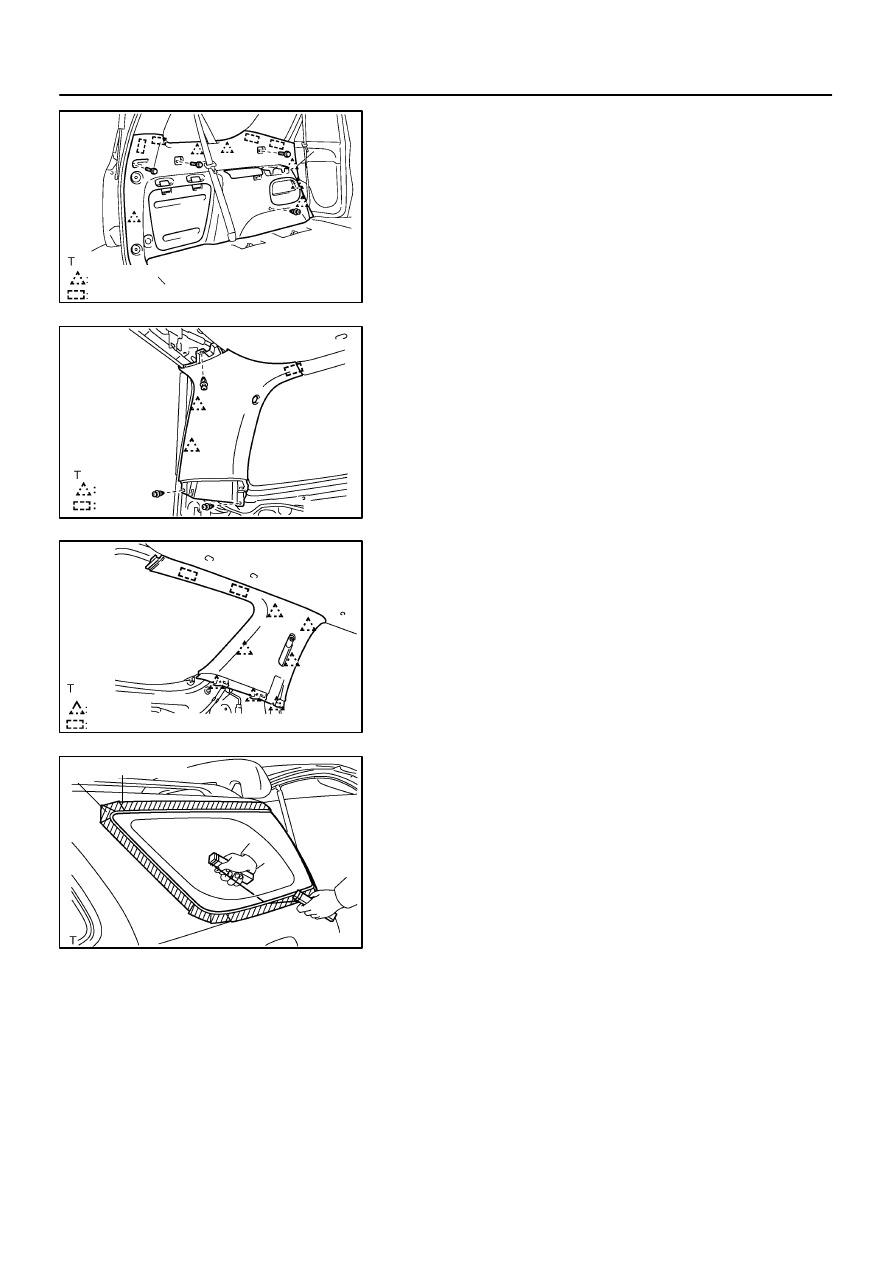

(d)

Remove the 3 bolts, clip and quarter trim panel, then dis-
connect the connector.

11.

w/ Rear No. 2 seat:
REMOVE REAR NO. 2 SEAT OUTER BELT SHOUL-
DER ANCHOR

12.

REMOVE NO. 2 REAR WINDOW SIDE GARNISH

Remove the 2 clips and No. 2 rear window side garnish.
13.

REMOVE REAR NO. 1 SEAT OUTER BELT SHOUL-
DER ANCHOR

(a)

Using a screwdriver, remove the anchor cap.

HINT:
Tape the screwdriver tip before use.
(b)

Remove the rear No. 1 seat outer belt shoulder anchor.

14.

REMOVE REAR WINDOW SIDE GARNISH

Remove the rear window side garnish.

15.

REMOVE QUARTER WINDOW GLASS

(a)

w/ Glass antenna:
Disconnect the connectors from the glass antenna termi-
nals.

(b)

Push a piano wire through from the interior.

(c)

Tie both wire ends to wooden blocks or similar objects.

HINT:
Apply protective tape to the outer surface to keep the surface
from being scratched.
NOTICE:
When separating the glass, take care not to damage the
paint and interior.
