H16742

H16743

Protective Tape

BO–72

–

BODY

QUARTER WINDOW GLASS

3625

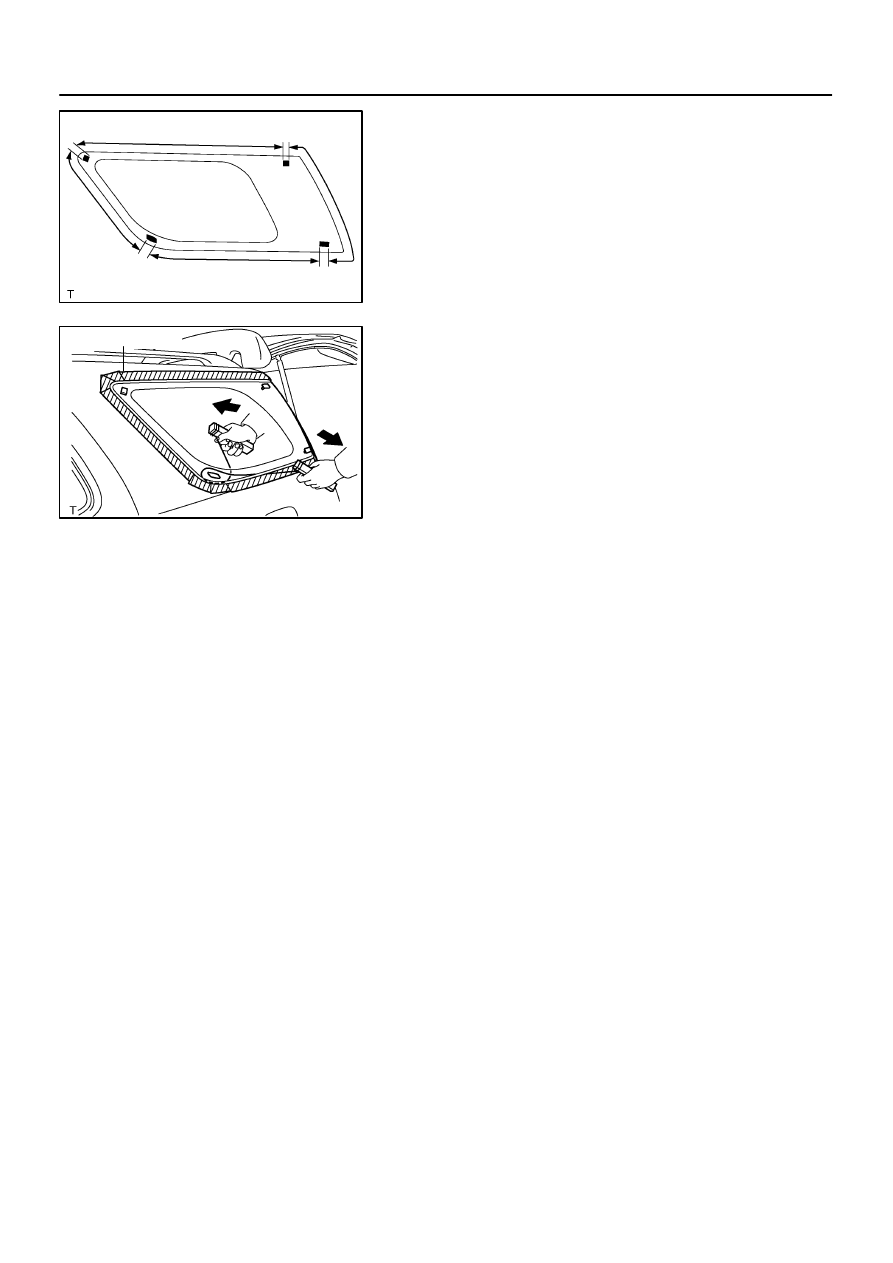

(d)

Cut the adhesive by pulling the piano wire around it.

HINT:
Cut the adhesive areas as shown in the illustration, leaving the
adhesive where the clips are.

(e)

Push the piano wire through as shown in the illustration,
cut off the adhered part to the clips.

(f)

Remove the glass.

NOTICE:
Leave as much of the adhesive on the body as possible
when cutting off the glass.

BO46N–01

BO4420

Adhesive

BO4421

H16744

a

a – a

A

b – b

B

c – c

a

c

c

b

b

A

H02865

Adhesive

Primer M

Primer M

–

BODY

QUARTER WINDOW GLASS

BO–73

3626

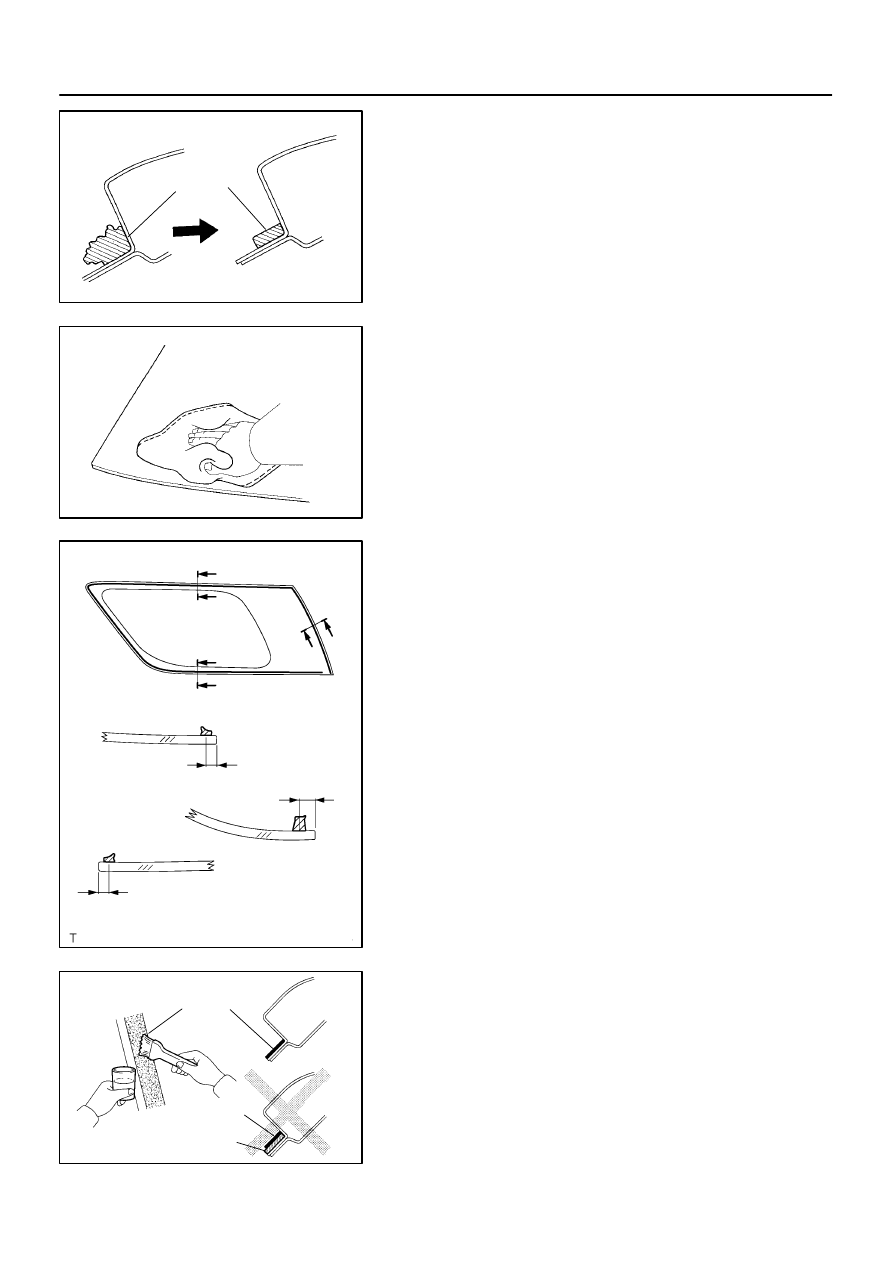

INSTALLATION

1.

CLEAN AND SHAPE CONTACT SURFACE OF BODY

(a)

Using a knife, cut away any rough areas on the body.

HINT:
Leave the adhesive on the body as much as possible.
(b)

Clean the cut surface of the adhesive with a shop rag sat-
urated in cleaner.

HINT:
Even if all the adhesive has been removed, clean the body.

2.

CLEAN CONTACT SURFACE OF NEW GLASS

Using a cleaner, clean the contact surface around the entire
glass rim.
NOTICE:
Do not touch the glass face after cleaning it.

3.

INSTALL NEW DAMS

Install new dams with adhesive tape as shown in the illustration.

A: 5.1 mm (0.201 in.)
B: 7.2 mm (0.283 in.)

4.

COAT CONTACT SURFACE OF BODY WITH PRIMER
”M”

Using a brush, coat Primer M to the exposed part of body on the
vehicle side.
NOTICE:

Let the primer coating dry for 3 minutes or more.

Do not coat Primer M to the adhesive.

Do not keep any of the opened Primer M for later use.

H16746

a – a

15 mm (0.59 in.)

22 mm (0.87 in.)

c – c

15 mm (0.59 in.)

b – b

a

b

c

a

b

c

Primer G

Primer G

Primer G

BO–74

–

BODY

QUARTER WINDOW GLASS

3627

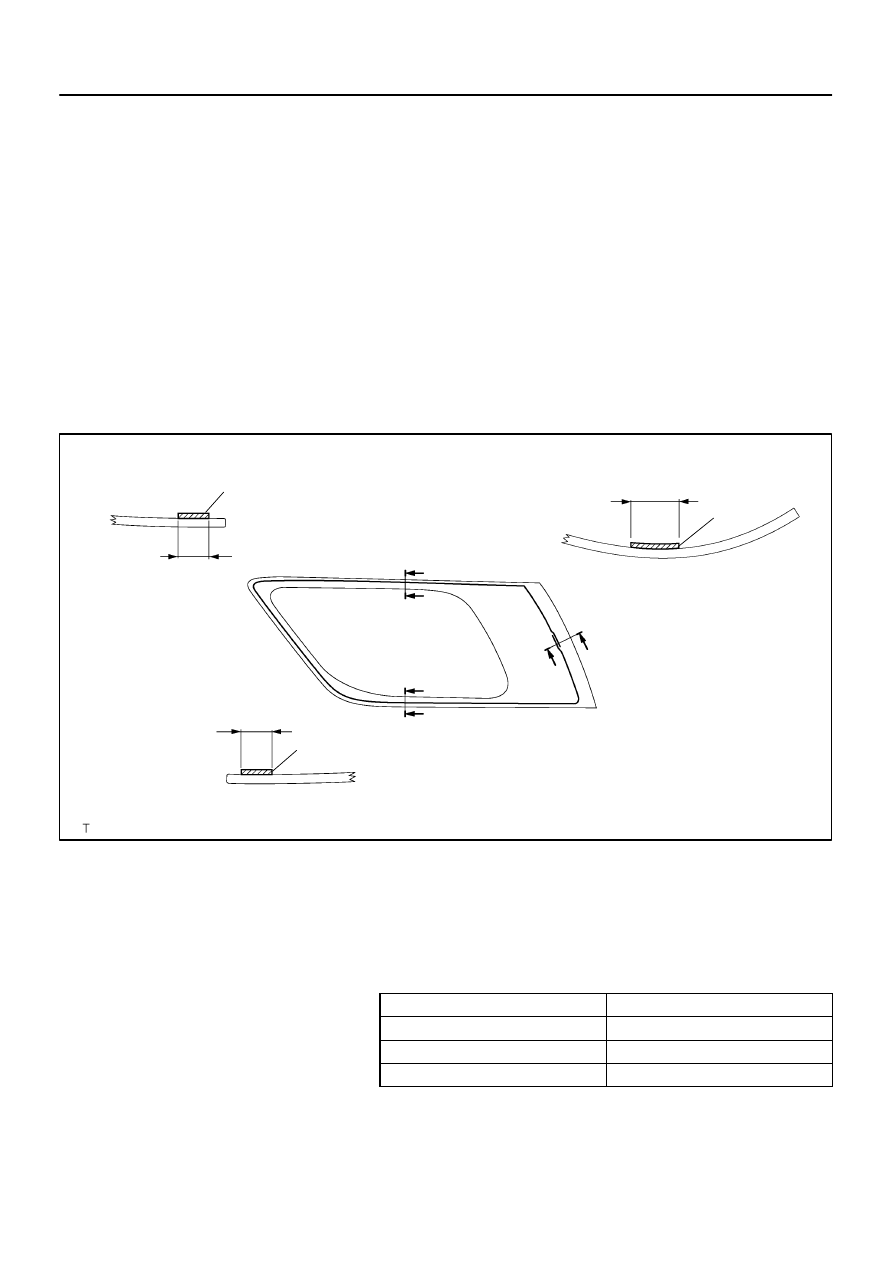

5.

COAT CONTACT SURFACE OF GLASS WITH PRIMER
”G”

(a)

Using a brush or sponge, coat the edge of the glass and
the contact surface with Primer G as shown in the illustra-
tion on the following page.

(b)

When the primer is coated wrongly to the area other than
the specified, wipe it off with a clean shop rag before the
primer dries.

NOTICE:

Let the primer coating dry for 3 minutes or more.

Do not keep any of the opened Primer G for later use.

6.

APPLY ADHESIVE

(a)

Cut off the tip of the cartridge nozzle.
Part No. 08850–00801 or equivalent.

HINT:
After cutting off the tip, use all adhesive within the time de-
scribed in the table below.

Temperature

Tackfree time

35

°

C (95

°

F)

15 minutes

20

°

C (68

°

F)

100 minutes

5

°

C (41

°

F)

8 hours

(b)

Load the cartridge into the sealer gun.

H16745

a – a

13.5 mm
(0.531 in.)

8 mm (0.31 in.)

c – c

8 mm (0.31 in.)

b – b

a

b

c

a

b

c

8 mm (0.31 in.)

13.5 mm
(0.531 in.)

Adhesive

Adhesive

Adhesive

–

BODY

QUARTER WINDOW GLASS

BO–75

3628

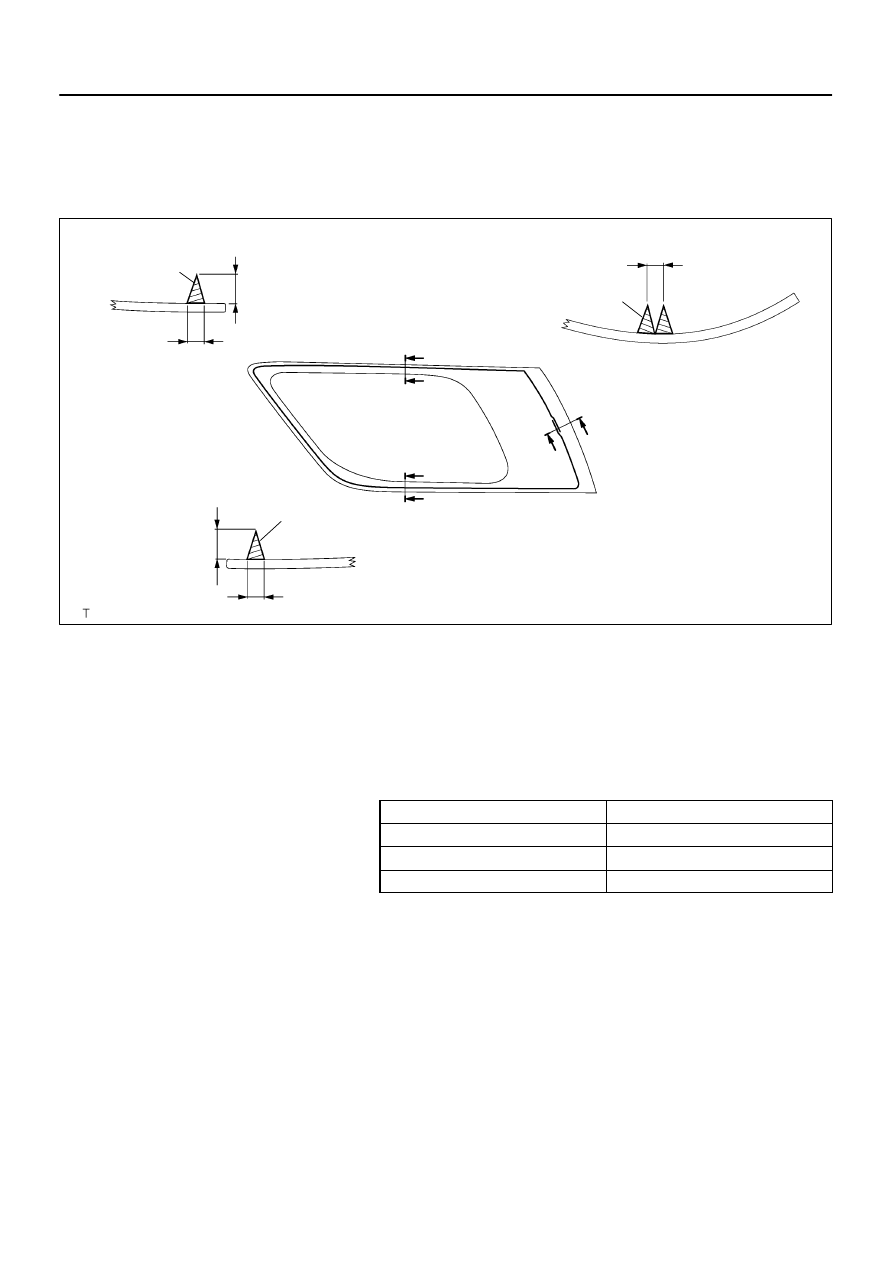

(c)

Coat the glass with adhesive as shown in the illustration
on the following page.
Adhesive height: 13.5 mm (0.531 in.)
Adhesive width: 8.0 mm (0.315 in.)

7.

INSTALL GLASS

(a)

Install the glass to the body.

(b)

Hold the glass in place securely with a protective tape or
equivalent until the adhesive hardens.

NOTICE:
Take care not to drive the vehicle during the time described
in the table below.

Temperature

MInimum time prior to driving the vehicle

35

°

C (95

°

F)

1.5 hours

20

°

C (68

°

F)

5 hours

5

°

C (41

°

F)

24 hours

8.

INSPECT FOR LEAK AND REPAIR

(a)

Conduct a leak test after the hardening time has elapsed.

(b)

Seal any leak with sealant.
Part No. 08833–00030 or equivalent

9.

INSTALL REAR WINDOW SIDE GARNISH

10.

INSTALL REAR No. 1 SEAT OUTER BELT SHOULDER
ANCHOR
Torque: 42 N·m (430 kgf·cm, 31 ft·lbf)

11.

INSTALL No. 2  REAR WINDOW SIDE GARNISH

12.

w/ Rear No. 2 seat:
INSTALL REAR No. 2 SEAT OUTER BELT SHOULDER
ANCHOR
Torque: 42 N·m (430 kgf·cm, 31 ft·lbf)
