BO46I–02

H18890

Roof Console Box

Front Door Opening
Trim Weatherstrip

Roof Headlining

Assist Grip

Assist Grip Plug

Front Pillar Garnish

Sun Visor

Roof Console Box

Assist Grip

Front Pillar
Garnish

Sun Visor

Holder

Holder

Inner Rear
View Mirror

 No. 2 Stopper

Windshield Outside
Upper Moulding

Windshield Outside Moulding

Roof Side Rail
Weatherstrip

Windshield
Outside Moulding

Windshield Glass

Wiper Arm

Wiper Arm

Cowl Top Ventilator Louver

Hood to Cowl Top Seal

 Non–reusable part

N·m (kgf·cm, ft·lbf) : Specified torque

 No. 2 Stopper

 Dam

w/ Sliding roof:

Roof Side Rail
Weatherstrip

w/ Electro chrmic
    inner rear view mirror:

Mirror Cover

Inner Rear
View Mirror

2.5



(25, 22 in.·lbf)

Front Door
Opening Trim
Weatherstrip

w/



Double sun visor:

Sun Visor

2.5 (25, 22 in.·lbf)

 Dam

Assist Grip Plug

Holder

Holder

Siding Roof
Headlining
Trim

20 (204, 15)

BO–60

–

BODY

WINDSHIELD

3613

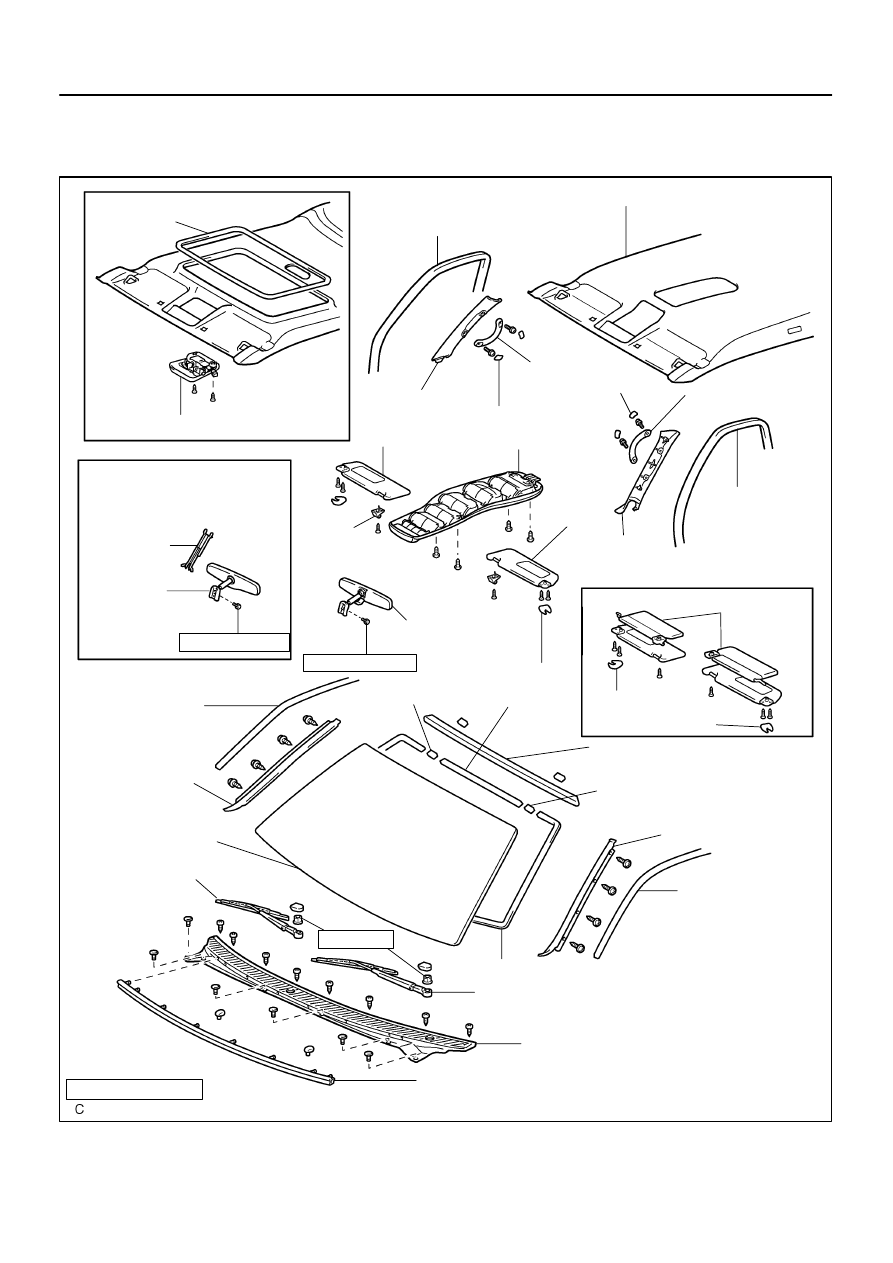

WINDSHIELD

COMPONENTS

BO4HJ–01

H16717

Clip

H16734

2 Clips

H16735

4 Clips

H18891

–

BODY

WINDSHIELD

BO–61

3614

REMOVAL

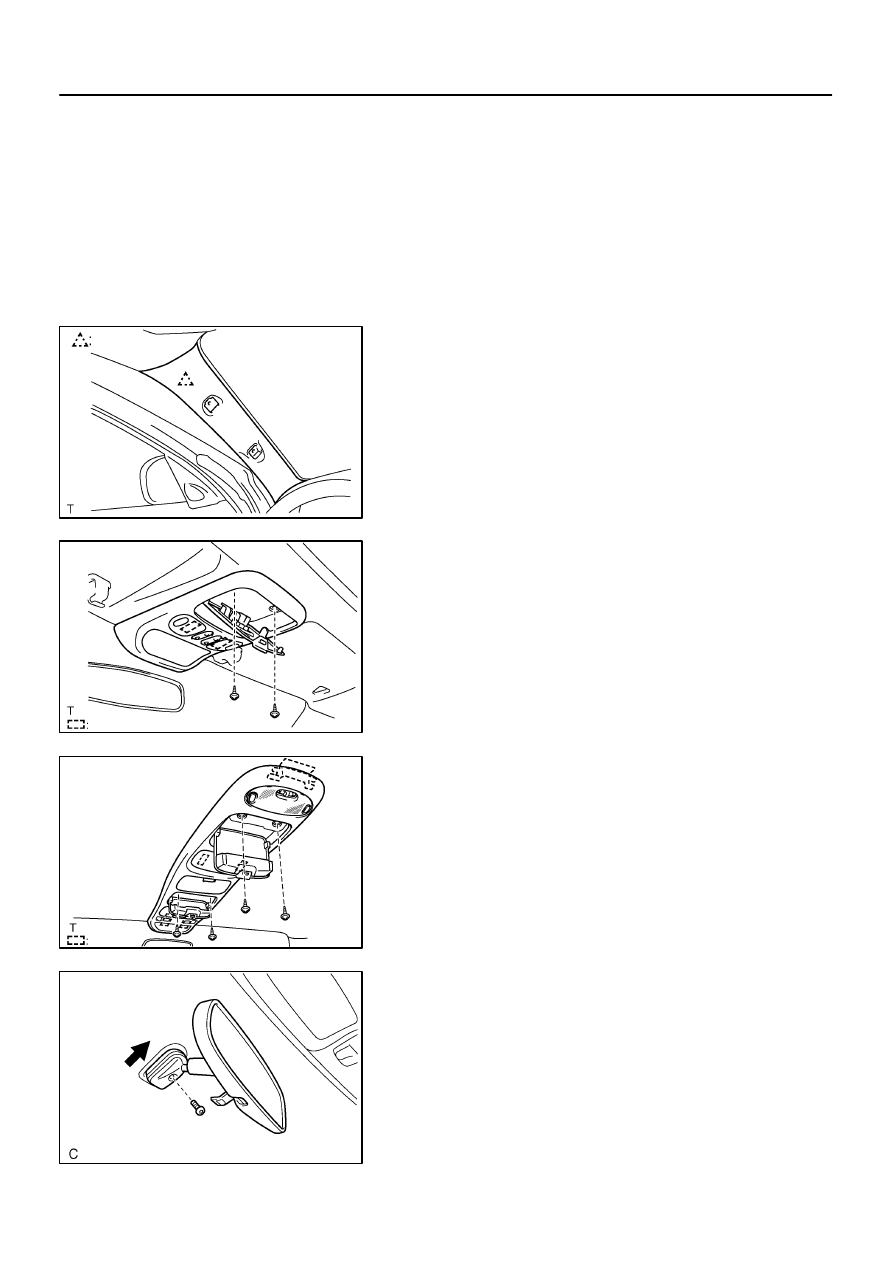

1.

REMOVE FRONT DOOR OPENING TRIM WEATH-
ERSTRIPS

2.

REMOVE FRONT PILLAR GARNISH

(a)

Remove the assist grip.
(1)

Using a screwdriver, remove the 2 assist grip plugs.

HINT:
Tape the screwdriver tip before use.

(2)

Remove the 2 screws and assist grip.

(b)

Remove the front pillar garnish.

(c)

Use the same manner described above to the other side.

3.

REMOVE SUN VISORS AND HOLDERS

4.

w/ Sliding roof:
REMOVE ROOF CONSOLE BOX

(a)

Remove the 2 screws.

(b)

Using a screwdriver, remove the roof console box.

HINT:
Tape the screwdriver tip before use.
(c)

Disconnect the connectors.

5.

w/o Sliding roof:
REMOVE ROOF CONSOLE BOX

(a)

Remove the 4 screws.

(b)

Using a screwdriver, remove the roof console box.

HINT:
Tape the screwdriver tip before use.
(c)

Disconnect the connectors.

6.

w/o Electro chromic inner rear view mirror:
REMOVE INNER REAR VIEW MIRROR

Remove the torx screw and inner rear view mirror as shown in
the illustration.

H18892

H16708

H05613

BO5232

H05619

BO–62

–

BODY

WINDSHIELD

3615

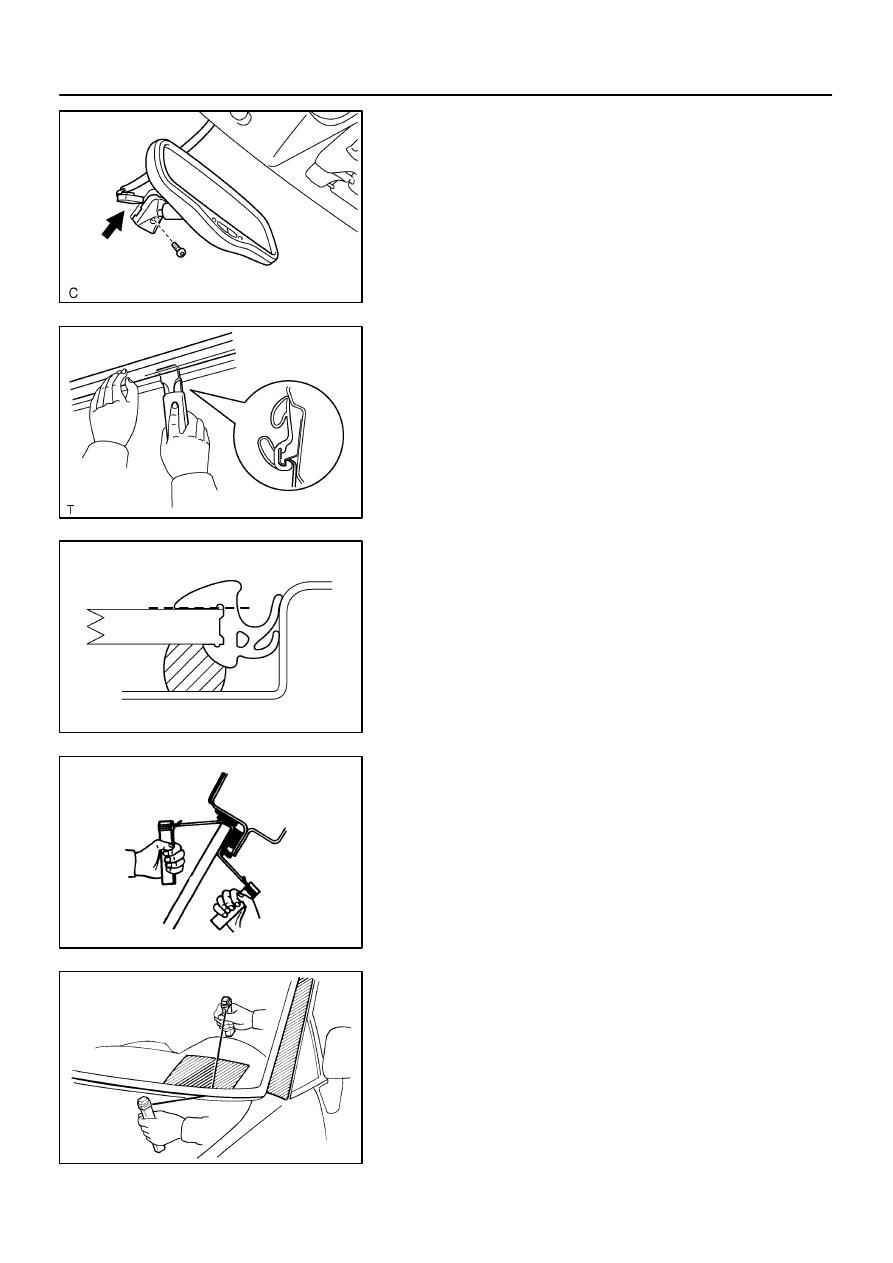

7.

w/ Electro chromic inner rear view mirror:
REMOVE INNER REAR VIEW MIRROR

(a)

Remove the mirror cover.

(b)

Disconnect the connector.

(c)

Remove the torx screw and inner rear view mirror.

8.

REMOVE WIPER ARMS

(a)

Using a screwdriver, remove the 2 caps.

HINT:
Tape the screwdriver tip before use.
(b)

Remove the 2 nuts and wiper arms.

9.

REMOVE COWL TOP VENTILATOR LOUVER

(a)

Remove the hood to cowl top seal.

(b)

Using a clip remover, remove the 6 clips.

(c)

Remove the 8 screws and cowl top ventilator louver.

10.

REMOVE ROOF SIDE RAIL WEATHERSTRIP

Using SST, pull off the roof side rail weatherstrip from front end.

SST

09806–30010

11.

REMOVE WINDSHIELD OUTSIDE MOULDINGS

Remove the 8 screws and windshield outside mouldings.

12.

REMOVE WINDSHIELD OUTSIDE UPPER MOULDING

Using a knife, cut off the moulding as shown in the illustration.
NOTICE:
Do not damage the body with the knife.

13.

REMOVE WINDSHIELD GLASS

(a)

Push piano wire through between the body and glass
from the interior.

(b)

Tie both wire ends to wooden blocks or similar objects.

HINT:
Apply protective tape to the outer surface to keep the surface
from being scratched.

NOTICE:
When separating the glass, be careful not to damage the
paint and exterior ornaments. To prevent scratching the
safety pad when removing the windshield, place a plastic
sheet between the piano wire and the safety pad.
(c)

Cut the adhesive by pulling the piano wire around it.

(d)

Remove the glass.

NOTICE:
Leave as much of the adhesive on the body as possible
when cutting off the glass.

BO4HK–01

BO4420

Adhesive

BO5231

H12587

H12588

Stopper

A

–

BODY

WINDSHIELD

BO–63

3616

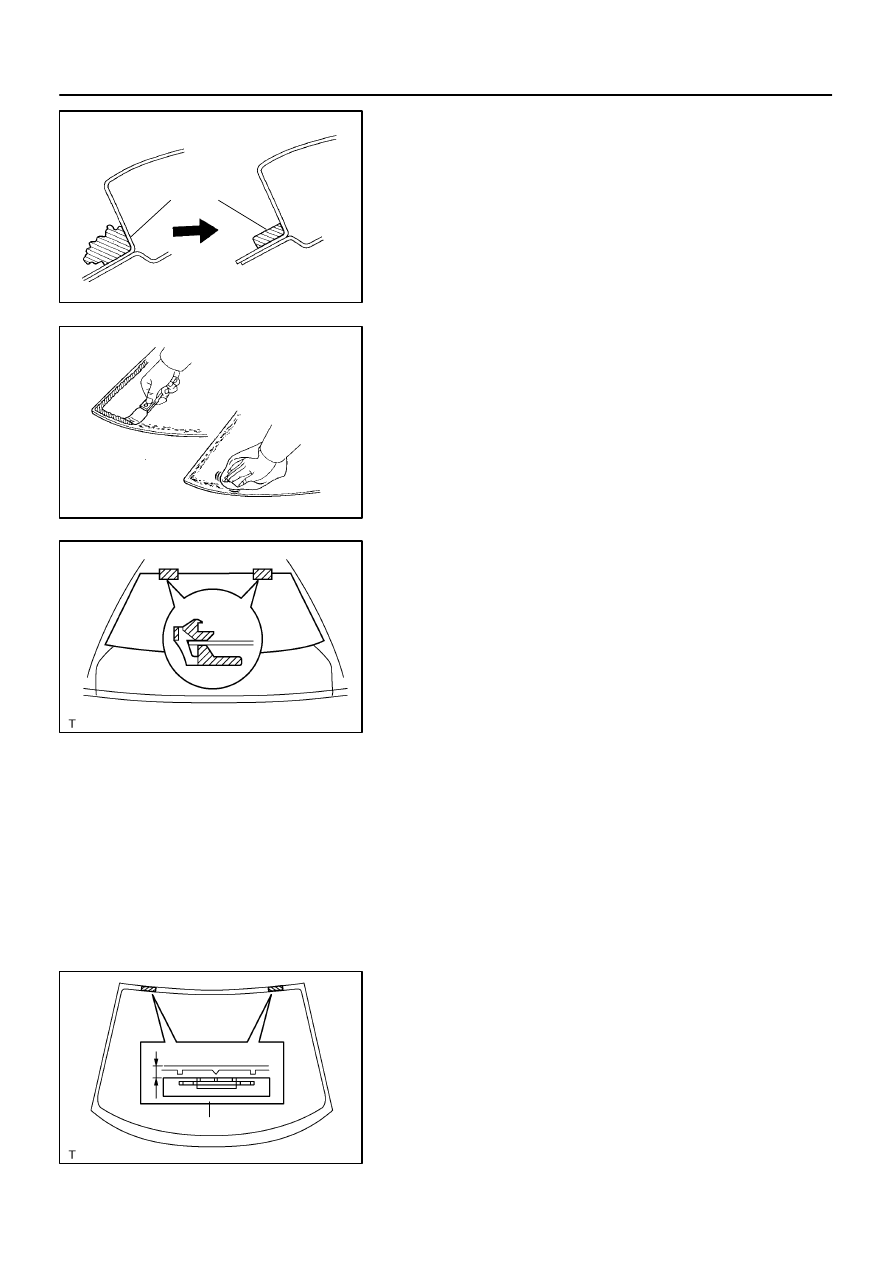

INSTALLATION

1.

CLEAN AND SHARE CONTACT SURFACE OF BODY

(a)

Using a knife, cut away any rough areas on the body.

HINT:
Leave the adhesive on the body as much as possible.
(b)

Clean the cut surface of the adhesive with a shop rag sat-
urated in cleaner.

HINT:
Even if the adhesive has been removed, clean the body.

2.

CLEAN REMOVE GLASS

(a)

Remove the damaged No. 2 stoppers and dams.

(b)

Using a scraper, remove the adhesive sticking to the
glass.

(c)

Clean the glass with cleaner.

NOTICE:

Be careful not to damage the glass.

Do not touch the glass face after cleaning it.

3.

w/ No. 1 stopper:
REPLACE NO. 1 STOPPERS

(a)

Remove the damaged stoppers.

(b)

Cut off the old adhesive around the stopper installation
area.

NOTICE:
Be careful not to damage the body.
(c)

Clean the installation area.

(d)

Attach new stoppers to the body so that the notches on
the body will align with the stoppers as shown in the il-
lustration.

HINT:
Make sure that the stoppers are installed facing the correct
direction.

4.

INSTALL NEW NO. 2 STOPPERS

Attach new stoppers to the glass so that the ceramic notches
on the glass will align with the stoppers as shown in the illustra-
tion.
HINT:
Make sure that the stoppers are installed facing the correct
direction.

A:
w/ No. 1 stopper: 8.0 mm (0.315 in.)
w/o No. 1 stopper: 8.9 mm (0.350 in.)
